Double-Gyre Example Scripts

The repository ships three example scripts that use the finitevolx API for spatial operators and finitevolx.heun_step for time integration. Each script uses xarray for preprocessing and postprocessing, writes sampled fields to Zarr, and saves an animated GIF showing the field evolution over time.

Running the examples

Install the repository with the example dependencies:

uv sync --all-extras

Then run any example directly:

uv run python scripts/swm_linear.py
uv run python scripts/shallow_water.py
uv run python scripts/qg_1p5_layer.py

Each script writes two artifacts by default:

  • a *.zarr directory with sampled model fields and diagnostics
  • a *.gif animated figure showing the field evolution over time

Use --output-dir to choose a different location for the artifacts.

Linear shallow-water model

Script: scripts/swm_linear.py

  • Periodic beta-plane, double-gyre wind forcing
  • Linearised momentum and mass equations
  • xarray coordinates for the initial height anomaly, Coriolis field, and wind forcing
  • Zarr output fields: eta, u, v, speed, relative_vorticity, kinetic_energy, mass_anomaly

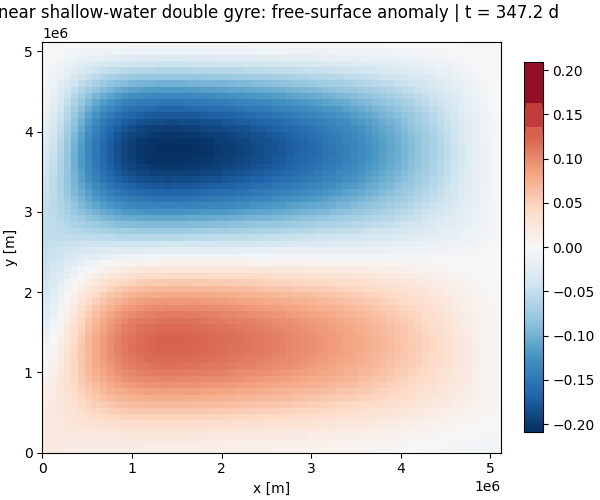

Linear shallow-water double gyre

Nonlinear shallow-water model

Script: scripts/shallow_water.py

  • Periodic beta-plane, double-gyre wind forcing
  • Nonlinear continuity equation with total depth H + eta
  • Compact Bernoulli and advective closure in the momentum equation
  • Zarr output fields: eta, u, v, speed, relative_vorticity, kinetic_energy, minimum_depth

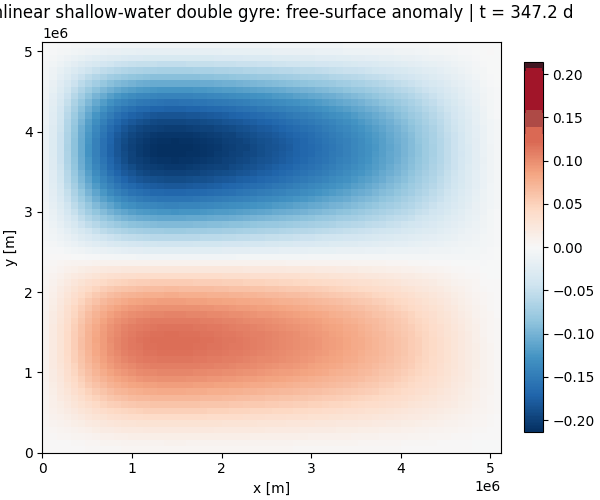

Nonlinear shallow-water double gyre

1.5-layer QG model

Script: scripts/qg_1p5_layer.py

  • Closed-basin Atlantic-style double-gyre (no-normal-flow solid walls, ψ = 0)
  • Potential-vorticity advection with Advection2D
  • Streamfunction inversion through solve_helmholtz_dst (homogeneous Dirichlet BCs)
  • Basin-scale defaults tuned toward the MQGeometry double-gyre benchmark (Lx = Ly = 5120 km, f0 = 9.375e-5 s^-1, beta = 1.754e-11 m^-1 s^-1)
  • Saved figure shows relative vorticity rather than streamfunction so the eddy field matches the expected diagnostic
  • Zarr output fields: q, psi, u, v, speed, relative_vorticity, pv_enstrophy

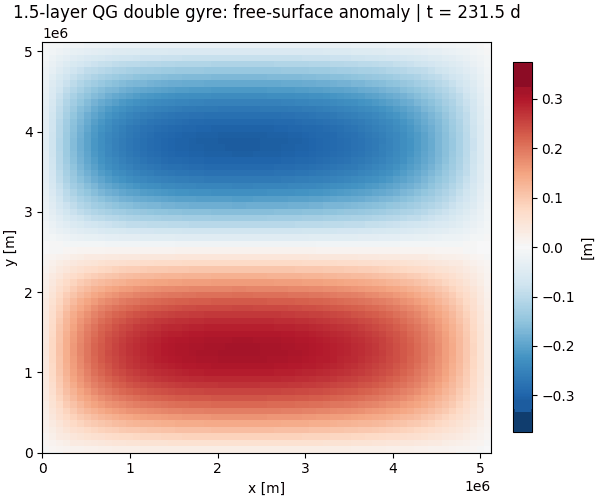

1.5-layer QG double gyre

Stability checks

The repository test suite installs the script dependencies through the test extra and runs smoke tests that execute all three scripts on small grids, reopen the generated Zarr stores, and check that the saved fields remain finite and within expected ranges. These automated checks complement the longer manual runs used to generate the figures shown above.
