1-D Advection: Comparing Reconstruction Schemes¶
This tutorial demonstrates how different reconstruction schemes handle the advection of a square wave on a periodic 1-D domain. It is a classic computational-fluid-dynamics benchmark that reveals the trade-offs between numerical diffusion (smearing) and dispersive oscillations (ringing).
By the end you will understand:
- How the flux-form advection equation is discretised on the Arakawa C-grid.
- How upwind, TVD, and WENO reconstruction schemes differ in practice.
- How to use
finitevolx.Advection1Dwith differentmethodoptions.
Prerequisites — read the Advection Theory page for the mathematical background on flux-form advection and reconstruction schemes.
The Governing Equation¶
We solve the 1-D linear advection equation in flux (conservative) form:
$$ \frac{\partial q}{\partial t} + \frac{\partial (u\,q)}{\partial x} = 0 $$
where $q(x,t)$ is a scalar field (e.g. a tracer concentration) and $u$ is a constant advection velocity. With periodic boundary conditions on $[0, L]$ and constant $u > 0$, the exact solution is simply the initial condition translated to the right:
$$ q(x, t) = q_0\!\bigl((x - u\,t) \bmod L\bigr) $$
After one full period $T = L / u$, the solution returns exactly to its initial shape. Any deviation from the initial condition is purely numerical error, making this an ideal benchmark.
Discrete form on the C-grid¶
On the Arakawa C-grid, the scalar $q$ lives at T-points (cell centres) and the velocity $u$ lives at U-points (cell faces). The semi-discrete tendency at T-point $i$ is
$$ \left.\frac{\partial q}{\partial t}\right|_i = -\frac{f_{i+\frac{1}{2}} - f_{i-\frac{1}{2}}}{\Delta x} $$
where $f_{i+1/2} = u_{i+1/2}\,\hat{q}_{i+1/2}$ is the numerical flux and $\hat{q}_{i+1/2}$ is the reconstructed face value. The choice of reconstruction scheme determines the accuracy and character of the solution.
The Four Schemes We Compare¶
We test six schemes spanning the library's range:
| Scheme | Type | Order | Character |
|---|---|---|---|
upwind1 |
Upwind | 1 | Maximum diffusion — smears everything |
upwind3 |
Upwind | 3 | Less diffusion, mild Gibbs-like oscillations |
superbee |
TVD limiter | 2 | Sharpest monotone scheme — compresses fronts |
weno5 |
WENO | 5 | High-order smooth + non-oscillatory near shocks |
weno7 |
WENO | 7 | Higher-order, sharper resolution of fine features |
weno9 |
WENO | 9 | Highest-order, best for smooth flows |
Upwind 1st-order reconstructs the face value as the upwind cell value:
$$ \hat{q}_{i+1/2} = \begin{cases} q_i & u_{i+1/2} \geq 0 \\ q_{i+1} & u_{i+1/2} < 0 \end{cases} $$
This is maximally diffusive but unconditionally monotone.
Upwind 3rd-order uses a 4-cell stencil to build a cubic reconstruction, trading some monotonicity for much less diffusion.
TVD/Superbee adds a flux limiter $\phi(r)$ to a 1st-order base:
$$ \hat{q}_{i+1/2} = q_i + \tfrac{1}{2}\,\phi(r)\,(q_i - q_{i-1}), \qquad r = \frac{q_{i+1} - q_i}{q_i - q_{i-1}} $$
Superbee: $\phi(r) = \max\!\bigl(0,\;\min(2r, 1),\;\min(r, 2)\bigr)$. It is the sharpest TVD limiter — fronts stay steep, but smooth profiles can develop staircase artefacts.
WENO5 blends three 3-point candidate stencils with nonlinear weights that automatically reduce to low order near discontinuities while maintaining 5th-order accuracy in smooth regions. See the Advection Theory page for the full formulation.
from __future__ import annotations
from pathlib import Path
import jax
import jax.numpy as jnp
import matplotlib
matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np
jax.config.update("jax_enable_x64", True)
import finitevolx as fvx
IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "advection_1d_schemes"
IMG_DIR.mkdir(parents=True, exist_ok=True)
Grid Setup¶
We construct a 1-D Arakawa C-grid on the periodic domain $[0, 1]$.
Ghost cells — The Advection1D operator writes its tendency to the
interior region [2:-2], meaning the outermost 2 cells on each side
receive zero tendency. For periodic advection we need the stencil to
"see through" the boundary, so we pad the domain with extra ghost cells
and fill them with periodic copies each timestep.
Ghost zone Physical domain Ghost zone
┌─┬─┬─┬─┐ ┌─┬─┬─┬─┬─ ··· ─┬─┬─┬─┬─┐ ┌─┬─┬─┬─┐
│g│g│g│g│ │0│1│2│3│4 ··· │ │ │ │nx│ │g│g│g│g│
└─┴─┴─┴─┘ └─┴─┴─┴─┴─ ··· ─┴─┴─┴─┴─┘ └─┴─┴─┴─┘
← ng → ← ng →
We use ng = 5 ghost cells per side, which is enough for all schemes
up to WENO9.
# --- physical parameters ---
nx = 256 # physical cells
Lx = 1.0 # domain length
c = 1.0 # advection velocity
# --- ghost ring ---
ng = 5 # ghost cells per side (≥ 5 for WENO9)
# --- grid ---
dx = Lx / nx
grid = fvx.ArakawaCGrid1D(Nx=nx + 2 * ng, Lx=Lx, dx=dx)
# cell-centre coordinates for the physical domain
x_phys = jnp.linspace(0.5 * dx, Lx - 0.5 * dx, nx)
print(f"Grid: {nx} physical cells, dx = {dx:.4e}, Nx (with ghosts) = {grid.Nx}")
Periodic Boundary Conditions¶
Before each call to Advection1D we must fill the ghost cells with
periodic copies from the opposite end of the physical domain.
Before: [g g g g | q0 q1 q2 ... q_{n-1} | g g g g]
↑ copy from → ↑
After: [q_{n-4} ... q_{n-1} | q0 q1 ... q_{n-1} | q0 q1 q2 q3]
def enforce_periodic_1d(h: jax.Array, ng: int) -> jax.Array:
"""Fill *ng* ghost cells on each side with periodic copies."""
# left ghosts ← rightmost physical cells
h = h.at[:ng].set(h[-2 * ng : -ng])
# right ghosts ← leftmost physical cells
h = h.at[-ng:].set(h[ng : 2 * ng])
return h
Initial Condition: Square Wave¶
A square wave (top-hat) is the classic test because it has two discontinuities — a rising edge and a falling edge. The exact solution never changes shape, so any smearing or ringing at time $T = L/u$ is purely numerical.
$$ q_0(x) = \begin{cases} 1 & 0.25 \leq x \leq 0.75 \\ 0 & \text{otherwise} \end{cases} $$
def square_wave(x, x_left=0.25, x_right=0.75):
"""Square wave (top-hat) initial condition."""
return jnp.where((x >= x_left) & (x <= x_right), 1.0, 0.0)
# Build the full array (physical + ghost cells)
q0_phys = square_wave(x_phys)
q0 = jnp.zeros(grid.Nx)
q0 = q0.at[ng:-ng].set(q0_phys)
q0 = enforce_periodic_1d(q0, ng)
# Constant velocity at all points (including ghosts)
u_field = c * jnp.ones(grid.Nx)

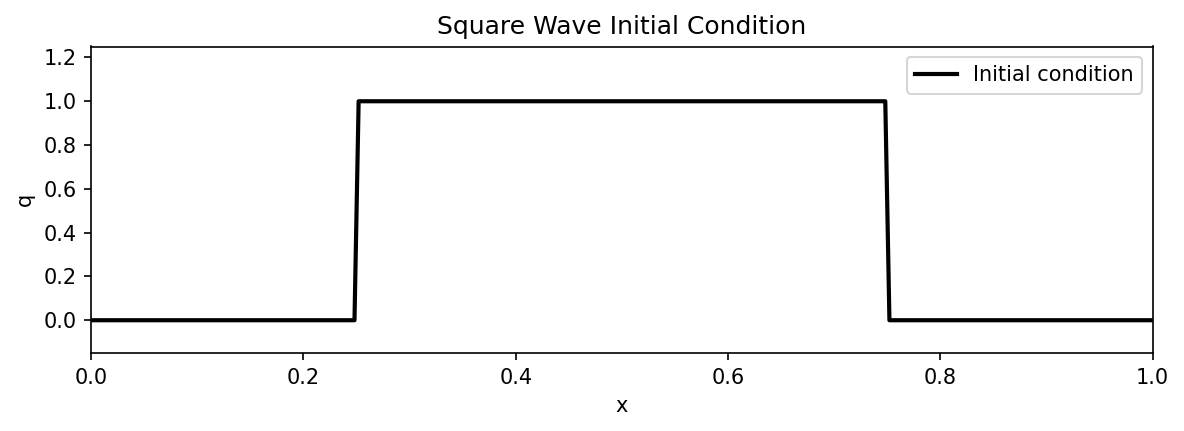

Let's visualise the initial condition:
fig, ax = plt.subplots(figsize=(8, 3))
ax.plot(x_phys, q0_phys, "k-", lw=2, label="Initial condition")
ax.set_xlabel("x")
ax.set_ylabel("q")
ax.set_title("Square Wave Initial Condition")
ax.set_xlim(0, 1)
ax.set_ylim(-0.15, 1.25)
ax.legend()
fig.tight_layout()
fig.savefig(IMG_DIR / "initial_condition.png", dpi=150, bbox_inches="tight")
Time Integration¶
We integrate using the SSP-RK3 (Strong Stability Preserving Runge–Kutta, 3rd-order) time stepper. SSP schemes preserve the monotonicity and TVD properties of the spatial discretisation, making them the natural partner for TVD and WENO advection.
The SSP-RK3 update (Shu–Osher form) is:
$$ q^{(1)} = q^n + \Delta t \, \mathcal{L}(q^n) $$ $$ q^{(2)} = \tfrac{3}{4}\,q^n + \tfrac{1}{4}\,q^{(1)} + \tfrac{1}{4}\,\Delta t \, \mathcal{L}(q^{(1)}) $$ $$ q^{n+1} = \tfrac{1}{3}\,q^n + \tfrac{2}{3}\,q^{(2)} + \tfrac{2}{3}\,\Delta t \, \mathcal{L}(q^{(2)}) $$
where $\mathcal{L}$ is the advection tendency operator.
CFL condition¶
The timestep is set via the CFL number $\sigma = u\,\Delta t / \Delta x$. For SSP-RK3 with upwind-type schemes, $\sigma \leq 1$ is stable. We use $\sigma = 0.5$ for safety.
cfl = 0.5
dt = cfl * dx / abs(c)
T_final = Lx / abs(c) # one full period
nsteps = int(T_final / dt)
dt = T_final / nsteps # adjust so we land exactly at T
print(f"CFL = {cfl}, dt = {dt:.4e}, nsteps = {nsteps}")
Running the Four Schemes¶
For each scheme we:
- Create an
Advection1Doperator. - Define a right-hand-side function that applies periodic BCs then computes the tendency.
- Advance
nstepstimesteps withrk3_ssp_step. - Extract the physical cells and compare to the exact solution.
advect = fvx.Advection1D(grid)
methods = ["upwind1", "upwind3", "superbee", "weno5", "weno7", "weno9"]
results = {}
for method in methods:
def make_rhs(m):
"""Closure to capture the method string."""
def rhs(q):
q = enforce_periodic_1d(q, ng)
return advect(q, u_field, method=m)
return rhs
rhs_fn = jax.jit(make_rhs(method))
q = q0.copy()
for _ in range(nsteps):
q = fvx.rk3_ssp_step(q, rhs_fn, dt)
q = enforce_periodic_1d(q, ng)
results[method] = np.asarray(q[ng:-ng])
print("All schemes completed.")

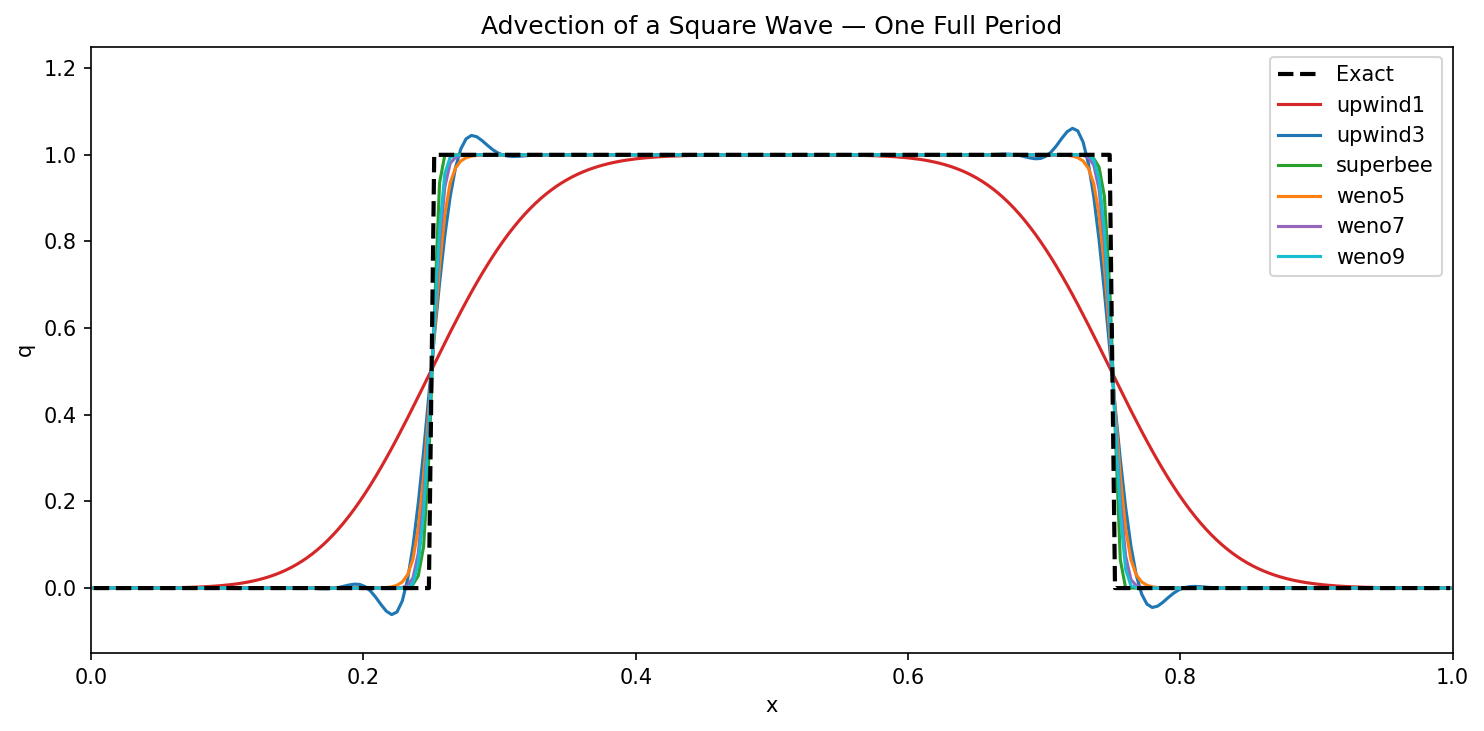

Results: Full Domain Comparison¶
The plot below overlays all four solutions after one full period against the exact (initial) profile.
exact = np.asarray(q0_phys)
x_np = np.asarray(x_phys)
fig, ax = plt.subplots(figsize=(10, 5))
ax.plot(x_np, exact, "k--", lw=2, label="Exact", zorder=5)
colours = {
"upwind1": "#d62728",
"upwind3": "#1f77b4",
"superbee": "#2ca02c",
"weno5": "#ff7f0e",
"weno7": "#9467bd",
"weno9": "#17becf",
}
for method in methods:
ax.plot(x_np, results[method], color=colours[method], lw=1.5, label=method)
ax.set_xlabel("x")
ax.set_ylabel("q")
ax.set_title("Advection of a Square Wave — One Full Period")
ax.set_xlim(0, 1)
ax.set_ylim(-0.15, 1.25)
ax.legend(loc="upper right")
fig.tight_layout()
fig.savefig(IMG_DIR / "scheme_comparison.png", dpi=150, bbox_inches="tight")

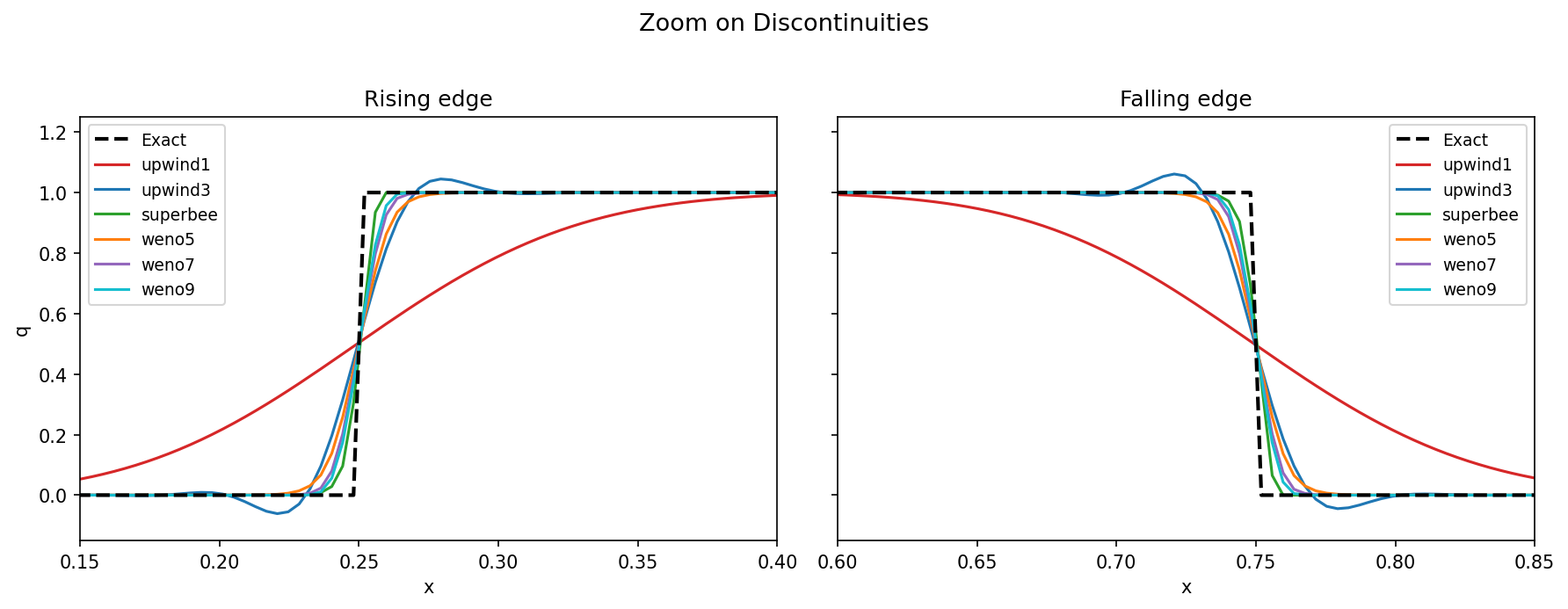

Zoom: Rising and Falling Edges¶
Zooming in on the discontinuities reveals the character of each scheme:
- upwind1 smears the edges over many cells (numerical diffusion).
- upwind3 has less diffusion but shows overshoots and undershoots (dispersive oscillations — Gibbs-like ringing).
- superbee keeps the fronts steep and never overshoots (TVD property), but can flatten the top slightly.
- weno5 achieves a crisp edge with only tiny oscillations, combining the best of both worlds.
fig, axes = plt.subplots(1, 2, figsize=(12, 4.5), sharey=True)
zoom_regions = [(0.15, 0.40, "Rising edge"), (0.60, 0.85, "Falling edge")]
for ax, (xl, xr, title) in zip(axes, zoom_regions):
ax.plot(x_np, exact, "k--", lw=2, label="Exact", zorder=5)
for method in methods:
ax.plot(x_np, results[method], colours[method], lw=1.5, label=method)
ax.set_xlim(xl, xr)
ax.set_ylim(-0.15, 1.25)
ax.set_xlabel("x")
ax.set_title(title)
ax.legend(fontsize=9)
axes[0].set_ylabel("q")
fig.suptitle("Zoom on Discontinuities", fontsize=13, y=1.02)
fig.tight_layout()
fig.savefig(IMG_DIR / "edge_zoom.png", dpi=150, bbox_inches="tight")
Error Norms¶
We quantify the error with three standard norms:
$$ L_1 = \frac{1}{N}\sum_i |q_i - q_i^{\text{exact}}|, \qquad L_2 = \sqrt{\frac{1}{N}\sum_i (q_i - q_i^{\text{exact}})^2}, \qquad L_\infty = \max_i |q_i - q_i^{\text{exact}}| $$
print(f"{'Method':<12} {'L1':>10} {'L2':>10} {'Linf':>10}")
print("-" * 44)
for method in methods:
err = results[method] - exact
l1 = np.mean(np.abs(err))
l2 = np.sqrt(np.mean(err**2))
linf = np.max(np.abs(err))
print(f"{method:<12} {l1:10.4e} {l2:10.4e} {linf:10.4e}")

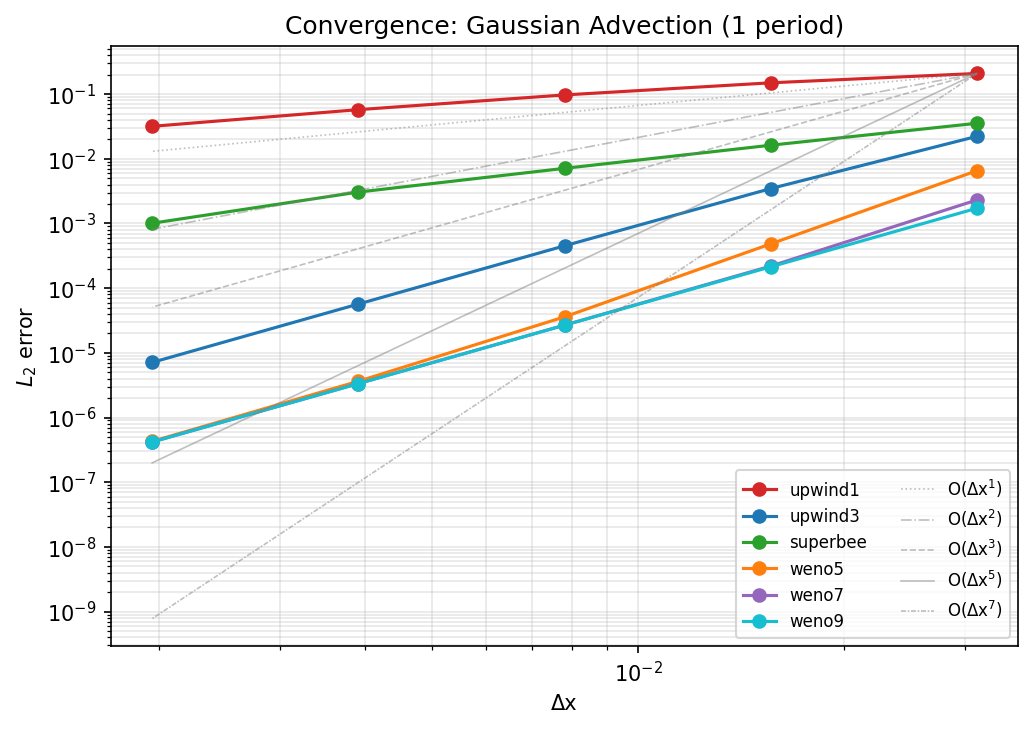

Convergence Study¶
To verify that each scheme achieves its theoretical order of accuracy, we repeat the experiment at multiple resolutions and plot the $L_2$ error against $\Delta x$ on a log-log scale.
For a smooth initial condition, the expected slopes are:
| Scheme | Expected order |
|---|---|
upwind1 |
1 |
upwind3 |
3 |
superbee |
2 |
weno5 |
5 |
weno7 |
7 (capped at ~3 by RK3 time integrator) |
weno9 |
9 (capped at ~3 by RK3 time integrator) |
Note: for a discontinuous profile (our square wave), all schemes degrade to 1st-order at the discontinuities. We therefore also run this study with a smooth Gaussian profile to see the clean convergence rates.
def gaussian(x, x0=0.5, sigma=0.1):
"""Smooth Gaussian initial condition for convergence testing."""
return jnp.exp(-((x - x0) ** 2) / (2 * sigma**2))
resolutions = [32, 64, 128, 256, 512]
convergence = {m: [] for m in methods}
for nx_test in resolutions:
dx_test = Lx / nx_test
dt_test = cfl * dx_test / abs(c)
nsteps_test = int(T_final / dt_test)
dt_test = T_final / nsteps_test
grid_test = fvx.ArakawaCGrid1D(Nx=nx_test + 2 * ng, Lx=Lx, dx=dx_test)
advect_test = fvx.Advection1D(grid_test)
x_test = jnp.linspace(0.5 * dx_test, Lx - 0.5 * dx_test, nx_test)
u_test = c * jnp.ones(grid_test.Nx)
q0_test = jnp.zeros(grid_test.Nx)
q0_test = q0_test.at[ng:-ng].set(gaussian(x_test))
q0_test = enforce_periodic_1d(q0_test, ng)
exact_test = np.asarray(gaussian(x_test))
for method in methods:
def make_rhs_conv(m, adv, u):
def rhs(q):
q = enforce_periodic_1d(q, ng)
return adv(q, u, method=m)
return rhs
rhs_fn = jax.jit(make_rhs_conv(method, advect_test, u_test))
q = q0_test.copy()
for _ in range(nsteps_test):
q = fvx.rk3_ssp_step(q, rhs_fn, dt_test)
q = enforce_periodic_1d(q, ng)
err = np.asarray(q[ng:-ng]) - exact_test
l2 = float(np.sqrt(np.mean(err**2)))
convergence[method].append(l2)
print(f" nx = {nx_test:>4d} done")
dx_arr = np.array([Lx / n for n in resolutions])
fig, ax = plt.subplots(figsize=(7, 5))
for method in methods:
ax.loglog(dx_arr, convergence[method], "o-", color=colours[method], lw=1.5, label=method)
# Reference slopes
for order, ls in [(1, ":"), (2, "-."), (3, "--"), (5, "-"), (7, (0, (3, 1, 1, 1)))]:
ref = convergence["upwind1"][0] * (dx_arr / dx_arr[0]) ** order
ax.loglog(dx_arr, ref, color="grey", ls=ls, lw=0.8, alpha=0.5, label=f"O(Δx$^{order}$)")
ax.set_xlabel("Δx")
ax.set_ylabel("$L_2$ error")
ax.set_title("Convergence: Gaussian Advection (1 period)")
ax.legend(fontsize=8, ncol=2)
ax.grid(True, which="both", alpha=0.3)
fig.tight_layout()
fig.savefig(IMG_DIR / "convergence.png", dpi=150, bbox_inches="tight")
Summary¶
| Scheme | Pros | Cons |
|---|---|---|
| upwind1 | Simple, guaranteed monotone | Extremely diffusive |
| upwind3 | Much less diffusion than upwind1 | Oscillations near discontinuities |
| superbee | Sharpest monotone (TVD) scheme | Can create staircase artefacts on smooth profiles |
| weno5 | High-order smooth, low oscillation | Slightly more expensive per cell |
| weno7 | Sharper features than weno5 | Wider stencil (8 pts), higher cost |
| weno9 | Highest accuracy on smooth flows | Widest stencil (10 pts), highest cost |
Recommendation: Use weno5 as the default. Switch to weno7
or weno9 when resolving fine-scale structure in smooth flows. Use a
TVD limiter (superbee or van_leer) when strict monotonicity is required
(e.g., positive-definite tracers). Use upwind1 only as a fallback near
boundaries.
See the Advection Theory page for the full mathematical background and the decision guide for choosing a scheme.
