2-D Advection on Masked Domains: Stencil Cascades in Practice¶

The previous advection tutorials used fully periodic domains where every cell is ocean. Real-world problems have coastlines, islands, and channels. When a high-order stencil (say WENO5, 6 points wide) reaches across a land cell, it produces garbage. finitevolX solves this with adaptive stencil cascading: each cell automatically falls back to the widest stencil that fits within contiguous ocean.

WENO5 stencil (6 pts)         Near coast — only 4 pts fit
┌─┬─┬─┬─┬─┬─┐                ┌─┬─┬─┬─┐
│ │ │ │ │ │ │  → full WENO5  │▓│ │ │ │  → fall back to WENO3
└─┴─┴─┴─┴─┴─┘                └─┴─┴─┴─┘
                               ▓ = land

At a tight corner — only 2 pts
┌─┬─┐
│▓│ │  → fall back to upwind1
└─┴─┘

This tutorial walks through the practical details:

1. Build a weird-geometry domain with islands and channels.
2. Inspect the stencil capability and adaptive masks to see exactly which scheme runs at each cell.
3. Run a cosine-bell advection and compare masked WENO5 against unmasked (naïve) WENO5 and upwind1.
4. Tips and tricks for getting masked advection to work smoothly.

Prerequisites — read the 1-D Advection and 2-D Rotation tutorials for the basics, and the Advection Theory page for the mathematical background.

In [ ]:

from __future__ import annotations

from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib

matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

import finitevolx as fvx

IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "advection_2d_masked"
IMG_DIR.mkdir(parents=True, exist_ok=True)

from __future__ import annotations from pathlib import Path import jax import jax.numpy as jnp import matplotlib matplotlib.use("Agg") import matplotlib.pyplot as plt import numpy as np jax.config.update("jax_enable_x64", True) import finitevolx as fvx IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "advection_2d_masked" IMG_DIR.mkdir(parents=True, exist_ok=True)

Step 1: Build a Weird Domain¶

We construct an "archipelago" domain on a 64x64 grid:

• A rectangular basin (land border around the edges).
• A C-shaped island in the centre-right, creating a narrow channel.
• A small circular island in the lower-left quadrant.
• A diagonal peninsula jutting in from the north-west wall.

▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓
▓▓▓▓▓▓                                   ▓
▓ ▓▓▓                                    ▓
▓  ▓▓     peninsula                      ▓
▓   ▓                ┌──────┐             ▓
▓                    │      │             ▓
▓                    │  C-  │             ▓
▓       ○            │island│             ▓
▓    (circle)        │      └──┐          ▓
▓                    │         │          ▓
▓                    └─────────┘          ▓
▓                                         ▓
▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓

In [ ]:

nx = ny = 64
Lx = Ly = 1.0
grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly)
dx, dy = grid.dx, grid.dy
Nx, Ny = grid.Nx, grid.Ny

# Start with all-ocean, then carve out land.
ocean = np.ones((Ny, Nx), dtype=bool)

# --- Basin walls (2-cell border = ghost ring + 1 land cell) ---
ocean[:2, :] = False  # south
ocean[-2:, :] = False  # north
ocean[:, :2] = False  # west
ocean[:, -2:] = False  # east

# --- C-shaped island (centre-right) ---
# Main rectangle
ocean[22:42, 34:44] = False
# Open the channel on the south side (remove part of the rectangle)
ocean[22:28, 40:44] = True  # channel gap

# --- Small circular island (lower-left) ---
jj, ii = np.meshgrid(np.arange(Ny), np.arange(Nx), indexing="ij")
cx_circle, cy_circle = 16, 18  # centre (col, row)
r_circle = 4
ocean[(jj - cy_circle) ** 2 + (ii - cx_circle) ** 2 < r_circle**2] = False

# --- Diagonal peninsula from north-west ---
for k in range(8):
    ocean[Ny - 3 - k, 2 + k : 4 + k] = False

print(f"Domain: {Nx}x{Ny}, ocean cells: {ocean.sum()}/{ocean.size}")

nx = ny = 64 Lx = Ly = 1.0 grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly) dx, dy = grid.dx, grid.dy Nx, Ny = grid.Nx, grid.Ny # Start with all-ocean, then carve out land. ocean = np.ones((Ny, Nx), dtype=bool) # --- Basin walls (2-cell border = ghost ring + 1 land cell) --- ocean[:2, :] = False # south ocean[-2:, :] = False # north ocean[:, :2] = False # west ocean[:, -2:] = False # east # --- C-shaped island (centre-right) --- # Main rectangle ocean[22:42, 34:44] = False # Open the channel on the south side (remove part of the rectangle) ocean[22:28, 40:44] = True # channel gap # --- Small circular island (lower-left) --- jj, ii = np.meshgrid(np.arange(Ny), np.arange(Nx), indexing="ij") cx_circle, cy_circle = 16, 18 # centre (col, row) r_circle = 4 ocean[(jj - cy_circle) ** 2 + (ii - cx_circle) ** 2 < r_circle**2] = False # --- Diagonal peninsula from north-west --- for k in range(8): ocean[Ny - 3 - k, 2 + k : 4 + k] = False print(f"Domain: {Nx}x{Ny}, ocean cells: {ocean.sum()}/{ocean.size}")

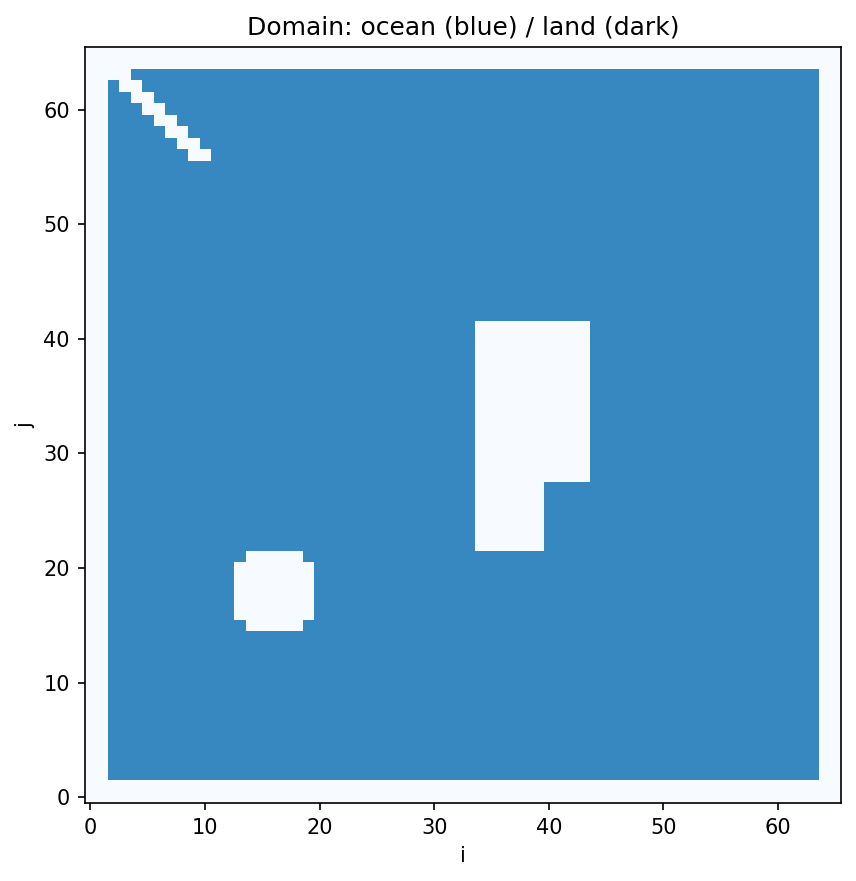

Visualise the domain¶

Quick sanity check — land in dark, ocean in light.

In [ ]:

fig, ax = plt.subplots(figsize=(6, 6))
ax.imshow(ocean.astype(float), origin="lower", cmap="Blues", vmin=0, vmax=1.5)
ax.set_title("Domain: ocean (blue) / land (dark)")
ax.set_xlabel("i")
ax.set_ylabel("j")
fig.tight_layout()
fig.savefig(IMG_DIR / "domain.png", dpi=150, bbox_inches="tight")

fig, ax = plt.subplots(figsize=(6, 6)) ax.imshow(ocean.astype(float), origin="lower", cmap="Blues", vmin=0, vmax=1.5) ax.set_title("Domain: ocean (blue) / land (dark)") ax.set_xlabel("i") ax.set_ylabel("j") fig.tight_layout() fig.savefig(IMG_DIR / "domain.png", dpi=150, bbox_inches="tight")

Step 2: Build the Mask and Inspect Stencil Capabilities¶

ArakawaCGridMask.from_mask() takes the boolean ocean array and automatically computes:

• Staggered masks for U, V, and corner points.
• Stencil capability: how many contiguous wet cells exist in each direction from every point.
• Land/coast classification (land → coast → near-coast → ocean).

Tip: Always build the mask from the full array (including ghost cells), not just the interior. The ghost cells should be land for a closed basin, or you can mark them wet for periodic domains.

In [ ]:

mask = fvx.ArakawaCGridMask.from_mask(ocean)

# The stencil capability tells us how far we can "see" in each direction.
sc = mask.stencil_capability
print(f"Stencil capability shape: {sc.x_pos.shape}")
print(f"  x_pos range: {int(sc.x_pos.min())} -{int(sc.x_pos.max())}")
print(f"  y_pos range: {int(sc.y_pos.min())} -{int(sc.y_pos.max())}")

mask = fvx.ArakawaCGridMask.from_mask(ocean) # The stencil capability tells us how far we can "see" in each direction. sc = mask.stencil_capability print(f"Stencil capability shape: {sc.x_pos.shape}") print(f" x_pos range: {int(sc.x_pos.min())} -{int(sc.x_pos.max())}") print(f" y_pos range: {int(sc.y_pos.min())} -{int(sc.y_pos.max())}")

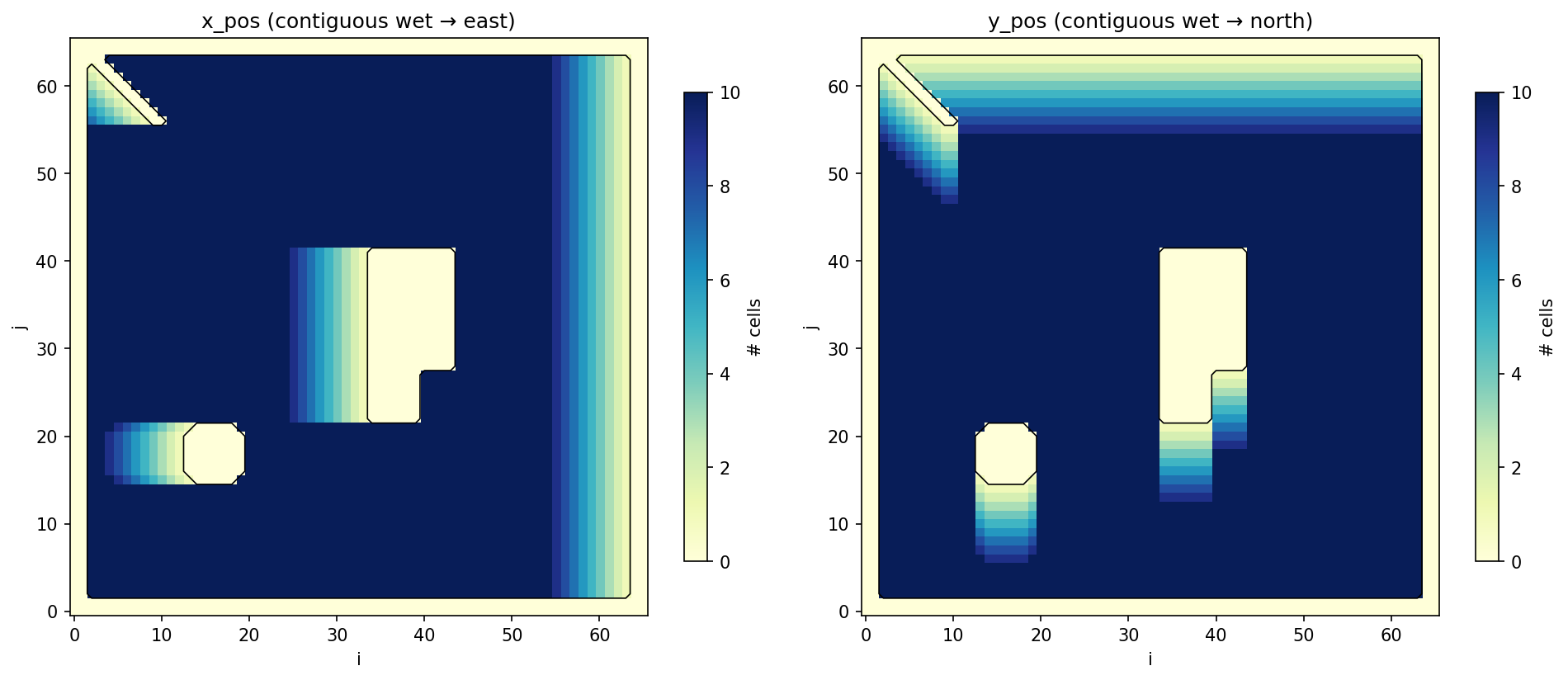

What does stencil capability look like?¶

x_pos[j, i] counts how many consecutive wet cells lie to the east of cell (j, i), including itself. A value of 1 means "I'm wet but my eastern neighbour is land." A value of 6+ means WENO5 can use its full stencil here.

In [ ]:

fig, axes = plt.subplots(1, 2, figsize=(13, 5.5))

for ax, arr, title in [
    (axes[0], np.asarray(sc.x_pos), "x_pos (contiguous wet → east)"),
    (axes[1], np.asarray(sc.y_pos), "y_pos (contiguous wet → north)"),
]:
    im = ax.imshow(arr, origin="lower", cmap="YlGnBu", vmin=0, vmax=10)
    ax.contour(ocean.astype(float), levels=[0.5], colors="k", linewidths=0.8)
    ax.set_title(title)
    ax.set_xlabel("i")
    ax.set_ylabel("j")
    fig.colorbar(im, ax=ax, shrink=0.75, label="# cells")

fig.tight_layout()
fig.savefig(IMG_DIR / "stencil_capability.png", dpi=150, bbox_inches="tight")

fig, axes = plt.subplots(1, 2, figsize=(13, 5.5)) for ax, arr, title in [ (axes[0], np.asarray(sc.x_pos), "x_pos (contiguous wet → east)"), (axes[1], np.asarray(sc.y_pos), "y_pos (contiguous wet → north)"), ]: im = ax.imshow(arr, origin="lower", cmap="YlGnBu", vmin=0, vmax=10) ax.contour(ocean.astype(float), levels=[0.5], colors="k", linewidths=0.8) ax.set_title(title) ax.set_xlabel("i") ax.set_ylabel("j") fig.colorbar(im, ax=ax, shrink=0.75, label="# cells") fig.tight_layout() fig.savefig(IMG_DIR / "stencil_capability.png", dpi=150, bbox_inches="tight")

Notice how the values drop to 1-2 right next to coastlines. WENO5 needs at least 3 in both directions to use the full 6-point stencil.

Step 3: Adaptive Masks — Which Scheme Runs Where?¶

get_adaptive_masks() builds mutually-exclusive boolean masks that assign exactly one reconstruction scheme to each wet cell:

• Size 6 → WENO5 (5th-order, needs 3 wet cells on each side)
• Size 4 → WENO3 (3rd-order, needs 2 wet cells on each side)
• Size 2 → Upwind1 (1st-order, just needs 1 neighbour)

The largest stencil that fits wins.

In [ ]:

# Build adaptive masks for x-direction
adaptive_x = mask.get_adaptive_masks(direction="x", stencil_sizes=(2, 4, 6))
adaptive_y = mask.get_adaptive_masks(direction="y", stencil_sizes=(2, 4, 6))

for label, adaptive in [("x", adaptive_x), ("y", adaptive_y)]:
    for sz, msk in sorted(adaptive.items()):
        n = int(jnp.sum(msk))
        names = {2: "upwind1", 4: "WENO3", 6: "WENO5"}
        print(f"  {label}-dir  size {sz} ({names[sz]}): {n:5d} cells")

# Build adaptive masks for x-direction adaptive_x = mask.get_adaptive_masks(direction="x", stencil_sizes=(2, 4, 6)) adaptive_y = mask.get_adaptive_masks(direction="y", stencil_sizes=(2, 4, 6)) for label, adaptive in [("x", adaptive_x), ("y", adaptive_y)]: for sz, msk in sorted(adaptive.items()): n = int(jnp.sum(msk)) names = {2: "upwind1", 4: "WENO3", 6: "WENO5"} print(f" {label}-dir size {sz} ({names[sz]}): {n:5d} cells")

In [ ]:

# Combine into a single array for plotting:
#   0 = land, 2 = upwind1, 4 = WENO3, 6 = WENO5
def combine_adaptive(adaptive):
    """Merge adaptive masks into one integer array for plotting."""
    out = np.zeros_like(np.asarray(adaptive[2]), dtype=int)
    for sz, msk in adaptive.items():
        out += sz * np.asarray(msk)
    return out


fig, axes = plt.subplots(1, 2, figsize=(13, 5.5), constrained_layout=True)
cmap = matplotlib.colors.ListedColormap(["#2d2d2d", "#d62728", "#ff7f0e", "#1f77b4"])
bounds = [-0.5, 1, 3, 5, 7]
norm = matplotlib.colors.BoundaryNorm(bounds, cmap.N)

for ax, adaptive, title in [
    (axes[0], adaptive_x, "x-direction stencil assignment"),
    (axes[1], adaptive_y, "y-direction stencil assignment"),
]:
    combined = combine_adaptive(adaptive)
    im = ax.imshow(combined, origin="lower", cmap=cmap, norm=norm)
    ax.contour(ocean.astype(float), levels=[0.5], colors="w", linewidths=0.5)
    ax.set_title(title)
    ax.set_xlabel("i")
    ax.set_ylabel("j")

cbar = fig.colorbar(im, ax=axes, shrink=0.75, ticks=[0, 2, 4, 6])
cbar.ax.set_yticklabels(["land", "upwind1", "WENO3", "WENO5"])
fig.savefig(IMG_DIR / "adaptive_stencils.png", dpi=150, bbox_inches="tight")

# Combine into a single array for plotting: # 0 = land, 2 = upwind1, 4 = WENO3, 6 = WENO5 def combine_adaptive(adaptive): """Merge adaptive masks into one integer array for plotting.""" out = np.zeros_like(np.asarray(adaptive[2]), dtype=int) for sz, msk in adaptive.items(): out += sz * np.asarray(msk) return out fig, axes = plt.subplots(1, 2, figsize=(13, 5.5), constrained_layout=True) cmap = matplotlib.colors.ListedColormap(["#2d2d2d", "#d62728", "#ff7f0e", "#1f77b4"]) bounds = [-0.5, 1, 3, 5, 7] norm = matplotlib.colors.BoundaryNorm(bounds, cmap.N) for ax, adaptive, title in [ (axes[0], adaptive_x, "x-direction stencil assignment"), (axes[1], adaptive_y, "y-direction stencil assignment"), ]: combined = combine_adaptive(adaptive) im = ax.imshow(combined, origin="lower", cmap=cmap, norm=norm) ax.contour(ocean.astype(float), levels=[0.5], colors="w", linewidths=0.5) ax.set_title(title) ax.set_xlabel("i") ax.set_ylabel("j") cbar = fig.colorbar(im, ax=axes, shrink=0.75, ticks=[0, 2, 4, 6]) cbar.ax.set_yticklabels(["land", "upwind1", "WENO3", "WENO5"]) fig.savefig(IMG_DIR / "adaptive_stencils.png", dpi=150, bbox_inches="tight")

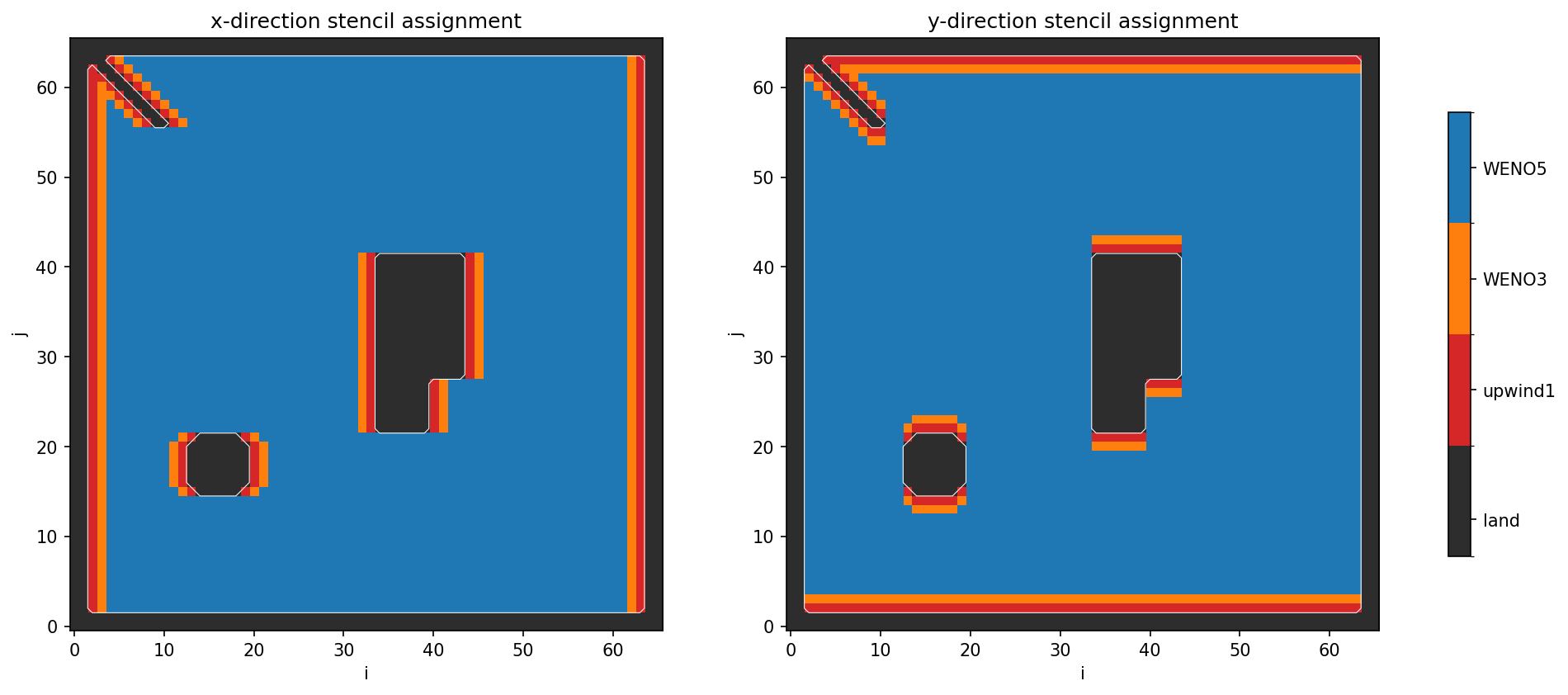

Key things to notice:

• The bulk of the ocean (blue) uses WENO5 — full 5th-order accuracy.
• A thin orange fringe of WENO3 cells surrounds every coast.
• The narrowest channels and tight corners fall back to upwind1 (red).
• The x- and y-direction maps differ — a cell may use WENO5 in x but WENO3 in y if the coastline is oriented differently.

Step 4: Advection on the Masked Domain¶

We set up a cosine-bell tracer in the open-ocean region and advect it with a prescribed velocity field that steers it around the islands.

Velocity field¶

We use a uniform diagonal flow $u = v = 1$ — simple enough to understand, but the islands force the flow to interact with the stencil cascade.

Tip: Set velocity to zero at land faces. The mask handles the reconstruction, but zeroing land velocities avoids fluxes through walls.

In [ ]:

# Coordinates for T-points (interior: [1:-1, 1:-1])
x_t = jnp.linspace(0.5 * dx, Lx - 0.5 * dx, nx)
y_t = jnp.linspace(0.5 * dy, Ly - 0.5 * dy, ny)
X_T, Y_T = jnp.meshgrid(x_t, y_t)

# Uniform diagonal flow, zeroed on land
ocean_jnp = jnp.array(ocean, dtype=jnp.float64)
u_field = 1.0 * ocean_jnp  # u at U-points
v_field = 1.0 * ocean_jnp  # v at V-points

# Cosine bell in the lower-left ocean area
xc_bell, yc_bell = 0.2, 0.25
R_bell = 0.1
r_full = jnp.zeros((Ny, Nx))
r_int = jnp.sqrt((X_T - xc_bell) ** 2 + (Y_T - yc_bell) ** 2)
r_full = r_full.at[1:-1, 1:-1].set(r_int)
q0 = jnp.where(
    (r_full < R_bell) & (ocean_jnp > 0.5),
    0.5 * (1.0 + jnp.cos(jnp.pi * r_full / R_bell)),
    0.0,
)

# Coordinates for T-points (interior: [1:-1, 1:-1]) x_t = jnp.linspace(0.5 * dx, Lx - 0.5 * dx, nx) y_t = jnp.linspace(0.5 * dy, Ly - 0.5 * dy, ny) X_T, Y_T = jnp.meshgrid(x_t, y_t) # Uniform diagonal flow, zeroed on land ocean_jnp = jnp.array(ocean, dtype=jnp.float64) u_field = 1.0 * ocean_jnp # u at U-points v_field = 1.0 * ocean_jnp # v at V-points # Cosine bell in the lower-left ocean area xc_bell, yc_bell = 0.2, 0.25 R_bell = 0.1 r_full = jnp.zeros((Ny, Nx)) r_int = jnp.sqrt((X_T - xc_bell) ** 2 + (Y_T - yc_bell) ** 2) r_full = r_full.at[1:-1, 1:-1].set(r_int) q0 = jnp.where( (r_full < R_bell) & (ocean_jnp > 0.5), 0.5 * (1.0 + jnp.cos(jnp.pi * r_full / R_bell)), 0.0, )

Run three experiments¶

1. Masked WENO5 — the correct approach. Pass mask=mask so the operator automatically cascades near coasts.
2. Unmasked WENO5 — what happens if you forget the mask. The stencil reads land cells (zeros) as real data.
3. Upwind1 — the safe but diffusive baseline.

In [ ]:

advect = fvx.Advection2D(grid)

cfl = 0.4
u_max = float(jnp.max(jnp.abs(u_field)))
v_max = float(jnp.max(jnp.abs(v_field)))
dt = cfl / (max(u_max, 1e-10) / dx + max(v_max, 1e-10) / dy)
T_final = 0.35  # long enough for the bell to hit the C-island
nsteps = int(jnp.ceil(T_final / dt))
dt = T_final / nsteps

print(f"dt = {dt:.4e}, nsteps = {nsteps}, T = {T_final}")

experiments = {
    "WENO5 + mask": {"method": "weno5", "mask": mask},
    "WENO5 (no mask)": {"method": "weno5", "mask": None},
    "upwind1": {"method": "upwind1", "mask": None},
}

results = {}
for name, cfg in experiments.items():

    def make_rhs(method, msk):
        def rhs(q):
            # Zero out land cells each stage — keeps the solution clean.
            q = q * ocean_jnp
            return advect(q, u_field, v_field, method=method, mask=msk)

        return rhs

    rhs_fn = jax.jit(make_rhs(cfg["method"], cfg["mask"]))
    q = q0.copy()

    for _step in range(nsteps):
        q = fvx.rk3_ssp_step(q, rhs_fn, dt)
        q = q * ocean_jnp  # enforce land = 0

    peak = float(jnp.max(q))
    results[name] = np.asarray(q)
    print(f"  {name:<20s}  peak = {peak:.4f}")

advect = fvx.Advection2D(grid) cfl = 0.4 u_max = float(jnp.max(jnp.abs(u_field))) v_max = float(jnp.max(jnp.abs(v_field))) dt = cfl / (max(u_max, 1e-10) / dx + max(v_max, 1e-10) / dy) T_final = 0.35 # long enough for the bell to hit the C-island nsteps = int(jnp.ceil(T_final / dt)) dt = T_final / nsteps print(f"dt = {dt:.4e}, nsteps = {nsteps}, T = {T_final}") experiments = { "WENO5 + mask": {"method": "weno5", "mask": mask}, "WENO5 (no mask)": {"method": "weno5", "mask": None}, "upwind1": {"method": "upwind1", "mask": None}, } results = {} for name, cfg in experiments.items(): def make_rhs(method, msk): def rhs(q): # Zero out land cells each stage — keeps the solution clean. q = q * ocean_jnp return advect(q, u_field, v_field, method=method, mask=msk) return rhs rhs_fn = jax.jit(make_rhs(cfg["method"], cfg["mask"])) q = q0.copy() for _step in range(nsteps): q = fvx.rk3_ssp_step(q, rhs_fn, dt) q = q * ocean_jnp # enforce land = 0 peak = float(jnp.max(q)) results[name] = np.asarray(q) print(f" {name:<20s} peak = {peak:.4f}")

Results¶

Side-by-side comparison¶

In [ ]:

fig, axes = plt.subplots(1, 3, figsize=(15, 4.5), sharey=True, constrained_layout=True)

for ax, (name, data) in zip(axes, results.items(), strict=False):
    im = ax.imshow(
        data,
        origin="lower",
        cmap="RdYlBu_r",
        vmin=-0.05,
        vmax=1.0,
    )
    ax.contour(ocean.astype(float), levels=[0.5], colors="k", linewidths=0.8)
    peak = float(np.max(data))
    ax.set_title(f"{name}\npeak = {peak:.3f}")
    ax.set_xlabel("i")

axes[0].set_ylabel("j")
fig.colorbar(im, ax=axes, shrink=0.85, label="q")
fig.savefig(IMG_DIR / "comparison.png", dpi=150, bbox_inches="tight")

fig, axes = plt.subplots(1, 3, figsize=(15, 4.5), sharey=True, constrained_layout=True) for ax, (name, data) in zip(axes, results.items(), strict=False): im = ax.imshow( data, origin="lower", cmap="RdYlBu_r", vmin=-0.05, vmax=1.0, ) ax.contour(ocean.astype(float), levels=[0.5], colors="k", linewidths=0.8) peak = float(np.max(data)) ax.set_title(f"{name}\npeak = {peak:.3f}") ax.set_xlabel("i") axes[0].set_ylabel("j") fig.colorbar(im, ax=axes, shrink=0.85, label="q") fig.savefig(IMG_DIR / "comparison.png", dpi=150, bbox_inches="tight")

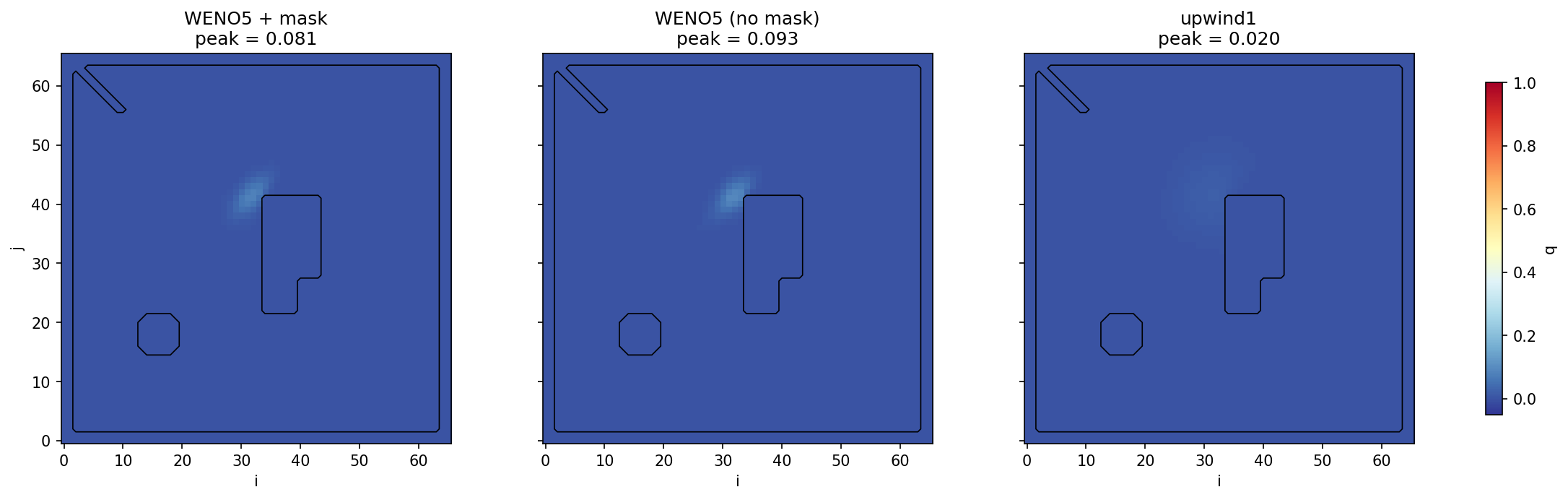

What to look for¶

• WENO5 + mask (left): The bell is crisp. As it approaches the C-island, the stencil silently cascades: WENO5 in the open, WENO3 in the fringe, upwind1 right at the wall. No artefacts.
• WENO5 no mask (centre): The stencil reads land zeros as real data. This creates spurious gradients at every coastline — you'll see ringing and possibly negative values near the islands.
• Upwind1 (right): Stable everywhere, but the bell is smeared by numerical diffusion.

Practical Tips and Tricks¶

Tip 1: Zero land cells every RK stage¶

The RK intermediate states can leak small values into land cells (because the tendency is only computed on ocean cells, but the linear combination in RK touches everything). Multiply by the ocean mask after each stage:

def rhs(q):
    q = q * ocean_jnp       # ← clean up land before reconstruction
    return advect(q, u, v, method='weno5', mask=mask)

for _ in range(nsteps):
    q = fvx.rk3_ssp_step(q, rhs, dt)
    q = q * ocean_jnp       # ← clean up land after the full step

Tip 2: Zero velocity at land faces¶

Advection2D multiplies the reconstructed face value by the face velocity. If the velocity at a land face is nonzero, you get a flux through the wall. Safest:

u_field = velocity_x * ocean_jnp   # zero on dry cells
v_field = velocity_y * ocean_jnp

Tip 3: Choose the right stencil_sizes¶

By default get_adaptive_masks checks sizes (2, 4, 6, 8, 10). If you only use WENO5 (size 6), pass stencil_sizes=(2, 4, 6) to skip unnecessary work:

mask.get_adaptive_masks(direction='x', stencil_sizes=(2, 4, 6))

When you call Advection2D(q, u, v, method='weno5', mask=mask), this is handled automatically — the operator selects (2, 4, 6) for WENO5.

Tip 4: Inspect stencil assignment before running¶

Always visualise the adaptive masks (as we did above) before running a long simulation. Look for:

• Channels narrower than 6 cells — these will fall back from WENO5 to WENO3 or even upwind1. If accuracy matters there, refine the grid.
• Isolated single-cell bays — these may have no valid stencil at all. Consider filling them in.
• Asymmetric x vs y maps — expected for elongated features, but worth sanity-checking.

Tip 5: Use the classification for diagnostics¶

The mask provides a 4-level classification that's handy for computing coast-only diagnostics:

coast_cells = mask.ind_coast       # boolean, True at coastline
ocean_cells = mask.ind_ocean       # True in the interior
near_coast  = mask.ind_near_coast  # one cell away from coast

Bonus: Zoom on the Cascade in Action¶

Let's zoom in on the C-island channel to see the cascade close up.

In [ ]:

fig, axes = plt.subplots(1, 3, figsize=(14, 4), constrained_layout=True)

# Zoom region around the C-island channel
r_slice = slice(18, 46)
c_slice = slice(30, 52)

# Panel 1: stencil assignment (x-direction)
combined_x = combine_adaptive(adaptive_x)
ax = axes[0]
ax.imshow(combined_x[r_slice, c_slice], origin="lower", cmap=cmap, norm=norm)
ax.set_title("Stencil (x-dir)")

# Panel 2: stencil assignment (y-direction)
combined_y = combine_adaptive(adaptive_y)
ax = axes[1]
ax.imshow(combined_y[r_slice, c_slice], origin="lower", cmap=cmap, norm=norm)
ax.set_title("Stencil (y-dir)")

# Panel 3: masked WENO5 solution
ax = axes[2]
im = ax.imshow(
    results["WENO5 + mask"][r_slice, c_slice],
    origin="lower",
    cmap="RdYlBu_r",
    vmin=-0.05,
    vmax=1.0,
)
ax.contour(
    ocean[r_slice, c_slice].astype(float), levels=[0.5], colors="k", linewidths=0.8
)
ax.set_title("WENO5 + mask (solution)")
fig.colorbar(im, ax=axes[2], shrink=0.85)

for ax in axes:
    ax.set_xlabel("i (zoomed)")
axes[0].set_ylabel("j (zoomed)")

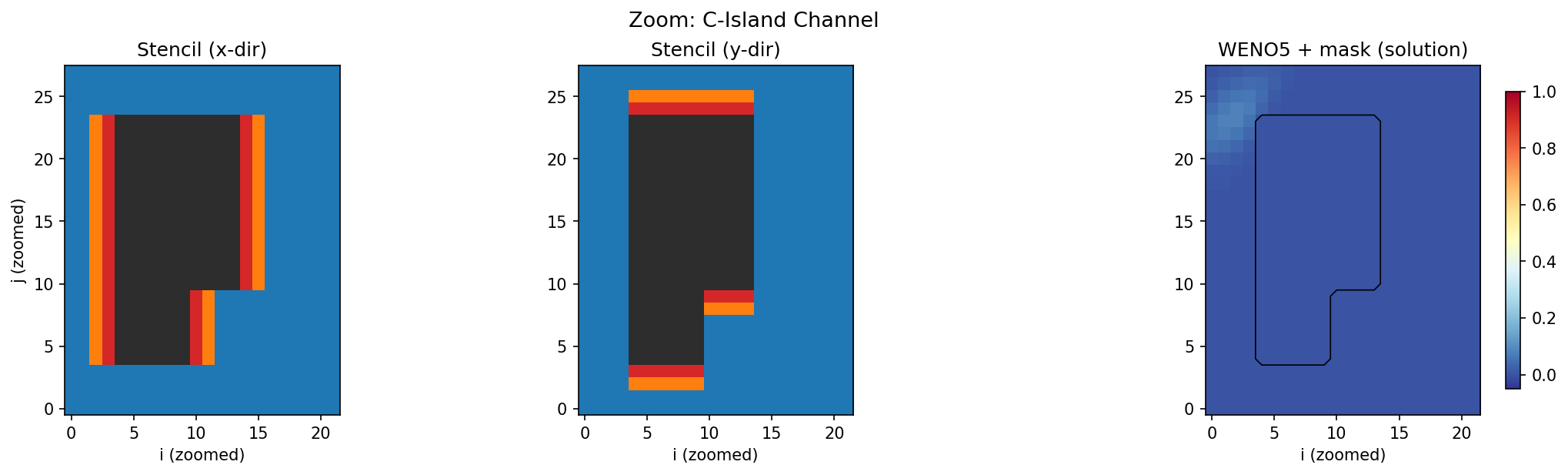

fig.suptitle("Zoom: C-Island Channel", fontsize=13)
fig.savefig(IMG_DIR / "channel_zoom.png", dpi=150, bbox_inches="tight")

fig, axes = plt.subplots(1, 3, figsize=(14, 4), constrained_layout=True) # Zoom region around the C-island channel r_slice = slice(18, 46) c_slice = slice(30, 52) # Panel 1: stencil assignment (x-direction) combined_x = combine_adaptive(adaptive_x) ax = axes[0] ax.imshow(combined_x[r_slice, c_slice], origin="lower", cmap=cmap, norm=norm) ax.set_title("Stencil (x-dir)") # Panel 2: stencil assignment (y-direction) combined_y = combine_adaptive(adaptive_y) ax = axes[1] ax.imshow(combined_y[r_slice, c_slice], origin="lower", cmap=cmap, norm=norm) ax.set_title("Stencil (y-dir)") # Panel 3: masked WENO5 solution ax = axes[2] im = ax.imshow( results["WENO5 + mask"][r_slice, c_slice], origin="lower", cmap="RdYlBu_r", vmin=-0.05, vmax=1.0, ) ax.contour( ocean[r_slice, c_slice].astype(float), levels=[0.5], colors="k", linewidths=0.8 ) ax.set_title("WENO5 + mask (solution)") fig.colorbar(im, ax=axes[2], shrink=0.85) for ax in axes: ax.set_xlabel("i (zoomed)") axes[0].set_ylabel("j (zoomed)") fig.suptitle("Zoom: C-Island Channel", fontsize=13) fig.savefig(IMG_DIR / "channel_zoom.png", dpi=150, bbox_inches="tight")

In the narrow channel opening at the bottom of the C-island, the stencil transitions smoothly:

open ocean → WENO5 → WENO3 → upwind1 → coast

The tracer passes through cleanly without ringing or artificial diffusion beyond what the local scheme order dictates.

Next Steps¶

• Combine masked advection with a full dynamical model — see the Shallow Water tutorial.
• Explore the mask infrastructure in detail — see the Masks Demo notebook.
• For the mathematical background on the cascade, see Advection Theory: Adaptive Stencil Selection.
