2-D Advection: Solid-Body Rotation of a Cosine Bell¶

This tutorial demonstrates 2-D advection on the Arakawa C-grid using a classic benchmark: a cosine-bell profile advected by a solid-body rotation velocity field. After one full revolution the bell should return to its starting position, so any distortion is purely numerical.

By the end you will understand:

1. How Advection2D computes the flux-form tendency $-\nabla \cdot (\mathbf{u}\,q)$ on a staggered grid.
2. How to set up a non-trivial velocity field on the staggered U/V-points.
3. How scheme choice affects peak erosion and shape fidelity in 2-D.

Prerequisites — read the Advection Theory page and the 1-D Advection tutorial first.

The Test Problem¶

Velocity field: solid-body rotation¶

A non-divergent solid-body rotation centred at $(x_0, y_0)$ with angular velocity $\omega$:

$$ u(x, y) = -\omega\,(y - y_0), \qquad v(x, y) = \omega\,(x - x_0) $$

Every fluid parcel traces a circle around $(x_0, y_0)$. The period of one full revolution is $T = 2\pi / \omega$.

        ←  ←  ←  ←  ←
      ↙                  ↖
    ↓                      ↑
    ↓        (x₀,y₀)      ↑
      ↘                  ↗
        →  →  →  →  →

Initial condition: cosine bell¶

The cosine bell (Williamson et al., 1992) is a smooth, compactly supported bump:

$$ q_0(x, y) = \begin{cases} \displaystyle\frac{h_0}{2}\Bigl(1 + \cos\!\bigl(\pi\,r/R\bigr)\Bigr) & r < R \\[4pt] 0 & r \geq R \end{cases} $$

where $r = \sqrt{(x - x_c)^2 + (y - y_c)^2}$ is the distance from the bell centre $(x_c, y_c)$ and $R$ is the bell radius.

We place the bell off-centre so it orbits the rotation axis:

  ┌─────────────────────┐
  │                     │
  │  ╭─╮               │
  │  │●│  ← bell        │
  │  ╰─╯     (x₀,y₀)  │
  │             ×       │
  │                     │
  └─────────────────────┘

After one full revolution ($t = T$), the bell should return to its starting position.

In [ ]:

from __future__ import annotations

from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib

matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

import finitevolx as fvx

IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "advection_2d_rotation"
IMG_DIR.mkdir(parents=True, exist_ok=True)

from __future__ import annotations from pathlib import Path import jax import jax.numpy as jnp import matplotlib matplotlib.use("Agg") import matplotlib.pyplot as plt import numpy as np jax.config.update("jax_enable_x64", True) import finitevolx as fvx IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "advection_2d_rotation" IMG_DIR.mkdir(parents=True, exist_ok=True)

Grid Setup¶

We build a 2-D Arakawa C-grid on the doubly-periodic domain $[0, 1] \times [0, 1]$. As in the 1-D tutorial, we add extra ghost cells (ng = 5 per side) so that the advection operator's write region [2:-2, 2:-2] covers all physical cells.

C-grid staggering¶

Recall the Arakawa C-grid colocation:

     V[j+1/2, i]
        ↑
  ──────┼──────  U[j, i+1/2]
        │
    T[j, i]          ← scalar lives here

• T-points (cell centres): scalar $q$ and coordinates $(x_T, y_T)$.
• U-points (east faces): $x$-velocity $u$ at $(x_T + \Delta x/2,\; y_T)$.
• V-points (north faces): $y$-velocity $v$ at $(x_T,\; y_T + \Delta y/2)$.

In [ ]:

# --- physical parameters ---
nx = ny = 128  # physical cells per direction
Lx = Ly = 1.0
omega = 2 * jnp.pi  # angular velocity → period T = 1.0

# --- ghost ring ---
ng = 5  # ghost cells per side (≥ 5 for WENO9)

# --- grid ---
dx = Lx / nx
dy = Ly / ny
grid = fvx.ArakawaCGrid2D(
    Nx=nx + 2 * ng, Ny=ny + 2 * ng, Lx=Lx, Ly=Ly, dx=dx, dy=dy
)

# --- coordinate arrays (physical domain only) ---
# T-point centres
x_t = jnp.linspace(0.5 * dx, Lx - 0.5 * dx, nx)  # (nx,)
y_t = jnp.linspace(0.5 * dy, Ly - 0.5 * dy, ny)  # (ny,)
X_T, Y_T = jnp.meshgrid(x_t, y_t)  # (ny, nx) each

print(f"Grid: {nx}×{ny} physical cells, dx = dy = {dx:.4e}")
print(f"Total array shape: ({grid.Ny}, {grid.Nx}) with {ng} ghost cells per side")

# --- physical parameters --- nx = ny = 128 # physical cells per direction Lx = Ly = 1.0 omega = 2 * jnp.pi # angular velocity → period T = 1.0 # --- ghost ring --- ng = 5 # ghost cells per side (≥ 5 for WENO9) # --- grid --- dx = Lx / nx dy = Ly / ny grid = fvx.ArakawaCGrid2D( Nx=nx + 2 * ng, Ny=ny + 2 * ng, Lx=Lx, Ly=Ly, dx=dx, dy=dy ) # --- coordinate arrays (physical domain only) --- # T-point centres x_t = jnp.linspace(0.5 * dx, Lx - 0.5 * dx, nx) # (nx,) y_t = jnp.linspace(0.5 * dy, Ly - 0.5 * dy, ny) # (ny,) X_T, Y_T = jnp.meshgrid(x_t, y_t) # (ny, nx) each print(f"Grid: {nx}×{ny} physical cells, dx = dy = {dx:.4e}") print(f"Total array shape: ({grid.Ny}, {grid.Nx}) with {ng} ghost cells per side")

Velocity Field¶

We evaluate the solid-body rotation analytically on the staggered grid points. The velocity components must be sampled at U-points and V-points respectively — not at cell centres.

The full array (including ghost cells) has shape (Ny, Nx) where Ny = ny + 2*ng. Index $j$ in the full array corresponds to the physical $y$-coordinate $(j - \text{ng} + 0.5)\,\Delta y$ at T-points.

In [ ]:

# Rotation centre = domain centre
x0, y0 = 0.5 * Lx, 0.5 * Ly

# --- Full coordinate arrays (including ghosts) ---
# T-points
x_full_t = (jnp.arange(grid.Nx) - ng + 0.5) * dx  # (Nx,)
y_full_t = (jnp.arange(grid.Ny) - ng + 0.5) * dy  # (Ny,)

# U-points are shifted +dx/2 in x relative to T-points
x_full_u = x_full_t + 0.5 * dx  # (Nx,)
y_full_u = y_full_t  # (Ny,)

# V-points are shifted +dy/2 in y relative to T-points
x_full_v = x_full_t  # (Nx,)
y_full_v = y_full_t + 0.5 * dy  # (Ny,)

# Meshgrids
Xu, Yu = jnp.meshgrid(x_full_u, y_full_u)  # U-point coords (Ny, Nx)
Xv, Yv = jnp.meshgrid(x_full_v, y_full_v)  # V-point coords (Ny, Nx)

# Solid-body rotation velocity
u_field = -omega * (Yu - y0)  # at U-points
v_field = omega * (Xv - x0)  # at V-points

# Rotation centre = domain centre x0, y0 = 0.5 * Lx, 0.5 * Ly # --- Full coordinate arrays (including ghosts) --- # T-points x_full_t = (jnp.arange(grid.Nx) - ng + 0.5) * dx # (Nx,) y_full_t = (jnp.arange(grid.Ny) - ng + 0.5) * dy # (Ny,) # U-points are shifted +dx/2 in x relative to T-points x_full_u = x_full_t + 0.5 * dx # (Nx,) y_full_u = y_full_t # (Ny,) # V-points are shifted +dy/2 in y relative to T-points x_full_v = x_full_t # (Nx,) y_full_v = y_full_t + 0.5 * dy # (Ny,) # Meshgrids Xu, Yu = jnp.meshgrid(x_full_u, y_full_u) # U-point coords (Ny, Nx) Xv, Yv = jnp.meshgrid(x_full_v, y_full_v) # V-point coords (Ny, Nx) # Solid-body rotation velocity u_field = -omega * (Yu - y0) # at U-points v_field = omega * (Xv - x0) # at V-points

Initial Condition: Cosine Bell¶

We place the bell at $(x_c, y_c) = (0.25, 0.5)$ with radius $R = 0.15$ and amplitude $h_0 = 1$. This puts the bell to the left of the rotation centre, so it will orbit clockwise (for our sign convention).

In [ ]:

xc, yc = 0.25, 0.5  # bell centre
R_bell = 0.15  # bell radius
h0 = 1.0  # bell amplitude


def cosine_bell(X, Y, xc, yc, R, h0):
    """Cosine bell initial condition on a 2-D grid."""
    r = jnp.sqrt((X - xc) ** 2 + (Y - yc) ** 2)
    return jnp.where(r < R, 0.5 * h0 * (1.0 + jnp.cos(jnp.pi * r / R)), 0.0)


# Evaluate on T-point coordinates (physical domain)
q0_phys = cosine_bell(X_T, Y_T, xc, yc, R_bell, h0)

# Embed in the full array
q0 = jnp.zeros((grid.Ny, grid.Nx))
q0 = q0.at[ng:-ng, ng:-ng].set(q0_phys)

xc, yc = 0.25, 0.5 # bell centre R_bell = 0.15 # bell radius h0 = 1.0 # bell amplitude def cosine_bell(X, Y, xc, yc, R, h0): """Cosine bell initial condition on a 2-D grid.""" r = jnp.sqrt((X - xc) ** 2 + (Y - yc) ** 2) return jnp.where(r < R, 0.5 * h0 * (1.0 + jnp.cos(jnp.pi * r / R)), 0.0) # Evaluate on T-point coordinates (physical domain) q0_phys = cosine_bell(X_T, Y_T, xc, yc, R_bell, h0) # Embed in the full array q0 = jnp.zeros((grid.Ny, grid.Nx)) q0 = q0.at[ng:-ng, ng:-ng].set(q0_phys)

Periodic Boundary Conditions (2-D)¶

Same idea as the 1-D case, but we wrap ghost rows/columns in both directions:

In [ ]:

def enforce_periodic_2d(h: jax.Array, ng: int) -> jax.Array:
    """Fill *ng* ghost rows/columns on each side with periodic copies."""
    # Top/bottom (y-direction)
    h = h.at[:ng, :].set(h[-2 * ng : -ng, :])
    h = h.at[-ng:, :].set(h[ng : 2 * ng, :])
    # Left/right (x-direction)
    h = h.at[:, :ng].set(h[:, -2 * ng : -ng])
    h = h.at[:, -ng:].set(h[:, ng : 2 * ng])
    return h


q0 = enforce_periodic_2d(q0, ng)

def enforce_periodic_2d(h: jax.Array, ng: int) -> jax.Array: """Fill *ng* ghost rows/columns on each side with periodic copies.""" # Top/bottom (y-direction) h = h.at[:ng, :].set(h[-2 * ng : -ng, :]) h = h.at[-ng:, :].set(h[ng : 2 * ng, :]) # Left/right (x-direction) h = h.at[:, :ng].set(h[:, -2 * ng : -ng]) h = h.at[:, -ng:].set(h[:, ng : 2 * ng]) return h q0 = enforce_periodic_2d(q0, ng)

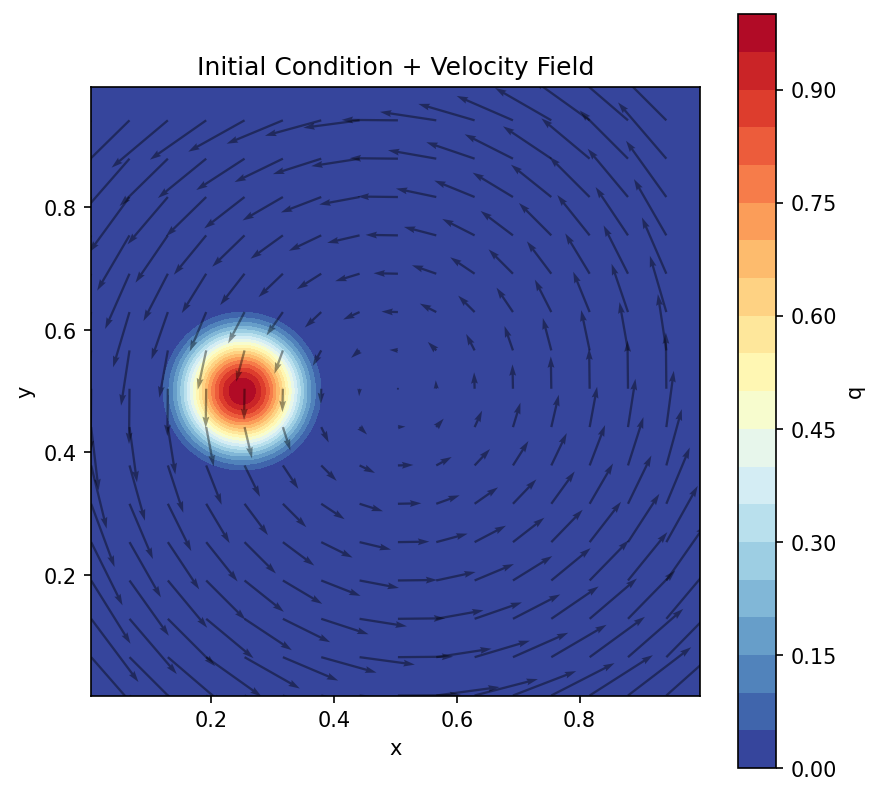

Visualise the initial condition and velocity field:¶

In [ ]:

fig, ax = plt.subplots(figsize=(6, 5.5))

# Contour plot of the cosine bell
q_plot = np.asarray(q0[ng:-ng, ng:-ng])
x_np, y_np = np.asarray(x_t), np.asarray(y_t)
cf = ax.contourf(x_np, y_np, q_plot, levels=20, cmap="RdYlBu_r")
fig.colorbar(cf, ax=ax, label="q")

# Velocity quivers (subsample for clarity)
skip = 8
xs = np.asarray(x_t[::skip])
ys = np.asarray(y_t[::skip])
Xq, Yq = np.meshgrid(xs, ys)
Uq = -float(omega) * (Yq - y0)
Vq = float(omega) * (Xq - x0)
ax.quiver(Xq, Yq, Uq, Vq, color="k", alpha=0.4, scale=30)

ax.set_xlabel("x")
ax.set_ylabel("y")
ax.set_title("Initial Condition + Velocity Field")
ax.set_aspect("equal")
fig.tight_layout()
fig.savefig(IMG_DIR / "initial_condition.png", dpi=150, bbox_inches="tight")

fig, ax = plt.subplots(figsize=(6, 5.5)) # Contour plot of the cosine bell q_plot = np.asarray(q0[ng:-ng, ng:-ng]) x_np, y_np = np.asarray(x_t), np.asarray(y_t) cf = ax.contourf(x_np, y_np, q_plot, levels=20, cmap="RdYlBu_r") fig.colorbar(cf, ax=ax, label="q") # Velocity quivers (subsample for clarity) skip = 8 xs = np.asarray(x_t[::skip]) ys = np.asarray(y_t[::skip]) Xq, Yq = np.meshgrid(xs, ys) Uq = -float(omega) * (Yq - y0) Vq = float(omega) * (Xq - x0) ax.quiver(Xq, Yq, Uq, Vq, color="k", alpha=0.4, scale=30) ax.set_xlabel("x") ax.set_ylabel("y") ax.set_title("Initial Condition + Velocity Field") ax.set_aspect("equal") fig.tight_layout() fig.savefig(IMG_DIR / "initial_condition.png", dpi=150, bbox_inches="tight")

Time Integration¶

We integrate one full revolution ($T = 2\pi / \omega$) using SSP-RK3. The CFL condition for 2-D advection is

$$ \sigma = \left(\frac{|u|_{\max}}{\Delta x} + \frac{|v|_{\max}}{\Delta y}\right) \Delta t \leq 1 $$

The maximum speed is $\omega \cdot r_{\max}$ where $r_{\max} = \sqrt{2}\,L/2 \approx 0.707$ for a unit square, giving $|u|_{\max} = |v|_{\max} \approx \omega / \sqrt{2}$.

In [ ]:

T_period = 2 * jnp.pi / omega  # = 1.0 for omega = 2*pi

# CFL estimate
u_max = float(jnp.max(jnp.abs(u_field)))
v_max = float(jnp.max(jnp.abs(v_field)))
cfl = 0.4
dt = cfl / (u_max / dx + v_max / dy)
nsteps = int(jnp.ceil(T_period / dt))
dt = float(T_period) / nsteps  # adjust to land exactly at T

print(f"T = {float(T_period):.4f}, dt = {dt:.4e}, nsteps = {nsteps}")
print(f"|u|_max = {u_max:.2f}, |v|_max = {v_max:.2f}, CFL ≈ {cfl:.2f}")

T_period = 2 * jnp.pi / omega # = 1.0 for omega = 2*pi # CFL estimate u_max = float(jnp.max(jnp.abs(u_field))) v_max = float(jnp.max(jnp.abs(v_field))) cfl = 0.4 dt = cfl / (u_max / dx + v_max / dy) nsteps = int(jnp.ceil(T_period / dt)) dt = float(T_period) / nsteps # adjust to land exactly at T print(f"T = {float(T_period):.4f}, dt = {dt:.4e}, nsteps = {nsteps}") print(f"|u|_max = {u_max:.2f}, |v|_max = {v_max:.2f}, CFL ≈ {cfl:.2f}")

Running the Simulation¶

We compare six schemes spanning upwind, TVD, and WENO families.

In [ ]:

advect = fvx.Advection2D(grid)
methods_2d = ["upwind1", "upwind3", "superbee", "weno5", "weno7", "weno9"]
results_2d = {}

# Snapshot times (fractions of period)
snapshot_fracs = [0.0, 0.25, 0.5, 1.0]
snapshots = {m: {} for m in methods_2d}

for method in methods_2d:

    def make_rhs(m):
        def rhs(q):
            q = enforce_periodic_2d(q, ng)
            return advect(q, u_field, v_field, method=m)

        return rhs

    rhs_fn = jax.jit(make_rhs(method))
    q = q0.copy()

    # Store initial snapshot
    snapshots[method][0.0] = np.asarray(q[ng:-ng, ng:-ng])

    for step in range(1, nsteps + 1):
        q = fvx.rk3_ssp_step(q, rhs_fn, dt)
        q = enforce_periodic_2d(q, ng)

        t_frac = step / nsteps
        # Check if we're near a snapshot time
        for sf in snapshot_fracs:
            if sf > 0 and abs(t_frac - sf) < 0.5 / nsteps:
                snapshots[method][sf] = np.asarray(q[ng:-ng, ng:-ng])

    results_2d[method] = np.asarray(q[ng:-ng, ng:-ng])
    peak = float(np.max(results_2d[method]))
    print(f"  {method:<10s}  peak = {peak:.4f}  (exact = {float(h0):.1f})")

advect = fvx.Advection2D(grid) methods_2d = ["upwind1", "upwind3", "superbee", "weno5", "weno7", "weno9"] results_2d = {} # Snapshot times (fractions of period) snapshot_fracs = [0.0, 0.25, 0.5, 1.0] snapshots = {m: {} for m in methods_2d} for method in methods_2d: def make_rhs(m): def rhs(q): q = enforce_periodic_2d(q, ng) return advect(q, u_field, v_field, method=m) return rhs rhs_fn = jax.jit(make_rhs(method)) q = q0.copy() # Store initial snapshot snapshots[method][0.0] = np.asarray(q[ng:-ng, ng:-ng]) for step in range(1, nsteps + 1): q = fvx.rk3_ssp_step(q, rhs_fn, dt) q = enforce_periodic_2d(q, ng) t_frac = step / nsteps # Check if we're near a snapshot time for sf in snapshot_fracs: if sf > 0 and abs(t_frac - sf) < 0.5 / nsteps: snapshots[method][sf] = np.asarray(q[ng:-ng, ng:-ng]) results_2d[method] = np.asarray(q[ng:-ng, ng:-ng]) peak = float(np.max(results_2d[method])) print(f" {method:<10s} peak = {peak:.4f} (exact = {float(h0):.1f})")

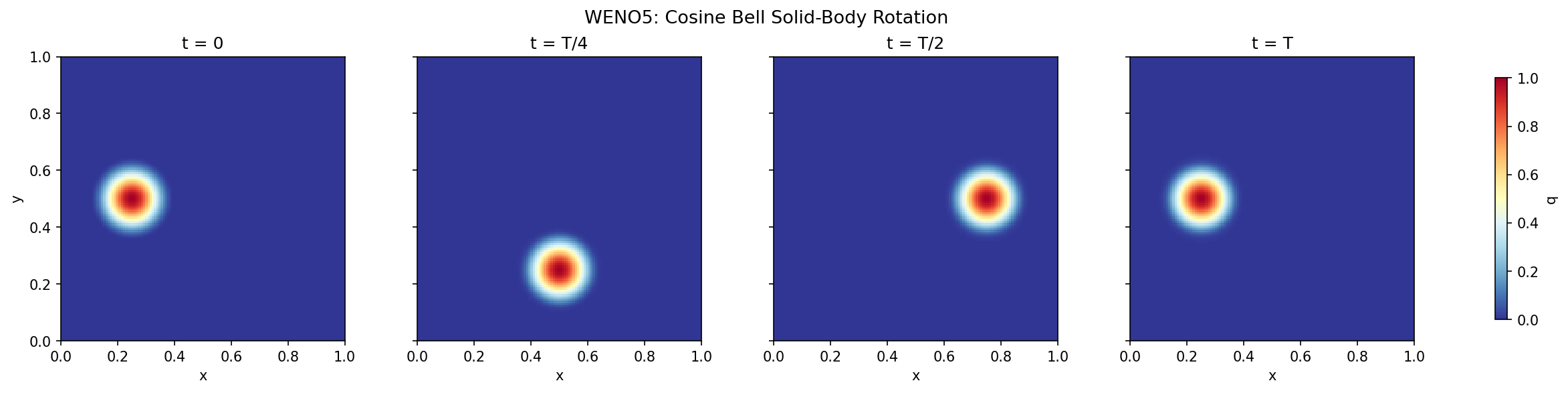

Results: Snapshots at Quarter Revolutions¶

The plots below show the cosine bell at $t = 0$, $T/4$, $T/2$, and $T$ (one full revolution) for the weno5 scheme.

In [ ]:

fig, axes = plt.subplots(1, 4, figsize=(16, 3.8), sharey=True, constrained_layout=True)
titles = ["t = 0", "t = T/4", "t = T/2", "t = T"]

for ax, sf, title in zip(axes, snapshot_fracs, titles):
    data = snapshots["weno5"].get(sf, results_2d["weno5"])
    # Use pcolormesh — contourf creates ring artifacts from tiny numerical noise.
    im = ax.pcolormesh(x_np, y_np, data, vmin=0, vmax=1, cmap="RdYlBu_r", shading="auto")
    ax.set_xlabel("x")
    ax.set_title(title)
    ax.set_aspect("equal")

axes[0].set_ylabel("y")
fig.colorbar(im, ax=axes, label="q", shrink=0.85)
fig.suptitle("WENO5: Cosine Bell Solid-Body Rotation", fontsize=13)
fig.savefig(IMG_DIR / "weno5_snapshots.png", dpi=150, bbox_inches="tight")

fig, axes = plt.subplots(1, 4, figsize=(16, 3.8), sharey=True, constrained_layout=True) titles = ["t = 0", "t = T/4", "t = T/2", "t = T"] for ax, sf, title in zip(axes, snapshot_fracs, titles): data = snapshots["weno5"].get(sf, results_2d["weno5"]) # Use pcolormesh — contourf creates ring artifacts from tiny numerical noise. im = ax.pcolormesh(x_np, y_np, data, vmin=0, vmax=1, cmap="RdYlBu_r", shading="auto") ax.set_xlabel("x") ax.set_title(title) ax.set_aspect("equal") axes[0].set_ylabel("y") fig.colorbar(im, ax=axes, label="q", shrink=0.85) fig.suptitle("WENO5: Cosine Bell Solid-Body Rotation", fontsize=13) fig.savefig(IMG_DIR / "weno5_snapshots.png", dpi=150, bbox_inches="tight")

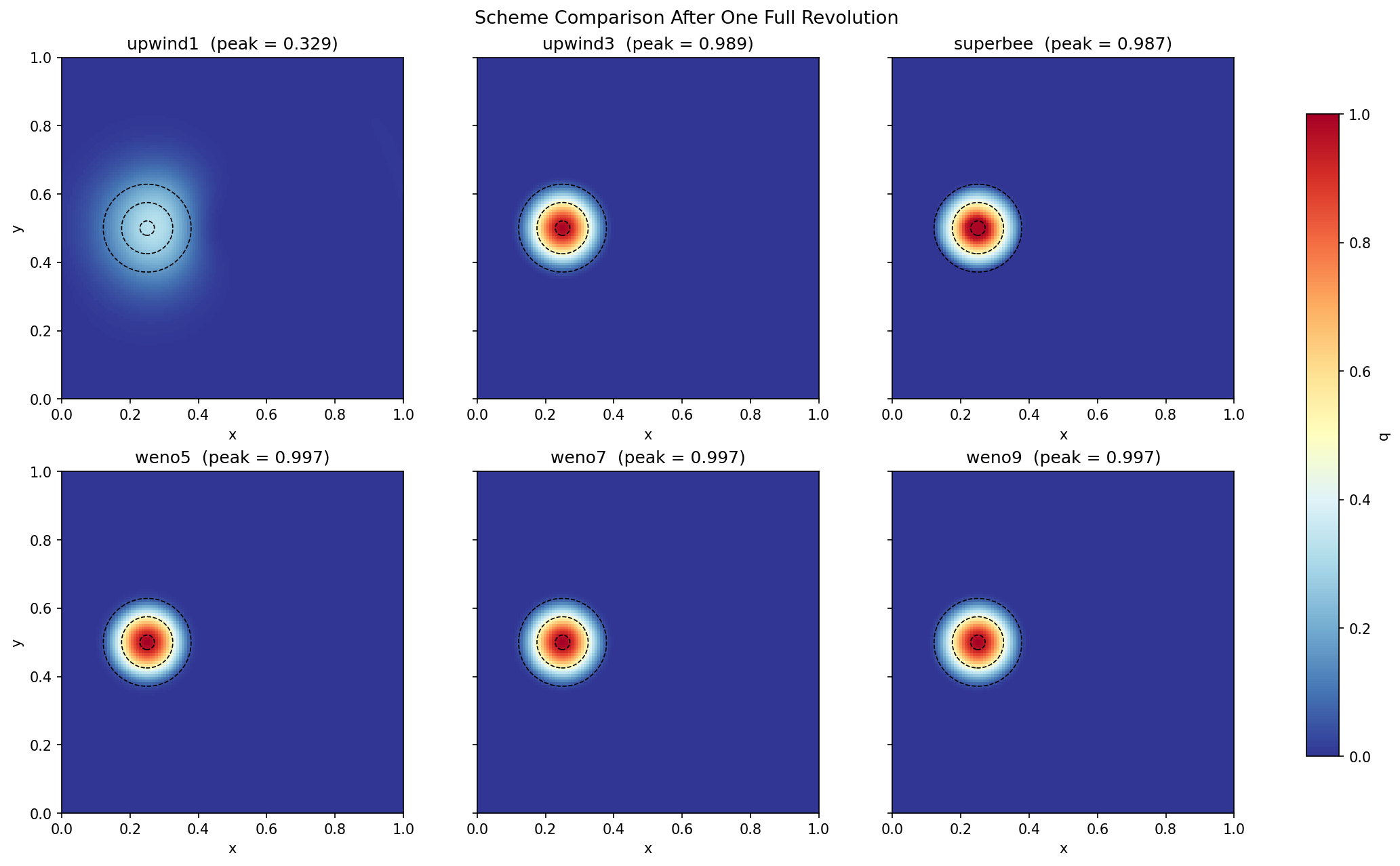

Scheme Comparison After One Revolution¶

Comparing the schemes side by side reveals how much each one erodes the peak and distorts the shape.

In [ ]:

exact_2d = np.asarray(q0_phys)

n_methods = len(methods_2d)
ncols = 3
nrows = (n_methods + ncols - 1) // ncols
fig, axes = plt.subplots(
    nrows, ncols, figsize=(14, 4.2 * nrows), sharey=True, constrained_layout=True
)
axes_flat = axes.ravel() if nrows > 1 else axes

for ax, method in zip(axes_flat, methods_2d):
    data = results_2d[method]
    im = ax.pcolormesh(x_np, y_np, data, vmin=0, vmax=1, cmap="RdYlBu_r", shading="auto")
    ax.contour(x_np, y_np, exact_2d, levels=[0.05, 0.5, 0.95], colors="k", linewidths=0.8, linestyles="--")
    peak = float(np.max(data))
    ax.set_title(f"{method}  (peak = {peak:.3f})")
    ax.set_xlabel("x")
    ax.set_aspect("equal")

# Hide unused subplots
for ax in axes_flat[n_methods:]:
    ax.set_visible(False)

axes_flat[0].set_ylabel("y")
if nrows > 1:
    axes_flat[ncols].set_ylabel("y")
fig.colorbar(im, ax=axes, label="q", shrink=0.85)
fig.suptitle("Scheme Comparison After One Full Revolution", fontsize=13)
fig.savefig(IMG_DIR / "scheme_comparison.png", dpi=150, bbox_inches="tight")

exact_2d = np.asarray(q0_phys) n_methods = len(methods_2d) ncols = 3 nrows = (n_methods + ncols - 1) // ncols fig, axes = plt.subplots( nrows, ncols, figsize=(14, 4.2 * nrows), sharey=True, constrained_layout=True ) axes_flat = axes.ravel() if nrows > 1 else axes for ax, method in zip(axes_flat, methods_2d): data = results_2d[method] im = ax.pcolormesh(x_np, y_np, data, vmin=0, vmax=1, cmap="RdYlBu_r", shading="auto") ax.contour(x_np, y_np, exact_2d, levels=[0.05, 0.5, 0.95], colors="k", linewidths=0.8, linestyles="--") peak = float(np.max(data)) ax.set_title(f"{method} (peak = {peak:.3f})") ax.set_xlabel("x") ax.set_aspect("equal") # Hide unused subplots for ax in axes_flat[n_methods:]: ax.set_visible(False) axes_flat[0].set_ylabel("y") if nrows > 1: axes_flat[ncols].set_ylabel("y") fig.colorbar(im, ax=axes, label="q", shrink=0.85) fig.suptitle("Scheme Comparison After One Full Revolution", fontsize=13) fig.savefig(IMG_DIR / "scheme_comparison.png", dpi=150, bbox_inches="tight")

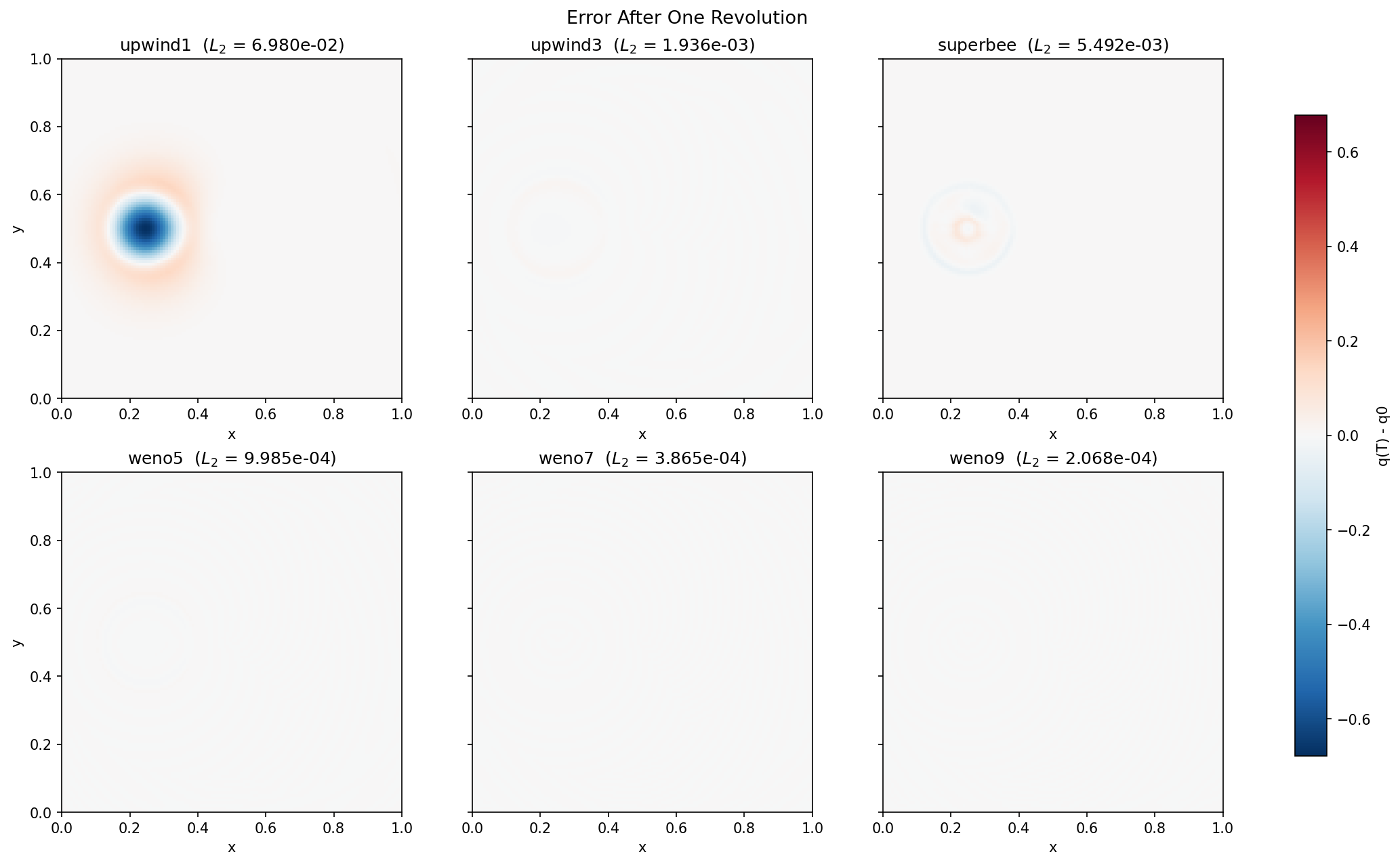

Error Maps¶

The difference $q(T) - q_0$ shows the spatial structure of the error. Positive values (red) indicate the scheme deposited mass where there should be none; negative values (blue) indicate mass was removed.

In [ ]:

fig, axes = plt.subplots(
    nrows, ncols, figsize=(14, 4.2 * nrows), sharey=True, constrained_layout=True
)
axes_flat = axes.ravel() if nrows > 1 else axes

err_max = max(float(np.max(np.abs(results_2d[m] - exact_2d))) for m in methods_2d)

for ax, method in zip(axes_flat, methods_2d):
    err = results_2d[method] - exact_2d
    im = ax.pcolormesh(
        x_np, y_np, err, vmin=-err_max, vmax=err_max, cmap="RdBu_r", shading="auto"
    )
    l2 = float(np.sqrt(np.mean(err**2)))
    ax.set_title(f"{method}  ($L_2$ = {l2:.3e})")
    ax.set_xlabel("x")
    ax.set_aspect("equal")

for ax in axes_flat[n_methods:]:
    ax.set_visible(False)

axes_flat[0].set_ylabel("y")
if nrows > 1:
    axes_flat[ncols].set_ylabel("y")
fig.colorbar(im, ax=axes, label="q(T) - q0", shrink=0.85)
fig.suptitle("Error After One Revolution", fontsize=13)
fig.savefig(IMG_DIR / "error_maps.png", dpi=150, bbox_inches="tight")

fig, axes = plt.subplots( nrows, ncols, figsize=(14, 4.2 * nrows), sharey=True, constrained_layout=True ) axes_flat = axes.ravel() if nrows > 1 else axes err_max = max(float(np.max(np.abs(results_2d[m] - exact_2d))) for m in methods_2d) for ax, method in zip(axes_flat, methods_2d): err = results_2d[method] - exact_2d im = ax.pcolormesh( x_np, y_np, err, vmin=-err_max, vmax=err_max, cmap="RdBu_r", shading="auto" ) l2 = float(np.sqrt(np.mean(err**2))) ax.set_title(f"{method} ($L_2$ = {l2:.3e})") ax.set_xlabel("x") ax.set_aspect("equal") for ax in axes_flat[n_methods:]: ax.set_visible(False) axes_flat[0].set_ylabel("y") if nrows > 1: axes_flat[ncols].set_ylabel("y") fig.colorbar(im, ax=axes, label="q(T) - q0", shrink=0.85) fig.suptitle("Error After One Revolution", fontsize=13) fig.savefig(IMG_DIR / "error_maps.png", dpi=150, bbox_inches="tight")

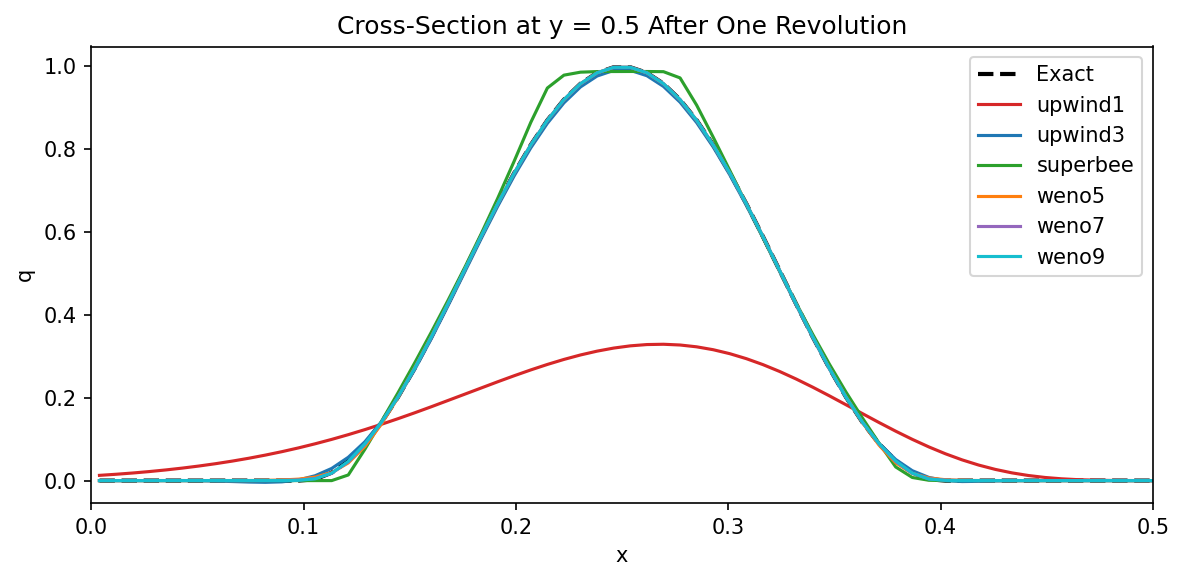

Cross-Section Through the Bell Peak¶

A 1-D slice through the bell centre ($y = 0.5$) gives a clearer picture of peak erosion and shape distortion.

In [ ]:

j_centre = ny // 2  # row index for y ≈ 0.5

fig, ax = plt.subplots(figsize=(8, 4))
ax.plot(x_np, exact_2d[j_centre, :], "k--", lw=2, label="Exact")

colours_2d = {
    "upwind1": "#d62728",
    "upwind3": "#1f77b4",
    "superbee": "#2ca02c",
    "weno5": "#ff7f0e",
    "weno7": "#9467bd",
    "weno9": "#17becf",
}
for method in methods_2d:
    ax.plot(
        x_np,
        results_2d[method][j_centre, :],
        color=colours_2d[method],
        lw=1.5,
        label=method,
    )

ax.set_xlabel("x")
ax.set_ylabel("q")
ax.set_title("Cross-Section at y = 0.5 After One Revolution")
ax.set_xlim(0, 0.5)
ax.legend()
fig.tight_layout()
fig.savefig(IMG_DIR / "cross_section.png", dpi=150, bbox_inches="tight")

j_centre = ny // 2 # row index for y ≈ 0.5 fig, ax = plt.subplots(figsize=(8, 4)) ax.plot(x_np, exact_2d[j_centre, :], "k--", lw=2, label="Exact") colours_2d = { "upwind1": "#d62728", "upwind3": "#1f77b4", "superbee": "#2ca02c", "weno5": "#ff7f0e", "weno7": "#9467bd", "weno9": "#17becf", } for method in methods_2d: ax.plot( x_np, results_2d[method][j_centre, :], color=colours_2d[method], lw=1.5, label=method, ) ax.set_xlabel("x") ax.set_ylabel("q") ax.set_title("Cross-Section at y = 0.5 After One Revolution") ax.set_xlim(0, 0.5) ax.legend() fig.tight_layout() fig.savefig(IMG_DIR / "cross_section.png", dpi=150, bbox_inches="tight")

Quantitative Summary¶

Scheme	Peak at $t=T$	$L_2$ error	Character
upwind1	low	high	Massive diffusion, bell nearly flat
upwind3	moderate	moderate	3rd-order upwind, less diffusion
superbee	moderate	moderate	TVD-sharp edges, some steepening
weno5	high	low	Good shape preservation
weno7	very high	very low	Sharper peaks and finer features
weno9	very high	very low	Highest fidelity on smooth flows

Higher-order WENO schemes (weno7, weno9) preserve the peak better and resolve fine structure more sharply. The improvement from weno5 to weno7 is typically larger than from weno7 to weno9, since both are limited by the 3rd-order time integrator at coarse CFL.

Next Steps¶

• Try wenoz5 (less dissipative WENO variant) or van_leer (smoother TVD limiter).
• Increase resolution to see convergence.
• Add a masked domain (island) to test the adaptive stencil selection — see the Advection Theory page.
• Combine advection with a physical model — see the Shallow Water tutorial.
