Demo: Arakawa C-Grid Masks¶

This notebook demonstrates how ArakawaCGridMask builds staggered masks from a cell-centre wet/dry field and how they relate to the Arakawa C-grid layout used in ocean models.

C-Grid Variable Placement¶

    X ── V ── X ── V ── X
    |         |         |
    U    T    U    T    U     T = tracer / height / pressure (cell centre)
    |         |         |     U = u-velocity (east / y-face)
    X ── V ── X ── V ── X     V = v-velocity (north / x-face)
    |         |         |     X = vorticity / streamfunction (corner)
    U    T    U    T    U
    |         |         |
    X ── V ── X ── V ── X

The h-mask (cell centres) is the primary input. ArakawaCGridMask derives all staggered masks, a 4-level land/coast classification, directional stencil capability arrays, and vorticity boundary flags automatically.

Mask derivation rules¶

Variable	Location	Rule
h	cell centre	input mask (1 = wet, 0 = dry)
u	y-face	wet if both adjacent h-cells are wet
v	x-face	wet if both adjacent h-cells are wet
w	corner (lenient)	wet if any adjacent h-cell is wet
psi	corner (strict)	wet if all four adjacent h-cells are wet

In [ ]:

from pathlib import Path

import jax
import matplotlib

matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

from finitevolx import ArakawaCGrid2D, ArakawaCGridMask

IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "demo_masks"
IMG_DIR.mkdir(parents=True, exist_ok=True)

from pathlib import Path import jax import matplotlib matplotlib.use("Agg") import matplotlib.pyplot as plt import numpy as np jax.config.update("jax_enable_x64", True) from finitevolx import ArakawaCGrid2D, ArakawaCGridMask IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "demo_masks" IMG_DIR.mkdir(parents=True, exist_ok=True)

1. Creating masks from different domain topologies¶

ArakawaCGridMask.from_mask takes a binary h-grid mask and derives all staggered masks (u, v, w, psi), boundary classification, and stencil capability arrays automatically.

We build four common topologies:

Topology	Description
Basin	Rectangular ocean interior with land on all boundaries
Island	Basin with a 3x3 island in the centre
Channel	Periodic in x, solid walls in y
Irregular	Arbitrary coastline with convex/concave features

In [ ]:

# --- Basin: rectangular ocean interior, land on all boundaries ---
n = 10
h_basin = np.ones((n, n), dtype=bool)
h_basin[0, :] = False  # south wall
h_basin[-1, :] = False  # north wall
h_basin[:, 0] = False  # west wall
h_basin[:, -1] = False  # east wall

masks_basin = ArakawaCGridMask.from_mask(h_basin)
print(f"Basin: h shape = {masks_basin.h.shape}")
print(f"  Wet h-cells: {int(masks_basin.h.sum())}")
print(f"  Wet u-cells: {int(masks_basin.u.sum())}")
print(f"  Wet v-cells: {int(masks_basin.v.sum())}")
print(f"  Wet psi-cells: {int(masks_basin.psi.sum())}")

# --- Basin: rectangular ocean interior, land on all boundaries --- n = 10 h_basin = np.ones((n, n), dtype=bool) h_basin[0, :] = False # south wall h_basin[-1, :] = False # north wall h_basin[:, 0] = False # west wall h_basin[:, -1] = False # east wall masks_basin = ArakawaCGridMask.from_mask(h_basin) print(f"Basin: h shape = {masks_basin.h.shape}") print(f" Wet h-cells: {int(masks_basin.h.sum())}") print(f" Wet u-cells: {int(masks_basin.u.sum())}") print(f" Wet v-cells: {int(masks_basin.v.sum())}") print(f" Wet psi-cells: {int(masks_basin.psi.sum())}")

In [ ]:

# --- Island: basin with a 3x3 island in the centre ---
h_island = np.ones((n, n), dtype=bool)
h_island[0, :] = False
h_island[-1, :] = False
h_island[:, 0] = False
h_island[:, -1] = False
h_island[4:7, 4:7] = False  # island

masks_island = ArakawaCGridMask.from_mask(h_island)
print(
    f"Island: h shape = {masks_island.h.shape}, Wet h-cells = {int(masks_island.h.sum())}"
)

# --- Island: basin with a 3x3 island in the centre --- h_island = np.ones((n, n), dtype=bool) h_island[0, :] = False h_island[-1, :] = False h_island[:, 0] = False h_island[:, -1] = False h_island[4:7, 4:7] = False # island masks_island = ArakawaCGridMask.from_mask(h_island) print( f"Island: h shape = {masks_island.h.shape}, Wet h-cells = {int(masks_island.h.sum())}" )

In [ ]:

# --- Channel: periodic in x, solid walls in y ---
# Width is 3/4 of height to mimic a zonal channel (e.g. Drake Passage).
h_channel = np.ones((n, 3 * n // 4), dtype=bool)
h_channel[:, 0] = False  # south wall
h_channel[:, -1] = False  # north wall

masks_channel = ArakawaCGridMask.from_mask(h_channel)
print(
    f"Channel: h shape = {masks_channel.h.shape}, "
    f"Wet h-cells = {int(masks_channel.h.sum())}"
)

# --- Channel: periodic in x, solid walls in y --- # Width is 3/4 of height to mimic a zonal channel (e.g. Drake Passage). h_channel = np.ones((n, 3 * n // 4), dtype=bool) h_channel[:, 0] = False # south wall h_channel[:, -1] = False # north wall masks_channel = ArakawaCGridMask.from_mask(h_channel) print( f"Channel: h shape = {masks_channel.h.shape}, " f"Wet h-cells = {int(masks_channel.h.sum())}" )

In [ ]:

# --- Irregular coastline ---
# Scattered land cells create convex/concave boundary features.
h_irregular = np.ones((n, n), dtype=bool)
h_irregular[1, 0] = False
h_irregular[n - 1, 2] = False
h_irregular[0, n - 2] = False
h_irregular[1, n - 2] = False
h_irregular[0, n - 1] = False
h_irregular[1, n - 1] = False
h_irregular[2, n - 1] = False

masks_irregular = ArakawaCGridMask.from_mask(h_irregular)
print(
    f"Irregular: h shape = {masks_irregular.h.shape}, Wet h-cells = {int(masks_irregular.h.sum())}"
)
print(
    f"  Irregular boundary psi indices: {len(masks_irregular.psi_irrbound_xids)} cells"
)

# --- Irregular coastline --- # Scattered land cells create convex/concave boundary features. h_irregular = np.ones((n, n), dtype=bool) h_irregular[1, 0] = False h_irregular[n - 1, 2] = False h_irregular[0, n - 2] = False h_irregular[1, n - 2] = False h_irregular[0, n - 1] = False h_irregular[1, n - 1] = False h_irregular[2, n - 1] = False masks_irregular = ArakawaCGridMask.from_mask(h_irregular) print( f"Irregular: h shape = {masks_irregular.h.shape}, Wet h-cells = {int(masks_irregular.h.sum())}" ) print( f" Irregular boundary psi indices: {len(masks_irregular.psi_irrbound_xids)} cells" )

2. Visualising the staggered masks¶

The ArakawaCGridMask stores five staggered masks plus a 4-level land/coast classification:

Value	Meaning
0	land
1	coast (adjacent to land)
2	near-coast (one cell from coast)
3	open ocean (interior)

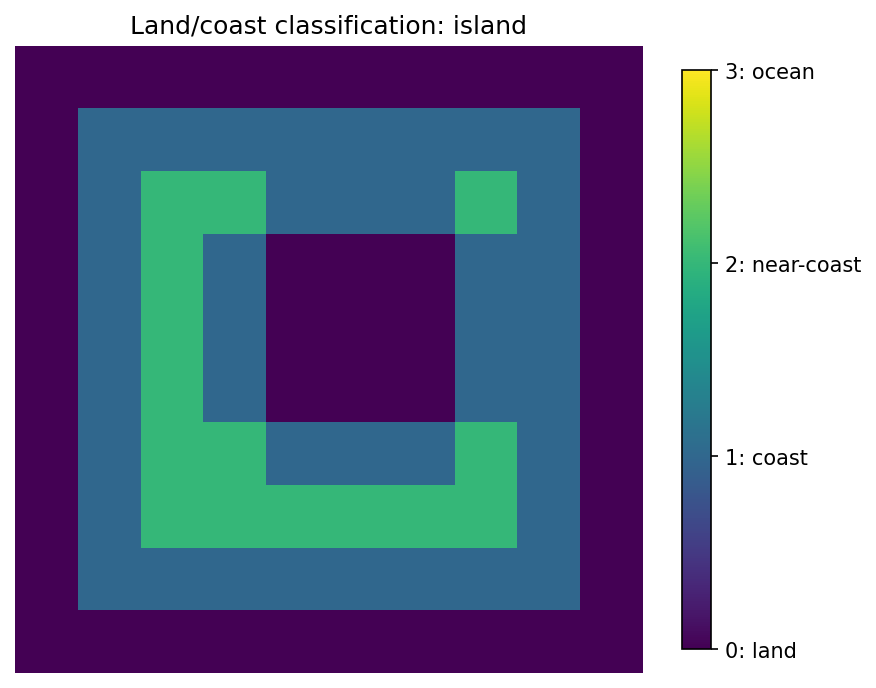

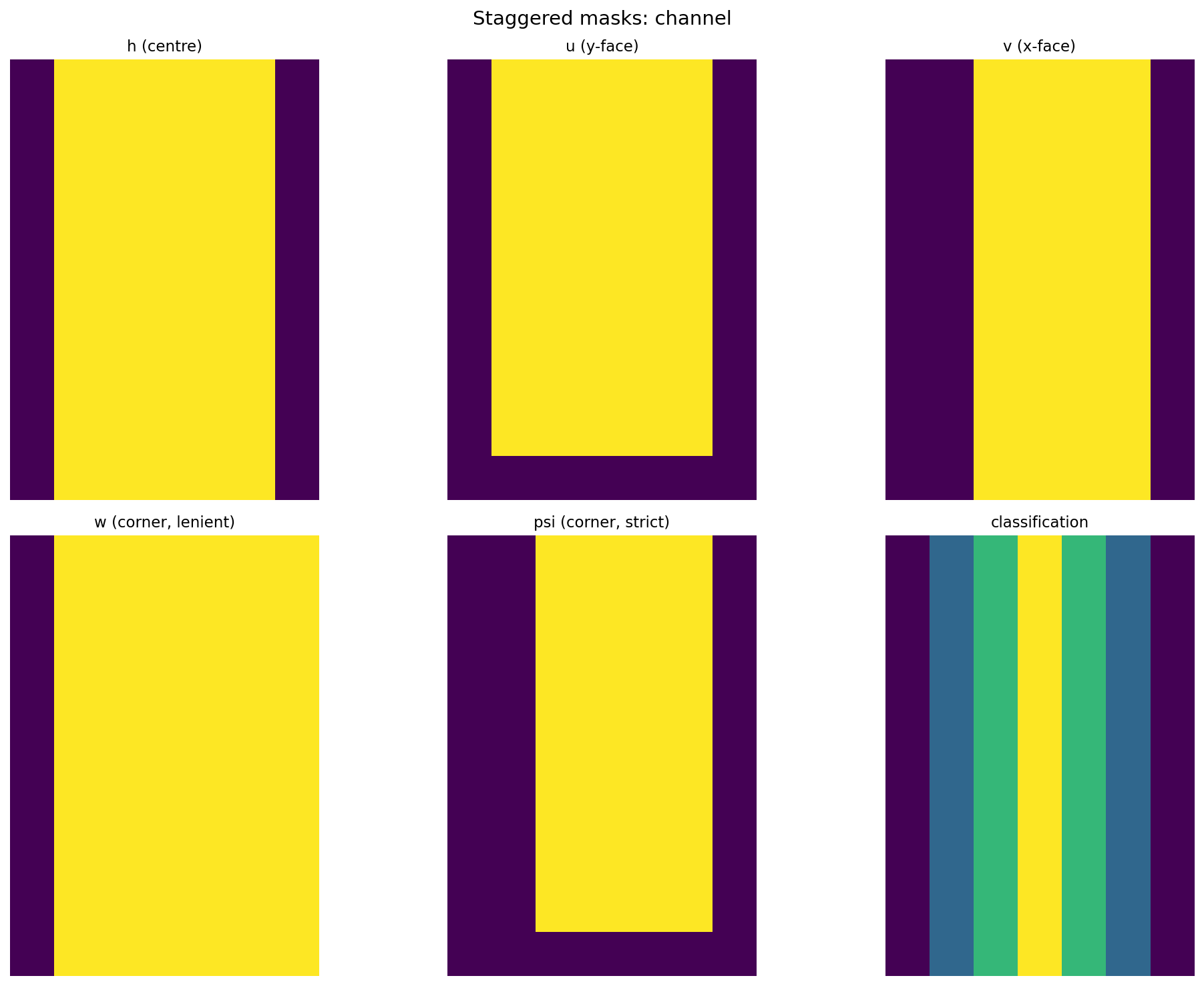

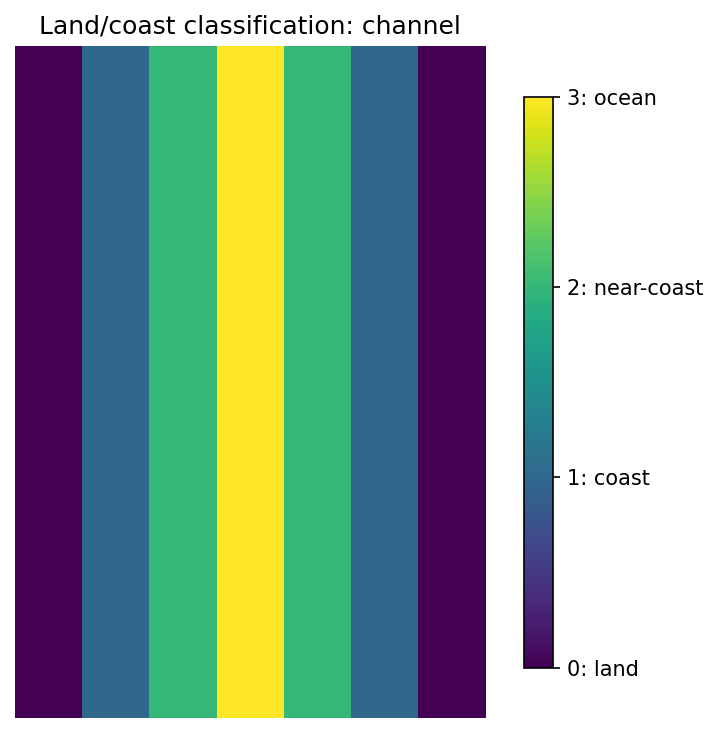

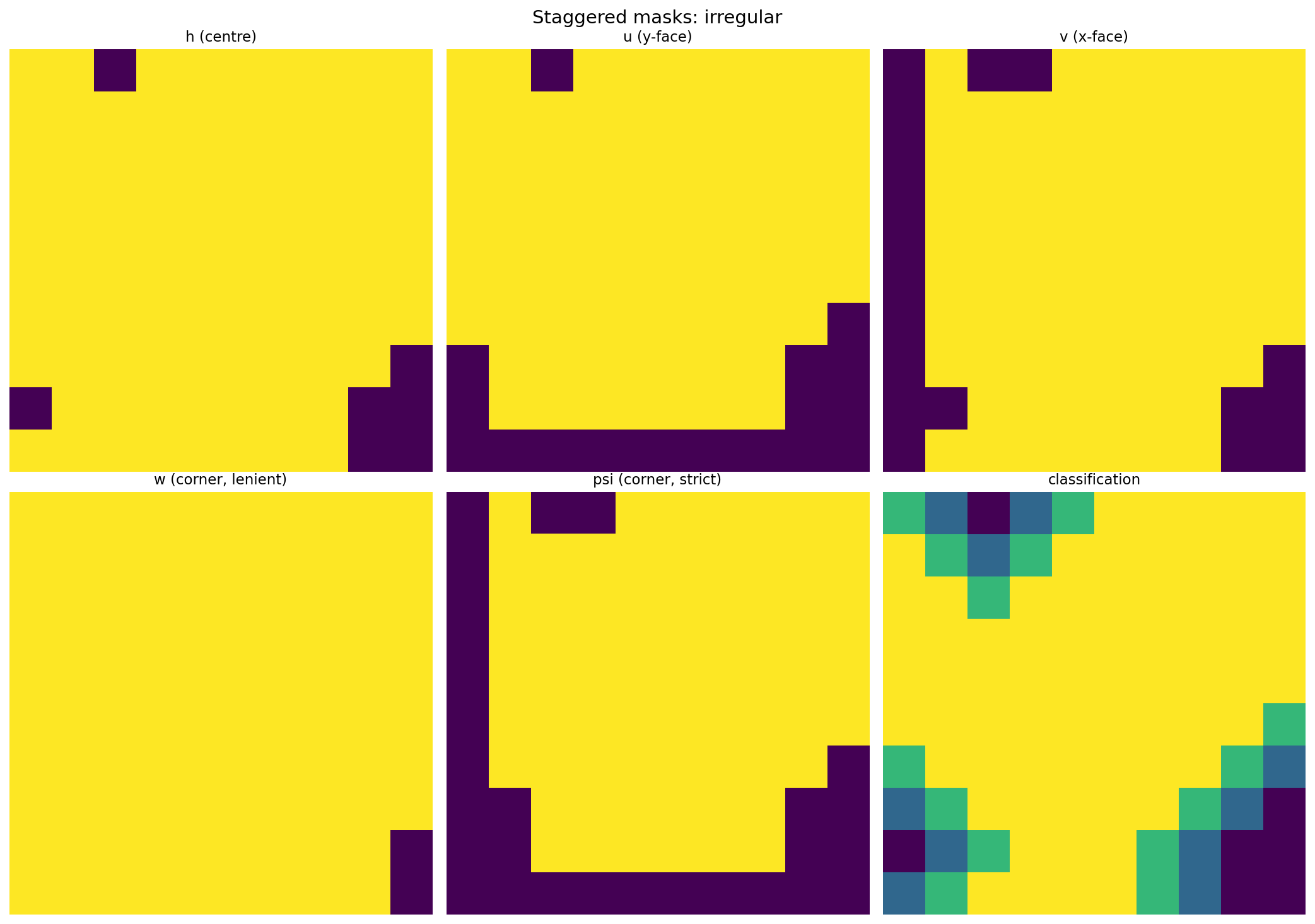

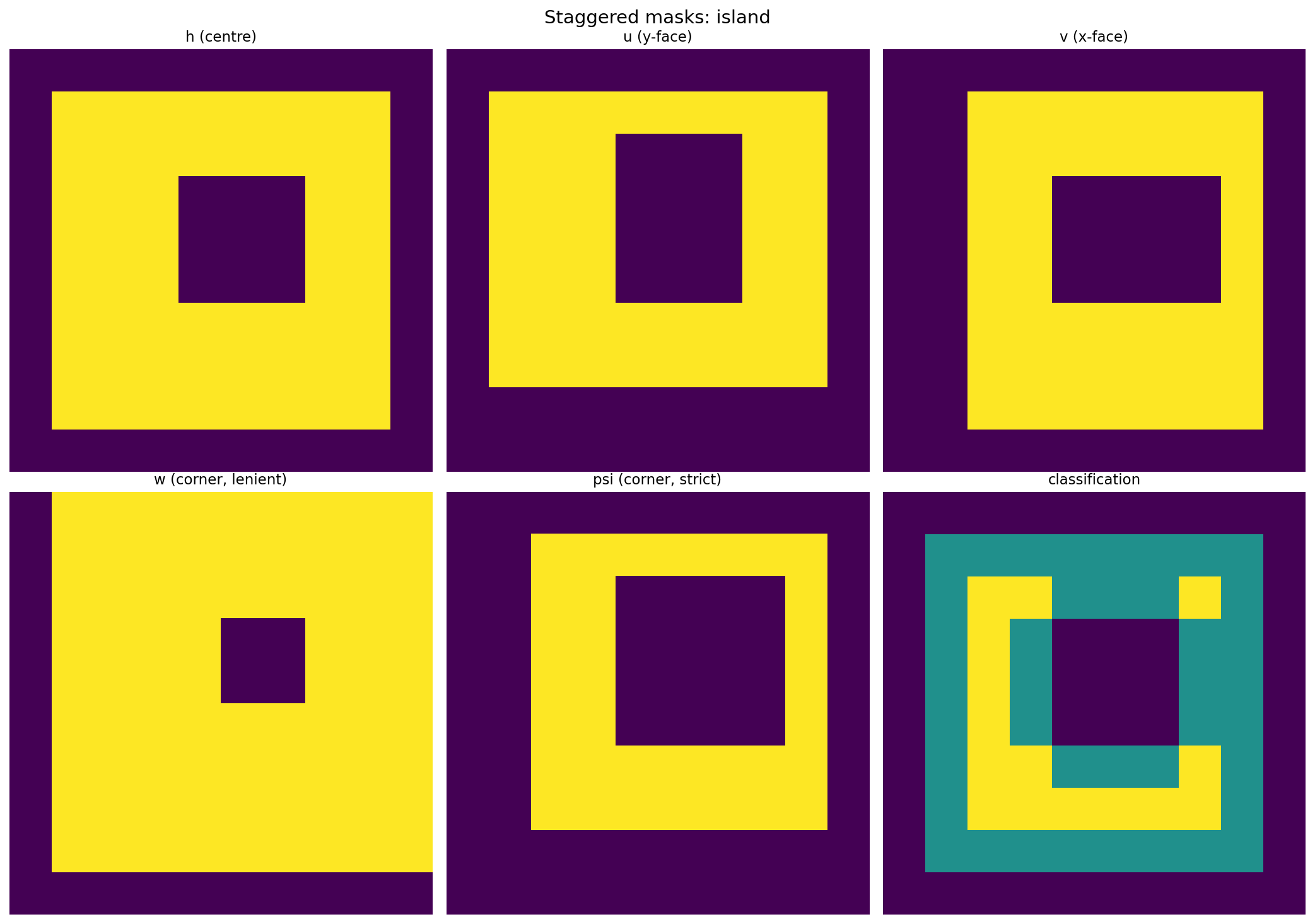

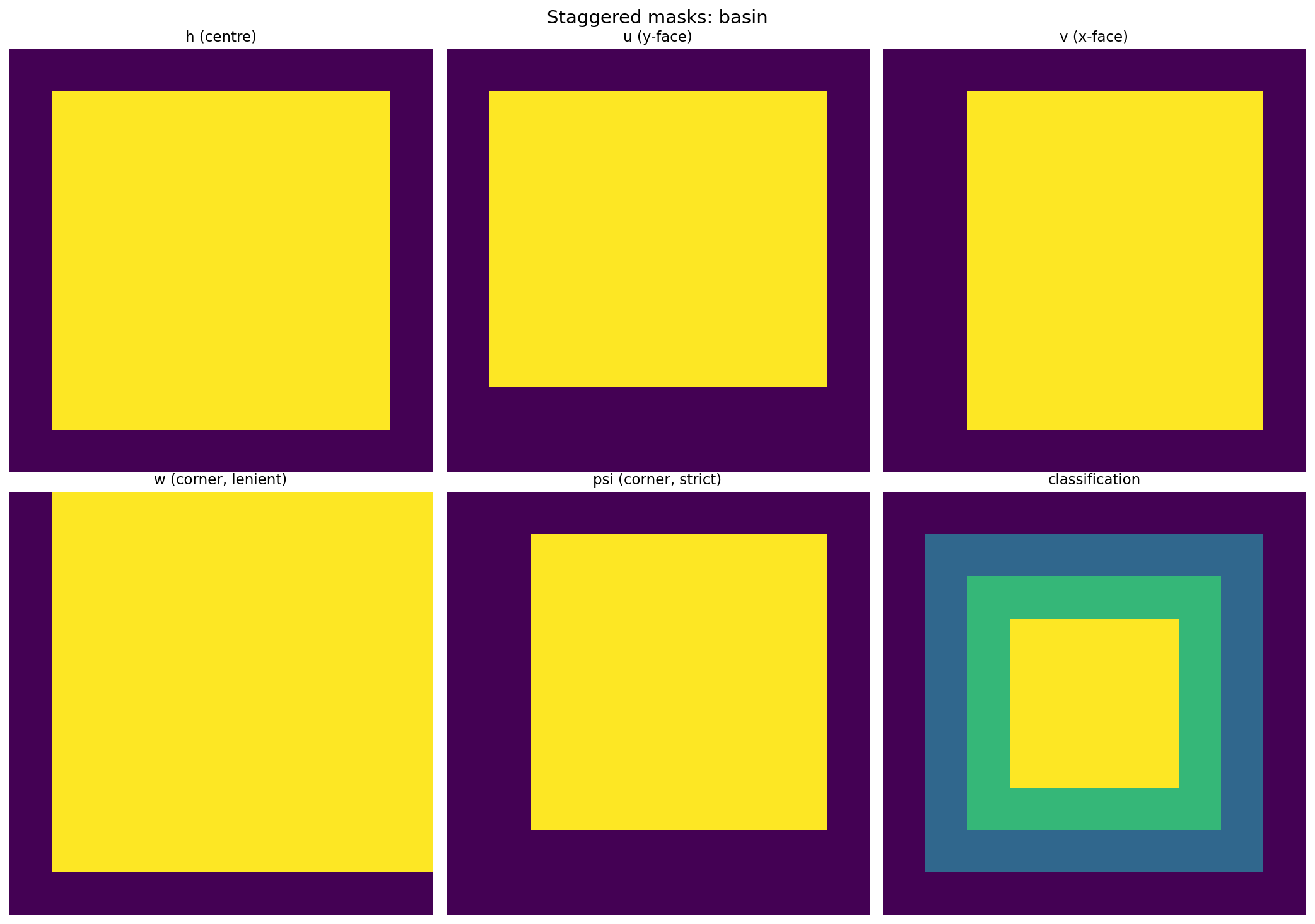

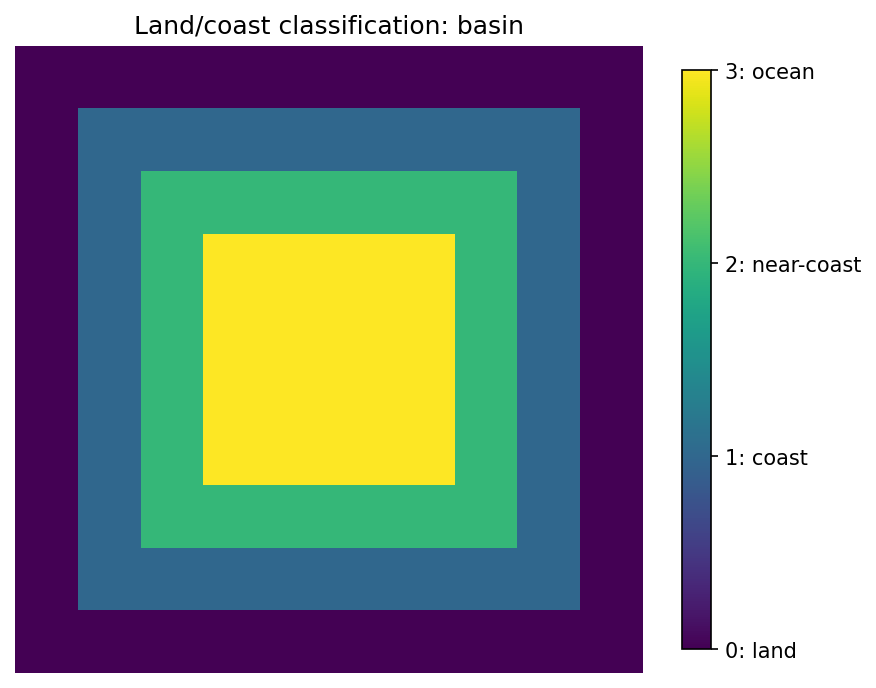

Below we plot staggered masks (2x3 grid) and the classification (single panel with colorbar) for each of the four topologies.

In [ ]:

def plot_staggered_masks(masks, name, img_dir):
    """Plot the 5 staggered masks + classification in a 2x3 grid."""
    fields = {
        "h (centre)": masks.h,
        "u (y-face)": masks.u,
        "v (x-face)": masks.v,
        "w (corner, lenient)": masks.w,
        "psi (corner, strict)": masks.psi,
        "classification": masks.classification,
    }
    fig, axes = plt.subplots(2, 3, figsize=(14, 10))
    for ax, (title, data) in zip(axes.ravel(), fields.items(), strict=True):
        ax.imshow(
            np.asarray(data), origin="lower", interpolation="nearest", cmap="viridis"
        )
        ax.set_title(title, fontsize=11)
        ax.axis("off")
    fig.suptitle(f"Staggered masks: {name}", fontsize=14)
    plt.tight_layout()
    fig.savefig(img_dir / f"staggered_{name}.png", dpi=150, bbox_inches="tight")
    plt.show()


def plot_classification(masks, name, img_dir):
    """Plot the 4-level classification with a discrete colorbar."""
    fig, ax = plt.subplots(figsize=(6, 5))
    im = ax.imshow(
        np.asarray(masks.classification),
        origin="lower",
        interpolation="nearest",
        cmap="viridis",
        vmin=0,
        vmax=3,
    )
    cbar = fig.colorbar(im, ax=ax, ticks=[0, 1, 2, 3], shrink=0.85)
    cbar.ax.set_yticklabels(["0: land", "1: coast", "2: near-coast", "3: ocean"])

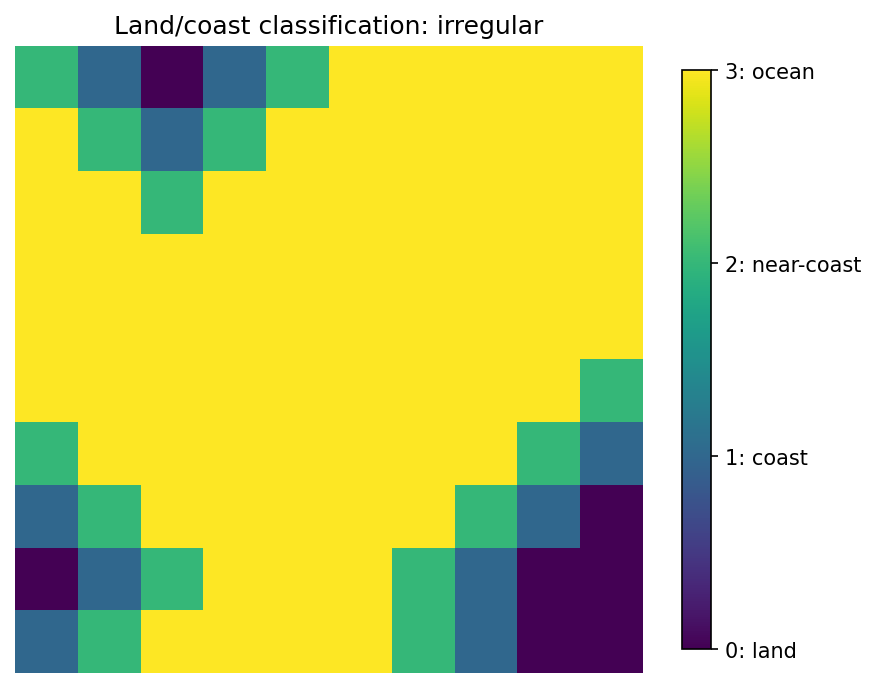

    ax.set_title(f"Land/coast classification: {name}", fontsize=12)
    ax.axis("off")
    plt.tight_layout()
    fig.savefig(img_dir / f"classification_{name}.png", dpi=150, bbox_inches="tight")
    plt.show()

def plot_staggered_masks(masks, name, img_dir): """Plot the 5 staggered masks + classification in a 2x3 grid.""" fields = { "h (centre)": masks.h, "u (y-face)": masks.u, "v (x-face)": masks.v, "w (corner, lenient)": masks.w, "psi (corner, strict)": masks.psi, "classification": masks.classification, } fig, axes = plt.subplots(2, 3, figsize=(14, 10)) for ax, (title, data) in zip(axes.ravel(), fields.items(), strict=True): ax.imshow( np.asarray(data), origin="lower", interpolation="nearest", cmap="viridis" ) ax.set_title(title, fontsize=11) ax.axis("off") fig.suptitle(f"Staggered masks: {name}", fontsize=14) plt.tight_layout() fig.savefig(img_dir / f"staggered_{name}.png", dpi=150, bbox_inches="tight") plt.show() def plot_classification(masks, name, img_dir): """Plot the 4-level classification with a discrete colorbar.""" fig, ax = plt.subplots(figsize=(6, 5)) im = ax.imshow( np.asarray(masks.classification), origin="lower", interpolation="nearest", cmap="viridis", vmin=0, vmax=3, ) cbar = fig.colorbar(im, ax=ax, ticks=[0, 1, 2, 3], shrink=0.85) cbar.ax.set_yticklabels(["0: land", "1: coast", "2: near-coast", "3: ocean"]) ax.set_title(f"Land/coast classification: {name}", fontsize=12) ax.axis("off") plt.tight_layout() fig.savefig(img_dir / f"classification_{name}.png", dpi=150, bbox_inches="tight") plt.show()

In [ ]:

# Generate staggered + classification figures for all 4 topologies
all_masks = {
    "basin": masks_basin,
    "island": masks_island,
    "channel": masks_channel,
    "irregular": masks_irregular,
}

for topo_name, topo_masks in all_masks.items():
    print(f"--- {topo_name} ---")
    print(f"  h: {topo_masks.h.shape}, wet = {int(topo_masks.h.sum())}")
    print(f"  u: {topo_masks.u.shape}, wet = {int(topo_masks.u.sum())}")
    print(f"  v: {topo_masks.v.shape}, wet = {int(topo_masks.v.sum())}")
    print(f"  psi: {topo_masks.psi.shape}, wet = {int(topo_masks.psi.sum())}")
    plot_staggered_masks(topo_masks, topo_name, IMG_DIR)
    plot_classification(topo_masks, topo_name, IMG_DIR)

# Generate staggered + classification figures for all 4 topologies all_masks = { "basin": masks_basin, "island": masks_island, "channel": masks_channel, "irregular": masks_irregular, } for topo_name, topo_masks in all_masks.items(): print(f"--- {topo_name} ---") print(f" h: {topo_masks.h.shape}, wet = {int(topo_masks.h.sum())}") print(f" u: {topo_masks.u.shape}, wet = {int(topo_masks.u.sum())}") print(f" v: {topo_masks.v.shape}, wet = {int(topo_masks.v.sum())}") print(f" psi: {topo_masks.psi.shape}, wet = {int(topo_masks.psi.sum())}") plot_staggered_masks(topo_masks, topo_name, IMG_DIR) plot_classification(topo_masks, topo_name, IMG_DIR)

3. Stencil capability and adaptive WENO masks¶

Each cell stores how many contiguous wet neighbours it has in each direction ($x_+$, $x_-$, $y_+$, $y_-$). This drives the adaptive stencil selection for WENO reconstruction near coastlines:

• 5-point WENO where the stencil capability $\ge 3$ in both directions
• 3-point TVD where the capability is 2
• 1st-order upwind at the coast (capability = 1)

The masks are mutually exclusive: every wet cell belongs to exactly one stencil category.

In [ ]:

sc = masks_island.stencil_capability
print("Stencil capability (x_pos) -- contiguous wet cells to the right:")
print(f"  shape: {sc.x_pos.shape}")
print(np.asarray(sc.x_pos))

sc = masks_island.stencil_capability print("Stencil capability (x_pos) -- contiguous wet cells to the right:") print(f" shape: {sc.x_pos.shape}") print(np.asarray(sc.x_pos))

In [ ]:

# Get mutually-exclusive adaptive masks for x-direction reconstruction
adaptive = masks_island.get_adaptive_masks(direction="x", source="h")
print("Adaptive stencil masks (x-direction, island domain):")
for size, mask in sorted(adaptive.items()):
    count = int(mask.sum())
    if count > 0:
        print(f"  stencil size {size:2d}: {count} cells  (shape {mask.shape})")

# Get mutually-exclusive adaptive masks for x-direction reconstruction adaptive = masks_island.get_adaptive_masks(direction="x", source="h") print("Adaptive stencil masks (x-direction, island domain):") for size, mask in sorted(adaptive.items()): count = int(mask.sum()) if count > 0: print(f" stencil size {size:2d}: {count} cells (shape {mask.shape})")

4. Vorticity boundary classification¶

At vorticity (w/psi) points the mask classifies cells into four categories based on the configuration of adjacent velocity faces:

Flag	Meaning	Boundary condition
w_valid	interior -- all 4 adjacent faces wet	standard curl stencil
w_vertical_bound	on a vertical (y-direction) boundary	one-sided $\partial v/\partial x$
w_horizontal_bound	on a horizontal (x-direction) boundary	one-sided $\partial u/\partial y$
w_cornerout_bound	convex corner (both boundary types)	diagonal extrapolation

These flags are essential for correctly computing vorticity $\zeta = \partial v / \partial x - \partial u / \partial y$ at domain boundaries in both QG and SW models.

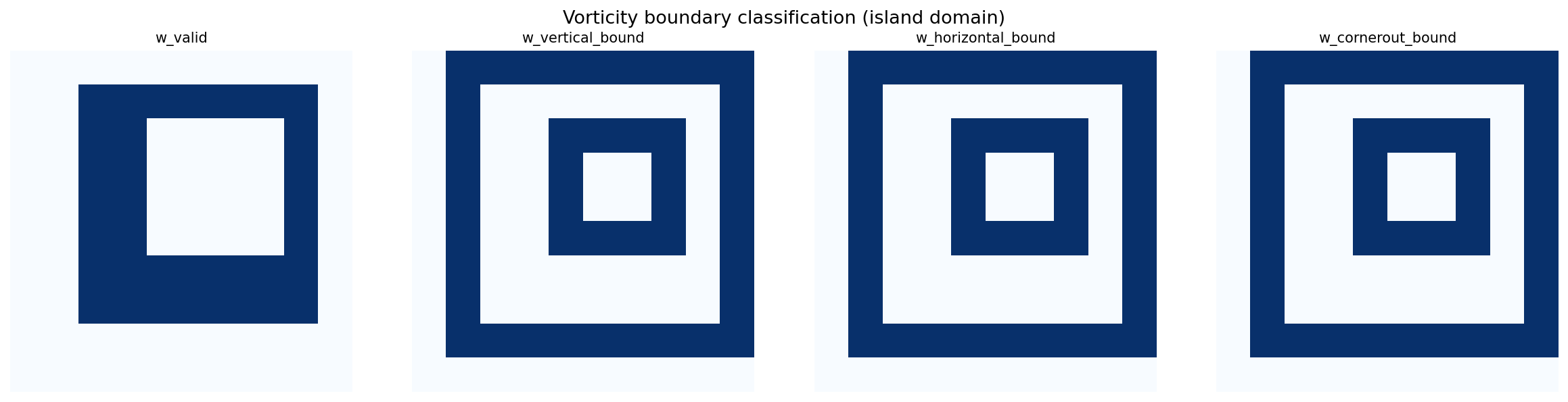

In [ ]:

fig, axes = plt.subplots(1, 4, figsize=(16, 4))
titles = ["w_valid", "w_vertical_bound", "w_horizontal_bound", "w_cornerout_bound"]
fields = [
    masks_island.w_valid,
    masks_island.w_vertical_bound,
    masks_island.w_horizontal_bound,
    masks_island.w_cornerout_bound,
]
for ax, title, field in zip(axes, titles, fields, strict=True):
    ax.imshow(np.asarray(field), origin="lower", cmap="Blues", interpolation="nearest")
    ax.set_title(title, fontsize=10)
    ax.axis("off")
fig.suptitle("Vorticity boundary classification (island domain)", fontsize=13)
plt.tight_layout()
fig.savefig(IMG_DIR / "vorticity_boundary.png", dpi=150, bbox_inches="tight")
plt.show()

fig, axes = plt.subplots(1, 4, figsize=(16, 4)) titles = ["w_valid", "w_vertical_bound", "w_horizontal_bound", "w_cornerout_bound"] fields = [ masks_island.w_valid, masks_island.w_vertical_bound, masks_island.w_horizontal_bound, masks_island.w_cornerout_bound, ] for ax, title, field in zip(axes, titles, fields, strict=True): ax.imshow(np.asarray(field), origin="lower", cmap="Blues", interpolation="nearest") ax.set_title(title, fontsize=10) ax.axis("off") fig.suptitle("Vorticity boundary classification (island domain)", fontsize=13) plt.tight_layout() fig.savefig(IMG_DIR / "vorticity_boundary.png", dpi=150, bbox_inches="tight") plt.show()

5. All-ocean domain shortcut¶

For simple rectangular domains without land, use from_dimensions. This creates a mask where every cell is wet (classification = 3 everywhere) and all stencil capabilities are maximal.

In [ ]:

masks_simple = ArakawaCGridMask.from_dimensions(ny=12, nx=12)
print(
    f"All-ocean: h shape = {masks_simple.h.shape}, "
    f"all wet = {bool(masks_simple.h.all())}, "
    f"classification range = [{int(masks_simple.classification.min())}, "
    f"{int(masks_simple.classification.max())}]"
)

masks_simple = ArakawaCGridMask.from_dimensions(ny=12, nx=12) print( f"All-ocean: h shape = {masks_simple.h.shape}, " f"all wet = {bool(masks_simple.h.all())}, " f"classification range = [{int(masks_simple.classification.min())}, " f"{int(masks_simple.classification.max())}]" )

6. Physical context: QG and Shallow Water equations¶

Quasi-Geostrophic (QG) equations¶

The barotropic QG system evolves relative vorticity $\omega$ via the streamfunction $\psi$:

$$ \begin{aligned} \partial_t \omega &= -\vec{\boldsymbol{u}} \cdot \nabla\omega \\ \omega &= \nabla^2 \psi \\ \vec{\boldsymbol{u}} &= \left[-\partial_y \psi,\; \partial_x \psi \right]^\top \end{aligned} $$

On the C-grid: $\omega$ lives at h-points (cell centres), $\psi$ at psi-points (corners), and $u, v$ at face points. The mask ensures that $\nabla^2 \psi$ is only computed where all four corner psi-values exist (i.e. where psi mask is True).

Shallow Water (SW) equations (vector-invariant form)¶

$$ \begin{aligned} \partial_t h &= -\nabla \cdot (\vec{\boldsymbol{u}} h) \\ \partial_t u &= qhv - \partial_x p + F_x \\ \partial_t v &= -qhu - \partial_y p + F_y \end{aligned} $$

where $q = (\zeta + f) / h$ is the potential vorticity and $p = g(h + \eta_b) + \frac{1}{2}(u^2 + v^2)$ is the Bernoulli potential.

On the C-grid: $h$ at h-points, $u$ at u-points, $v$ at v-points, and $q$ at w/psi-points. The vorticity boundary flags (section 4) control how $\zeta$ is computed at the domain edges.

In [ ]:

# Demonstrate with a grid + masks for a small basin
grid = ArakawaCGrid2D.from_interior(8, 8, Lx=8e4, Ly=8e4)
masks = ArakawaCGridMask.from_dimensions(ny=grid.Ny, nx=grid.Nx)
print(f"Grid: {grid.Ny}x{grid.Nx} (8 interior + 2 ghost = 10 per side)")
print(f"  dx = {grid.dx:.0f} m, dy = {grid.dy:.0f} m")
print(
    f"Masks: h={int(masks.h.sum())} wet, "
    f"u={int(masks.u.sum())} wet, "
    f"v={int(masks.v.sum())} wet, "
    f"psi={int(masks.psi.sum())} wet"
)

# Demonstrate with a grid + masks for a small basin grid = ArakawaCGrid2D.from_interior(8, 8, Lx=8e4, Ly=8e4) masks = ArakawaCGridMask.from_dimensions(ny=grid.Ny, nx=grid.Nx) print(f"Grid: {grid.Ny}x{grid.Nx} (8 interior + 2 ghost = 10 per side)") print(f" dx = {grid.dx:.0f} m, dy = {grid.dy:.0f} m") print( f"Masks: h={int(masks.h.sum())} wet, " f"u={int(masks.u.sum())} wet, " f"v={int(masks.v.sum())} wet, " f"psi={int(masks.psi.sum())} wet" )

7. Summary¶

Concept	Detail
Primary input	Binary h-mask (cell centres): 1 = wet, 0 = dry
Derived masks	u (y-face), v (x-face), w (corner, lenient), psi (corner, strict)
Classification	4-level: land (0), coast (1), near-coast (2), ocean (3)
Stencil capability	Per-cell count of contiguous wet neighbours in each direction
Adaptive stencils	Mutually-exclusive masks for WENO-5 / TVD-3 / upwind-1
Vorticity flags	w_valid, w_vertical_bound, w_horizontal_bound, w_cornerout_bound
All-ocean shortcut	ArakawaCGridMask.from_dimensions(ny, nx)
Factory	ArakawaCGridMask.from_mask(h_bool_array)
