Helmholtz Screening: QG PV Inversion¶

In quasi-geostrophic (QG) dynamics, the streamfunction $\psi$ is recovered from potential vorticity (PV) $q$ via the Helmholtz equation:

$$ (\nabla^2 - \lambda)\,\psi = q, \qquad \lambda = \frac{1}{L_d^2} $$

where $L_d = \sqrt{g'H}/f_0$ is the Rossby deformation radius. The parameter $\lambda$ controls screening: how far a PV anomaly's influence extends spatially.

Regime	$L_d$	$\lambda$	Character
Barotropic	$\infty$	0	Poisson — long-range, fills the basin
Mesoscale	200–500 km	moderate	Moderate screening
Submesoscale	10–50 km	large	Strong screening — very local response

This notebook demonstrates the screening effect using the spectral solver classes (re-exported from spectraldiffx) via finitevolX's public API.

In [ ]:

from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib

matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

import equinox as eqx

import finitevolx as fvx
from finitevolx import (
    StaggeredDirichletHelmholtzSolver2D,
    RegularNeumannHelmholtzSolver2D,
)

IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "helmholtz_screening"
IMG_DIR.mkdir(parents=True, exist_ok=True)

from pathlib import Path import jax import jax.numpy as jnp import matplotlib matplotlib.use("Agg") import matplotlib.pyplot as plt import numpy as np jax.config.update("jax_enable_x64", True) import equinox as eqx import finitevolx as fvx from finitevolx import ( StaggeredDirichletHelmholtzSolver2D, RegularNeumannHelmholtzSolver2D, ) IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "helmholtz_screening" IMG_DIR.mkdir(parents=True, exist_ok=True)

1. Setup: Isolated PV Anomaly¶

We place a Gaussian PV anomaly in a square basin with no-normal-flow walls ($\psi = 0$ on the boundary).

$$ q(x, y) = A \exp\!\left(-\frac{(x - x_0)^2 + (y - y_0)^2}{2\sigma^2}\right) $$

In [ ]:

nx, ny = 128, 128
Lx, Ly = 2e6, 2e6  # 2000 km × 2000 km
dx, dy = Lx / nx, Ly / ny

# PV anomaly at domain centre
amplitude = 1e-9  # s⁻²  (typical QG PV magnitude)
sigma = 200e3     # 200 km radius
x0, y0 = Lx / 2, Ly / 2

# T-point coordinates (cell centres, interior grid)
i_idx = jnp.arange(nx)[None, :] + 0.5
j_idx = jnp.arange(ny)[:, None] + 0.5
x_T = i_idx * dx
y_T = j_idx * dy

q = amplitude * jnp.exp(-((x_T - x0) ** 2 + (y_T - y0) ** 2) / (2 * sigma**2))

print(f"PV range: [{float(q.min()):.4e}, {float(q.max()):.4e}] s⁻²")

nx, ny = 128, 128 Lx, Ly = 2e6, 2e6 # 2000 km × 2000 km dx, dy = Lx / nx, Ly / ny # PV anomaly at domain centre amplitude = 1e-9 # s⁻² (typical QG PV magnitude) sigma = 200e3 # 200 km radius x0, y0 = Lx / 2, Ly / 2 # T-point coordinates (cell centres, interior grid) i_idx = jnp.arange(nx)[None, :] + 0.5 j_idx = jnp.arange(ny)[:, None] + 0.5 x_T = i_idx * dx y_T = j_idx * dy q = amplitude * jnp.exp(-((x_T - x0) ** 2 + (y_T - y0) ** 2) / (2 * sigma**2)) print(f"PV range: [{float(q.min()):.4e}, {float(q.max()):.4e}] s⁻²")

2. The Screening Effect¶

We solve $(∇^2 - \lambda)\psi = q$ for four values of $L_d$, sweeping from Poisson ($\lambda = 0$) to strongly screened ($L_d = 50$ km).

In [ ]:

Ld_values = [np.inf, 500e3, 200e3, 50e3]  # metres
Ld_labels = ["$L_d = \\infty$ (Poisson)", "$L_d = 500$ km", "$L_d = 200$ km", "$L_d = 50$ km"]

solutions = []
for Ld in Ld_values:
    lam = 0.0 if np.isinf(Ld) else 1.0 / Ld**2
    solver = StaggeredDirichletHelmholtzSolver2D(dx=dx, dy=dy, alpha=lam)
    psi = eqx.filter_jit(solver)(q)
    solutions.append(psi)

Ld_values = [np.inf, 500e3, 200e3, 50e3] # metres Ld_labels = ["$L_d = \\infty$ (Poisson)", "$L_d = 500$ km", "$L_d = 200$ km", "$L_d = 50$ km"] solutions = [] for Ld in Ld_values: lam = 0.0 if np.isinf(Ld) else 1.0 / Ld**2 solver = StaggeredDirichletHelmholtzSolver2D(dx=dx, dy=dy, alpha=lam) psi = eqx.filter_jit(solver)(q) solutions.append(psi)

In [ ]:

fig, axes = plt.subplots(2, 2, figsize=(12, 10))

for ax, psi, label in zip(axes.flat, solutions, Ld_labels):
    im = ax.imshow(
        np.asarray(psi), origin="lower", cmap="RdBu_r",
        extent=[0, Lx / 1e6, 0, Ly / 1e6],
    )
    X_plot = np.linspace(0, Lx / 1e6, nx)
    Y_plot = np.linspace(0, Ly / 1e6, ny)
    ax.contour(X_plot, Y_plot, np.asarray(psi), levels=10, colors="k", linewidths=0.5, alpha=0.5)
    ax.set_title(label, fontsize=12)
    ax.set_xlabel("x (×10³ km)")
    ax.set_ylabel("y (×10³ km)")
    fig.colorbar(im, ax=ax, shrink=0.8)

fig.suptitle("Screening effect: ψ from $(∇^2 - λ)ψ = q$", fontsize=14, y=1.02)
fig.tight_layout()
fig.savefig(IMG_DIR / "screening_effect.png", dpi=150, bbox_inches="tight")
plt.show()

fig, axes = plt.subplots(2, 2, figsize=(12, 10)) for ax, psi, label in zip(axes.flat, solutions, Ld_labels): im = ax.imshow( np.asarray(psi), origin="lower", cmap="RdBu_r", extent=[0, Lx / 1e6, 0, Ly / 1e6], ) X_plot = np.linspace(0, Lx / 1e6, nx) Y_plot = np.linspace(0, Ly / 1e6, ny) ax.contour(X_plot, Y_plot, np.asarray(psi), levels=10, colors="k", linewidths=0.5, alpha=0.5) ax.set_title(label, fontsize=12) ax.set_xlabel("x (×10³ km)") ax.set_ylabel("y (×10³ km)") fig.colorbar(im, ax=ax, shrink=0.8) fig.suptitle("Screening effect: ψ from $(∇^2 - λ)ψ = q$", fontsize=14, y=1.02) fig.tight_layout() fig.savefig(IMG_DIR / "screening_effect.png", dpi=150, bbox_inches="tight") plt.show()

As $L_d$ decreases (screening increases), the streamfunction response becomes more localised around the PV anomaly. At $L_d = 50$ km, the response barely extends beyond the Gaussian core.

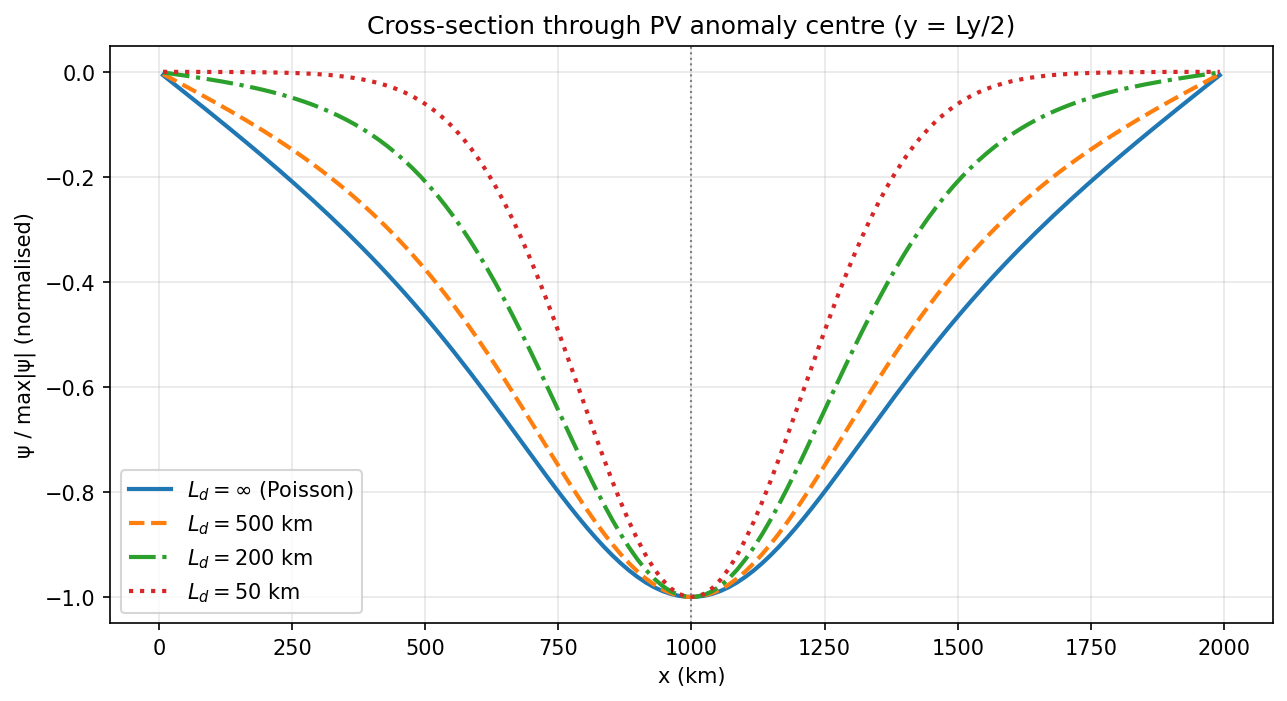

3. Cross-Section Profiles¶

1-D slices through the anomaly centre show the spatial extent quantitatively.

In [ ]:

mid_j = ny // 2

fig, ax = plt.subplots(figsize=(10, 5))

x_km = np.asarray(x_T[mid_j, :]) / 1e3
styles = ["-", "--", "-.", ":"]

for psi, label, style in zip(solutions, Ld_labels, styles):
    profile = np.asarray(psi[mid_j, :])
    # Normalise for shape comparison
    profile_norm = profile / np.abs(profile).max() if np.abs(profile).max() > 0 else profile
    ax.plot(x_km, profile_norm, style, label=label, lw=2)

ax.set_xlabel("x (km)")
ax.set_ylabel("ψ / max|ψ| (normalised)")
ax.set_title("Cross-section through PV anomaly centre (y = Ly/2)")
ax.legend(fontsize=10)
ax.grid(True, alpha=0.3)
ax.axvline(x0 / 1e3, color="0.5", ls=":", lw=1)
fig.savefig(IMG_DIR / "cross_sections.png", dpi=150, bbox_inches="tight")
plt.show()

mid_j = ny // 2 fig, ax = plt.subplots(figsize=(10, 5)) x_km = np.asarray(x_T[mid_j, :]) / 1e3 styles = ["-", "--", "-.", ":"] for psi, label, style in zip(solutions, Ld_labels, styles): profile = np.asarray(psi[mid_j, :]) # Normalise for shape comparison profile_norm = profile / np.abs(profile).max() if np.abs(profile).max() > 0 else profile ax.plot(x_km, profile_norm, style, label=label, lw=2) ax.set_xlabel("x (km)") ax.set_ylabel("ψ / max|ψ| (normalised)") ax.set_title("Cross-section through PV anomaly centre (y = Ly/2)") ax.legend(fontsize=10) ax.grid(True, alpha=0.3) ax.axvline(x0 / 1e3, color="0.5", ls=":", lw=1) fig.savefig(IMG_DIR / "cross_sections.png", dpi=150, bbox_inches="tight") plt.show()

4. Dirichlet vs Neumann Boundary Conditions¶

• Dirichlet ($\psi = 0$ on walls): no-normal-flow basin walls
• Neumann ($\partial\psi/\partial n = 0$ on walls): free-slip walls

For Helmholtz with $\lambda > 0$, both are well-posed (no null space).

In [ ]:

Ld_compare = 200e3
lam_compare = 1.0 / Ld_compare**2

solver_dir = StaggeredDirichletHelmholtzSolver2D(dx=dx, dy=dy, alpha=lam_compare)
solver_neu = RegularNeumannHelmholtzSolver2D(dx=dx, dy=dy, alpha=lam_compare)

psi_dir = eqx.filter_jit(solver_dir)(q)
psi_neu = eqx.filter_jit(solver_neu)(q)

diff_bc = jnp.abs(psi_dir - psi_neu)
print(f"max |ψ_Dir - ψ_Neu| = {float(diff_bc.max()):.4e}")

Ld_compare = 200e3 lam_compare = 1.0 / Ld_compare**2 solver_dir = StaggeredDirichletHelmholtzSolver2D(dx=dx, dy=dy, alpha=lam_compare) solver_neu = RegularNeumannHelmholtzSolver2D(dx=dx, dy=dy, alpha=lam_compare) psi_dir = eqx.filter_jit(solver_dir)(q) psi_neu = eqx.filter_jit(solver_neu)(q) diff_bc = jnp.abs(psi_dir - psi_neu) print(f"max |ψ_Dir - ψ_Neu| = {float(diff_bc.max()):.4e}")

In [ ]:

fig, axes = plt.subplots(1, 3, figsize=(16, 4.5))

vmax = max(float(jnp.abs(psi_dir).max()), float(jnp.abs(psi_neu).max()))

axes[0].imshow(
    np.asarray(psi_dir), origin="lower", cmap="RdBu_r",
    extent=[0, Lx / 1e6, 0, Ly / 1e6], vmin=-vmax, vmax=vmax,
)
axes[0].set_title("Dirichlet (ψ=0 on walls)")

axes[1].imshow(
    np.asarray(psi_neu), origin="lower", cmap="RdBu_r",
    extent=[0, Lx / 1e6, 0, Ly / 1e6], vmin=-vmax, vmax=vmax,
)
axes[1].set_title("Neumann (∂ψ/∂n=0 on walls)")

im = axes[2].imshow(
    np.asarray(diff_bc), origin="lower", cmap="hot_r",
    extent=[0, Lx / 1e6, 0, Ly / 1e6],
)
axes[2].set_title("|Dirichlet − Neumann|")
fig.colorbar(im, ax=axes[2], shrink=0.8)

for ax in axes:
    ax.set_xlabel("x (×10³ km)")
    ax.set_ylabel("y (×10³ km)")

fig.suptitle(f"BC comparison at Ld = {Ld_compare/1e3:.0f} km", fontsize=14, y=1.02)
fig.tight_layout()
fig.savefig(IMG_DIR / "dirichlet_vs_neumann.png", dpi=150, bbox_inches="tight")
plt.show()

fig, axes = plt.subplots(1, 3, figsize=(16, 4.5)) vmax = max(float(jnp.abs(psi_dir).max()), float(jnp.abs(psi_neu).max())) axes[0].imshow( np.asarray(psi_dir), origin="lower", cmap="RdBu_r", extent=[0, Lx / 1e6, 0, Ly / 1e6], vmin=-vmax, vmax=vmax, ) axes[0].set_title("Dirichlet (ψ=0 on walls)") axes[1].imshow( np.asarray(psi_neu), origin="lower", cmap="RdBu_r", extent=[0, Lx / 1e6, 0, Ly / 1e6], vmin=-vmax, vmax=vmax, ) axes[1].set_title("Neumann (∂ψ/∂n=0 on walls)") im = axes[2].imshow( np.asarray(diff_bc), origin="lower", cmap="hot_r", extent=[0, Lx / 1e6, 0, Ly / 1e6], ) axes[2].set_title("|Dirichlet − Neumann|") fig.colorbar(im, ax=axes[2], shrink=0.8) for ax in axes: ax.set_xlabel("x (×10³ km)") ax.set_ylabel("y (×10³ km)") fig.suptitle(f"BC comparison at Ld = {Ld_compare/1e3:.0f} km", fontsize=14, y=1.02) fig.tight_layout() fig.savefig(IMG_DIR / "dirichlet_vs_neumann.png", dpi=150, bbox_inches="tight") plt.show()

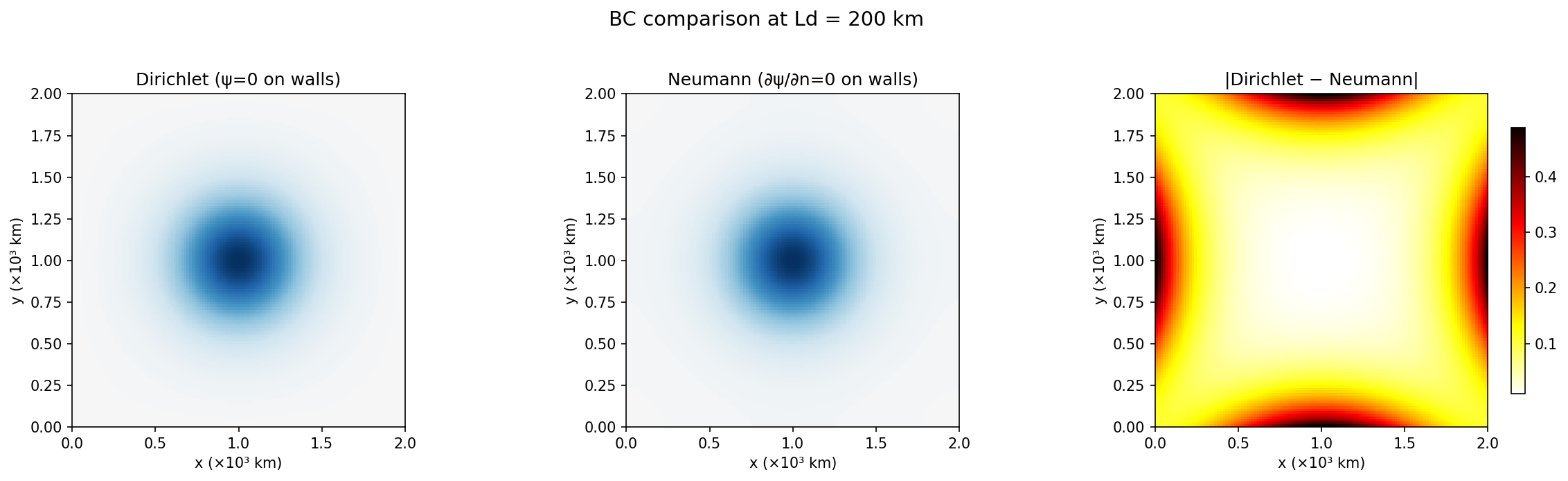

The difference is concentrated near the domain boundaries, where the BCs differ. In the interior (far from walls), both solutions agree — the screening localises the response so boundary effects are minimal when the anomaly is well inside the domain.

5. Integration with finitevolX¶

finitevolX provides convenience wrappers that dispatch to the spectral solvers. pv_inversion solves $(∇^2 - \lambda)\psi = q$ and supports multi-layer batching.

In [ ]:

grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly)

# Existing API (uses DST-I internally — regular grid)
psi_fvx = fvx.pv_inversion(q, dx, dy, lambda_=lam_compare, bc="dst")

# Direct staggered solver (correct for T-point PV)
psi_direct = eqx.filter_jit(solver_dir)(q)

diff_api = jnp.abs(psi_fvx - psi_direct)
print(f"max |pv_inversion(DST-I) - DST-II| = {float(diff_api.max()):.4e}")
print(f"relative diff = {float(diff_api.max() / jnp.abs(psi_direct).max()):.4e}")

grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly) # Existing API (uses DST-I internally — regular grid) psi_fvx = fvx.pv_inversion(q, dx, dy, lambda_=lam_compare, bc="dst") # Direct staggered solver (correct for T-point PV) psi_direct = eqx.filter_jit(solver_dir)(q) diff_api = jnp.abs(psi_fvx - psi_direct) print(f"max |pv_inversion(DST-I) - DST-II| = {float(diff_api.max()):.4e}") print(f"relative diff = {float(diff_api.max() / jnp.abs(psi_direct).max()):.4e}")

The $O(dx^2)$ difference arises because pv_inversion(bc="dst") dispatches to DST-I (regular Dirichlet) while the module class uses DST-II (staggered Dirichlet). For T-point data, DST-II is more appropriate.

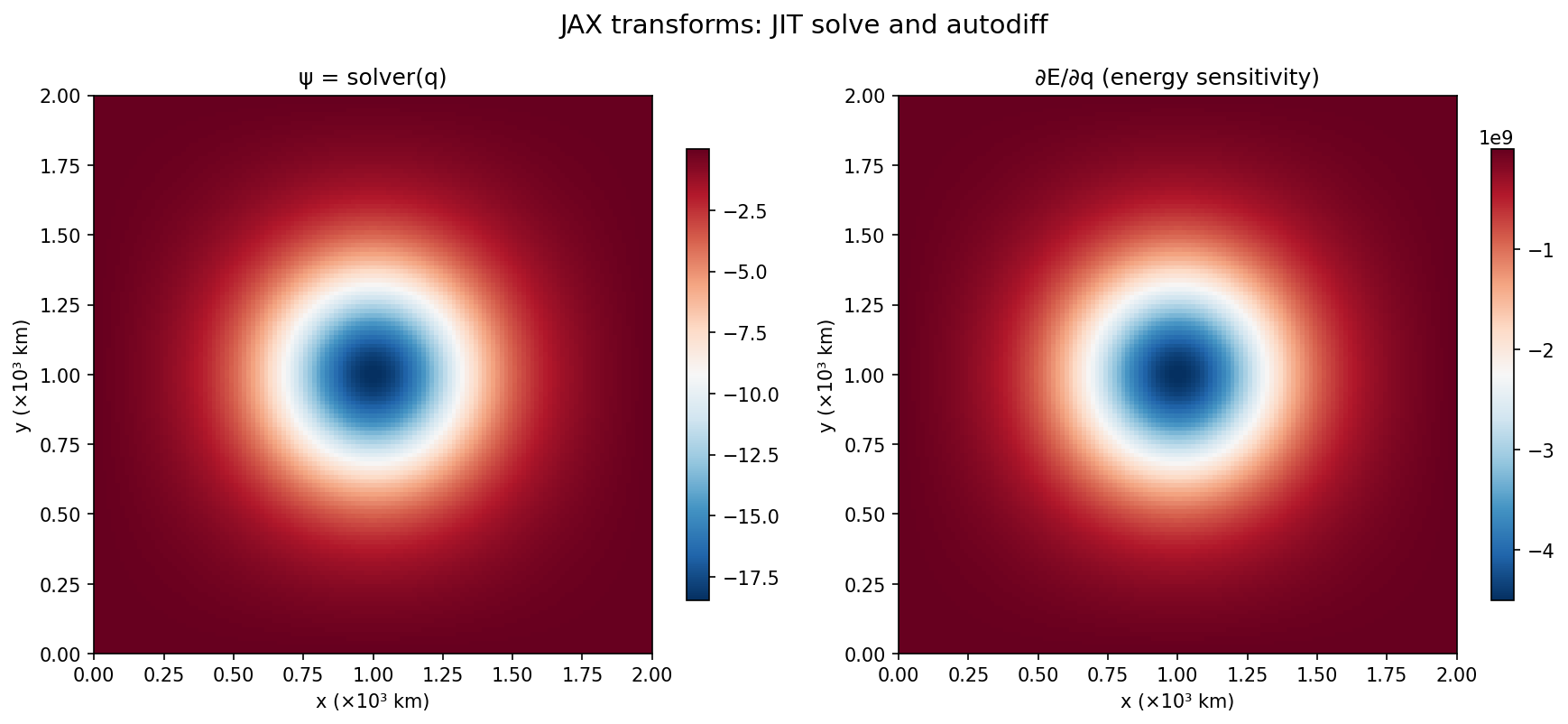

6. JAX Ecosystem: JIT, vmap, grad¶

The module-class solvers are fully JAX-compatible: JIT-compiled, vmappable, and differentiable.

In [ ]:

# JIT compilation
jit_solver = eqx.filter_jit(solver_dir)
_ = jit_solver(q)  # compile
psi_jit = jit_solver(q)  # fast path
print(f"JIT solve: max |ψ| = {float(jnp.abs(psi_jit).max()):.4e}")

# JIT compilation jit_solver = eqx.filter_jit(solver_dir) _ = jit_solver(q) # compile psi_jit = jit_solver(q) # fast path print(f"JIT solve: max |ψ| = {float(jnp.abs(psi_jit).max()):.4e}")

In [ ]:

# vmap over an ensemble of PV fields
q_ensemble = q[None, :, :] * jnp.linspace(0.5, 2.0, 5)[:, None, None]
print(f"Ensemble shape: {q_ensemble.shape}")

batch_solve = jax.vmap(jit_solver)
psi_ensemble = batch_solve(q_ensemble)
print(f"Solution shape: {psi_ensemble.shape}")
print(f"Max |ψ| per member: {[f'{float(jnp.abs(p).max()):.4e}' for p in psi_ensemble]}")

# vmap over an ensemble of PV fields q_ensemble = q[None, :, :] * jnp.linspace(0.5, 2.0, 5)[:, None, None] print(f"Ensemble shape: {q_ensemble.shape}") batch_solve = jax.vmap(jit_solver) psi_ensemble = batch_solve(q_ensemble) print(f"Solution shape: {psi_ensemble.shape}") print(f"Max |ψ| per member: {[f'{float(jnp.abs(p).max()):.4e}' for p in psi_ensemble]}")

In [ ]:

# Differentiable: gradient of energy w.r.t. PV
def energy(q_field):
    psi = solver_dir(q_field)
    return 0.5 * jnp.sum(psi * q_field) * dx * dy

E = energy(q)
dE_dq = jax.grad(energy)(q)

print(f"Energy E = {float(E):.4e}")
print(f"dE/dq range: [{float(dE_dq.min()):.4e}, {float(dE_dq.max()):.4e}]")

# Differentiable: gradient of energy w.r.t. PV def energy(q_field): psi = solver_dir(q_field) return 0.5 * jnp.sum(psi * q_field) * dx * dy E = energy(q) dE_dq = jax.grad(energy)(q) print(f"Energy E = {float(E):.4e}") print(f"dE/dq range: [{float(dE_dq.min()):.4e}, {float(dE_dq.max()):.4e}]")

In [ ]:

fig, axes = plt.subplots(1, 2, figsize=(12, 5))

im0 = axes[0].imshow(
    np.asarray(psi_jit), origin="lower", cmap="RdBu_r",
    extent=[0, Lx / 1e6, 0, Ly / 1e6],
)
axes[0].set_title("ψ = solver(q)")
fig.colorbar(im0, ax=axes[0], shrink=0.8)

im1 = axes[1].imshow(
    np.asarray(dE_dq), origin="lower", cmap="RdBu_r",
    extent=[0, Lx / 1e6, 0, Ly / 1e6],
)
axes[1].set_title("∂E/∂q (energy sensitivity)")
fig.colorbar(im1, ax=axes[1], shrink=0.8)

for ax in axes:
    ax.set_xlabel("x (×10³ km)")
    ax.set_ylabel("y (×10³ km)")

fig.suptitle("JAX transforms: JIT solve and autodiff", fontsize=14, y=1.02)
fig.tight_layout()
fig.savefig(IMG_DIR / "jax_transforms.png", dpi=150, bbox_inches="tight")
plt.show()

fig, axes = plt.subplots(1, 2, figsize=(12, 5)) im0 = axes[0].imshow( np.asarray(psi_jit), origin="lower", cmap="RdBu_r", extent=[0, Lx / 1e6, 0, Ly / 1e6], ) axes[0].set_title("ψ = solver(q)") fig.colorbar(im0, ax=axes[0], shrink=0.8) im1 = axes[1].imshow( np.asarray(dE_dq), origin="lower", cmap="RdBu_r", extent=[0, Lx / 1e6, 0, Ly / 1e6], ) axes[1].set_title("∂E/∂q (energy sensitivity)") fig.colorbar(im1, ax=axes[1], shrink=0.8) for ax in axes: ax.set_xlabel("x (×10³ km)") ax.set_ylabel("y (×10³ km)") fig.suptitle("JAX transforms: JIT solve and autodiff", fontsize=14, y=1.02) fig.tight_layout() fig.savefig(IMG_DIR / "jax_transforms.png", dpi=150, bbox_inches="tight") plt.show()

7. Timing Comparison¶

We benchmark the module solver vs the functional API at two resolutions.

In [ ]:

import time


def benchmark(fn, *args, n_warmup=3, n_iter=20):
    """Time a JIT-compiled function."""
    for _ in range(n_warmup):
        fn(*args).block_until_ready()
    t0 = time.perf_counter()
    for _ in range(n_iter):
        fn(*args).block_until_ready()
    elapsed = (time.perf_counter() - t0) / n_iter
    return elapsed


results = {}
for N in [128, 256]:
    dx_n, dy_n = Lx / N, Ly / N
    i_n = jnp.arange(N)[None, :] + 0.5
    j_n = jnp.arange(N)[:, None] + 0.5
    x_n = i_n * dx_n
    y_n = j_n * dy_n
    q_n = amplitude * jnp.exp(-((x_n - x0) ** 2 + (y_n - y0) ** 2) / (2 * sigma**2))

    # Module class
    solver_n = StaggeredDirichletHelmholtzSolver2D(dx=dx_n, dy=dy_n, alpha=lam_compare)
    jit_solver_n = eqx.filter_jit(solver_n)
    t_module = benchmark(jit_solver_n, q_n)

    # Functional API
    solve_fn = jax.jit(lambda rhs: fvx.solve_helmholtz_dst(rhs, dx_n, dy_n, lam_compare))
    t_func = benchmark(solve_fn, q_n)

    results[N] = {"module": t_module, "functional": t_func}

print(f"{'Method':<20} {'128×128':>12} {'256×256':>12}")
print("-" * 46)
for method in ["module", "functional"]:
    t128 = results[128][method] * 1000
    t256 = results[256][method] * 1000
    print(f"{method:<20} {t128:>10.2f} ms {t256:>10.2f} ms")

import time def benchmark(fn, *args, n_warmup=3, n_iter=20): """Time a JIT-compiled function.""" for _ in range(n_warmup): fn(*args).block_until_ready() t0 = time.perf_counter() for _ in range(n_iter): fn(*args).block_until_ready() elapsed = (time.perf_counter() - t0) / n_iter return elapsed results = {} for N in [128, 256]: dx_n, dy_n = Lx / N, Ly / N i_n = jnp.arange(N)[None, :] + 0.5 j_n = jnp.arange(N)[:, None] + 0.5 x_n = i_n * dx_n y_n = j_n * dy_n q_n = amplitude * jnp.exp(-((x_n - x0) ** 2 + (y_n - y0) ** 2) / (2 * sigma**2)) # Module class solver_n = StaggeredDirichletHelmholtzSolver2D(dx=dx_n, dy=dy_n, alpha=lam_compare) jit_solver_n = eqx.filter_jit(solver_n) t_module = benchmark(jit_solver_n, q_n) # Functional API solve_fn = jax.jit(lambda rhs: fvx.solve_helmholtz_dst(rhs, dx_n, dy_n, lam_compare)) t_func = benchmark(solve_fn, q_n) results[N] = {"module": t_module, "functional": t_func} print(f"{'Method':<20} {'128×128':>12} {'256×256':>12}") print("-" * 46) for method in ["module", "functional"]: t128 = results[128][method] * 1000 t256 = results[256][method] * 1000 print(f"{method:<20} {t128:>10.2f} ms {t256:>10.2f} ms")

Both methods have identical performance — the module class is a thin wrapper around the functional API. The spectral solver is $O(N \log N)$ and typically takes sub-millisecond time for moderate grids.

Summary¶

Concept	Detail
Equation	$(∇^2 - \lambda)\psi = q$ where $\lambda = 1/L_d^2$
Screening	Larger $\lambda$ → more localised $\psi$ response
Dirichlet	$\psi = 0$ on walls (no-normal-flow basin)
Neumann	$\partial\psi/\partial n = 0$ (free-slip walls)
Module class	StaggeredDirichletHelmholtzSolver2D(dx, dy, alpha)
Convenience	fvx.pv_inversion(q, dx, dy, lambda_) dispatches to DST-I
JAX compat	JIT, vmap, grad all work out of the box
