1.5-Layer Quasi-Geostrophic Double-Gyre Model¶

This notebook builds a 1.5-layer quasi-geostrophic (QG) model step by step using finitevolx operators on the Arakawa C-grid. The physical setup is an active upper layer of depth $H$ over an infinitely deep, resting abyssal layer. The density difference between the two layers defines a reduced gravity $g'$, which sets the internal Rossby deformation radius $L_d$.

The model is forced by a classical double-gyre wind-curl pattern and dissipated by bottom drag and lateral viscosity. This is the simplest system that produces the western-intensified gyres, inertial recirculation, and mesoscale eddies that characterise mid-latitude ocean basins.

Governing equations (Formulation B -- PV anomaly)¶

The prognostic variable is the PV anomaly

$$q_a = \zeta - \frac{\psi}{L_d^2}$$

where $\zeta = \nabla^2 \psi$ is the relative vorticity and $\psi$ is the streamfunction. The resting state $\psi = 0$ gives $q_a = 0$. The evolution equation is

$$\partial_t q_a = -\mathbf{u} \cdot \nabla q_a \;-\; \beta\,v \;+\; F \;-\; r\,\zeta \;+\; \nu\,\nabla^2 q_a$$

The streamfunction is recovered from the PV anomaly by inverting the Helmholtz equation

$$\left(\nabla^2 - \frac{1}{L_d^2}\right)\psi = q_a$$

and the geostrophic velocity follows from

$$u = -\frac{\partial \psi}{\partial y}, \qquad v = +\frac{\partial \psi}{\partial x}$$

Term-by-term breakdown¶

Term	Expression	Physical meaning
Advection	$-\mathbf{u} \cdot \nabla q_a$	Nonlinear transport of PV by the geostrophic flow
Beta effect	$-\beta\,v$	Planetary-vorticity advection (Rossby-wave restoring)
Wind forcing	$F(y)$	Double-gyre wind-curl input of PV
Bottom drag	$-r\,\zeta$	Linear friction on relative vorticity (Ekman spin-down)
Diffusion	$\nu\,\nabla^2 q_a$	Laplacian viscosity for grid-scale dissipation

In [ ]:

from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib

matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

import finitevolx as fvx

IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "qg_1p5_layer"
IMG_DIR.mkdir(parents=True, exist_ok=True)

from pathlib import Path import jax import jax.numpy as jnp import matplotlib matplotlib.use("Agg") import matplotlib.pyplot as plt import numpy as np jax.config.update("jax_enable_x64", True) import finitevolx as fvx IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "qg_1p5_layer" IMG_DIR.mkdir(parents=True, exist_ok=True)

1. The Rossby Deformation Radius¶

The first baroclinic Rossby radius of deformation sets the length scale at which rotation and stratification compete:

$$L_d = \frac{\sqrt{g' H}}{f_0}$$

where $g' = g\,\Delta\rho/\rho_0$ is the reduced gravity across the interface, $H$ is the active-layer thickness, and $f_0$ is the reference Coriolis parameter. Motions at scales $\gg L_d$ are dominated by rotation and behave barotropically; motions at scales $\sim L_d$ feel the stratification and develop baroclinic instability.

For mid-latitude ocean basins, $L_d \approx 30$--$50$ km. We use $L_d = 40$ km here.

Parameter	Symbol	Value	Units	Meaning
Domain length x	$L_x$	$5.12 \times 10^6$	m	Zonal basin extent (~5000 km)
Domain length y	$L_y$	$5.12 \times 10^6$	m	Meridional basin extent
Coriolis parameter	$f_0$	$9.375 \times 10^{-5}$	s$^{-1}$	Reference rotation rate (~30 N)
Beta	$\beta$	$1.754 \times 10^{-11}$	m$^{-1}$ s$^{-1}$	Meridional Coriolis gradient
Rossby radius	$L_d$	$4 \times 10^4$	m	Deformation radius (40 km)
Bottom drag	$r$	$5 \times 10^{-8}$	s$^{-1}$	Ekman spin-down rate
Viscosity	$\nu$	$5 \times 10^4$	m$^2$ s$^{-1}$	Laplacian diffusivity
Wind amplitude	$F_0$	$2 \times 10^{-12}$	s$^{-2}$	Peak PV forcing
Time step	$\Delta t$	4000	s	~1.1 hours

1.5-layer setup (ASCII diagram)¶

  ~~~ wind stress tau(y) ~~~
  ===========================  sea surface (z = 0)
  |                         |
  |   Active layer (H)      |  density rho_1
  |   psi, q_a, u, v        |
  |                         |
  ---------------------------  interface (z = -H)
  |                         |
  |   Deep resting layer    |  density rho_2 > rho_1
  |   (infinitely deep,     |
  |    no motion)            |
  |                         |
  ===========================  ocean floor

  Reduced gravity: g' = g * (rho_2 - rho_1) / rho_0
  Deformation radius: Ld = sqrt(g'*H) / f0

2. C-Grid Placement for QG¶

On the Arakawa C-grid, the QG variables live at specific stagger locations. The PV anomaly $q_a$ and streamfunction $\psi$ are T-point (cell-centre) quantities, while the velocity components sit on the appropriate faces:

    X ── V ── X ── V ── X
    |         |         |
    U   T,q   U   T,q   U     T = psi, q_a (cell centre)
    |   psi   |   psi   |     U = u-velocity (east/west face)
    X ── V ── X ── V ── X     V = v-velocity (north/south face)
    |         |         |     X = relative vorticity zeta (corner)
    U   T,q   U   T,q   U
    |   psi   |   psi   |
    X ── V ── X ── V ── X

The relative vorticity $\zeta = \partial v/\partial x - \partial u/\partial y$ naturally lives at X-points (corners), and must be interpolated to T-points for the drag term. The full grid array has shape (ny+2, nx+2) with a one-cell ghost ring encoding the solid-wall boundary condition $\psi = 0$ on all four walls.

3. Grid and Parameters¶

In [ ]:

# --- Grid ---
nx, ny = 32, 32
Lx, Ly = 5.12e6, 5.12e6  # 5120 km square basin

grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly)
dx, dy = grid.dx, grid.dy
Ny, Nx = ny + 2, nx + 2

print(f"Interior: {nx} x {ny}")
print(f"Full array: ({Ny}, {Nx})")
print(f"dx = {dx/1e3:.1f} km,  dy = {dy/1e3:.1f} km")

# --- Physical parameters ---
f0 = 9.375e-5       # Coriolis parameter [s^-1]
beta = 1.754e-11     # beta-plane gradient [m^-1 s^-1]
Ld = 4.0e4           # Rossby deformation radius [m] (40 km)
drag = 5.0e-8        # bottom drag [s^-1]
viscosity = 5.0e4    # Laplacian viscosity [m^2 s^-1]
wind_amp = 2.0e-12   # peak wind-curl PV forcing [s^-2]
dt = 4000.0          # time step [s]

# Helmholtz parameter: lambda = 1/Ld^2
lambda_helmholtz = 1.0 / Ld**2

print(f"\nLd = {Ld/1e3:.0f} km")
print(f"Ld / dx = {Ld / dx:.2f}  (grid points per deformation radius)")
print(f"lambda = 1/Ld^2 = {lambda_helmholtz:.2e} m^-2")
print(f"dt = {dt:.0f} s = {dt/3600:.1f} hours")

# --- Grid --- nx, ny = 32, 32 Lx, Ly = 5.12e6, 5.12e6 # 5120 km square basin grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly) dx, dy = grid.dx, grid.dy Ny, Nx = ny + 2, nx + 2 print(f"Interior: {nx} x {ny}") print(f"Full array: ({Ny}, {Nx})") print(f"dx = {dx/1e3:.1f} km, dy = {dy/1e3:.1f} km") # --- Physical parameters --- f0 = 9.375e-5 # Coriolis parameter [s^-1] beta = 1.754e-11 # beta-plane gradient [m^-1 s^-1] Ld = 4.0e4 # Rossby deformation radius [m] (40 km) drag = 5.0e-8 # bottom drag [s^-1] viscosity = 5.0e4 # Laplacian viscosity [m^2 s^-1] wind_amp = 2.0e-12 # peak wind-curl PV forcing [s^-2] dt = 4000.0 # time step [s] # Helmholtz parameter: lambda = 1/Ld^2 lambda_helmholtz = 1.0 / Ld**2 print(f"\nLd = {Ld/1e3:.0f} km") print(f"Ld / dx = {Ld / dx:.2f} (grid points per deformation radius)") print(f"lambda = 1/Ld^2 = {lambda_helmholtz:.2e} m^-2") print(f"dt = {dt:.0f} s = {dt/3600:.1f} hours")

4. Wind-Curl Forcing¶

The double-gyre wind pattern drives an anticyclonic (clockwise) subtropical gyre in the southern half and a cyclonic (counterclockwise) subpolar gyre in the northern half:

$$F(y) = -F_0 \sin\!\left(\frac{2\pi\,y}{L_y}\right)$$

This is negative in the southern half ($0 < y < L_y/2$, driving anticyclonic circulation) and positive in the northern half ($L_y/2 < y < L_y$, driving cyclonic circulation). The two gyres share a boundary at the mid-basin latitude, where the Gulf-Stream-like western boundary current separates from the coast.

In [ ]:

# Interior cell-centre coordinates
x_centers = (jnp.arange(nx) + 0.5) * dx
y_centers = (jnp.arange(ny) + 0.5) * dy
_, y2d = jnp.meshgrid(x_centers, y_centers)

# Double-gyre wind-curl forcing at interior T-points
wind_curl_interior = -wind_amp * jnp.sin(2.0 * jnp.pi * y2d / Ly)

# Pad to full grid with zero ghost ring (wall BCs)
wind_curl = jnp.pad(wind_curl_interior, pad_width=1, mode="constant")

print(f"Wind curl shape (interior): {wind_curl_interior.shape}")
print(f"Wind curl shape (full):     {wind_curl.shape}")
print(f"Wind curl range: [{float(wind_curl_interior.min()):.2e}, "
      f"{float(wind_curl_interior.max()):.2e}] s^-2")

# Interior cell-centre coordinates x_centers = (jnp.arange(nx) + 0.5) * dx y_centers = (jnp.arange(ny) + 0.5) * dy _, y2d = jnp.meshgrid(x_centers, y_centers) # Double-gyre wind-curl forcing at interior T-points wind_curl_interior = -wind_amp * jnp.sin(2.0 * jnp.pi * y2d / Ly) # Pad to full grid with zero ghost ring (wall BCs) wind_curl = jnp.pad(wind_curl_interior, pad_width=1, mode="constant") print(f"Wind curl shape (interior): {wind_curl_interior.shape}") print(f"Wind curl shape (full): {wind_curl.shape}") print(f"Wind curl range: [{float(wind_curl_interior.min()):.2e}, " f"{float(wind_curl_interior.max()):.2e}] s^-2")

In [ ]:

fig, ax = plt.subplots(figsize=(6, 5))
im = ax.pcolormesh(
    np.asarray(x_centers / 1e6),
    np.asarray(y_centers / 1e6),
    np.asarray(wind_curl_interior),
    cmap="RdBu_r",
    shading="auto",
)
ax.set_xlabel("x [10$^3$ km]")
ax.set_ylabel("y [10$^3$ km]")
ax.set_title("Double-gyre wind-curl forcing $F(y)$")
ax.axhline(Ly / 2 / 1e6, color="k", ls="--", lw=0.8, label="gyre boundary")
ax.legend(fontsize=9)
fig.colorbar(im, ax=ax, label="PV forcing [s$^{-2}$]")
fig.savefig(IMG_DIR / "wind_curl_forcing.png", dpi=150, bbox_inches="tight")
plt.show()

fig, ax = plt.subplots(figsize=(6, 5)) im = ax.pcolormesh( np.asarray(x_centers / 1e6), np.asarray(y_centers / 1e6), np.asarray(wind_curl_interior), cmap="RdBu_r", shading="auto", ) ax.set_xlabel("x [10$^3$ km]") ax.set_ylabel("y [10$^3$ km]") ax.set_title("Double-gyre wind-curl forcing $F(y)$") ax.axhline(Ly / 2 / 1e6, color="k", ls="--", lw=0.8, label="gyre boundary") ax.legend(fontsize=9) fig.colorbar(im, ax=ax, label="PV forcing [s$^{-2}$]") fig.savefig(IMG_DIR / "wind_curl_forcing.png", dpi=150, bbox_inches="tight") plt.show()

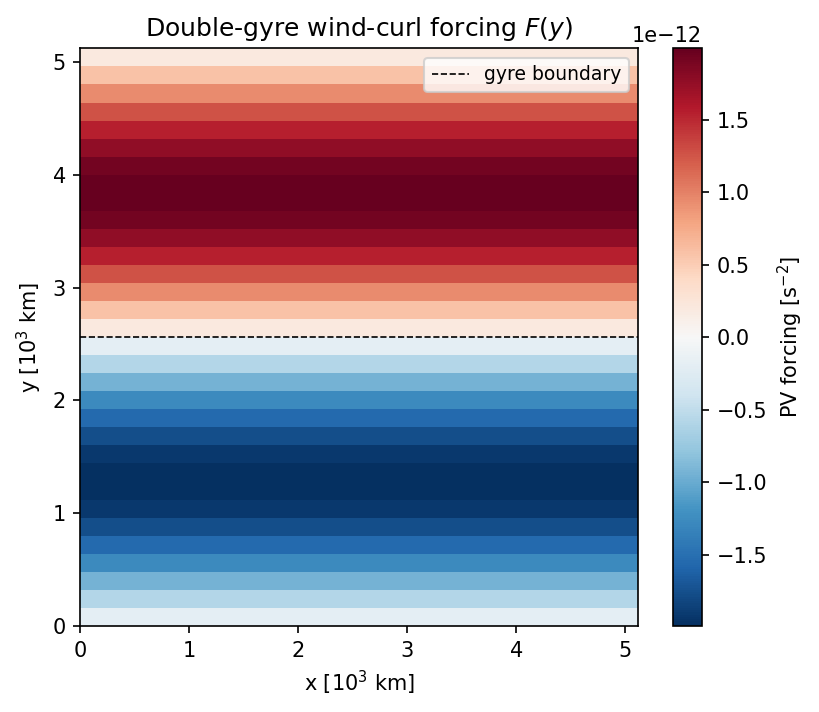

The forcing is antisymmetric about the basin midline. The southern (blue) half receives negative PV input (anticyclonic), and the northern (red) half receives positive PV input (cyclonic).

5. Streamfunction Inversion¶

The key diagnostic step in QG is inverting the PV anomaly for the streamfunction. Given $q_a$ at T-points, we solve the Helmholtz equation

$$\left(\nabla^2 - \frac{1}{L_d^2}\right)\psi = q_a$$

with homogeneous Dirichlet boundary conditions $\psi = 0$ on all four basin walls (no-normal-flow).

finitevolx provides solve_helmholtz_dst for exactly this problem. The DST-I (Type I discrete sine transform) is the correct choice because the ghost-cell convention places $\psi = 0$ at the grid vertices -- the ghost cells themselves encode the Dirichlet condition.

The lambda_ parameter is $1/L_d^2$, which enters the Helmholtz equation as the screening term that couples the streamfunction to the interface displacement.

In [ ]:

diff_op = fvx.Difference2D(grid)
interp_op = fvx.Interpolation2D(grid)


def invert_streamfunction(q_field):
    """Solve (nabla^2 - 1/Ld^2) psi = q_a with psi=0 on walls."""
    rhs = q_field[1:-1, 1:-1]
    psi_interior = fvx.solve_helmholtz_dst(rhs, dx, dy, lambda_=lambda_helmholtz)
    psi_full = jnp.zeros_like(q_field)
    return psi_full.at[1:-1, 1:-1].set(psi_interior)

diff_op = fvx.Difference2D(grid) interp_op = fvx.Interpolation2D(grid) def invert_streamfunction(q_field): """Solve (nabla^2 - 1/Ld^2) psi = q_a with psi=0 on walls.""" rhs = q_field[1:-1, 1:-1] psi_interior = fvx.solve_helmholtz_dst(rhs, dx, dy, lambda_=lambda_helmholtz) psi_full = jnp.zeros_like(q_field) return psi_full.at[1:-1, 1:-1].set(psi_interior)

In [ ]:

# --- Demonstrate: create a test PV anomaly, invert, and plot ---
x2d_full, y2d_full = jnp.meshgrid(
    (jnp.arange(Nx) + 0.5) * dx,
    (jnp.arange(Ny) + 0.5) * dy,
)
q_test = 5.0e-9 * jnp.sin(2.0 * jnp.pi * x2d_full / Lx) * jnp.sin(jnp.pi * y2d_full / Ly)
# Zero out ghost ring
q_test = q_test.at[0, :].set(0.0).at[-1, :].set(0.0)
q_test = q_test.at[:, 0].set(0.0).at[:, -1].set(0.0)

psi_test = invert_streamfunction(q_test)

print(f"q_a  range: [{float(q_test.min()):.2e}, {float(q_test.max()):.2e}]")
print(f"psi  range: [{float(psi_test.min()):.2e}, {float(psi_test.max()):.2e}]")

# --- Demonstrate: create a test PV anomaly, invert, and plot --- x2d_full, y2d_full = jnp.meshgrid( (jnp.arange(Nx) + 0.5) * dx, (jnp.arange(Ny) + 0.5) * dy, ) q_test = 5.0e-9 * jnp.sin(2.0 * jnp.pi * x2d_full / Lx) * jnp.sin(jnp.pi * y2d_full / Ly) # Zero out ghost ring q_test = q_test.at[0, :].set(0.0).at[-1, :].set(0.0) q_test = q_test.at[:, 0].set(0.0).at[:, -1].set(0.0) psi_test = invert_streamfunction(q_test) print(f"q_a range: [{float(q_test.min()):.2e}, {float(q_test.max()):.2e}]") print(f"psi range: [{float(psi_test.min()):.2e}, {float(psi_test.max()):.2e}]")

In [ ]:

fig, axes = plt.subplots(1, 2, figsize=(12, 4.5))

vmax_q = float(jnp.abs(q_test[1:-1, 1:-1]).max())
axes[0].imshow(
    np.asarray(q_test[1:-1, 1:-1]), origin="lower", cmap="RdBu_r",
    aspect="auto", vmin=-vmax_q, vmax=vmax_q,
    extent=[0, Lx / 1e6, 0, Ly / 1e6],
)
axes[0].set_title("Test PV anomaly $q_a$")

vmax_p = float(jnp.abs(psi_test[1:-1, 1:-1]).max())
axes[1].imshow(
    np.asarray(psi_test[1:-1, 1:-1]), origin="lower", cmap="RdBu_r",
    aspect="auto", vmin=-vmax_p, vmax=vmax_p,
    extent=[0, Lx / 1e6, 0, Ly / 1e6],
)
axes[1].set_title(r"Recovered $\psi$ from Helmholtz inversion")

for ax in axes:
    ax.set_xlabel("x [10$^3$ km]")
    ax.set_ylabel("y [10$^3$ km]")

fig.tight_layout()
fig.savefig(IMG_DIR / "helmholtz_inversion_demo.png", dpi=150, bbox_inches="tight")
plt.show()

fig, axes = plt.subplots(1, 2, figsize=(12, 4.5)) vmax_q = float(jnp.abs(q_test[1:-1, 1:-1]).max()) axes[0].imshow( np.asarray(q_test[1:-1, 1:-1]), origin="lower", cmap="RdBu_r", aspect="auto", vmin=-vmax_q, vmax=vmax_q, extent=[0, Lx / 1e6, 0, Ly / 1e6], ) axes[0].set_title("Test PV anomaly $q_a$") vmax_p = float(jnp.abs(psi_test[1:-1, 1:-1]).max()) axes[1].imshow( np.asarray(psi_test[1:-1, 1:-1]), origin="lower", cmap="RdBu_r", aspect="auto", vmin=-vmax_p, vmax=vmax_p, extent=[0, Lx / 1e6, 0, Ly / 1e6], ) axes[1].set_title(r"Recovered $\psi$ from Helmholtz inversion") for ax in axes: ax.set_xlabel("x [10$^3$ km]") ax.set_ylabel("y [10$^3$ km]") fig.tight_layout() fig.savefig(IMG_DIR / "helmholtz_inversion_demo.png", dpi=150, bbox_inches="tight") plt.show()

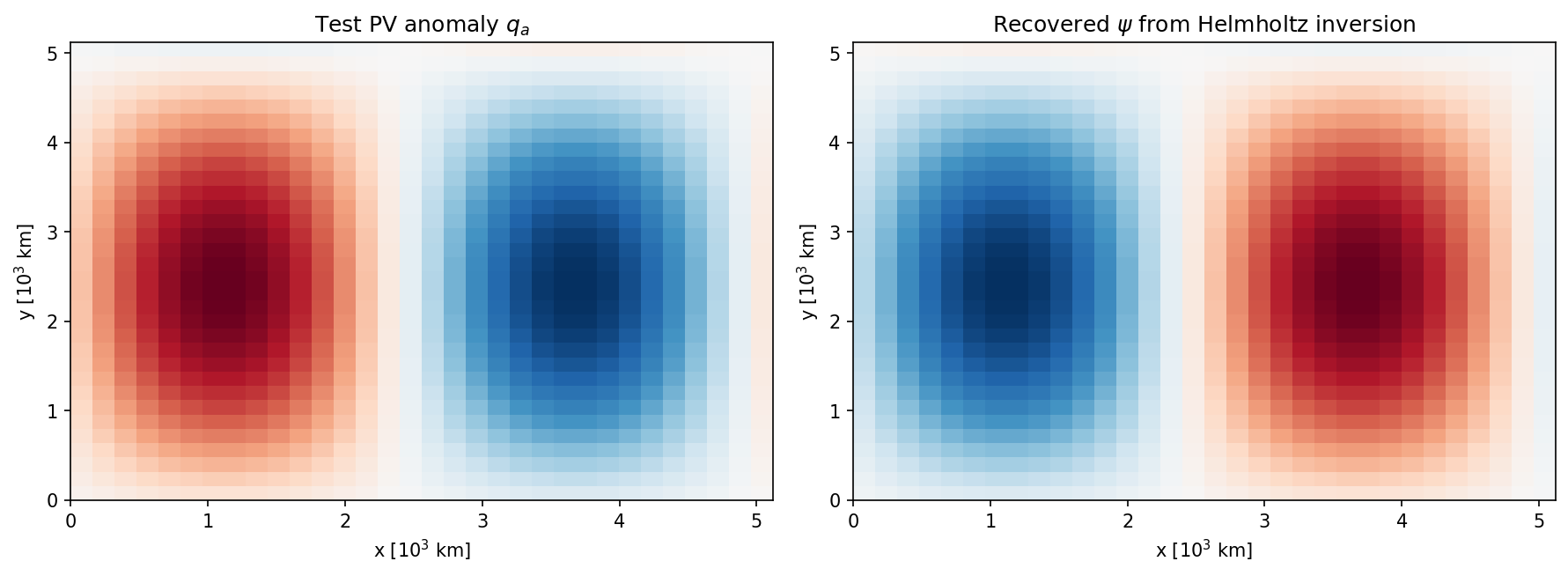

The Helmholtz inversion smears the PV anomaly pattern slightly due to the screening term $-\psi/L_d^2$: the streamfunction is smoother and weaker than it would be for a pure Poisson ($L_d \to \infty$) inversion.

6. Geostrophic Velocity Recovery¶

From the streamfunction $\psi$ at T-points, we recover the geostrophic velocity:

$$u = -\frac{\partial \psi}{\partial y}, \qquad v = +\frac{\partial \psi}{\partial x}$$

On the C-grid, $\psi$ is first averaged to X-points (corners), and then the orthogonal derivatives place $u$ on U-points and $v$ on V-points:

Step 1: psi (T-point) --[avg to corners]--> psi_X (X-point)
Step 2: u = -d(psi_X)/dy  at U-points    shape: (Ny, Nx)
         v = +d(psi_X)/dx  at V-points    shape: (Ny, Nx)

In [ ]:

def geostrophic_velocity(psi_field):
    """Recover (u, v) from streamfunction at T-points."""
    psi_on_x = interp_op.T_to_X(psi_field)
    u_field = -diff_op.diff_y_X_to_U(psi_on_x)
    v_field = diff_op.diff_x_X_to_V(psi_on_x)
    return u_field, v_field


u_test, v_test = geostrophic_velocity(psi_test)

print(f"psi shape:  {psi_test.shape}  (full grid, T-points)")
print(f"u shape:    {u_test.shape}    (full grid, U-points)")
print(f"v shape:    {v_test.shape}    (full grid, V-points)")
print(f"max |u| = {float(jnp.abs(u_test).max()):.4e} m/s")
print(f"max |v| = {float(jnp.abs(v_test).max()):.4e} m/s")

def geostrophic_velocity(psi_field): """Recover (u, v) from streamfunction at T-points.""" psi_on_x = interp_op.T_to_X(psi_field) u_field = -diff_op.diff_y_X_to_U(psi_on_x) v_field = diff_op.diff_x_X_to_V(psi_on_x) return u_field, v_field u_test, v_test = geostrophic_velocity(psi_test) print(f"psi shape: {psi_test.shape} (full grid, T-points)") print(f"u shape: {u_test.shape} (full grid, U-points)") print(f"v shape: {v_test.shape} (full grid, V-points)") print(f"max |u| = {float(jnp.abs(u_test).max()):.4e} m/s") print(f"max |v| = {float(jnp.abs(v_test).max()):.4e} m/s")

7. PV Tendency Function¶

We now assemble the full PV tendency, line by line. Each physical process maps onto a specific finitevolx operation.

In [ ]:

adv_op = fvx.Advection2D(grid=grid)
vort_op = fvx.Vorticity2D(grid=grid)


def tendency(q_field):
    """Compute dq_a/dt and return (tendency, psi, u, v).

    Steps:
      1. Invert q_a -> psi  (Helmholtz)
      2. psi -> (u, v)      (geostrophic balance)
      3. PV advection:      -u . grad(q_a)
      4. Beta term:         -beta * v  (at T-points)
      5. Wind forcing:      F(y)       (constant in time)
      6. Bottom drag:       -r * zeta  (drag on VORTICITY, not PV)
      7. Diffusion:         nu * laplacian(q_a)
    """
    # 1. Invert PV -> streamfunction
    psi_field = invert_streamfunction(q_field)

    # 2. Geostrophic velocity
    u_field, v_field = geostrophic_velocity(psi_field)

    # 3. PV advection: -u . grad(q_a)  (writes to interior [2:-2, 2:-2])
    q_rhs = adv_op(q_field, u_field, v_field, method="upwind1")

    # 4. Beta term: -beta * v at interior T-points
    #    We interpolate v from V-points to T-points first.
    v_center = interp_op.V_to_T(v_field)
    q_rhs = q_rhs.at[1:-1, 1:-1].add(-beta * v_center[1:-1, 1:-1])

    # 5. Wind forcing (already on full grid with zero ghosts)
    q_rhs = q_rhs + wind_curl

    # 6. Bottom drag: -r * zeta (NOT -r * q_a!)
    #    Drag acts on relative vorticity zeta = laplacian(psi).
    #    If we dragged q_a instead, we would get an extra +r*psi/Ld^2 term
    #    that acts as anti-damping on the interface displacement.
    zeta = diff_op.laplacian(psi_field)
    q_rhs = q_rhs - drag * zeta

    # 7. Diffusion: nu * laplacian(q_a)
    q_rhs = q_rhs + viscosity * diff_op.laplacian(q_field)

    return q_rhs, psi_field, u_field, v_field


def apply_bc(q_field):
    """Re-enforce wall BCs: zero ghost ring (psi = 0 on walls)."""
    return fvx.pad_interior(q_field, mode="constant")


def pv_tendency(q_field):
    """Tendency function compatible with heun_step: q -> dq/dt."""
    q_rhs, _, _, _ = tendency(apply_bc(q_field))
    return q_rhs

adv_op = fvx.Advection2D(grid=grid) vort_op = fvx.Vorticity2D(grid=grid) def tendency(q_field): """Compute dq_a/dt and return (tendency, psi, u, v). Steps: 1. Invert q_a -> psi (Helmholtz) 2. psi -> (u, v) (geostrophic balance) 3. PV advection: -u . grad(q_a) 4. Beta term: -beta * v (at T-points) 5. Wind forcing: F(y) (constant in time) 6. Bottom drag: -r * zeta (drag on VORTICITY, not PV) 7. Diffusion: nu * laplacian(q_a) """ # 1. Invert PV -> streamfunction psi_field = invert_streamfunction(q_field) # 2. Geostrophic velocity u_field, v_field = geostrophic_velocity(psi_field) # 3. PV advection: -u . grad(q_a) (writes to interior [2:-2, 2:-2]) q_rhs = adv_op(q_field, u_field, v_field, method="upwind1") # 4. Beta term: -beta * v at interior T-points # We interpolate v from V-points to T-points first. v_center = interp_op.V_to_T(v_field) q_rhs = q_rhs.at[1:-1, 1:-1].add(-beta * v_center[1:-1, 1:-1]) # 5. Wind forcing (already on full grid with zero ghosts) q_rhs = q_rhs + wind_curl # 6. Bottom drag: -r * zeta (NOT -r * q_a!) # Drag acts on relative vorticity zeta = laplacian(psi). # If we dragged q_a instead, we would get an extra +r*psi/Ld^2 term # that acts as anti-damping on the interface displacement. zeta = diff_op.laplacian(psi_field) q_rhs = q_rhs - drag * zeta # 7. Diffusion: nu * laplacian(q_a) q_rhs = q_rhs + viscosity * diff_op.laplacian(q_field) return q_rhs, psi_field, u_field, v_field def apply_bc(q_field): """Re-enforce wall BCs: zero ghost ring (psi = 0 on walls).""" return fvx.pad_interior(q_field, mode="constant") def pv_tendency(q_field): """Tendency function compatible with heun_step: q -> dq/dt.""" q_rhs, _, _, _ = tendency(apply_bc(q_field)) return q_rhs

Why drag on $\zeta$, not $q_a$?

The PV anomaly is $q_a = \zeta - \psi/L_d^2$. If we write the drag as $-r\,q_a$, we get $-r\,\zeta + r\,\psi/L_d^2$. The second term is a positive feedback: it amplifies the interface displacement instead of damping it. Physical bottom drag acts on the flow velocity (and hence on $\zeta = \nabla^2 \psi$), not on the full PV.

8. Time Stepping¶

We use the Heun method (explicit RK2 predictor-corrector) from finitevolx.heun_step. This is second-order accurate and stable for advection-dominated problems with a suitable CFL constraint.

In [ ]:

@jax.jit
def step(q_field):
    """Advance one Heun time step and diagnose the balanced state."""
    q_next = apply_bc(fvx.heun_step(q_field, pv_tendency, dt))
    psi_next = invert_streamfunction(q_next)
    u_next, v_next = geostrophic_velocity(psi_next)
    return q_next, psi_next, u_next, v_next

@jax.jit def step(q_field): """Advance one Heun time step and diagnose the balanced state.""" q_next = apply_bc(fvx.heun_step(q_field, pv_tendency, dt)) psi_next = invert_streamfunction(q_next) u_next, v_next = geostrophic_velocity(psi_next) return q_next, psi_next, u_next, v_next

Short demo run¶

We run a brief integration (~500 steps) from a small sinusoidal PV perturbation to demonstrate the model mechanics. This is too short for full spin-up, but enough to see the wind forcing begin to organise the circulation into the double-gyre pattern.

In [ ]:

# --- Initial condition: small sinusoidal PV anomaly ---
q0_interior = 5.0e-9 * jnp.sin(
    2.0 * jnp.pi * x_centers[None, :] / Lx
) * jnp.sin(
    jnp.pi * y_centers[:, None] / Ly
)
q = jnp.pad(q0_interior, pad_width=1, mode="constant")

psi = invert_streamfunction(q)
u, v = geostrophic_velocity(psi)

print(f"Initial max |q_a| = {float(jnp.abs(q).max()):.2e}")
print(f"Initial max |psi| = {float(jnp.abs(psi).max()):.2e}")

# --- Initial condition: small sinusoidal PV anomaly --- q0_interior = 5.0e-9 * jnp.sin( 2.0 * jnp.pi * x_centers[None, :] / Lx ) * jnp.sin( jnp.pi * y_centers[:, None] / Ly ) q = jnp.pad(q0_interior, pad_width=1, mode="constant") psi = invert_streamfunction(q) u, v = geostrophic_velocity(psi) print(f"Initial max |q_a| = {float(jnp.abs(q).max()):.2e}") print(f"Initial max |psi| = {float(jnp.abs(psi).max()):.2e}")

In [ ]:

n_steps = 500

print(f"Running {n_steps} steps  ({n_steps * dt / 86400:.1f} days) ...")
for i in range(n_steps):
    q, psi, u, v = step(q)
    if (i + 1) % 100 == 0:
        max_q = float(jnp.abs(q[1:-1, 1:-1]).max())
        max_psi = float(jnp.abs(psi[1:-1, 1:-1]).max())
        print(f"  step {i+1:4d}:  max|q_a| = {max_q:.3e},  max|psi| = {max_psi:.3e}")

print("Done.")

n_steps = 500 print(f"Running {n_steps} steps ({n_steps * dt / 86400:.1f} days) ...") for i in range(n_steps): q, psi, u, v = step(q) if (i + 1) % 100 == 0: max_q = float(jnp.abs(q[1:-1, 1:-1]).max()) max_psi = float(jnp.abs(psi[1:-1, 1:-1]).max()) print(f" step {i+1:4d}: max|q_a| = {max_q:.3e}, max|psi| = {max_psi:.3e}") print("Done.")

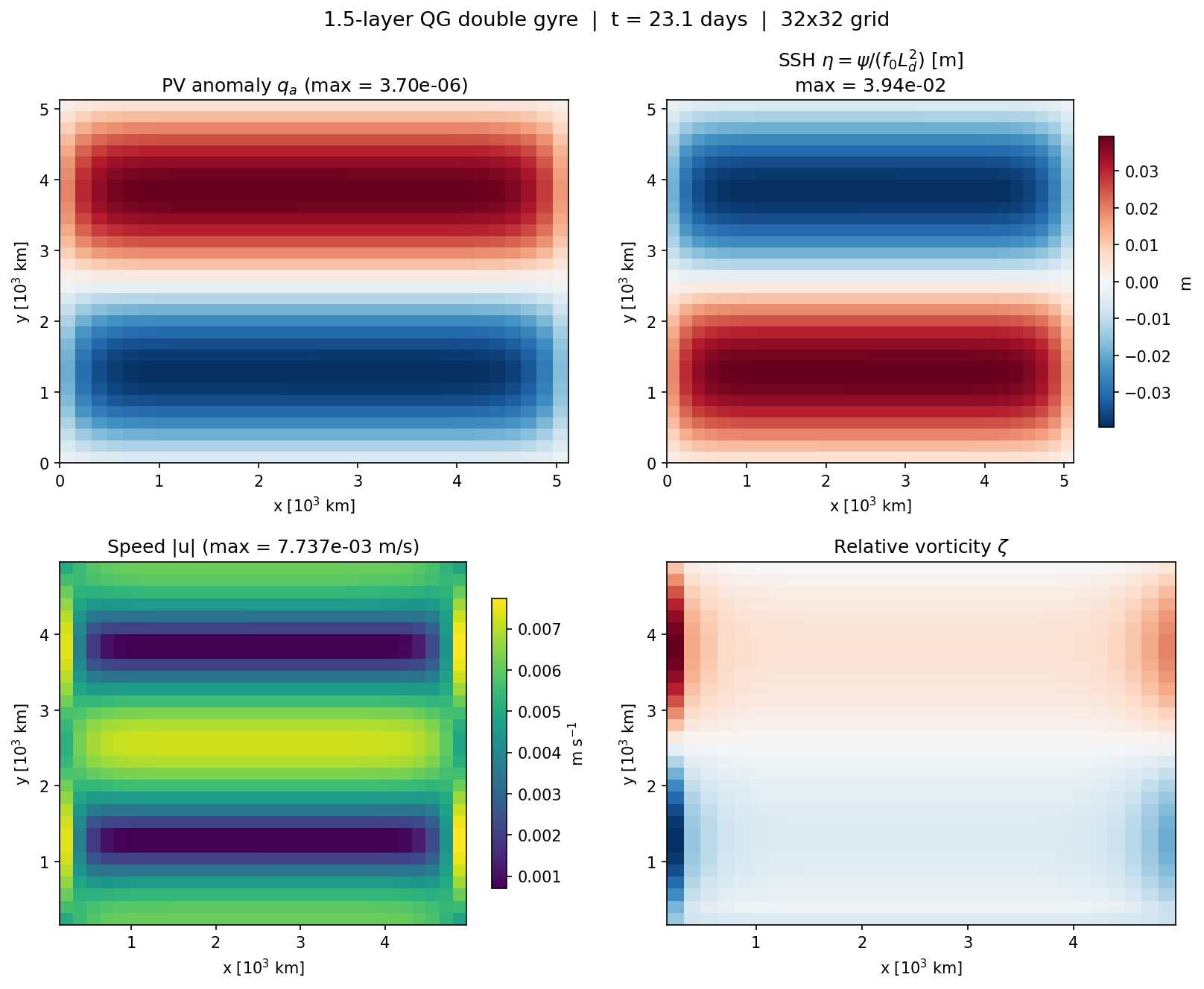

9. Results¶

We plot the final state as a 4-panel figure: PV anomaly, SSH (height), speed, and relative vorticity.

Boundary slicing: Native T-point fields ($q_a$, $\eta$) use [1:-1, 1:-1]. Interpolated/derived fields (speed, vorticity) use [2:-2, 2:-2] to avoid ghost-cell contamination at the boundary.

In [ ]:

# Diagnose fields for plotting
u_center = interp_op.U_to_T(u)
v_center = interp_op.V_to_T(v)
zeta_corner = vort_op.relative_vorticity(u, v)
zeta_center = interp_op.X_to_T(zeta_corner)

# --- Coordinate extents ---
# Full interior [1:-1, 1:-1] for native T-point fields (q, eta/SSH)
extent_full = [0, Lx / 1e6, 0, Ly / 1e6]
# Inner domain [2:-2, 2:-2] for interpolated/derived fields (speed, vorticity)
# Trims the first interior row/column where ghost-cell averaging contaminates values.
x_inner_lo = float(x_centers[1]) - 0.5 * dx
x_inner_hi = float(x_centers[-2]) + 0.5 * dx
y_inner_lo = float(y_centers[1]) - 0.5 * dy
y_inner_hi = float(y_centers[-2]) + 0.5 * dy
extent_inner = [x_inner_lo / 1e6, x_inner_hi / 1e6, y_inner_lo / 1e6, y_inner_hi / 1e6]

# Native T-point fields: [1:-1, 1:-1]
q_plot = np.asarray(q[1:-1, 1:-1])
psi_plot = np.asarray(psi[1:-1, 1:-1])
# Sea surface height: eta = (f0/g') * psi, using g' = (f0*Ld)^2 / H ~ f0^2 * Ld^2
# From QG: interface displacement eta = f0*psi / g' = psi / (f0 * Ld^2)
eta_plot = psi_plot / (f0 * Ld**2)

# Interpolated fields: [2:-2, 2:-2] to avoid boundary artifacts
speed_plot = np.asarray(jnp.sqrt(u_center[2:-2, 2:-2]**2 + v_center[2:-2, 2:-2]**2))
zeta_plot = np.asarray(zeta_center[2:-2, 2:-2])

# Energy diagnostics
total_ke = 0.5 * float(jnp.sum(u_center[2:-2, 2:-2] ** 2 + v_center[2:-2, 2:-2] ** 2)) * dx * dy
total_ape = 0.5 * float(jnp.sum(psi[1:-1, 1:-1] ** 2)) * dx * dy / Ld**2
total_enstrophy = 0.5 * float(jnp.sum(q[1:-1, 1:-1] ** 2)) * dx * dy
print(f"Total KE:        {total_ke:.4e} m^4 s^-2")
print(f"Total APE:       {total_ape:.4e} m^4 s^-2")
print(f"Total enstrophy: {total_enstrophy:.4e} m^2 s^-2")

# Diagnose fields for plotting u_center = interp_op.U_to_T(u) v_center = interp_op.V_to_T(v) zeta_corner = vort_op.relative_vorticity(u, v) zeta_center = interp_op.X_to_T(zeta_corner) # --- Coordinate extents --- # Full interior [1:-1, 1:-1] for native T-point fields (q, eta/SSH) extent_full = [0, Lx / 1e6, 0, Ly / 1e6] # Inner domain [2:-2, 2:-2] for interpolated/derived fields (speed, vorticity) # Trims the first interior row/column where ghost-cell averaging contaminates values. x_inner_lo = float(x_centers[1]) - 0.5 * dx x_inner_hi = float(x_centers[-2]) + 0.5 * dx y_inner_lo = float(y_centers[1]) - 0.5 * dy y_inner_hi = float(y_centers[-2]) + 0.5 * dy extent_inner = [x_inner_lo / 1e6, x_inner_hi / 1e6, y_inner_lo / 1e6, y_inner_hi / 1e6] # Native T-point fields: [1:-1, 1:-1] q_plot = np.asarray(q[1:-1, 1:-1]) psi_plot = np.asarray(psi[1:-1, 1:-1]) # Sea surface height: eta = (f0/g') * psi, using g' = (f0*Ld)^2 / H ~ f0^2 * Ld^2 # From QG: interface displacement eta = f0*psi / g' = psi / (f0 * Ld^2) eta_plot = psi_plot / (f0 * Ld**2) # Interpolated fields: [2:-2, 2:-2] to avoid boundary artifacts speed_plot = np.asarray(jnp.sqrt(u_center[2:-2, 2:-2]**2 + v_center[2:-2, 2:-2]**2)) zeta_plot = np.asarray(zeta_center[2:-2, 2:-2]) # Energy diagnostics total_ke = 0.5 * float(jnp.sum(u_center[2:-2, 2:-2] ** 2 + v_center[2:-2, 2:-2] ** 2)) * dx * dy total_ape = 0.5 * float(jnp.sum(psi[1:-1, 1:-1] ** 2)) * dx * dy / Ld**2 total_enstrophy = 0.5 * float(jnp.sum(q[1:-1, 1:-1] ** 2)) * dx * dy print(f"Total KE: {total_ke:.4e} m^4 s^-2") print(f"Total APE: {total_ape:.4e} m^4 s^-2") print(f"Total enstrophy: {total_enstrophy:.4e} m^2 s^-2")

In [ ]:

fig, axes = plt.subplots(2, 2, figsize=(11, 9))

# (a) PV anomaly -- native T-point, full interior
vmax = float(np.abs(q_plot).max())
if vmax == 0:
    vmax = 1.0
axes[0, 0].imshow(
    q_plot, origin="lower", cmap="RdBu_r", aspect="auto",
    vmin=-vmax, vmax=vmax, extent=extent_full,
)
axes[0, 0].set_title(f"PV anomaly $q_a$ (max = {vmax:.2e})")

# (b) SSH eta = psi / (f0 * Ld^2) -- native T-point, full interior
vmax_eta = float(np.abs(eta_plot).max())
if vmax_eta == 0:
    vmax_eta = 1.0
im_eta = axes[0, 1].imshow(
    eta_plot, origin="lower", cmap="RdBu_r", aspect="auto",
    vmin=-vmax_eta, vmax=vmax_eta, extent=extent_full,
)
axes[0, 1].set_title(f"SSH $\\eta = \\psi / (f_0 L_d^2)$ [m]\nmax = {vmax_eta:.2e}")
fig.colorbar(im_eta, ax=axes[0, 1], shrink=0.8, label="m")

# (c) Speed -- interpolated, inner domain [2:-2, 2:-2]
im_spd = axes[1, 0].imshow(
    speed_plot, origin="lower", cmap="viridis", aspect="auto", extent=extent_inner,
)
axes[1, 0].set_title(f"Speed |u| (max = {float(speed_plot.max()):.3e} m/s)")
fig.colorbar(im_spd, ax=axes[1, 0], shrink=0.8, label="m s$^{-1}$")

# (d) Relative vorticity -- interpolated, inner domain [2:-2, 2:-2]
vmax = float(np.abs(zeta_plot).max())
if vmax == 0:
    vmax = 1.0
axes[1, 1].imshow(
    zeta_plot, origin="lower", cmap="RdBu_r", aspect="auto",
    vmin=-vmax, vmax=vmax, extent=extent_inner,
)
axes[1, 1].set_title(r"Relative vorticity $\zeta$")

for ax in axes.flat:
    ax.set_xlabel("x [10$^3$ km]")
    ax.set_ylabel("y [10$^3$ km]")

fig.suptitle(
    f"1.5-layer QG double gyre  |  t = {n_steps * dt / 86400:.1f} days  |  "
    f"{nx}x{ny} grid",
    fontsize=13,
)
fig.tight_layout()
fig.savefig(IMG_DIR / "qg_1p5_layer_results.png", dpi=150, bbox_inches="tight")
plt.show()

fig, axes = plt.subplots(2, 2, figsize=(11, 9)) # (a) PV anomaly -- native T-point, full interior vmax = float(np.abs(q_plot).max()) if vmax == 0: vmax = 1.0 axes[0, 0].imshow( q_plot, origin="lower", cmap="RdBu_r", aspect="auto", vmin=-vmax, vmax=vmax, extent=extent_full, ) axes[0, 0].set_title(f"PV anomaly $q_a$ (max = {vmax:.2e})") # (b) SSH eta = psi / (f0 * Ld^2) -- native T-point, full interior vmax_eta = float(np.abs(eta_plot).max()) if vmax_eta == 0: vmax_eta = 1.0 im_eta = axes[0, 1].imshow( eta_plot, origin="lower", cmap="RdBu_r", aspect="auto", vmin=-vmax_eta, vmax=vmax_eta, extent=extent_full, ) axes[0, 1].set_title(f"SSH $\\eta = \\psi / (f_0 L_d^2)$ [m]\nmax = {vmax_eta:.2e}") fig.colorbar(im_eta, ax=axes[0, 1], shrink=0.8, label="m") # (c) Speed -- interpolated, inner domain [2:-2, 2:-2] im_spd = axes[1, 0].imshow( speed_plot, origin="lower", cmap="viridis", aspect="auto", extent=extent_inner, ) axes[1, 0].set_title(f"Speed |u| (max = {float(speed_plot.max()):.3e} m/s)") fig.colorbar(im_spd, ax=axes[1, 0], shrink=0.8, label="m s$^{-1}$") # (d) Relative vorticity -- interpolated, inner domain [2:-2, 2:-2] vmax = float(np.abs(zeta_plot).max()) if vmax == 0: vmax = 1.0 axes[1, 1].imshow( zeta_plot, origin="lower", cmap="RdBu_r", aspect="auto", vmin=-vmax, vmax=vmax, extent=extent_inner, ) axes[1, 1].set_title(r"Relative vorticity $\zeta$") for ax in axes.flat: ax.set_xlabel("x [10$^3$ km]") ax.set_ylabel("y [10$^3$ km]") fig.suptitle( f"1.5-layer QG double gyre | t = {n_steps * dt / 86400:.1f} days | " f"{nx}x{ny} grid", fontsize=13, ) fig.tight_layout() fig.savefig(IMG_DIR / "qg_1p5_layer_results.png", dpi=150, bbox_inches="tight") plt.show()

Even in this short run the double-gyre pattern is visible: the wind forcing has begun to spin up anticyclonic (negative $\psi$) circulation in the south and cyclonic (positive $\psi$) circulation in the north.

10. Full Simulation¶

A production run uses higher resolution and a long spin-up to reach statistical equilibrium. Typical parameters:

• Grid: 64 x 64 interior points
• Spin-up: 5000 steps (~230 days of silent integration)
• Recording: 10000 steps (~460 days), sampling every 1000 steps

After spin-up, the western boundary currents intensify, the gyre separation develops inertial overshoot, and mesoscale eddies populate the inter-gyre region.

11. Summary¶

Component	finitevolx API	Purpose
Grid	ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly)	C-grid with ghost ring
Helmholtz inversion	solve_helmholtz_dst(rhs, dx, dy, lambda_)	$(\\nabla^2 - \\lambda)\\psi = q_a$
Differences	Difference2D(grid)	Finite differences, Laplacian
Interpolation	Interpolation2D(grid)	T-to-X, V-to-T, U-to-T, X-to-T
Advection	Advection2D(grid)(q, u, v, method="upwind1")	PV transport
Vorticity	Vorticity2D(grid).relative_vorticity(u, v)	$\\zeta$ at X-points
Boundary conditions	pad_interior(q, mode="constant")	Zero ghost ring (solid walls)
Time stepping	heun_step(q, tendency_fn, dt)	Heun / RK2 predictor-corrector

Key modelling choices¶

1. Formulation B (PV anomaly): the prognostic variable $q_a = \zeta - \psi/L_d^2$ keeps the resting state at zero, simplifying initial and boundary conditions.
2. Explicit beta term ($-\beta v$): planetary-vorticity advection is handled as a source term rather than absorbed into $q_a$.
3. Drag on vorticity ($-r\zeta$, not $-r q_a$): avoids spurious anti-damping of the interface displacement.
4. DST-I solver: matches finitevolx's ghost-cell convention where $\psi = 0$ at the array boundary (vertex Dirichlet).
