Nonlinear Shallow Water Equations on the Arakawa C-Grid¶
This notebook extends the linear shallow-water model to the nonlinear case. The two key additions are:
- The continuity equation uses the full layer depth $H + \eta$ instead of the constant reference depth $H$.
- The momentum equations include nonlinear advection $-(\mathbf{u} \cdot \nabla) \mathbf{u}$.
Governing equations¶
$$ \frac{\partial \eta}{\partial t} = -\nabla \cdot \bigl[(H + \eta)\,\mathbf{u}\bigr] + \nu\,\nabla^2 \eta $$
$$ \frac{\partial u}{\partial t} = -g\,\frac{\partial \eta}{\partial x} - (\mathbf{u} \cdot \nabla) u + f\,v - r\,u + \nu\,\nabla^2 u + F_x $$
$$ \frac{\partial v}{\partial t} = -g\,\frac{\partial \eta}{\partial y} - (\mathbf{u} \cdot \nabla) v - f\,u - r\,v + \nu\,\nabla^2 v $$
Compared to the linear version:
- Continuity: $-H\,\nabla \cdot \mathbf{u}$ becomes $-\nabla \cdot [(H + \eta)\,\mathbf{u}]$, coupling the free surface into the mass flux.
- Momentum: the advection terms $-(\mathbf{u} \cdot \nabla) u$ and $-(\mathbf{u} \cdot \nabla) v$ are absent in the linear model.
We integrate these on a closed-basin Arakawa C-grid driven by a
double-gyre wind stress, using finitevolx.heun_step (Heun/RK2).
In [ ]:
Copied!
from pathlib import Path
import jax
import jax.numpy as jnp
import matplotlib
matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np
jax.config.update("jax_enable_x64", True)
import finitevolx as fvx
IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "shallow_water"
IMG_DIR.mkdir(parents=True, exist_ok=True)
from pathlib import Path
import jax
import jax.numpy as jnp
import matplotlib
matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np
jax.config.update("jax_enable_x64", True)
import finitevolx as fvx
IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "shallow_water"
IMG_DIR.mkdir(parents=True, exist_ok=True)
1. What's New vs the Linear Model¶
| Term | Linear | Nonlinear |
|---|---|---|
| Continuity | $-H\,\nabla \cdot \mathbf{u}$ | $-\nabla \cdot [(H+\eta)\,\mathbf{u}]$ |
| Momentum advection | absent | $-(\mathbf{u} \cdot \nabla) u$, $-(\mathbf{u} \cdot \nabla) v$ |
| Pressure gradient | $-g\,\partial_x \eta$ | $-g\,\partial_x \eta$ (same -- see note below) |
| Coriolis, drag, diffusion | unchanged | unchanged |
| New operator | -- | Advection2D (upwind flux reconstruction) |
Note on the pressure gradient: the nonlinear model uses the same $-g\,\partial_x \eta$ as the linear model, not the full Bernoulli function $B = g\eta + \tfrac{1}{2}|\mathbf{u}|^2$. Using the full Bernoulli together with the separate advection $-(\mathbf{u}\cdot\nabla) \mathbf{u}$ would double-count the kinetic-energy gradient $\nabla(\tfrac{1}{2}|\mathbf{u}|^2)$, which is already contained in the advection term.
2. Grid and Parameters¶
We use the same domain and physics as the linear shallow-water notebook. The grid is a closed-basin Arakawa C-grid with a 2-cell ghost ring (zero = solid walls).
In [ ]:
Copied!
# --- Domain ---
nx, ny = 32, 32
Lx, Ly = 5.12e6, 5.12e6 # 5120 km square basin
grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly)
dx, dy = grid.dx, grid.dy
Ny, Nx = ny + 2, nx + 2
print(f"Interior: {nx} x {ny}, dx = {dx / 1e3:.0f} km, dy = {dy / 1e3:.0f} km")
print(f"Full array shape: ({Ny}, {Nx})")
# --- Domain ---
nx, ny = 32, 32
Lx, Ly = 5.12e6, 5.12e6 # 5120 km square basin
grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly)
dx, dy = grid.dx, grid.dy
Ny, Nx = ny + 2, nx + 2
print(f"Interior: {nx} x {ny}, dx = {dx / 1e3:.0f} km, dy = {dy / 1e3:.0f} km")
print(f"Full array shape: ({Ny}, {Nx})")
In [ ]:
Copied!
# --- Physical parameters ---
gravity = 9.81 # gravitational acceleration [m s-2]
mean_depth = 500.0 # reference layer depth H [m]
f0 = 9.375e-5 # Coriolis parameter [s-1]
beta = 1.754e-11 # beta-plane gradient [m-1 s-1]
drag = 5.0e-6 # Rayleigh friction [s-1]
viscosity = 5.0e5 # Laplacian viscosity [m2 s-1]
wind_amp = 2.0e-7 # peak wind acceleration [m s-2]
dt = 200.0 # time step [s]
# | Parameter | Symbol | Value | Units |
# |-----------|--------|-------|-------|
# | Gravity | $g$ | 9.81 | m s$^{-2}$ |
# | Mean depth | $H$ | 500 | m |
# | Coriolis | $f_0$ | 9.375e-5 | s$^{-1}$ |
# | Beta | $\beta$ | 1.754e-11 | m$^{-1}$ s$^{-1}$ |
# | Drag | $r$ | 5e-6 | s$^{-1}$ |
# | Viscosity | $\nu$ | 5e5 | m$^2$ s$^{-1}$ |
# | Wind | $A$ | 2e-7 | m s$^{-2}$ |
# | Time step | $\Delta t$ | 200 | s |
# --- Physical parameters ---
gravity = 9.81 # gravitational acceleration [m s-2]
mean_depth = 500.0 # reference layer depth H [m]
f0 = 9.375e-5 # Coriolis parameter [s-1]
beta = 1.754e-11 # beta-plane gradient [m-1 s-1]
drag = 5.0e-6 # Rayleigh friction [s-1]
viscosity = 5.0e5 # Laplacian viscosity [m2 s-1]
wind_amp = 2.0e-7 # peak wind acceleration [m s-2]
dt = 200.0 # time step [s]
# | Parameter | Symbol | Value | Units |
# |-----------|--------|-------|-------|
# | Gravity | $g$ | 9.81 | m s$^{-2}$ |
# | Mean depth | $H$ | 500 | m |
# | Coriolis | $f_0$ | 9.375e-5 | s$^{-1}$ |
# | Beta | $\beta$ | 1.754e-11 | m$^{-1}$ s$^{-1}$ |
# | Drag | $r$ | 5e-6 | s$^{-1}$ |
# | Viscosity | $\nu$ | 5e5 | m$^2$ s$^{-1}$ |
# | Wind | $A$ | 2e-7 | m s$^{-2}$ |
# | Time step | $\Delta t$ | 200 | s |
3. Initial Conditions and Forcing¶
The setup is identical to the linear shallow-water notebook:
- Initial $\eta$: a gentle sinusoidal bump.
- Coriolis: beta-plane $f = f_0 + \beta (y - L_y/2)$.
- Wind: double-gyre pattern $F_x = -A\cos(2\pi y / L_y)$.
We pad interior fields with a zero ghost ring (solid-wall BCs), then edge-pad the Coriolis and wind fields so that interpolations near the walls see physical values rather than zeros.
In [ ]:
Copied!
# Interior coordinate arrays
x_1d = (np.arange(nx) + 0.5) * dx
y_1d = (np.arange(ny) + 0.5) * dy
x_2d, y_2d = np.meshgrid(x_1d, y_1d) # shape (ny, nx)
# Initial free-surface anomaly [m]
eta0_interior = 0.01 * np.sin(np.pi * x_2d / Lx) * np.sin(np.pi * y_2d / Ly)
# Coriolis parameter on interior T-points [s-1]
coriolis_interior = f0 + beta * (y_2d - 0.5 * Ly)
# Double-gyre zonal wind forcing [m s-2]
wind_u_interior = -wind_amp * np.cos(2.0 * np.pi * y_2d / Ly)
def pad_to_full(interior: np.ndarray) -> jnp.ndarray:
"""Pad interior array with a 1-cell ghost ring of zeros."""
return jnp.pad(jnp.asarray(interior), pad_width=1, mode="constant")
def edge_pad(field: jnp.ndarray) -> jnp.ndarray:
"""Copy nearest interior values into ghost cells (for static fields)."""
field = field.at[0, :].set(field[1, :])
field = field.at[-1, :].set(field[-2, :])
field = field.at[:, 0].set(field[:, 1])
field = field.at[:, -1].set(field[:, -2])
return field
# Build full-grid fields
eta = pad_to_full(eta0_interior)
u = jnp.zeros_like(eta)
v = jnp.zeros_like(eta)
coriolis = edge_pad(pad_to_full(coriolis_interior))
wind_u = edge_pad(pad_to_full(wind_u_interior))
print(
f"eta shape: {eta.shape}, min/max: {float(eta.min()):.4f} / {float(eta.max()):.4f}"
)
# Interior coordinate arrays
x_1d = (np.arange(nx) + 0.5) * dx
y_1d = (np.arange(ny) + 0.5) * dy
x_2d, y_2d = np.meshgrid(x_1d, y_1d) # shape (ny, nx)
# Initial free-surface anomaly [m]
eta0_interior = 0.01 * np.sin(np.pi * x_2d / Lx) * np.sin(np.pi * y_2d / Ly)
# Coriolis parameter on interior T-points [s-1]
coriolis_interior = f0 + beta * (y_2d - 0.5 * Ly)
# Double-gyre zonal wind forcing [m s-2]
wind_u_interior = -wind_amp * np.cos(2.0 * np.pi * y_2d / Ly)
def pad_to_full(interior: np.ndarray) -> jnp.ndarray:
"""Pad interior array with a 1-cell ghost ring of zeros."""
return jnp.pad(jnp.asarray(interior), pad_width=1, mode="constant")
def edge_pad(field: jnp.ndarray) -> jnp.ndarray:
"""Copy nearest interior values into ghost cells (for static fields)."""
field = field.at[0, :].set(field[1, :])
field = field.at[-1, :].set(field[-2, :])
field = field.at[:, 0].set(field[:, 1])
field = field.at[:, -1].set(field[:, -2])
return field
# Build full-grid fields
eta = pad_to_full(eta0_interior)
u = jnp.zeros_like(eta)
v = jnp.zeros_like(eta)
coriolis = edge_pad(pad_to_full(coriolis_interior))
wind_u = edge_pad(pad_to_full(wind_u_interior))
print(
f"eta shape: {eta.shape}, min/max: {float(eta.min()):.4f} / {float(eta.max()):.4f}"
)
4. The Advection Operator¶
The key new ingredient is Advection2D. It computes the advective flux
divergence $-\nabla \cdot (h\,\mathbf{u})$ at T-points using upwind
flux reconstruction.
adv_op = fvx.Advection2D(grid=grid)
tendency = adv_op(h, u, v, method="upwind1")
his the scalar field being advected (at T-points).u,vare the advecting velocities (at U- and V-points).method="upwind1"selects first-order upwind reconstruction; higher orders ("weno3","weno5", etc.) are also available.
The operator returns the tendency $-\nabla \cdot (h\,\mathbf{u})$, which is exactly what appears in the continuity equation.
In [ ]:
Copied!
diff = fvx.Difference2D(grid=grid)
interp = fvx.Interpolation2D(grid=grid)
adv = fvx.Advection2D(grid=grid)
vort = fvx.Vorticity2D(grid=grid)
# Quick demonstration: advect a test field
test_h = pad_to_full(np.sin(np.pi * x_2d / Lx) * np.sin(np.pi * y_2d / Ly))
test_u = pad_to_full(0.01 * np.ones_like(x_2d))
test_v = jnp.zeros_like(test_h)
adv_tendency = adv(test_h, test_u, test_v, method="upwind1")
print(f"Advection tendency shape: {adv_tendency.shape}")
print(f"max |tendency|: {float(jnp.abs(adv_tendency[1:-1, 1:-1]).max()):.4e}")
diff = fvx.Difference2D(grid=grid)
interp = fvx.Interpolation2D(grid=grid)
adv = fvx.Advection2D(grid=grid)
vort = fvx.Vorticity2D(grid=grid)
# Quick demonstration: advect a test field
test_h = pad_to_full(np.sin(np.pi * x_2d / Lx) * np.sin(np.pi * y_2d / Ly))
test_u = pad_to_full(0.01 * np.ones_like(x_2d))
test_v = jnp.zeros_like(test_h)
adv_tendency = adv(test_h, test_u, test_v, method="upwind1")
print(f"Advection tendency shape: {adv_tendency.shape}")
print(f"max |tendency|: {float(jnp.abs(adv_tendency[1:-1, 1:-1]).max()):.4e}")
5. The Nonlinear Continuity Equation¶
In the linear model, the continuity equation is:
$$ \frac{\partial \eta}{\partial t} = -H\,\nabla \cdot \mathbf{u} + \nu\,\nabla^2 \eta $$
In the nonlinear model, $H$ is replaced by the full layer depth $H + \eta$:
$$ \frac{\partial \eta}{\partial t} = -\nabla \cdot \bigl[(H + \eta)\,\mathbf{u}\bigr] + \nu\,\nabla^2 \eta $$
This means we advect the total depth $H + \eta$ rather than just using a constant $H$ times the velocity divergence. In code:
layer_depth = mean_depth + eta
eta_rhs = adv(layer_depth, u, v, method="upwind1") # -div((H+eta)*u)
eta_rhs = eta_rhs + viscosity * diff.laplacian(eta) # + nu * lap(eta)
Stability note: when $\eta$ becomes large and negative, $H + \eta$ can approach zero or go negative, causing the model to blow up. In practice we monitor the minimum depth to ensure it stays positive.
In [ ]:
Copied!
# Demonstrate the nonlinear continuity tendency
layer_depth = mean_depth + eta
eta_rhs_nonlinear = adv(layer_depth, u, v, method="upwind1")
eta_rhs_nonlinear = eta_rhs_nonlinear + viscosity * diff.laplacian(eta)
# Compare with the linear version
eta_rhs_linear = -mean_depth * diff.divergence(u, v) + viscosity * diff.laplacian(eta)
print(
f"Nonlinear eta_rhs max: {float(jnp.abs(eta_rhs_nonlinear[1:-1, 1:-1]).max()):.4e}"
)
print(f"Linear eta_rhs max: {float(jnp.abs(eta_rhs_linear[1:-1, 1:-1]).max()):.4e}")
# Demonstrate the nonlinear continuity tendency
layer_depth = mean_depth + eta
eta_rhs_nonlinear = adv(layer_depth, u, v, method="upwind1")
eta_rhs_nonlinear = eta_rhs_nonlinear + viscosity * diff.laplacian(eta)
# Compare with the linear version
eta_rhs_linear = -mean_depth * diff.divergence(u, v) + viscosity * diff.laplacian(eta)
print(
f"Nonlinear eta_rhs max: {float(jnp.abs(eta_rhs_nonlinear[1:-1, 1:-1]).max()):.4e}"
)
print(f"Linear eta_rhs max: {float(jnp.abs(eta_rhs_linear[1:-1, 1:-1]).max()):.4e}")
6. Momentum Advection¶
The nonlinear momentum equations add the terms:
$$ -(\mathbf{u} \cdot \nabla) u = -\left(u\,\frac{\partial u}{\partial x} + v\,\frac{\partial u}{\partial y}\right) $$
$$ -(\mathbf{u} \cdot \nabla) v = -\left(u\,\frac{\partial v}{\partial x} + v\,\frac{\partial v}{\partial y}\right) $$
Implementation: we interpolate $u$ and $v$ to T-points, compute centred gradients there, form the dot product, then interpolate back to the correct staggered position (U or V).
Why not use the Bernoulli pressure gradient? The full Bernoulli function is $B = g\eta + \tfrac{1}{2}(u^2 + v^2)$. Its gradient includes $\nabla(\tfrac{1}{2}|\mathbf{u}|^2)$, which is already contained in the advection term $(\mathbf{u} \cdot \nabla)\mathbf{u}$ via the vector identity:
$$ (\mathbf{u} \cdot \nabla)\mathbf{u} = \nabla\!\left(\tfrac{1}{2}|\mathbf{u}|^2\right) + (\nabla \times \mathbf{u}) \times \mathbf{u} $$
Using $-\nabla B$ together with $-(\mathbf{u}\cdot\nabla)\mathbf{u}$ would double-count the kinetic-energy gradient. So we keep the pressure gradient as simply $-g\,\nabla\eta$.
In [ ]:
Copied!
# Demonstrate momentum advection computation
def centered_gradients(field):
"""Centred gradients at T-points via difference + re-averaging."""
df_dx = interp.U_to_T(diff.diff_x_T_to_U(field))
df_dy = interp.V_to_T(diff.diff_y_T_to_V(field))
return df_dx, df_dy
# Interpolate velocities to T-points
u_on_t = interp.U_to_T(u)
v_on_t = interp.V_to_T(v)
# Gradients of u and v at T-points
du_dx, du_dy = centered_gradients(u_on_t)
dv_dx, dv_dy = centered_gradients(v_on_t)
# Advection: -(u . grad) u at U-points, -(u . grad) v at V-points
u_adv = interp.T_to_U(u_on_t * du_dx + v_on_t * du_dy) # -> U-points
v_adv = interp.T_to_V(u_on_t * dv_dx + v_on_t * dv_dy) # -> V-points
print(f"u_adv shape: {u_adv.shape} (at U-points)")
print(f"v_adv shape: {v_adv.shape} (at V-points)")
# Demonstrate momentum advection computation
def centered_gradients(field):
"""Centred gradients at T-points via difference + re-averaging."""
df_dx = interp.U_to_T(diff.diff_x_T_to_U(field))
df_dy = interp.V_to_T(diff.diff_y_T_to_V(field))
return df_dx, df_dy
# Interpolate velocities to T-points
u_on_t = interp.U_to_T(u)
v_on_t = interp.V_to_T(v)
# Gradients of u and v at T-points
du_dx, du_dy = centered_gradients(u_on_t)
dv_dx, dv_dy = centered_gradients(v_on_t)
# Advection: -(u . grad) u at U-points, -(u . grad) v at V-points
u_adv = interp.T_to_U(u_on_t * du_dx + v_on_t * du_dy) # -> U-points
v_adv = interp.T_to_V(u_on_t * dv_dx + v_on_t * dv_dy) # -> V-points
print(f"u_adv shape: {u_adv.shape} (at U-points)")
print(f"v_adv shape: {v_adv.shape} (at V-points)")
7. Tendency Function¶
The full right-hand side assembles all terms. Each line is annotated with the corresponding equation term.
In [ ]:
Copied!
def tendency(eta_field, u_field, v_field):
"""Compute the nonlinear shallow-water tendencies on the C-grid.
Returns (d_eta/dt, du/dt, dv/dt), all at their native stagger points.
"""
# --- Continuity: d(eta)/dt = -div((H+eta)*u) + nu*lap(eta) ---
layer_depth = mean_depth + eta_field # H + eta [Ny, Nx]
eta_rhs = adv(
layer_depth,
u_field,
v_field, # -div((H+eta)*u) [Ny, Nx]
method="upwind1",
)
eta_rhs = eta_rhs + viscosity * diff.laplacian(eta_field) # + nu*lap(eta)
# --- Momentum advection: -(u . grad) u, -(u . grad) v ---
u_on_t = interp.U_to_T(u_field) # u at T-points [Ny, Nx]
v_on_t = interp.V_to_T(v_field) # v at T-points [Ny, Nx]
du_dx, du_dy = centered_gradients(u_on_t) # grad(u) at T [Ny, Nx]
dv_dx, dv_dy = centered_gradients(v_on_t) # grad(v) at T [Ny, Nx]
u_adv = interp.T_to_U(u_on_t * du_dx + v_on_t * du_dy) # -> U [Ny, Nx]
v_adv = interp.T_to_V(u_on_t * dv_dx + v_on_t * dv_dy) # -> V [Ny, Nx]
# --- Coriolis: f*v at U-points, -f*u at V-points ---
v_on_u = interp.V_to_U(v_field) # v at U-points [Ny, Nx]
u_on_v = interp.U_to_V(u_field) # u at V-points [Ny, Nx]
coriolis_on_u = interp.T_to_U(coriolis) # f at U-points [Ny, Nx]
coriolis_on_v = interp.T_to_V(coriolis) # f at V-points [Ny, Nx]
# --- u-momentum: -g*d(eta)/dx - adv + f*v + F_x - r*u + nu*lap(u) ---
u_rhs = -gravity * diff.diff_x_T_to_U(eta_field) # pressure grad
u_rhs = u_rhs - u_adv # - (u . grad) u
u_rhs = u_rhs + coriolis_on_u * v_on_u # + f*v
u_rhs = u_rhs + wind_u # + F_x
u_rhs = u_rhs - drag * u_field # - r*u
u_rhs = u_rhs + viscosity * diff.laplacian(u_field) # + nu*lap(u)
# --- v-momentum: -g*d(eta)/dy - adv - f*u - r*v + nu*lap(v) ---
v_rhs = -gravity * diff.diff_y_T_to_V(eta_field) # pressure grad
v_rhs = v_rhs - v_adv # - (u . grad) v
v_rhs = v_rhs - coriolis_on_v * u_on_v # - f*u
v_rhs = v_rhs - drag * v_field # - r*v
v_rhs = v_rhs + viscosity * diff.laplacian(v_field) # + nu*lap(v)
return eta_rhs, u_rhs, v_rhs
# Quick check: the tendency should be well-defined
d_eta, d_u, d_v = tendency(eta, u, v)
print(f"d_eta max: {float(jnp.abs(d_eta[1:-1, 1:-1]).max()):.4e}")
print(f"d_u max: {float(jnp.abs(d_u[1:-1, 1:-1]).max()):.4e}")
print(f"d_v max: {float(jnp.abs(d_v[1:-1, 1:-1]).max()):.4e}")
def tendency(eta_field, u_field, v_field):
"""Compute the nonlinear shallow-water tendencies on the C-grid.
Returns (d_eta/dt, du/dt, dv/dt), all at their native stagger points.
"""
# --- Continuity: d(eta)/dt = -div((H+eta)*u) + nu*lap(eta) ---
layer_depth = mean_depth + eta_field # H + eta [Ny, Nx]
eta_rhs = adv(
layer_depth,
u_field,
v_field, # -div((H+eta)*u) [Ny, Nx]
method="upwind1",
)
eta_rhs = eta_rhs + viscosity * diff.laplacian(eta_field) # + nu*lap(eta)
# --- Momentum advection: -(u . grad) u, -(u . grad) v ---
u_on_t = interp.U_to_T(u_field) # u at T-points [Ny, Nx]
v_on_t = interp.V_to_T(v_field) # v at T-points [Ny, Nx]
du_dx, du_dy = centered_gradients(u_on_t) # grad(u) at T [Ny, Nx]
dv_dx, dv_dy = centered_gradients(v_on_t) # grad(v) at T [Ny, Nx]
u_adv = interp.T_to_U(u_on_t * du_dx + v_on_t * du_dy) # -> U [Ny, Nx]
v_adv = interp.T_to_V(u_on_t * dv_dx + v_on_t * dv_dy) # -> V [Ny, Nx]
# --- Coriolis: f*v at U-points, -f*u at V-points ---
v_on_u = interp.V_to_U(v_field) # v at U-points [Ny, Nx]
u_on_v = interp.U_to_V(u_field) # u at V-points [Ny, Nx]
coriolis_on_u = interp.T_to_U(coriolis) # f at U-points [Ny, Nx]
coriolis_on_v = interp.T_to_V(coriolis) # f at V-points [Ny, Nx]
# --- u-momentum: -g*d(eta)/dx - adv + f*v + F_x - r*u + nu*lap(u) ---
u_rhs = -gravity * diff.diff_x_T_to_U(eta_field) # pressure grad
u_rhs = u_rhs - u_adv # - (u . grad) u
u_rhs = u_rhs + coriolis_on_u * v_on_u # + f*v
u_rhs = u_rhs + wind_u # + F_x
u_rhs = u_rhs - drag * u_field # - r*u
u_rhs = u_rhs + viscosity * diff.laplacian(u_field) # + nu*lap(u)
# --- v-momentum: -g*d(eta)/dy - adv - f*u - r*v + nu*lap(v) ---
v_rhs = -gravity * diff.diff_y_T_to_V(eta_field) # pressure grad
v_rhs = v_rhs - v_adv # - (u . grad) v
v_rhs = v_rhs - coriolis_on_v * u_on_v # - f*u
v_rhs = v_rhs - drag * v_field # - r*v
v_rhs = v_rhs + viscosity * diff.laplacian(v_field) # + nu*lap(v)
return eta_rhs, u_rhs, v_rhs
# Quick check: the tendency should be well-defined
d_eta, d_u, d_v = tendency(eta, u, v)
print(f"d_eta max: {float(jnp.abs(d_eta[1:-1, 1:-1]).max()):.4e}")
print(f"d_u max: {float(jnp.abs(d_u[1:-1, 1:-1]).max()):.4e}")
print(f"d_v max: {float(jnp.abs(d_v[1:-1, 1:-1]).max()):.4e}")
8. Time Stepping¶
We use finitevolx.heun_step (Heun/RK2 predictor-corrector) and
run a short integration of 500 steps. After each step, we re-apply
wall boundary conditions (zero ghost cells) using fvx.pad_interior.
In [ ]:
Copied!
def apply_bc(state):
"""Re-apply solid-wall BCs (zero ghost cells)."""
return tuple(fvx.pad_interior(f, mode="constant") for f in state)
def rhs(state):
"""Tendency wrapper for heun_step (expects/returns tuples)."""
return tendency(*apply_bc(state))
@jax.jit
def step(eta_f, u_f, v_f):
"""One Heun step + boundary condition reset."""
state = fvx.heun_step((eta_f, u_f, v_f), rhs, dt)
return apply_bc(state)
# --- Short integration: 500 steps ---
n_steps = 500
print(f"Integrating {n_steps} steps ({n_steps * dt / 86400:.2f} days) ...")
for _i in range(n_steps):
eta, u, v = step(eta, u, v)
# Block until computation is done
eta.block_until_ready()
print("Done.")
# Check minimum total depth (stability diagnostic)
min_depth = float((mean_depth + eta[1:-1, 1:-1]).min())
print(f"Minimum total depth: {min_depth:.1f} m (must stay > 0)")
def apply_bc(state):
"""Re-apply solid-wall BCs (zero ghost cells)."""
return tuple(fvx.pad_interior(f, mode="constant") for f in state)
def rhs(state):
"""Tendency wrapper for heun_step (expects/returns tuples)."""
return tendency(*apply_bc(state))
@jax.jit
def step(eta_f, u_f, v_f):
"""One Heun step + boundary condition reset."""
state = fvx.heun_step((eta_f, u_f, v_f), rhs, dt)
return apply_bc(state)
# --- Short integration: 500 steps ---
n_steps = 500
print(f"Integrating {n_steps} steps ({n_steps * dt / 86400:.2f} days) ...")
for _i in range(n_steps):
eta, u, v = step(eta, u, v)
# Block until computation is done
eta.block_until_ready()
print("Done.")
# Check minimum total depth (stability diagnostic)
min_depth = float((mean_depth + eta[1:-1, 1:-1]).min())
print(f"Minimum total depth: {min_depth:.1f} m (must stay > 0)")
9. Results¶

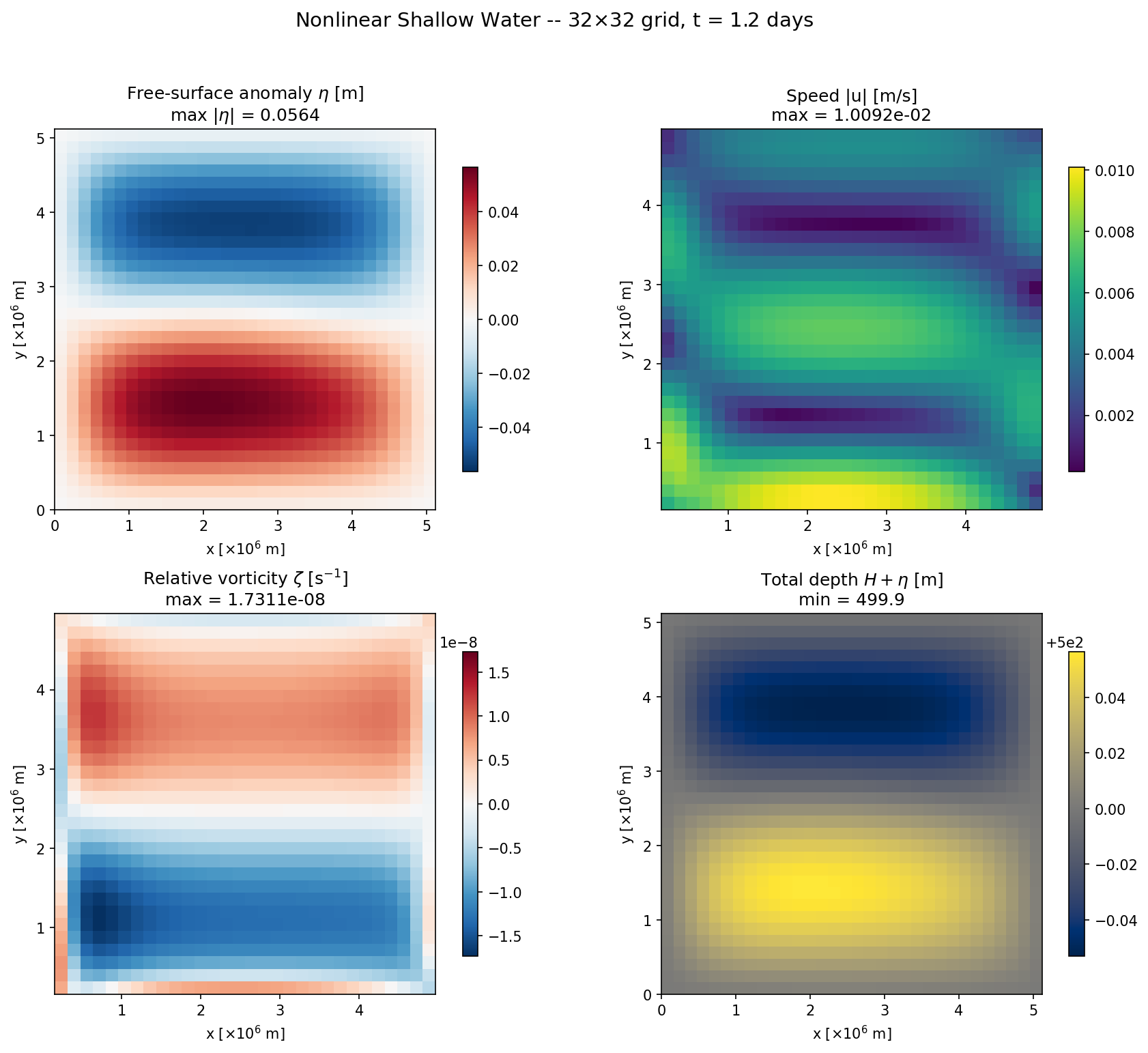

We plot four diagnostics:
- Free-surface anomaly $\eta$ -- the sea-surface height perturbation.
- Speed $|\mathbf{u}|$ -- flow magnitude at T-points.
- Relative vorticity $\zeta = \partial v/\partial x - \partial u/\partial y$.
- Total depth $H + \eta$ -- must remain positive everywhere.
Boundary slicing: Native T-point fields ($\eta$, total depth) use
[1:-1, 1:-1]. Interpolated/derived fields (speed, vorticity) use
[2:-2, 2:-2] to avoid ghost-cell contamination at the boundary.
In [ ]:
Copied!
# Compute diagnostics on the interior
u_center = interp.U_to_T(u)
v_center = interp.V_to_T(v)
zeta_corner = vort.relative_vorticity(u, v)
zeta_center = interp.X_to_T(zeta_corner)
# --- Coordinate grids ---
# Full interior [1:-1, 1:-1] for native T-point fields (eta, total depth)
x_full_1d, y_full_1d = x_1d, y_1d
# Inner domain [2:-2, 2:-2] for interpolated/derived fields (speed, vorticity)
# Trims the first interior row/column where ghost-cell averaging contaminates values.
x_inner_1d, y_inner_1d = x_1d[1:-1], y_1d[1:-1]
# Native T-point fields: [1:-1, 1:-1]
eta_np = np.asarray(eta[1:-1, 1:-1])
depth_np = mean_depth + eta_np
# Interpolated fields: [2:-2, 2:-2] to avoid boundary artifacts
u_np = np.asarray(u_center[2:-2, 2:-2])
v_np = np.asarray(v_center[2:-2, 2:-2])
speed_np = np.sqrt(u_np**2 + v_np**2)
zeta_np = np.asarray(zeta_center[2:-2, 2:-2])
# Energy diagnostics
total_ke = 0.5 * float(jnp.sum(u_center[2:-2, 2:-2] ** 2 + v_center[2:-2, 2:-2] ** 2)) * dx * dy
total_pe = 0.5 * gravity * float(jnp.sum(eta[1:-1, 1:-1] ** 2)) * dx * dy
print(f"Total KE: {total_ke:.4e} m^4 s^-2")
print(f"Total PE: {total_pe:.4e} m^4 s^-2")
# Compute diagnostics on the interior
u_center = interp.U_to_T(u)
v_center = interp.V_to_T(v)
zeta_corner = vort.relative_vorticity(u, v)
zeta_center = interp.X_to_T(zeta_corner)
# --- Coordinate grids ---
# Full interior [1:-1, 1:-1] for native T-point fields (eta, total depth)
x_full_1d, y_full_1d = x_1d, y_1d
# Inner domain [2:-2, 2:-2] for interpolated/derived fields (speed, vorticity)
# Trims the first interior row/column where ghost-cell averaging contaminates values.
x_inner_1d, y_inner_1d = x_1d[1:-1], y_1d[1:-1]
# Native T-point fields: [1:-1, 1:-1]
eta_np = np.asarray(eta[1:-1, 1:-1])
depth_np = mean_depth + eta_np
# Interpolated fields: [2:-2, 2:-2] to avoid boundary artifacts
u_np = np.asarray(u_center[2:-2, 2:-2])
v_np = np.asarray(v_center[2:-2, 2:-2])
speed_np = np.sqrt(u_np**2 + v_np**2)
zeta_np = np.asarray(zeta_center[2:-2, 2:-2])
# Energy diagnostics
total_ke = 0.5 * float(jnp.sum(u_center[2:-2, 2:-2] ** 2 + v_center[2:-2, 2:-2] ** 2)) * dx * dy
total_pe = 0.5 * gravity * float(jnp.sum(eta[1:-1, 1:-1] ** 2)) * dx * dy
print(f"Total KE: {total_ke:.4e} m^4 s^-2")
print(f"Total PE: {total_pe:.4e} m^4 s^-2")
In [ ]:
Copied!
fig, axes = plt.subplots(2, 2, figsize=(12, 10))
# (a) Free-surface anomaly -- native T-point, full interior
vmax_eta = float(np.abs(eta_np).max())
if vmax_eta == 0.0:
vmax_eta = 1.0
im0 = axes[0, 0].pcolormesh(
x_full_1d / 1e6,
y_full_1d / 1e6,
eta_np,
shading="auto",
cmap="RdBu_r",
vmin=-vmax_eta,
vmax=vmax_eta,
)
axes[0, 0].set_title(
f"Free-surface anomaly $\\eta$ [m]\nmax |$\\eta$| = {vmax_eta:.4f}"
)
fig.colorbar(im0, ax=axes[0, 0], shrink=0.8)
# (b) Speed -- interpolated, inner domain [2:-2, 2:-2]
im1 = axes[0, 1].pcolormesh(
x_inner_1d / 1e6,
y_inner_1d / 1e6,
speed_np,
shading="auto",
cmap="viridis",
)
axes[0, 1].set_title(f"Speed |u| [m/s]\nmax = {float(speed_np.max()):.4e}")
fig.colorbar(im1, ax=axes[0, 1], shrink=0.8)
# (c) Relative vorticity -- interpolated, inner domain [2:-2, 2:-2]
vmax_z = float(np.abs(zeta_np).max())
if vmax_z == 0.0:
vmax_z = 1.0
im2 = axes[1, 0].pcolormesh(
x_inner_1d / 1e6,
y_inner_1d / 1e6,
zeta_np,
shading="auto",
cmap="RdBu_r",
vmin=-vmax_z,
vmax=vmax_z,
)
axes[1, 0].set_title(f"Relative vorticity $\\zeta$ [s$^{{-1}}$]\nmax = {vmax_z:.4e}")
fig.colorbar(im2, ax=axes[1, 0], shrink=0.8)
# (d) Total depth -- native T-point, full interior
im3 = axes[1, 1].pcolormesh(
x_full_1d / 1e6,
y_full_1d / 1e6,
depth_np,
shading="auto",
cmap="cividis",
)
axes[1, 1].set_title(f"Total depth $H + \\eta$ [m]\nmin = {float(depth_np.min()):.1f}")
fig.colorbar(im3, ax=axes[1, 1], shrink=0.8)
for ax in axes.flat:
ax.set_xlabel("x [$\\times 10^6$ m]")
ax.set_ylabel("y [$\\times 10^6$ m]")
ax.set_aspect("equal")
t_days = n_steps * dt / 86400.0
fig.suptitle(
f"Nonlinear Shallow Water -- {nx}$\\times${ny} grid, t = {t_days:.1f} days",
fontsize=14,
y=1.02,
)
fig.tight_layout()
fig.savefig(IMG_DIR / "shallow_water_results.png", dpi=150, bbox_inches="tight")
plt.show()
fig, axes = plt.subplots(2, 2, figsize=(12, 10))
# (a) Free-surface anomaly -- native T-point, full interior
vmax_eta = float(np.abs(eta_np).max())
if vmax_eta == 0.0:
vmax_eta = 1.0
im0 = axes[0, 0].pcolormesh(
x_full_1d / 1e6,
y_full_1d / 1e6,
eta_np,
shading="auto",
cmap="RdBu_r",
vmin=-vmax_eta,
vmax=vmax_eta,
)
axes[0, 0].set_title(
f"Free-surface anomaly $\\eta$ [m]\nmax |$\\eta$| = {vmax_eta:.4f}"
)
fig.colorbar(im0, ax=axes[0, 0], shrink=0.8)
# (b) Speed -- interpolated, inner domain [2:-2, 2:-2]
im1 = axes[0, 1].pcolormesh(
x_inner_1d / 1e6,
y_inner_1d / 1e6,
speed_np,
shading="auto",
cmap="viridis",
)
axes[0, 1].set_title(f"Speed |u| [m/s]\nmax = {float(speed_np.max()):.4e}")
fig.colorbar(im1, ax=axes[0, 1], shrink=0.8)
# (c) Relative vorticity -- interpolated, inner domain [2:-2, 2:-2]
vmax_z = float(np.abs(zeta_np).max())
if vmax_z == 0.0:
vmax_z = 1.0
im2 = axes[1, 0].pcolormesh(
x_inner_1d / 1e6,
y_inner_1d / 1e6,
zeta_np,
shading="auto",
cmap="RdBu_r",
vmin=-vmax_z,
vmax=vmax_z,
)
axes[1, 0].set_title(f"Relative vorticity $\\zeta$ [s$^{{-1}}$]\nmax = {vmax_z:.4e}")
fig.colorbar(im2, ax=axes[1, 0], shrink=0.8)
# (d) Total depth -- native T-point, full interior
im3 = axes[1, 1].pcolormesh(
x_full_1d / 1e6,
y_full_1d / 1e6,
depth_np,
shading="auto",
cmap="cividis",
)
axes[1, 1].set_title(f"Total depth $H + \\eta$ [m]\nmin = {float(depth_np.min()):.1f}")
fig.colorbar(im3, ax=axes[1, 1], shrink=0.8)
for ax in axes.flat:
ax.set_xlabel("x [$\\times 10^6$ m]")
ax.set_ylabel("y [$\\times 10^6$ m]")
ax.set_aspect("equal")
t_days = n_steps * dt / 86400.0
fig.suptitle(
f"Nonlinear Shallow Water -- {nx}$\\times${ny} grid, t = {t_days:.1f} days",
fontsize=14,
y=1.02,
)
fig.tight_layout()
fig.savefig(IMG_DIR / "shallow_water_results.png", dpi=150, bbox_inches="tight")
plt.show()
10. Full Simulation¶
The production script at scripts/shallow_water.py runs a longer
integration (150 000 spin-up steps + 15 000 recording steps) on a
64 x 64 grid and saves an animated GIF of the free-surface evolution.
# Full nonlinear shallow-water configuration:
# nx, ny = 64, 64
# Lx, Ly = 5.12e6, 5.12e6
# dt = 200 s, spinup = 150000 steps, record = 15000 steps
# Same physics: g=9.81, H=500, f0=9.375e-5, beta=1.754e-11
# New: Advection2D for continuity, centered advection for momentum
Summary¶
Linear vs Nonlinear Comparison¶
| Feature | Linear SWE | Nonlinear SWE |
|---|---|---|
| Continuity | $-H\,\nabla\cdot\mathbf{u}$ | $-\nabla\cdot[(H+\eta)\,\mathbf{u}]$ |
| Momentum advection | none | $-(\mathbf{u}\cdot\nabla)\mathbf{u}$ |
| Pressure gradient | $-g\,\nabla\eta$ | $-g\,\nabla\eta$ |
| Stability concern | unconditional (linear) | min depth $H+\eta > 0$ required |
| New operator | -- | Advection2D |
| Computational cost | lower | higher (advection + gradients) |
finitevolx API Reference¶
| Class / Function | Role in this notebook |
|---|---|
ArakawaCGrid2D.from_interior |
Build the C-grid with ghost ring |
Difference2D |
Finite differences, Laplacian, divergence |
Interpolation2D |
Stagger-point averaging (T/U/V/X) |
Advection2D |
Upwind flux advection $-\nabla\cdot(h\,\mathbf{u})$ |
Vorticity2D |
Relative vorticity at corner (X) points |
heun_step |
Heun/RK2 time integrator |
pad_interior |
Re-apply ghost-cell boundary conditions |
