Streamfunction Inversion: T-point vs X-point Placement¶

The vorticity–streamfunction relation $\nabla^2 \psi = \zeta$ is the canonical elliptic inversion in geophysical fluid dynamics. On the Arakawa C-grid, the same physical equation requires different spectral solvers depending on where $\psi$ lives:

Placement	Grid type	Solver	finitevolX API
X-points (corners)	Regular (vertex-centred)	DST-I	streamfunction_from_vorticity(bc="dst")
T-points (cell centres)	Staggered (cell-centred)	DST-II	solve_poisson_dst2 (direct)

Where does $\psi$ live?¶

  Option A: ψ at X-points (corners)     Option B: ψ at T-points (centres)
  ─────────────────────────────────      ──────────────────────────────────

  ψ ── · ── ψ ── · ── ψ                · ── · ── · ── · ── ·
  |         |         |                  |         |         |
  ·    ζ    ·    ζ    ·                  ·    ψ    ·    ψ    ·
  |         |         |                  |    ζ    |    ζ    |
  ψ ── · ── ψ ── · ── ψ                · ── · ── · ── · ── ·
  |         |         |                  |         |         |
  ·    ζ    ·    ζ    ·                  ·    ψ    ·    ψ    ·
  |         |         |                  |    ζ    |    ζ    |
  ψ ── · ── ψ ── · ── ψ                · ── · ── · ── · ── ·

  ψ at corners, ζ at centres             ψ and ζ co-located at centres
  Solver: DST-I (regular Dirichlet)      Solver: DST-II (staggered Dirichlet)

This notebook compares both placements on a Lamb–Oseen vortex test case.

In [ ]:

from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib

matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

import finitevolx as fvx
from finitevolx import solve_poisson_dst, solve_poisson_dst2

IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "streamfunction_inversion"
IMG_DIR.mkdir(parents=True, exist_ok=True)

from pathlib import Path import jax import jax.numpy as jnp import matplotlib matplotlib.use("Agg") import matplotlib.pyplot as plt import numpy as np jax.config.update("jax_enable_x64", True) import finitevolx as fvx from finitevolx import solve_poisson_dst, solve_poisson_dst2 IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "streamfunction_inversion" IMG_DIR.mkdir(parents=True, exist_ok=True)

1. Analytical Vortex (Lamb–Oseen)¶

We use a Gaussian vorticity field centred in a rectangular basin with $\psi = 0$ on the walls:

$$ \zeta(x, y) = \frac{\Gamma}{\pi r_0^2} \exp\!\left(-\frac{r^2}{r_0^2}\right) $$

where $r^2 = (x - x_0)^2 + (y - y_0)^2$.

In [ ]:

nx, ny = 128, 128
Lx, Ly = 2e6, 2e6  # 2000 km × 2000 km basin

grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly)
dx, dy = grid.dx, grid.dy

# Vortex parameters
Gamma = 1e5       # circulation (m²/s)
r0 = 300e3        # vortex radius (300 km)
x0, y0 = Lx / 2, Ly / 2  # centre of domain

# We construct ζ on TWO grids to match each solver's convention:
#
# - DST-I (X-point/vertex): grid points at i*dx/(N+1) for i=1..N
#   (vertices, excluding the zero-boundary endpoints)
# - DST-II (T-point/cell-centre): grid points at (i+0.5)*dx/N for i=0..N-1
#   (cell centres, with boundary half a spacing outside)
#
# The Gaussian vortex is smooth enough that the difference is negligible,
# but using the correct grid for each solver avoids a systematic O(dx) shift.

# DST-I grid: vertex-centred (X-point convention)
i_X = jnp.arange(1, nx + 1)[None, :]
j_X = jnp.arange(1, ny + 1)[:, None]
x_X = i_X * dx * nx / (nx + 1)  # points at i/(N+1) * Lx
y_X = j_X * dy * ny / (ny + 1)

# DST-II grid: cell-centred (T-point convention)
i_T = jnp.arange(nx)[None, :] + 0.5
j_T = jnp.arange(ny)[:, None] + 0.5
x_T = i_T * dx
y_T = j_T * dy

# Vorticity on each grid
r2_X = (x_X - x0) ** 2 + (y_X - y0) ** 2
zeta_X = (Gamma / (jnp.pi * r0**2)) * jnp.exp(-r2_X / r0**2)

r2_T = (x_T - x0) ** 2 + (y_T - y0) ** 2
zeta_T = (Gamma / (jnp.pi * r0**2)) * jnp.exp(-r2_T / r0**2)

print(f"max |ζ_X| = {float(jnp.abs(zeta_X).max()):.4e} s⁻¹ (vertex grid)")
print(f"max |ζ_T| = {float(jnp.abs(zeta_T).max()):.4e} s⁻¹ (cell-centre grid)")

nx, ny = 128, 128 Lx, Ly = 2e6, 2e6 # 2000 km × 2000 km basin grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly) dx, dy = grid.dx, grid.dy # Vortex parameters Gamma = 1e5 # circulation (m²/s) r0 = 300e3 # vortex radius (300 km) x0, y0 = Lx / 2, Ly / 2 # centre of domain # We construct ζ on TWO grids to match each solver's convention: # # - DST-I (X-point/vertex): grid points at i*dx/(N+1) for i=1..N # (vertices, excluding the zero-boundary endpoints) # - DST-II (T-point/cell-centre): grid points at (i+0.5)*dx/N for i=0..N-1 # (cell centres, with boundary half a spacing outside) # # The Gaussian vortex is smooth enough that the difference is negligible, # but using the correct grid for each solver avoids a systematic O(dx) shift. # DST-I grid: vertex-centred (X-point convention) i_X = jnp.arange(1, nx + 1)[None, :] j_X = jnp.arange(1, ny + 1)[:, None] x_X = i_X * dx * nx / (nx + 1) # points at i/(N+1) * Lx y_X = j_X * dy * ny / (ny + 1) # DST-II grid: cell-centred (T-point convention) i_T = jnp.arange(nx)[None, :] + 0.5 j_T = jnp.arange(ny)[:, None] + 0.5 x_T = i_T * dx y_T = j_T * dy # Vorticity on each grid r2_X = (x_X - x0) ** 2 + (y_X - y0) ** 2 zeta_X = (Gamma / (jnp.pi * r0**2)) * jnp.exp(-r2_X / r0**2) r2_T = (x_T - x0) ** 2 + (y_T - y0) ** 2 zeta_T = (Gamma / (jnp.pi * r0**2)) * jnp.exp(-r2_T / r0**2) print(f"max |ζ_X| = {float(jnp.abs(zeta_X).max()):.4e} s⁻¹ (vertex grid)") print(f"max |ζ_T| = {float(jnp.abs(zeta_T).max()):.4e} s⁻¹ (cell-centre grid)")

In [ ]:

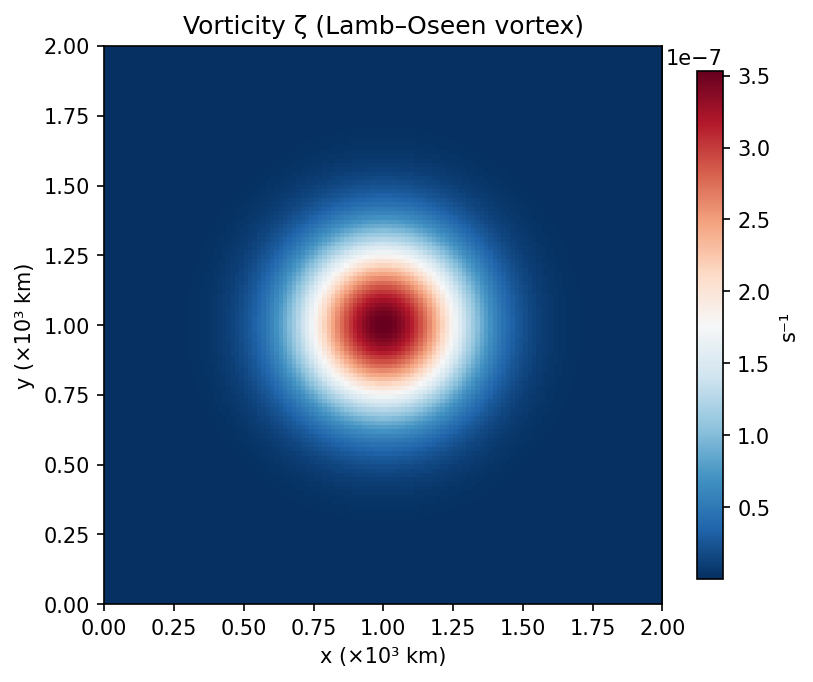

fig, ax = plt.subplots(figsize=(6, 5.5))
im = ax.imshow(
    np.asarray(zeta_T), origin="lower", cmap="RdBu_r",
    extent=[0, Lx / 1e6, 0, Ly / 1e6],
)
ax.set_xlabel("x (×10³ km)")
ax.set_ylabel("y (×10³ km)")
ax.set_title("Vorticity ζ (Lamb–Oseen vortex)")
fig.colorbar(im, ax=ax, shrink=0.8, label="s⁻¹")
fig.savefig(IMG_DIR / "vorticity.png", dpi=150, bbox_inches="tight")
plt.show()

fig, ax = plt.subplots(figsize=(6, 5.5)) im = ax.imshow( np.asarray(zeta_T), origin="lower", cmap="RdBu_r", extent=[0, Lx / 1e6, 0, Ly / 1e6], ) ax.set_xlabel("x (×10³ km)") ax.set_ylabel("y (×10³ km)") ax.set_title("Vorticity ζ (Lamb–Oseen vortex)") fig.colorbar(im, ax=ax, shrink=0.8, label="s⁻¹") fig.savefig(IMG_DIR / "vorticity.png", dpi=150, bbox_inches="tight") plt.show()

2. X-point Inversion (DST-I)¶

The finitevolX convenience wrapper streamfunction_from_vorticity uses DST-I by default, which assumes $\psi$ lives at grid vertices (X-points/corners). We pass zeta_X (vertex-centred grid).

In [ ]:

psi_X = fvx.streamfunction_from_vorticity(zeta_X, dx, dy, bc="dst")

print(f"ψ_X range: [{float(psi_X.min()):.2e}, {float(psi_X.max()):.2e}]")

psi_X = fvx.streamfunction_from_vorticity(zeta_X, dx, dy, bc="dst") print(f"ψ_X range: [{float(psi_X.min()):.2e}, {float(psi_X.max()):.2e}]")

3. T-point Inversion (DST-II)¶

For $\psi$ co-located with $\zeta$ at T-points (cell centres), we use the staggered Dirichlet solver directly.

In [ ]:

psi_T = solve_poisson_dst2(zeta_T, dx, dy)

print(f"ψ_T range: [{float(psi_T.min()):.2e}, {float(psi_T.max()):.2e}]")

psi_T = solve_poisson_dst2(zeta_T, dx, dy) print(f"ψ_T range: [{float(psi_T.min()):.2e}, {float(psi_T.max()):.2e}]")

In [ ]:

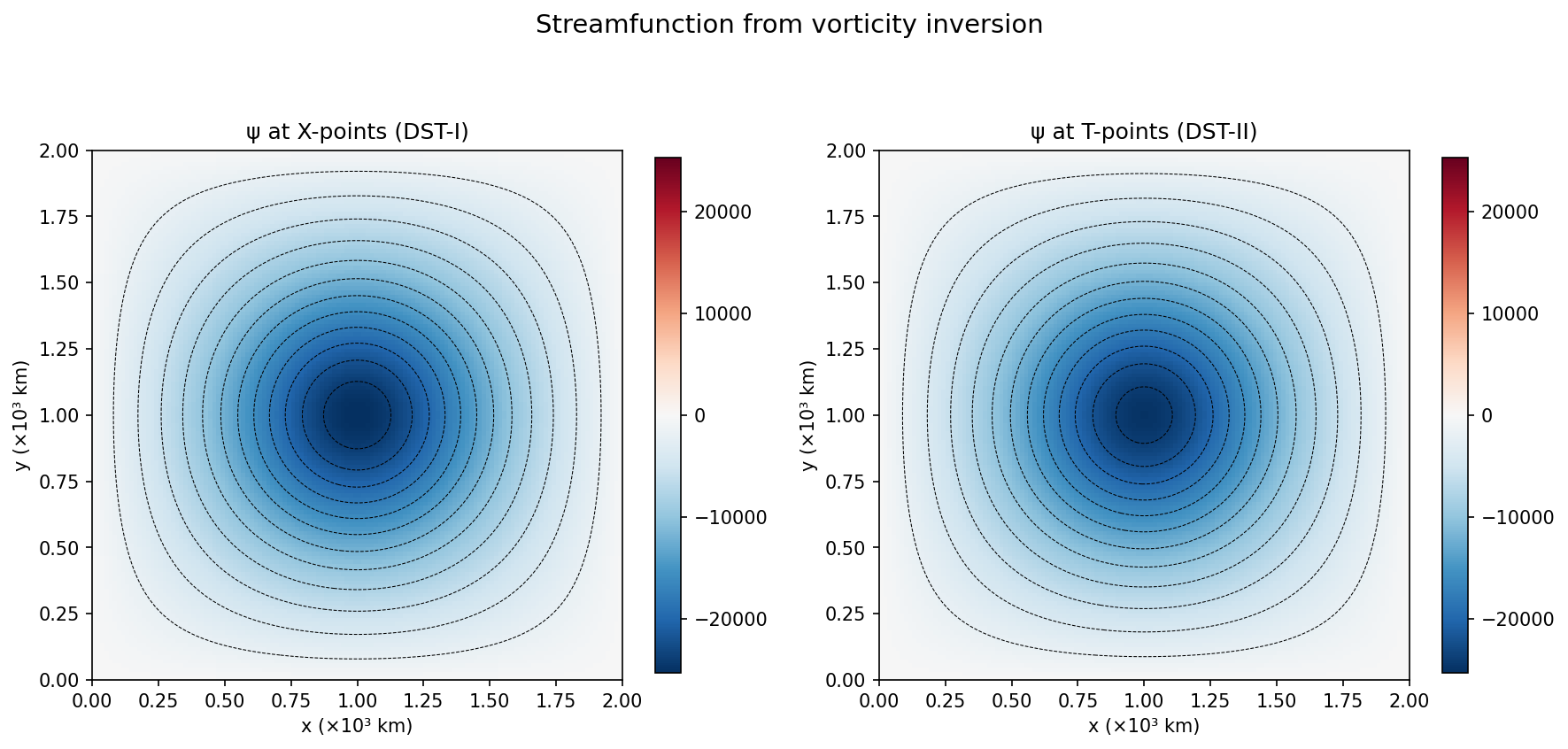

fig, axes = plt.subplots(1, 2, figsize=(12, 5.5))

vmax = max(float(jnp.abs(psi_X).max()), float(jnp.abs(psi_T).max()))

for ax, psi, title in zip(
    axes,
    [psi_X, psi_T],
    ["ψ at X-points (DST-I)", "ψ at T-points (DST-II)"],
):
    im = ax.imshow(
        np.asarray(psi), origin="lower", cmap="RdBu_r",
        extent=[0, Lx / 1e6, 0, Ly / 1e6],
        vmin=-vmax, vmax=vmax,
    )
    X_plot = np.linspace(0, Lx / 1e6, nx)
    Y_plot = np.linspace(0, Ly / 1e6, ny)
    ax.contour(X_plot, Y_plot, np.asarray(psi), levels=12, colors="k", linewidths=0.5)
    ax.set_xlabel("x (×10³ km)")
    ax.set_ylabel("y (×10³ km)")
    ax.set_title(title)
    fig.colorbar(im, ax=ax, shrink=0.8)

fig.suptitle("Streamfunction from vorticity inversion", fontsize=14, y=1.02)
fig.tight_layout()
fig.savefig(IMG_DIR / "streamfunction_comparison.png", dpi=150, bbox_inches="tight")
plt.show()

fig, axes = plt.subplots(1, 2, figsize=(12, 5.5)) vmax = max(float(jnp.abs(psi_X).max()), float(jnp.abs(psi_T).max())) for ax, psi, title in zip( axes, [psi_X, psi_T], ["ψ at X-points (DST-I)", "ψ at T-points (DST-II)"], ): im = ax.imshow( np.asarray(psi), origin="lower", cmap="RdBu_r", extent=[0, Lx / 1e6, 0, Ly / 1e6], vmin=-vmax, vmax=vmax, ) X_plot = np.linspace(0, Lx / 1e6, nx) Y_plot = np.linspace(0, Ly / 1e6, ny) ax.contour(X_plot, Y_plot, np.asarray(psi), levels=12, colors="k", linewidths=0.5) ax.set_xlabel("x (×10³ km)") ax.set_ylabel("y (×10³ km)") ax.set_title(title) fig.colorbar(im, ax=ax, shrink=0.8) fig.suptitle("Streamfunction from vorticity inversion", fontsize=14, y=1.02) fig.tight_layout() fig.savefig(IMG_DIR / "streamfunction_comparison.png", dpi=150, bbox_inches="tight") plt.show()

4. Velocity Recovery¶

From each $\psi$ placement, we recover $(u, v)$ using C-grid differences.

From $\psi$ at X-points (corners):

• $u = -\partial\psi/\partial y$ at U-points via diff_y_X_to_U (natural X→U map)
• $v = +\partial\psi/\partial x$ at V-points via diff_x_X_to_V (natural X→V map)

From $\psi$ at T-points (cell centres):

• Difference2D.grad_perp(psi) returns $(u, v)$ at (U, V) points directly, combining interpolation and differentiation in the correct staggered sense.

In [ ]:

# Pad into full grid (with ghost ring)
psi_X_full = jnp.zeros((ny + 2, nx + 2))
psi_X_full = psi_X_full.at[1:-1, 1:-1].set(psi_X)

psi_T_full = jnp.zeros((ny + 2, nx + 2))
psi_T_full = psi_T_full.at[1:-1, 1:-1].set(psi_T)

diff_op = fvx.Difference2D(grid)

# From ψ at X-points: use dedicated X→U and X→V operators
u_from_X = -diff_op.diff_y_X_to_U(psi_X_full)
v_from_X = diff_op.diff_x_X_to_V(psi_X_full)

# From ψ at T-points: use perpendicular gradient (u at U, v at V)
u_from_T, v_from_T = diff_op.grad_perp(psi_T_full)

# Pad into full grid (with ghost ring) psi_X_full = jnp.zeros((ny + 2, nx + 2)) psi_X_full = psi_X_full.at[1:-1, 1:-1].set(psi_X) psi_T_full = jnp.zeros((ny + 2, nx + 2)) psi_T_full = psi_T_full.at[1:-1, 1:-1].set(psi_T) diff_op = fvx.Difference2D(grid) # From ψ at X-points: use dedicated X→U and X→V operators u_from_X = -diff_op.diff_y_X_to_U(psi_X_full) v_from_X = diff_op.diff_x_X_to_V(psi_X_full) # From ψ at T-points: use perpendicular gradient (u at U, v at V) u_from_T, v_from_T = diff_op.grad_perp(psi_T_full)

In [ ]:

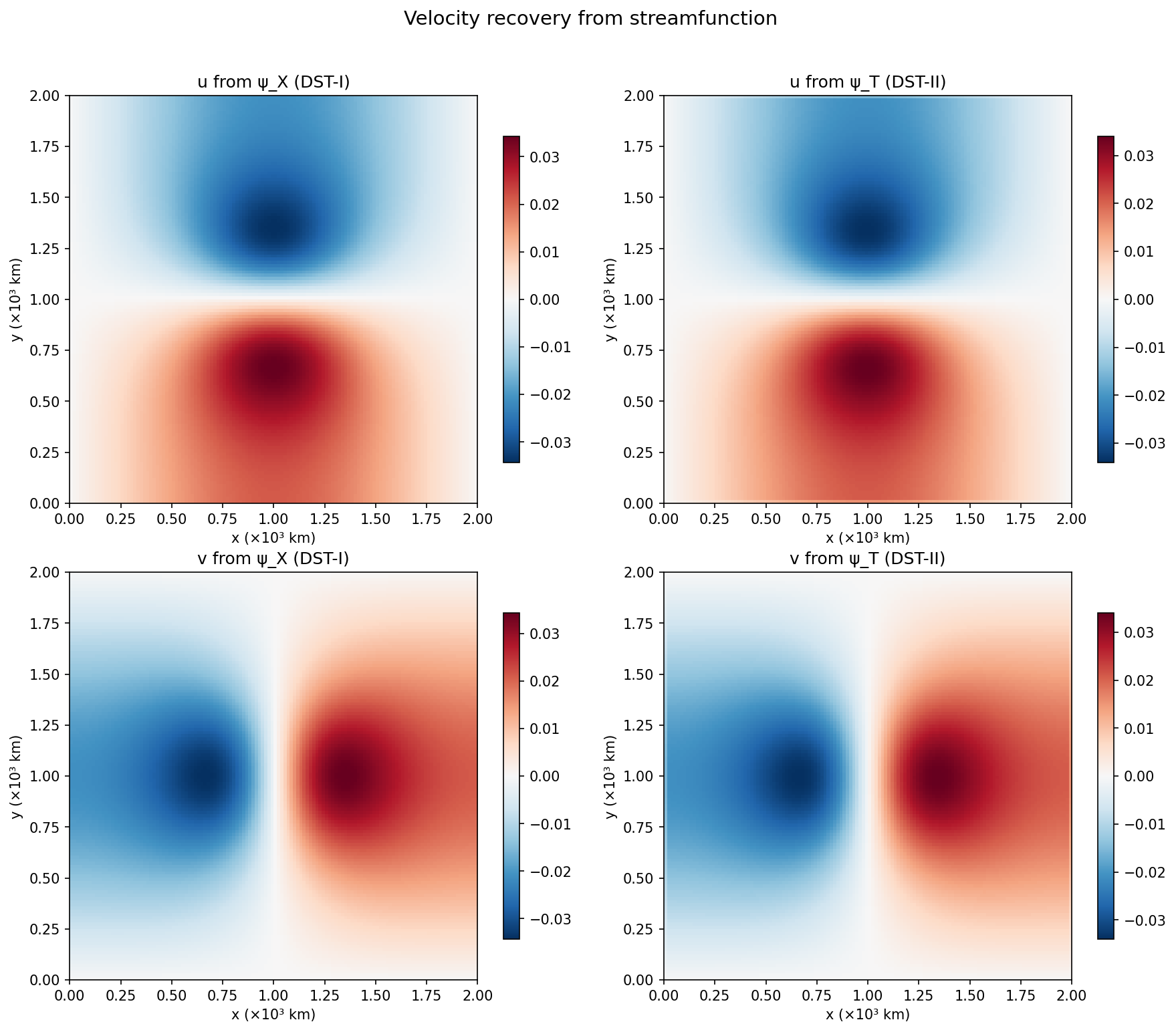

fig, axes = plt.subplots(2, 2, figsize=(12, 10))

fields = [
    (u_from_X, "u from ψ_X (DST-I)"),
    (u_from_T, "u from ψ_T (DST-II)"),
    (v_from_X, "v from ψ_X (DST-I)"),
    (v_from_T, "v from ψ_T (DST-II)"),
]

for ax, (field, title) in zip(axes.flat, fields):
    f = np.asarray(field[1:-1, 1:-1])
    vmax_f = np.abs(f).max()
    im = ax.imshow(
        f, origin="lower", cmap="RdBu_r",
        extent=[0, Lx / 1e6, 0, Ly / 1e6],
        vmin=-vmax_f, vmax=vmax_f,
    )
    ax.set_title(title)
    ax.set_xlabel("x (×10³ km)")
    ax.set_ylabel("y (×10³ km)")
    fig.colorbar(im, ax=ax, shrink=0.8)

fig.suptitle("Velocity recovery from streamfunction", fontsize=14, y=1.02)
fig.tight_layout()
fig.savefig(IMG_DIR / "velocity_recovery.png", dpi=150, bbox_inches="tight")
plt.show()

fig, axes = plt.subplots(2, 2, figsize=(12, 10)) fields = [ (u_from_X, "u from ψ_X (DST-I)"), (u_from_T, "u from ψ_T (DST-II)"), (v_from_X, "v from ψ_X (DST-I)"), (v_from_T, "v from ψ_T (DST-II)"), ] for ax, (field, title) in zip(axes.flat, fields): f = np.asarray(field[1:-1, 1:-1]) vmax_f = np.abs(f).max() im = ax.imshow( f, origin="lower", cmap="RdBu_r", extent=[0, Lx / 1e6, 0, Ly / 1e6], vmin=-vmax_f, vmax=vmax_f, ) ax.set_title(title) ax.set_xlabel("x (×10³ km)") ax.set_ylabel("y (×10³ km)") fig.colorbar(im, ax=ax, shrink=0.8) fig.suptitle("Velocity recovery from streamfunction", fontsize=14, y=1.02) fig.tight_layout() fig.savefig(IMG_DIR / "velocity_recovery.png", dpi=150, bbox_inches="tight") plt.show()

5. Error Analysis¶

The difference between the two placements is $O(dx^2)$ in the interior, arising from the half-grid offset between vertex-centred and cell-centred points.

In [ ]:

diff_psi = jnp.abs(psi_X - psi_T)
print(f"max |ψ_X - ψ_T| = {float(diff_psi.max()):.4e}")
print(f"relative diff   = {float(diff_psi.max() / jnp.abs(psi_T).max()):.4e}")

diff_psi = jnp.abs(psi_X - psi_T) print(f"max |ψ_X - ψ_T| = {float(diff_psi.max()):.4e}") print(f"relative diff = {float(diff_psi.max() / jnp.abs(psi_T).max()):.4e}")

Convergence test¶

We verify that both solvers converge at $O(dx^2)$ against a manufactured solution $\psi_{\text{exact}} = \sin(\pi x / L_x) \sin(\pi y / L_y)$ which satisfies $\psi = 0$ on the boundary.

In [ ]:

resolutions = [16, 32, 64, 128, 256]
errors_dst1 = []
errors_dst2 = []

for N in resolutions:
    dx_n = Lx / N
    dy_n = Ly / N

    # Manufactured solution: sin(πx/Lx)·sin(πy/Ly) satisfies Dirichlet BCs
    # Laplacian: -(π/Lx)² - (π/Ly)² times ψ
    i_n = jnp.arange(N)[None, :] + 0.5
    j_n = jnp.arange(N)[:, None] + 0.5
    x_n = i_n * dx_n
    y_n = j_n * dy_n

    psi_exact = jnp.sin(jnp.pi * x_n / Lx) * jnp.sin(jnp.pi * y_n / Ly)

    # Discrete FD Laplacian as RHS (what the spectral solvers actually invert)
    # For convergence against the continuous solution, use the continuous Laplacian
    k2 = (jnp.pi / Lx) ** 2 + (jnp.pi / Ly) ** 2
    rhs_n = -k2 * psi_exact

    psi_dst1 = solve_poisson_dst(rhs_n, dx_n, dy_n)
    psi_dst2 = solve_poisson_dst2(rhs_n, dx_n, dy_n)

    errors_dst1.append(float(jnp.abs(psi_dst1 - psi_exact).max()))
    errors_dst2.append(float(jnp.abs(psi_dst2 - psi_exact).max()))

resolutions = [16, 32, 64, 128, 256] errors_dst1 = [] errors_dst2 = [] for N in resolutions: dx_n = Lx / N dy_n = Ly / N # Manufactured solution: sin(πx/Lx)·sin(πy/Ly) satisfies Dirichlet BCs # Laplacian: -(π/Lx)² - (π/Ly)² times ψ i_n = jnp.arange(N)[None, :] + 0.5 j_n = jnp.arange(N)[:, None] + 0.5 x_n = i_n * dx_n y_n = j_n * dy_n psi_exact = jnp.sin(jnp.pi * x_n / Lx) * jnp.sin(jnp.pi * y_n / Ly) # Discrete FD Laplacian as RHS (what the spectral solvers actually invert) # For convergence against the continuous solution, use the continuous Laplacian k2 = (jnp.pi / Lx) ** 2 + (jnp.pi / Ly) ** 2 rhs_n = -k2 * psi_exact psi_dst1 = solve_poisson_dst(rhs_n, dx_n, dy_n) psi_dst2 = solve_poisson_dst2(rhs_n, dx_n, dy_n) errors_dst1.append(float(jnp.abs(psi_dst1 - psi_exact).max())) errors_dst2.append(float(jnp.abs(psi_dst2 - psi_exact).max()))

In [ ]:

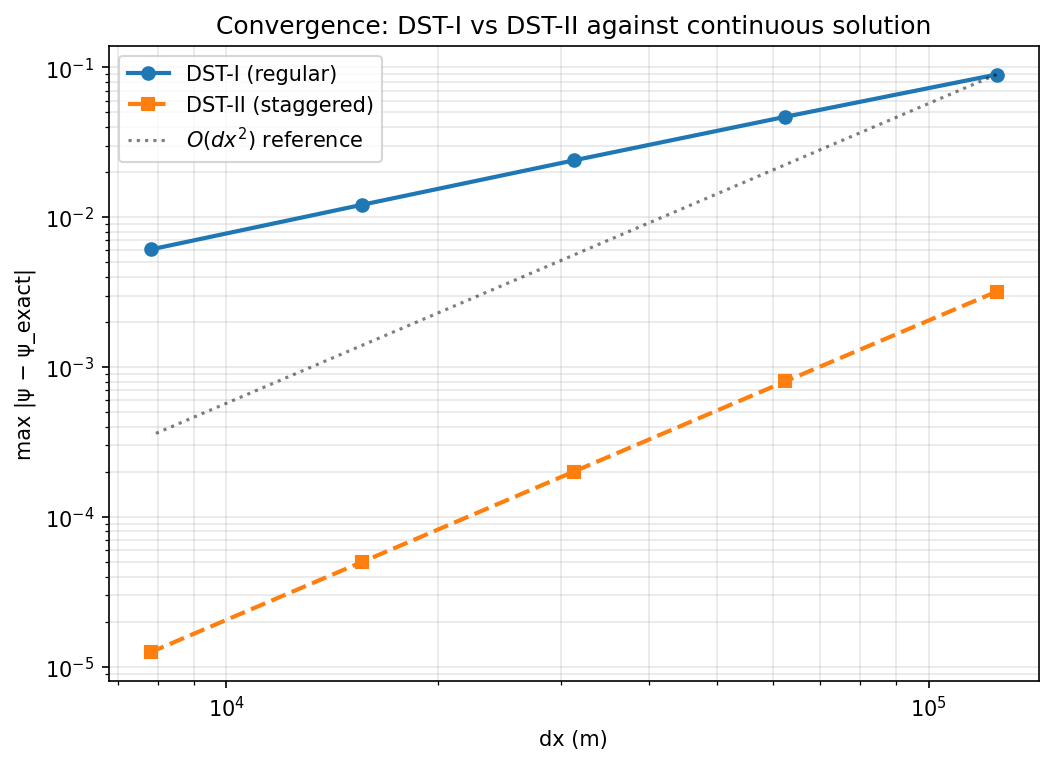

fig, ax = plt.subplots(figsize=(8, 5.5))

dxs = [Lx / N for N in resolutions]
ax.loglog(dxs, errors_dst1, "o-", label="DST-I (regular)", lw=2)
ax.loglog(dxs, errors_dst2, "s--", label="DST-II (staggered)", lw=2)

# Reference O(dx²) line
dx_ref = np.array(dxs)
ref = errors_dst1[0] * (dx_ref / dx_ref[0]) ** 2
ax.loglog(dx_ref, ref, "k:", alpha=0.5, label="$O(dx^2)$ reference")

ax.set_xlabel("dx (m)")
ax.set_ylabel("max |ψ − ψ_exact|")
ax.set_title("Convergence: DST-I vs DST-II against continuous solution")
ax.legend()
ax.grid(True, which="both", alpha=0.3)
fig.savefig(IMG_DIR / "convergence.png", dpi=150, bbox_inches="tight")
plt.show()

fig, ax = plt.subplots(figsize=(8, 5.5)) dxs = [Lx / N for N in resolutions] ax.loglog(dxs, errors_dst1, "o-", label="DST-I (regular)", lw=2) ax.loglog(dxs, errors_dst2, "s--", label="DST-II (staggered)", lw=2) # Reference O(dx²) line dx_ref = np.array(dxs) ref = errors_dst1[0] * (dx_ref / dx_ref[0]) ** 2 ax.loglog(dx_ref, ref, "k:", alpha=0.5, label="$O(dx^2)$ reference") ax.set_xlabel("dx (m)") ax.set_ylabel("max |ψ − ψ_exact|") ax.set_title("Convergence: DST-I vs DST-II against continuous solution") ax.legend() ax.grid(True, which="both", alpha=0.3) fig.savefig(IMG_DIR / "convergence.png", dpi=150, bbox_inches="tight") plt.show()

Both solvers converge at second order ($O(dx^2)$). This is expected: the spectral solvers invert the discrete $[1,-2,1]/dx^2$ Laplacian exactly, but the RHS was computed from the continuous $\nabla^2$. The $O(dx^2)$ gap between discrete and continuous operators dominates.

6. When to Use Which¶

	ψ at X-points (DST-I)	ψ at T-points (DST-II)
Natural for	Vorticity–streamfunction formulation	Pressure-like formulations
Velocity recovery	Direct difference X→U, X→V	T→U, T→V (same as pressure gradient)
BC enforcement	ψ=0 at grid vertices (on boundary)	ψ=0 half-spacing outside (off grid)
finitevolX API	streamfunction_from_vorticity(bc="dst")	Direct solve_poisson_dst2
Typical use case	QG models, barotropic vorticity	Projection methods, SSH diagnostics
