Linear Shallow-Water Model: Double-Gyre Wind Forcing on a Beta-Plane¶

This notebook builds a linear shallow-water model step by step on the Arakawa C-grid using finitevolx. The model simulates wind-driven ocean gyres in a closed rectangular basin -- the simplest configuration that produces the classic double-gyre circulation (an anticyclonic subtropical gyre in the south and a cyclonic subpolar gyre in the north).

Governing equations¶

The linearised shallow-water equations on a beta-plane are:

$$\partial_t \eta = -H \,\nabla \cdot \mathbf{u} + \nu \,\nabla^2 \eta$$

$$\partial_t u = -g \,\partial_x \eta + f\,v - r\,u + \nu \,\nabla^2 u + F_x$$

$$\partial_t v = -g \,\partial_y \eta - f\,u - r\,v + \nu \,\nabla^2 v$$

where:

Symbol	Meaning
$\eta$	Free-surface anomaly (deviation from mean depth $H$)
$u, v$	Zonal and meridional velocity components
$H$	Mean fluid depth
$g$	Gravitational acceleration
$f = f_0 + \beta y$	Coriolis parameter on a beta-plane
$r$	Linear (Rayleigh) drag coefficient
$\nu$	Laplacian viscosity / diffusivity
$F_x$	Zonal wind body-force acceleration

The wind forcing follows the standard double-gyre pattern:

$$F_x = -A \cos\!\left(\frac{2\pi y}{L_y}\right)$$

This produces westward forcing (trade winds) near $y = 0$ and $y = L_y$, and eastward forcing (westerlies) near $y = L_y / 2$. The resulting wind-stress curl drives an anticyclonic (subtropical) gyre in the southern half and a cyclonic (subpolar) gyre in the northern half.

In [ ]:

Copied!





from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib

matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

import finitevolx as fvx

IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "swm_linear"
IMG_DIR.mkdir(parents=True, exist_ok=True)
from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib

matplotlib.use("Agg")
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

import finitevolx as fvx

IMG_DIR = Path(__file__).resolve().parent.parent / "images" / "swm_linear"
IMG_DIR.mkdir(parents=True, exist_ok=True)

1. C-Grid Variable Placement¶

On the Arakawa C-grid, each prognostic variable lives at a different location within the grid cell:

    X ── V ── X ── V ── X
    |         |         |
    U    T    U    T    U     T = eta (cell centre)
    |         |         |     U = u-velocity (east face)
    X ── V ── X ── V ── X     V = v-velocity (north face)
    |         |         |     X = vorticity (corner)
    U    T    U    T    U
    |         |         |
    X ── V ── X ── V ── X

The staggering ensures that the discrete pressure gradient and Coriolis terms are naturally centred, minimising numerical dispersion.

Array layout: for nx interior T-points in $x$ and ny in $y$, the full array shape is (Ny, Nx) = (ny + 2, nx + 2) -- one ghost cell on each side. The physical interior occupies [1:-1, 1:-1].

2. Grid Construction¶

In [ ]:

Copied!





# --- Demo grid (small for fast execution in the notebook) ---
nx, ny = 32, 32
Lx = 5.12e6  # Domain length in x [m] (~5120 km)
Ly = 5.12e6  # Domain length in y [m] (~5120 km)

grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly)
dx, dy = grid.dx, grid.dy
Ny, Nx = ny + 2, nx + 2

print(f"Interior cells: {nx} x {ny}")
print(f"Full array shape: ({Ny}, {Nx})")
print(f"Grid spacing: dx = {dx / 1e3:.1f} km, dy = {dy / 1e3:.1f} km")
# --- Demo grid (small for fast execution in the notebook) ---
nx, ny = 32, 32
Lx = 5.12e6  # Domain length in x [m] (~5120 km)
Ly = 5.12e6  # Domain length in y [m] (~5120 km)

grid = fvx.ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly)
dx, dy = grid.dx, grid.dy
Ny, Nx = ny + 2, nx + 2

print(f"Interior cells: {nx} x {ny}")
print(f"Full array shape: ({Ny}, {Nx})")
print(f"Grid spacing: dx = {dx / 1e3:.1f} km, dy = {dy / 1e3:.1f} km")

3. Physical Parameters¶

We use values representative of a mid-latitude ocean basin on a beta-plane.

Parameter	Value	Units	Meaning
$L_x, L_y$	5.12 x 10^6	m	Basin dimensions (~5000 km square)
$g$	9.81	m s$^{-2}$	Gravitational acceleration
$H$	500	m	Mean fluid depth (first baroclinic mode equivalent depth)
$f_0$	9.375 x 10$^{-5}$	s$^{-1}$	Reference Coriolis parameter (~40 N)
$\beta$	1.754 x 10$^{-11}$	m$^{-1}$ s$^{-1}$	Meridional Coriolis gradient
$r$	5.0 x 10$^{-6}$	s$^{-1}$	Linear drag (damping timescale ~2.3 days)
$\nu$	5.0 x 10$^5$	m$^2$ s$^{-1}$	Laplacian viscosity (smooths grid-scale noise)
$A$	2.0 x 10$^{-7}$	m s$^{-2}$	Peak wind body-force acceleration
$\Delta t$	200	s	Time step

In [ ]:

Copied!





gravity = 9.81  # [m s^-2]
mean_depth = 500.0  # [m]  reference depth H
f0 = 9.375e-5  # [s^-1]  Coriolis at ~40 deg N
beta = 1.754e-11  # [m^-1 s^-1]  df/dy
drag = 5.0e-6  # [s^-1]  linear Rayleigh drag
viscosity = 5.0e5  # [m^2 s^-1]  Laplacian viscosity
wind_amplitude = 2.0e-7  # [m s^-2]  peak wind body-force
dt = 200.0  # [s]  time step

# CFL check: gravity wave speed
c = np.sqrt(gravity * mean_depth)
cfl = c * dt / min(dx, dy)
print(f"Gravity wave speed c = {c:.1f} m/s")
print(f"CFL number = {cfl:.3f}  (must be < 1 for stability)")
gravity = 9.81  # [m s^-2]
mean_depth = 500.0  # [m]  reference depth H
f0 = 9.375e-5  # [s^-1]  Coriolis at ~40 deg N
beta = 1.754e-11  # [m^-1 s^-1]  df/dy
drag = 5.0e-6  # [s^-1]  linear Rayleigh drag
viscosity = 5.0e5  # [m^2 s^-1]  Laplacian viscosity
wind_amplitude = 2.0e-7  # [m s^-2]  peak wind body-force
dt = 200.0  # [s]  time step

# CFL check: gravity wave speed
c = np.sqrt(gravity * mean_depth)
cfl = c * dt / min(dx, dy)
print(f"Gravity wave speed c = {c:.1f} m/s")
print(f"CFL number = {cfl:.3f}  (must be < 1 for stability)")

4. Initial Conditions and Forcing¶

We start from rest ($u = v = 0$) with a small surface perturbation. The Coriolis parameter varies linearly with $y$ (beta-plane), and the zonal wind forcing has the double-gyre cosine profile.

In [ ]:

Copied!





# --- Coordinate arrays for the interior (T-points at cell centres) ---
x_interior = (np.arange(nx) + 0.5) * dx  # shape (nx,)
y_interior = (np.arange(ny) + 0.5) * dy  # shape (ny,)
X, Y = np.meshgrid(x_interior, y_interior)  # shape (ny, nx)

# --- Initial free-surface anomaly (small perturbation) ---
eta0_interior = 0.01 * np.sin(np.pi * X / Lx) * np.sin(np.pi * Y / Ly)
# Pad with zero ghost cells -> shape (Ny, Nx)
eta = jnp.pad(jnp.asarray(eta0_interior), pad_width=1, mode="constant")
u = jnp.zeros((Ny, Nx))
v = jnp.zeros((Ny, Nx))
print(f"eta shape: {eta.shape}  (interior + ghost ring)")
print(f"u   shape: {u.shape}")
print(f"v   shape: {v.shape}")
# --- Coordinate arrays for the interior (T-points at cell centres) ---
x_interior = (np.arange(nx) + 0.5) * dx  # shape (nx,)
y_interior = (np.arange(ny) + 0.5) * dy  # shape (ny,)
X, Y = np.meshgrid(x_interior, y_interior)  # shape (ny, nx)

# --- Initial free-surface anomaly (small perturbation) ---
eta0_interior = 0.01 * np.sin(np.pi * X / Lx) * np.sin(np.pi * Y / Ly)
# Pad with zero ghost cells -> shape (Ny, Nx)
eta = jnp.pad(jnp.asarray(eta0_interior), pad_width=1, mode="constant")
u = jnp.zeros((Ny, Nx))
v = jnp.zeros((Ny, Nx))
print(f"eta shape: {eta.shape}  (interior + ghost ring)")
print(f"u   shape: {u.shape}")
print(f"v   shape: {v.shape}")

In [ ]:

Copied!





# --- Coriolis parameter: f = f0 + beta * (y - Ly/2) at T-points ---
coriolis_interior = f0 + beta * (Y - 0.5 * Ly)
coriolis = jnp.pad(jnp.asarray(coriolis_interior), pad_width=1, mode="constant")
# Edge-pad so interpolations near walls see physical values
# instead of zero ghost cells.
coriolis = coriolis.at[0, :].set(coriolis[1, :])
coriolis = coriolis.at[-1, :].set(coriolis[-2, :])
coriolis = coriolis.at[:, 0].set(coriolis[:, 1])
coriolis = coriolis.at[:, -1].set(coriolis[:, -2])
print(
    f"Coriolis f range: [{float(coriolis[1:-1, 1:-1].min()):.4e}, "
    f"{float(coriolis[1:-1, 1:-1].max()):.4e}] s^-1"
)
# --- Coriolis parameter: f = f0 + beta * (y - Ly/2) at T-points ---
coriolis_interior = f0 + beta * (Y - 0.5 * Ly)
coriolis = jnp.pad(jnp.asarray(coriolis_interior), pad_width=1, mode="constant")
# Edge-pad so interpolations near walls see physical values
# instead of zero ghost cells.
coriolis = coriolis.at[0, :].set(coriolis[1, :])
coriolis = coriolis.at[-1, :].set(coriolis[-2, :])
coriolis = coriolis.at[:, 0].set(coriolis[:, 1])
coriolis = coriolis.at[:, -1].set(coriolis[:, -2])
print(
    f"Coriolis f range: [{float(coriolis[1:-1, 1:-1].min()):.4e}, "
    f"{float(coriolis[1:-1, 1:-1].max()):.4e}] s^-1"
)

In [ ]:

Copied!





# --- Wind forcing: F_x = -A * cos(2*pi*y / Ly) ---
# Negative cosine so that:
#   y ~ 0:      F_x < 0 (westward, trade winds)
#   y ~ Ly/2:   F_x > 0 (eastward, westerlies)
#   y ~ Ly:     F_x < 0 (westward, trade winds)
wind_u_interior = -wind_amplitude * np.cos(2.0 * np.pi * Y / Ly)
wind_u = jnp.pad(jnp.asarray(wind_u_interior), pad_width=1, mode="constant")
# Edge-pad wind forcing for the same reason as Coriolis
wind_u = wind_u.at[0, :].set(wind_u[1, :])
wind_u = wind_u.at[-1, :].set(wind_u[-2, :])
wind_u = wind_u.at[:, 0].set(wind_u[:, 1])
wind_u = wind_u.at[:, -1].set(wind_u[:, -2])
# --- Wind forcing: F_x = -A * cos(2*pi*y / Ly) ---
# Negative cosine so that:
#   y ~ 0:      F_x < 0 (westward, trade winds)
#   y ~ Ly/2:   F_x > 0 (eastward, westerlies)
#   y ~ Ly:     F_x < 0 (westward, trade winds)
wind_u_interior = -wind_amplitude * np.cos(2.0 * np.pi * Y / Ly)
wind_u = jnp.pad(jnp.asarray(wind_u_interior), pad_width=1, mode="constant")
# Edge-pad wind forcing for the same reason as Coriolis
wind_u = wind_u.at[0, :].set(wind_u[1, :])
wind_u = wind_u.at[-1, :].set(wind_u[-2, :])
wind_u = wind_u.at[:, 0].set(wind_u[:, 1])
wind_u = wind_u.at[:, -1].set(wind_u[:, -2])

In [ ]:

Copied!

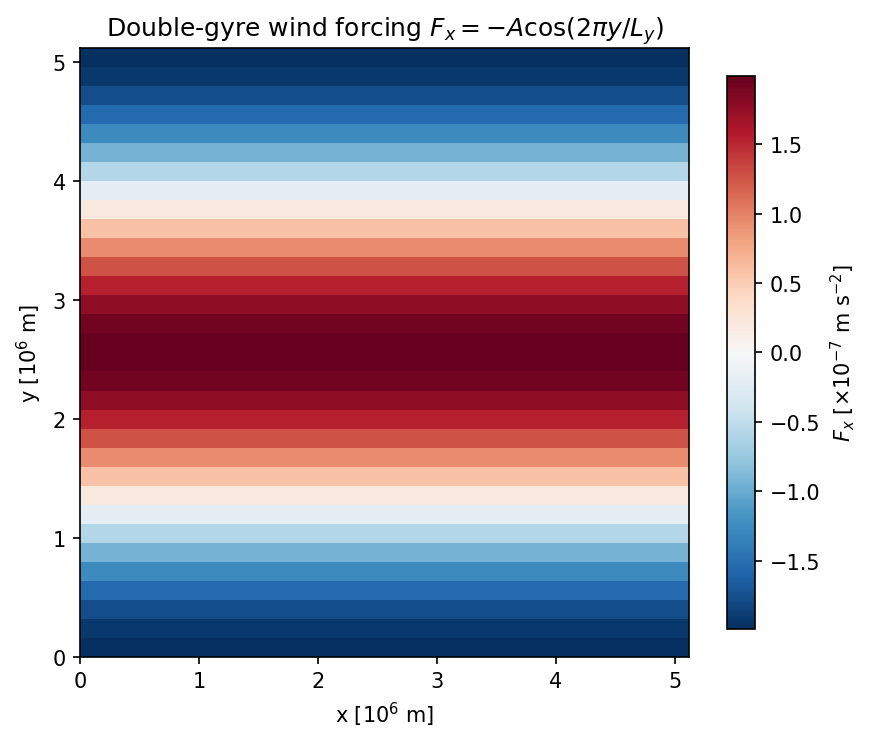

# --- Plot the wind forcing ---
fig, ax = plt.subplots(figsize=(6, 5))
im = ax.pcolormesh(
    X / 1e6,
    Y / 1e6,
    wind_u_interior * 1e7,
    cmap="RdBu_r",
    shading="auto",
)
cb = fig.colorbar(im, ax=ax, shrink=0.9)
cb.set_label("$F_x$ [$\\times 10^{-7}$ m s$^{-2}$]")
ax.set_xlabel("x [10$^{6}$ m]")
ax.set_ylabel("y [10$^{6}$ m]")
ax.set_title("Double-gyre wind forcing $F_x = -A\\cos(2\\pi y / L_y)$")
ax.set_aspect("equal")
fig.tight_layout()
fig.savefig(IMG_DIR / "wind_forcing.png", dpi=150, bbox_inches="tight")
plt.show()
print(f"Saved: {IMG_DIR / 'wind_forcing.png'}")
# --- Plot the wind forcing ---
fig, ax = plt.subplots(figsize=(6, 5))
im = ax.pcolormesh(
    X / 1e6,
    Y / 1e6,
    wind_u_interior * 1e7,
    cmap="RdBu_r",
    shading="auto",
)
cb = fig.colorbar(im, ax=ax, shrink=0.9)
cb.set_label("$F_x$ [$\\times 10^{-7}$ m s$^{-2}$]")
ax.set_xlabel("x [10$^{6}$ m]")
ax.set_ylabel("y [10$^{6}$ m]")
ax.set_title("Double-gyre wind forcing $F_x = -A\\cos(2\\pi y / L_y)$")
ax.set_aspect("equal")
fig.tight_layout()
fig.savefig(IMG_DIR / "wind_forcing.png", dpi=150, bbox_inches="tight")
plt.show()
print(f"Saved: {IMG_DIR / 'wind_forcing.png'}")

Double-gyre wind forcing

5. Operator Construction¶

finitevolx provides stateless operator modules that know about the grid spacing and stencil layout. We need three operators:

Difference2D -- finite differences: diff_x_T_to_U, diff_y_T_to_V, divergence, and laplacian.
Interpolation2D -- cross-averaging between staggered locations: T_to_U, T_to_V, V_to_U, U_to_V, U_to_T, V_to_T, X_to_T.
Vorticity2D -- relative_vorticity at corner (X) points.

In [ ]:

Copied!

diff_op = fvx.Difference2D(grid)
interp_op = fvx.Interpolation2D(grid)
vort_op = fvx.Vorticity2D(grid)

print("Operators created (stateless equinox Modules, JIT-compatible).")
diff_op = fvx.Difference2D(grid)
interp_op = fvx.Interpolation2D(grid)
vort_op = fvx.Vorticity2D(grid)

print("Operators created (stateless equinox Modules, JIT-compatible).")

6. Tendency Function¶

The right-hand side (RHS) computes time tendencies for $\eta$, $u$, and $v$. Each line below is annotated with:

which equation term it implements
the staggered grid location of the result

The key idea: operators move values between staggered locations. For example, diff_op.diff_x_T_to_U differentiates a T-point field and returns the result at U-points.

In [ ]:

Copied!





def tendency(eta_field, u_field, v_field):
    """Compute the linear shallow-water tendencies on the C-grid.

    Parameters
    ----------
    eta_field, u_field, v_field : Float[Array, "Ny Nx"]
        Current state (all on the full (Ny, Nx) grid with ghost cells).

    Returns
    -------
    eta_rhs, u_rhs, v_rhs : Float[Array, "Ny Nx"]
        Time tendencies for each prognostic variable.
    """
    # === eta equation: d(eta)/dt = -H * div(u) + nu * laplacian(eta) ===

    # Divergence of velocity at T-points: shape (Ny, Nx)
    # Uses backward differences: div = du/dx + dv/dy
    eta_rhs = -mean_depth * diff_op.divergence(u_field, v_field)

    # Diffusion of eta at T-points: shape (Ny, Nx)
    # 5-point Laplacian stencil
    eta_rhs = eta_rhs + viscosity * diff_op.laplacian(eta_field)

    # === Coriolis cross-terms ===
    # f lives at T-points; we need it at U-points and V-points
    # v lives at V-points; we need it at U-points for f*v in the u-equation
    # u lives at U-points; we need it at V-points for f*u in the v-equation

    v_on_u = interp_op.V_to_U(v_field)  # V-pts -> U-pts, shape (Ny, Nx)
    u_on_v = interp_op.U_to_V(u_field)  # U-pts -> V-pts, shape (Ny, Nx)
    coriolis_on_u = interp_op.T_to_U(coriolis)  # T-pts -> U-pts, shape (Ny, Nx)
    coriolis_on_v = interp_op.T_to_V(coriolis)  # T-pts -> V-pts, shape (Ny, Nx)

    # === u equation: d(u)/dt = -g * d(eta)/dx + f*v - r*u + nu*lap(u) + F_x ===

    # Pressure gradient: -g * d(eta)/dx at U-points
    u_rhs = -gravity * diff_op.diff_x_T_to_U(eta_field)

    # Coriolis: +f*v at U-points (f averaged to U, v averaged to U)
    u_rhs = u_rhs + coriolis_on_u * v_on_u

    # Wind forcing + drag + diffusion, all at U-points
    u_rhs = u_rhs + wind_u - drag * u_field + viscosity * diff_op.laplacian(u_field)

    # === v equation: d(v)/dt = -g * d(eta)/dy - f*u - r*v + nu*lap(v) ===

    # Pressure gradient: -g * d(eta)/dy at V-points
    v_rhs = -gravity * diff_op.diff_y_T_to_V(eta_field)

    # Coriolis: -f*u at V-points (f averaged to V, u averaged to V)
    v_rhs = v_rhs - coriolis_on_v * u_on_v

    # Drag + diffusion, all at V-points (no meridional wind forcing)
    v_rhs = v_rhs - drag * v_field + viscosity * diff_op.laplacian(v_field)

    return eta_rhs, u_rhs, v_rhs


def apply_bc(state):
    """Re-apply wall (zero ghost-cell) boundary conditions.

    After each time step, ghost cells are zeroed out.  This enforces
    no-normal-flow at the basin walls for velocity, and homogeneous
    Dirichlet for eta.
    """
    return tuple(fvx.pad_interior(f, mode="constant") for f in state)


def rhs(state):
    """Tendency with BC enforcement, for use with heun_step."""
    return tendency(*apply_bc(state))
def tendency(eta_field, u_field, v_field):
    """Compute the linear shallow-water tendencies on the C-grid.

    Parameters
    ----------
    eta_field, u_field, v_field : Float[Array, "Ny Nx"]
        Current state (all on the full (Ny, Nx) grid with ghost cells).

    Returns
    -------
    eta_rhs, u_rhs, v_rhs : Float[Array, "Ny Nx"]
        Time tendencies for each prognostic variable.
    """
    # === eta equation: d(eta)/dt = -H * div(u) + nu * laplacian(eta) ===

    # Divergence of velocity at T-points: shape (Ny, Nx)
    # Uses backward differences: div = du/dx + dv/dy
    eta_rhs = -mean_depth * diff_op.divergence(u_field, v_field)

    # Diffusion of eta at T-points: shape (Ny, Nx)
    # 5-point Laplacian stencil
    eta_rhs = eta_rhs + viscosity * diff_op.laplacian(eta_field)

    # === Coriolis cross-terms ===
    # f lives at T-points; we need it at U-points and V-points
    # v lives at V-points; we need it at U-points for f*v in the u-equation
    # u lives at U-points; we need it at V-points for f*u in the v-equation

    v_on_u = interp_op.V_to_U(v_field)  # V-pts -> U-pts, shape (Ny, Nx)
    u_on_v = interp_op.U_to_V(u_field)  # U-pts -> V-pts, shape (Ny, Nx)
    coriolis_on_u = interp_op.T_to_U(coriolis)  # T-pts -> U-pts, shape (Ny, Nx)
    coriolis_on_v = interp_op.T_to_V(coriolis)  # T-pts -> V-pts, shape (Ny, Nx)

    # === u equation: d(u)/dt = -g * d(eta)/dx + f*v - r*u + nu*lap(u) + F_x ===

    # Pressure gradient: -g * d(eta)/dx at U-points
    u_rhs = -gravity * diff_op.diff_x_T_to_U(eta_field)

    # Coriolis: +f*v at U-points (f averaged to U, v averaged to U)
    u_rhs = u_rhs + coriolis_on_u * v_on_u

    # Wind forcing + drag + diffusion, all at U-points
    u_rhs = u_rhs + wind_u - drag * u_field + viscosity * diff_op.laplacian(u_field)

    # === v equation: d(v)/dt = -g * d(eta)/dy - f*u - r*v + nu*lap(v) ===

    # Pressure gradient: -g * d(eta)/dy at V-points
    v_rhs = -gravity * diff_op.diff_y_T_to_V(eta_field)

    # Coriolis: -f*u at V-points (f averaged to V, u averaged to V)
    v_rhs = v_rhs - coriolis_on_v * u_on_v

    # Drag + diffusion, all at V-points (no meridional wind forcing)
    v_rhs = v_rhs - drag * v_field + viscosity * diff_op.laplacian(v_field)

    return eta_rhs, u_rhs, v_rhs


def apply_bc(state):
    """Re-apply wall (zero ghost-cell) boundary conditions.

    After each time step, ghost cells are zeroed out.  This enforces
    no-normal-flow at the basin walls for velocity, and homogeneous
    Dirichlet for eta.
    """
    return tuple(fvx.pad_interior(f, mode="constant") for f in state)


def rhs(state):
    """Tendency with BC enforcement, for use with heun_step."""
    return tendency(*apply_bc(state))

7. Time Stepping¶

We use Heun's method (also called the modified Euler method or explicit trapezoidal rule). It is a second-order Runge-Kutta scheme:

Predictor (forward Euler): $\tilde{y} = y_n + \Delta t \, f(y_n)$
Corrector (trapezoidal average): $y_{n+1} = y_n + \frac{\Delta t}{2} \bigl[f(y_n) + f(\tilde{y})\bigr]$

This is more stable than forward Euler and only requires two RHS evaluations per step.

For the demo we run a short integration (500 steps = 100,000 s ~ 1.2 days) with no spin-up -- just enough to see the wind forcing begin to drive circulation.

In [ ]:

Copied!





@jax.jit
def step(eta_field, u_field, v_field):
    """Advance one Heun step and re-apply wall BCs."""
    state = fvx.heun_step((eta_field, u_field, v_field), rhs, dt)
    return apply_bc(state)


n_steps = 500
print(
    f"Running {n_steps} steps (dt = {dt} s, total = {n_steps * dt / 86400:.2f} days)..."
)

for _i in range(n_steps):
    eta, u, v = step(eta, u, v)

# Force JAX to finish all computation
eta.block_until_ready()
print("Done.")
print(f"max |eta| = {float(jnp.abs(eta[1:-1, 1:-1]).max()):.4e} m")
@jax.jit
def step(eta_field, u_field, v_field):
    """Advance one Heun step and re-apply wall BCs."""
    state = fvx.heun_step((eta_field, u_field, v_field), rhs, dt)
    return apply_bc(state)


n_steps = 500
print(
    f"Running {n_steps} steps (dt = {dt} s, total = {n_steps * dt / 86400:.2f} days)..."
)

for _i in range(n_steps):
    eta, u, v = step(eta, u, v)

# Force JAX to finish all computation
eta.block_until_ready()
print("Done.")
print(f"max |eta| = {float(jnp.abs(eta[1:-1, 1:-1]).max()):.4e} m")

8. Results¶

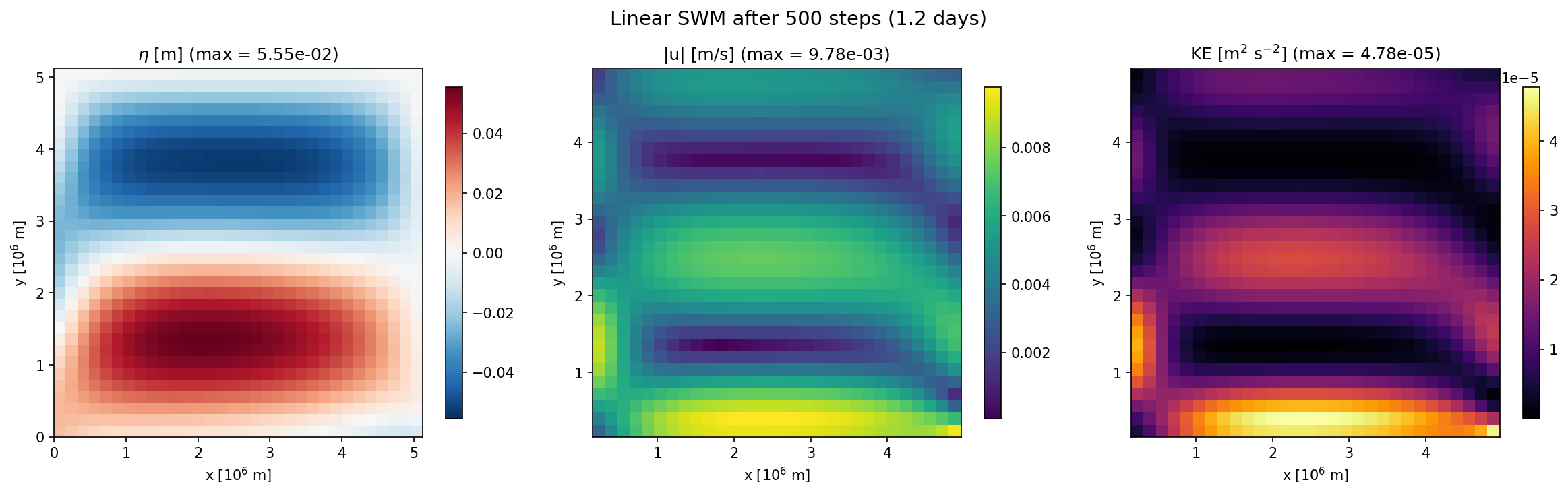

We plot three diagnostic fields at the final time:

Free-surface anomaly $\eta$ -- shows the pressure pattern
Speed $|\mathbf{u}|$ -- magnitude of the velocity field
Kinetic energy $\tfrac{1}{2}|\mathbf{u}|^2$ -- energy in the flow

Note on boundary slicing: Interpolated/derived fields (speed, KE) use [2:-2, 2:-2] instead of [1:-1, 1:-1] because the first interior row/column is contaminated by ghost-cell averaging (e.g. U_to_T at T-point [1,1] averages u[1,1] and u[1,0] where the ghost value is 0).

In [ ]:

Copied!





# --- Compute diagnostics ---
# Interpolate u, v to T-points for plotting
u_center = interp_op.U_to_T(u)  # U-pts -> T-pts
v_center = interp_op.V_to_T(v)  # V-pts -> T-pts

# Relative vorticity at corner (X) points, then average to T-points
zeta_corner = vort_op.relative_vorticity(u, v)
zeta_center = interp_op.X_to_T(zeta_corner)

# --- Coordinate grids ---
# [1:-1, 1:-1] coords for native T-point fields (eta)
x_full, y_full = np.meshgrid(x_interior, y_interior)
# [2:-2, 2:-2] coords for interpolated/derived fields (speed, KE, vorticity)
# The first interior row/column is contaminated by ghost-cell averaging,
# so we trim one extra cell on each side.
x_inner, y_inner = np.meshgrid(x_interior[1:-1], y_interior[1:-1])

# Extract interiors for plotting
# eta lives natively at T-points -- [1:-1, 1:-1] is fine
eta_plot = np.asarray(eta[1:-1, 1:-1])
# Interpolated fields use [2:-2, 2:-2] to avoid ghost-cell boundary artifacts
u_plot = np.asarray(u_center[2:-2, 2:-2])
v_plot = np.asarray(v_center[2:-2, 2:-2])
speed_plot = np.sqrt(u_plot**2 + v_plot**2)
ke_plot = 0.5 * (u_plot**2 + v_plot**2)
zeta_plot = np.asarray(zeta_center[2:-2, 2:-2])

# Energy diagnostics
total_ke = 0.5 * float(jnp.sum(u_center[2:-2, 2:-2] ** 2 + v_center[2:-2, 2:-2] ** 2)) * dx * dy
total_pe = 0.5 * gravity * float(jnp.sum(eta[1:-1, 1:-1] ** 2)) * dx * dy
print(f"eta  range: [{eta_plot.min():.4e}, {eta_plot.max():.4e}] m")
print(f"speed max:  {speed_plot.max():.4e} m/s")
print(f"zeta range: [{zeta_plot.min():.4e}, {zeta_plot.max():.4e}] s^-1")
print(f"Total KE:   {total_ke:.4e} m^4 s^-2")
print(f"Total PE:   {total_pe:.4e} m^4 s^-2")
# --- Compute diagnostics ---
# Interpolate u, v to T-points for plotting
u_center = interp_op.U_to_T(u)  # U-pts -> T-pts
v_center = interp_op.V_to_T(v)  # V-pts -> T-pts

# Relative vorticity at corner (X) points, then average to T-points
zeta_corner = vort_op.relative_vorticity(u, v)
zeta_center = interp_op.X_to_T(zeta_corner)

# --- Coordinate grids ---
# [1:-1, 1:-1] coords for native T-point fields (eta)
x_full, y_full = np.meshgrid(x_interior, y_interior)
# [2:-2, 2:-2] coords for interpolated/derived fields (speed, KE, vorticity)
# The first interior row/column is contaminated by ghost-cell averaging,
# so we trim one extra cell on each side.
x_inner, y_inner = np.meshgrid(x_interior[1:-1], y_interior[1:-1])

# Extract interiors for plotting
# eta lives natively at T-points -- [1:-1, 1:-1] is fine
eta_plot = np.asarray(eta[1:-1, 1:-1])
# Interpolated fields use [2:-2, 2:-2] to avoid ghost-cell boundary artifacts
u_plot = np.asarray(u_center[2:-2, 2:-2])
v_plot = np.asarray(v_center[2:-2, 2:-2])
speed_plot = np.sqrt(u_plot**2 + v_plot**2)
ke_plot = 0.5 * (u_plot**2 + v_plot**2)
zeta_plot = np.asarray(zeta_center[2:-2, 2:-2])

# Energy diagnostics
total_ke = 0.5 * float(jnp.sum(u_center[2:-2, 2:-2] ** 2 + v_center[2:-2, 2:-2] ** 2)) * dx * dy
total_pe = 0.5 * gravity * float(jnp.sum(eta[1:-1, 1:-1] ** 2)) * dx * dy
print(f"eta  range: [{eta_plot.min():.4e}, {eta_plot.max():.4e}] m")
print(f"speed max:  {speed_plot.max():.4e} m/s")
print(f"zeta range: [{zeta_plot.min():.4e}, {zeta_plot.max():.4e}] s^-1")
print(f"Total KE:   {total_ke:.4e} m^4 s^-2")
print(f"Total PE:   {total_pe:.4e} m^4 s^-2")

In [ ]:

Copied!





fig, axes = plt.subplots(1, 3, figsize=(16, 4.5))

# (a) Free-surface anomaly -- native T-point, use full interior
vmax_eta = float(np.abs(eta_plot).max())
if vmax_eta == 0:
    vmax_eta = 1.0
im0 = axes[0].pcolormesh(
    x_full / 1e6,
    y_full / 1e6,
    eta_plot,
    cmap="RdBu_r",
    shading="auto",
    vmin=-vmax_eta,
    vmax=vmax_eta,
)
fig.colorbar(im0, ax=axes[0], shrink=0.9)
axes[0].set_title(f"$\\eta$ [m] (max = {vmax_eta:.2e})")

# (b) Speed -- interpolated to T-points, use inner domain [2:-2, 2:-2]
im1 = axes[1].pcolormesh(
    x_inner / 1e6,
    y_inner / 1e6,
    speed_plot,
    cmap="viridis",
    shading="auto",
)
fig.colorbar(im1, ax=axes[1], shrink=0.9)
axes[1].set_title(f"|u| [m/s] (max = {speed_plot.max():.2e})")

# (c) Kinetic energy -- interpolated to T-points, use inner domain [2:-2, 2:-2]
im2 = axes[2].pcolormesh(
    x_inner / 1e6,
    y_inner / 1e6,
    ke_plot,
    cmap="inferno",
    shading="auto",
)
fig.colorbar(im2, ax=axes[2], shrink=0.9)
axes[2].set_title(f"KE [m$^2$ s$^{{-2}}$] (max = {ke_plot.max():.2e})")

for ax in axes:
    ax.set_xlabel("x [10$^{6}$ m]")
    ax.set_ylabel("y [10$^{6}$ m]")
    ax.set_aspect("equal")

fig.suptitle(
    f"Linear SWM after {n_steps} steps ({n_steps * dt / 86400:.1f} days)",
    fontsize=14,
    y=1.02,
)
fig.tight_layout()
fig.savefig(IMG_DIR / "demo_results.png", dpi=150, bbox_inches="tight")
plt.show()
print(f"Saved: {IMG_DIR / 'demo_results.png'}")
fig, axes = plt.subplots(1, 3, figsize=(16, 4.5))

# (a) Free-surface anomaly -- native T-point, use full interior
vmax_eta = float(np.abs(eta_plot).max())
if vmax_eta == 0:
    vmax_eta = 1.0
im0 = axes[0].pcolormesh(
    x_full / 1e6,
    y_full / 1e6,
    eta_plot,
    cmap="RdBu_r",
    shading="auto",
    vmin=-vmax_eta,
    vmax=vmax_eta,
)
fig.colorbar(im0, ax=axes[0], shrink=0.9)
axes[0].set_title(f"$\\eta$ [m] (max = {vmax_eta:.2e})")

# (b) Speed -- interpolated to T-points, use inner domain [2:-2, 2:-2]
im1 = axes[1].pcolormesh(
    x_inner / 1e6,
    y_inner / 1e6,
    speed_plot,
    cmap="viridis",
    shading="auto",
)
fig.colorbar(im1, ax=axes[1], shrink=0.9)
axes[1].set_title(f"|u| [m/s] (max = {speed_plot.max():.2e})")

# (c) Kinetic energy -- interpolated to T-points, use inner domain [2:-2, 2:-2]
im2 = axes[2].pcolormesh(
    x_inner / 1e6,
    y_inner / 1e6,
    ke_plot,
    cmap="inferno",
    shading="auto",
)
fig.colorbar(im2, ax=axes[2], shrink=0.9)
axes[2].set_title(f"KE [m$^2$ s$^{{-2}}$] (max = {ke_plot.max():.2e})")

for ax in axes:
    ax.set_xlabel("x [10$^{6}$ m]")
    ax.set_ylabel("y [10$^{6}$ m]")
    ax.set_aspect("equal")

fig.suptitle(
    f"Linear SWM after {n_steps} steps ({n_steps * dt / 86400:.1f} days)",
    fontsize=14,
    y=1.02,
)
fig.tight_layout()
fig.savefig(IMG_DIR / "demo_results.png", dpi=150, bbox_inches="tight")
plt.show()
print(f"Saved: {IMG_DIR / 'demo_results.png'}")

Linear SWM results

At this early stage the solution is dominated by gravity-wave adjustment of the initial perturbation and the beginning of wind-driven flow. A much longer integration (with spin-up) is needed to reach the steady-state double-gyre circulation.

9. Full-Resolution Simulation¶

The production run uses a finer grid and long spin-up to reach quasi-steady state. These are the parameters used by the script scripts/swm_linear.py:

# Full-resolution configuration
nx, ny = 64, 64
Lx, Ly = 5.12e6, 5.12e6
gravity = 9.81
mean_depth = 500.0
f0 = 9.375e-5
beta = 1.754e-11
drag = 5.0e-6
viscosity = 5.0e5
wind_acceleration = 2.0e-7
dt = 200.0
spinup_steps = 150_000    # ~347 days silent spin-up
steps = 15_000            # ~35 days of recorded snapshots
snapshot_interval = 1_500  # save every ~3.5 days

Run it with:

uv run python scripts/swm_linear.py

The pre-rendered animation shows the spun-up double-gyre circulation:

Linear shallow-water double gyre

10. Summary¶

Concept	finitevolx API	Detail
Grid	`ArakawaCGrid2D.from_interior(nx, ny, Lx, Ly)`	Creates the C-grid with 2-cell ghost ring
Differences	`Difference2D(grid)`	`diff_x_T_to_U`, `diff_y_T_to_V`, `divergence`, `laplacian`
Interpolation	`Interpolation2D(grid)`	`T_to_U`, `T_to_V`, `V_to_U`, `U_to_V`, `U_to_T`, `V_to_T`, `X_to_T`
Vorticity	`Vorticity2D(grid)`	`relative_vorticity` at corner (X) points
Time stepping	`heun_step(state, rhs, dt)`	Heun / modified Euler (RK2)
Boundary conditions	`pad_interior(field, mode="constant")`	Zero ghost cells = solid walls
Variable placement	T-points (centres), U-points (east faces), V-points (north faces)	Standard Arakawa C-grid staggering
Coriolis coupling	Interpolate $f$ to U/V, cross-average $v$ to U / $u$ to V	Ensures energy-conserving discretisation
