Results for Droughts¶

Recap¶

Recall that we are trying to investigate how a new variable called Vegetation Optical Depth (VOD) compares to some of the previously used variables Land Surface Temperature (LST), Soil Moisture (SM) and Normalized Vegetation Difference Index (NDVI). The previous variables were often used to recover droughts, but studies have shown that VOD will better characterize drought conditions. So, the objective is to see how these VOD compares to other variables via information theory and other similarity measures. In addition, the data representation could make a difference in how similar VOD is to the other variables. For example, many spatial dimension or many temporal dimensions. So, we are going to look at different representations and different combinations of VOD, LST, SM, and NDVI and do comparisons.

Data¶

For this first set of results, we are looking at the CONUS dataset which is located in California. We have a period of 6 years where there were drought occurences and not drought occurences.

Droughts - 2012, 2014, 2015)
No Drought - 2010, 2011, 2013

We have a spatial resolution of ... and a temporal resolution of 14 days.

Methods¶

Entropy

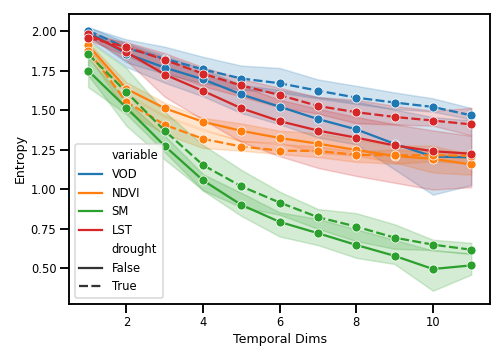

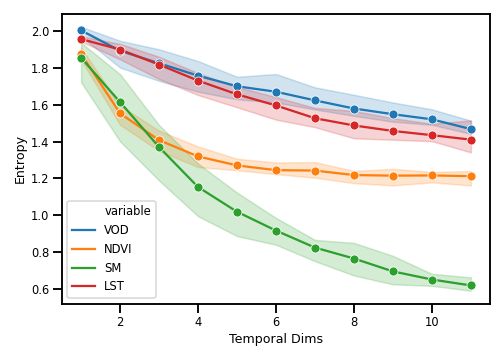

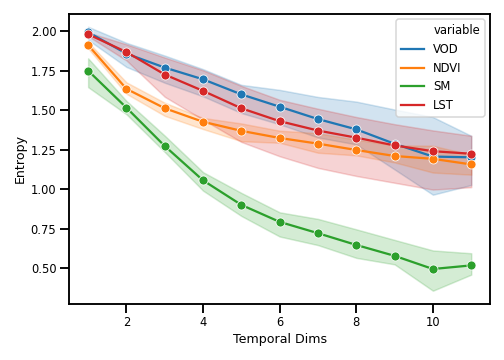

For this first experiment, we only want to classify the expected uncertainty that each variable has with different temporal representations. So for example, we can do self-comparisons like what's the expected uncertainty of VOD with 1 temporal dimension versus 3 temporal dimensions? We will do this for all 4 variables individually. We will use RBIG to measure the expected uncertainty (aka Entropy)

$H(\mathbf{X}) = \mathbb{E}_\mathbf{x} \left[ -\log p(\mathbf{x}) \right]$

Similarity

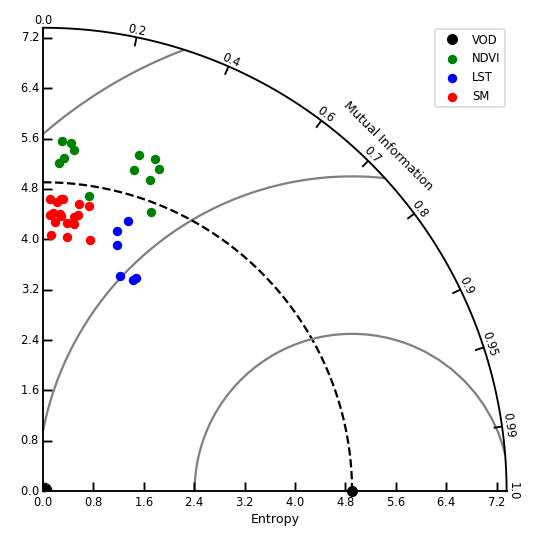

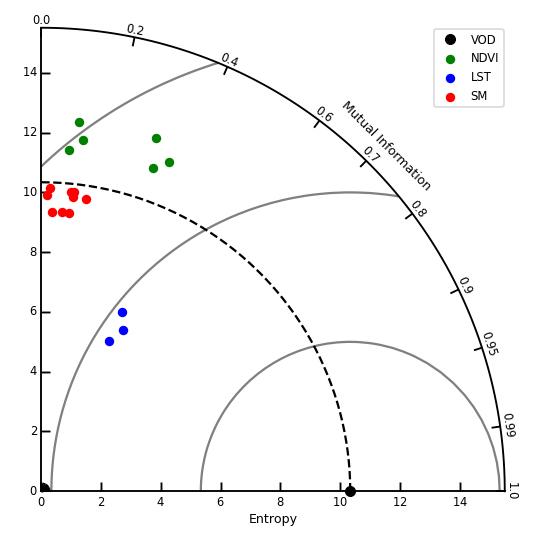

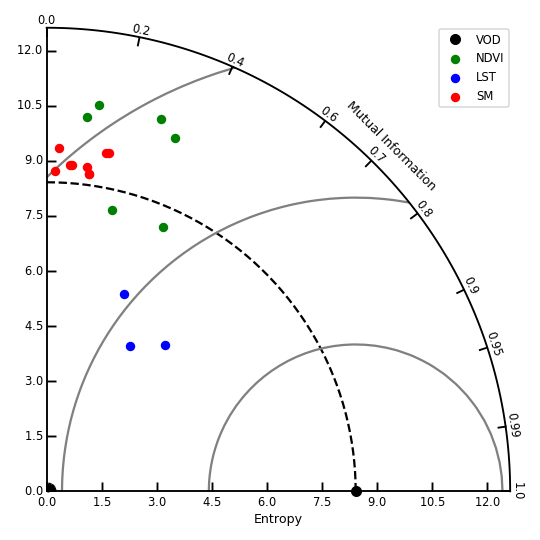

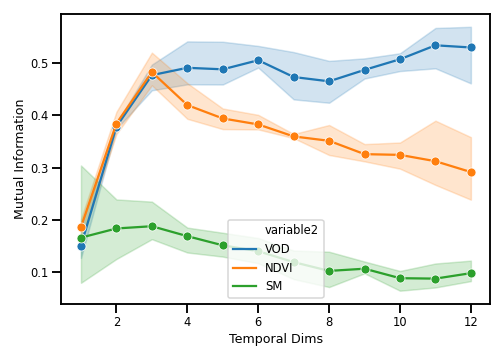

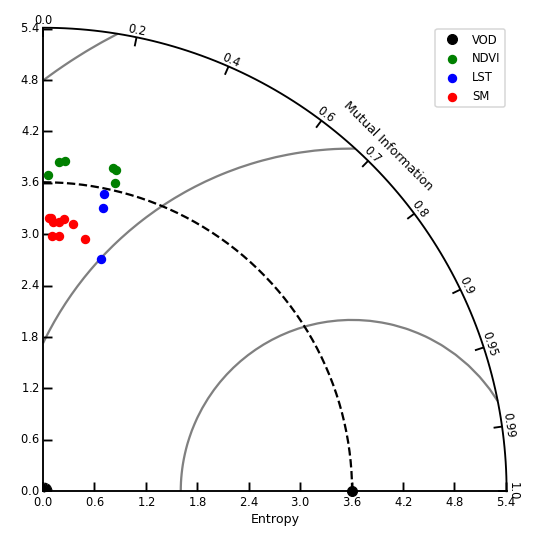

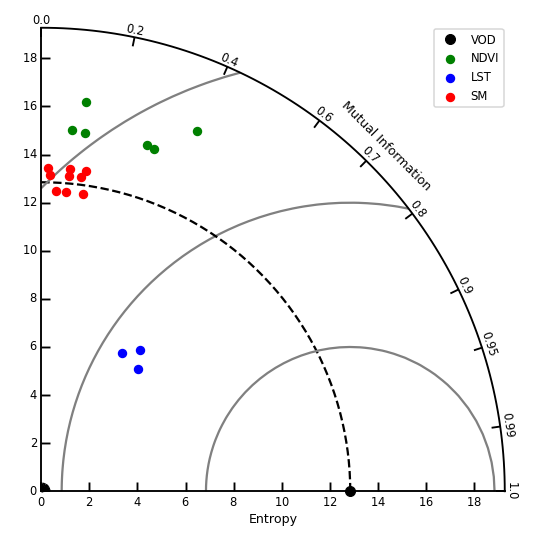

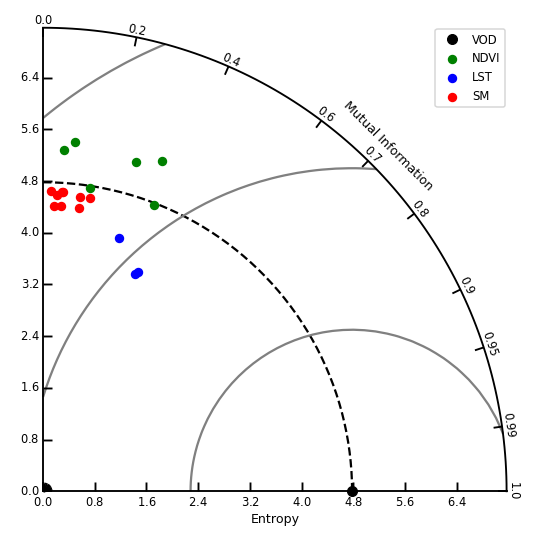

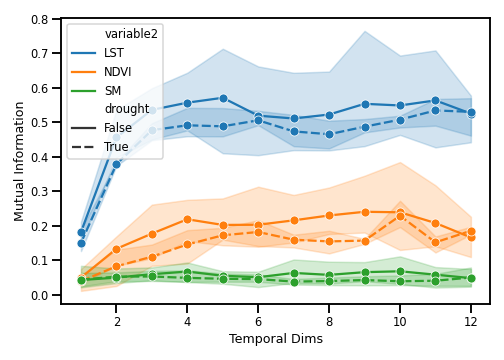

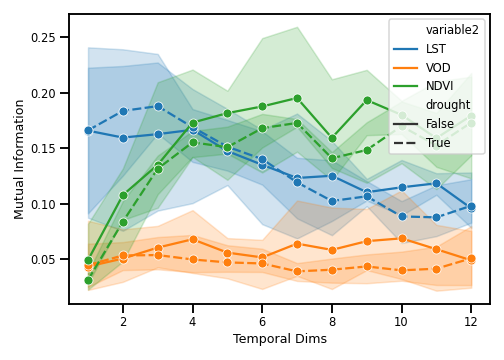

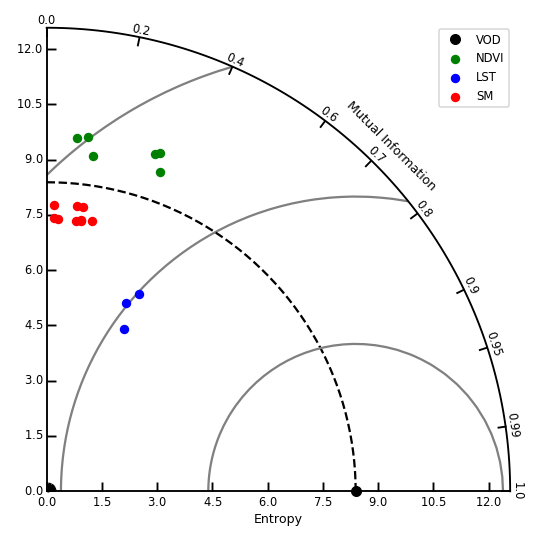

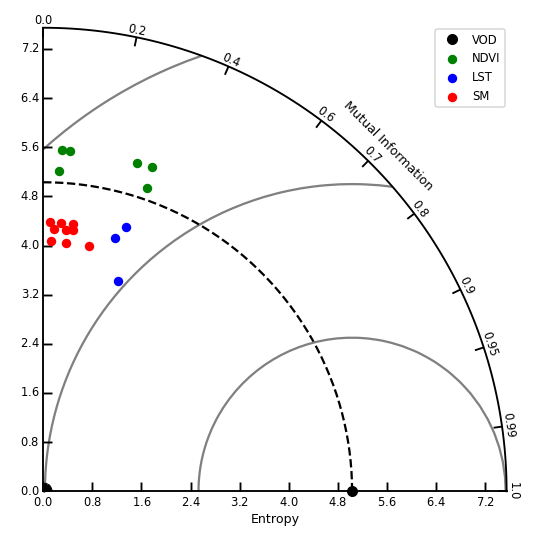

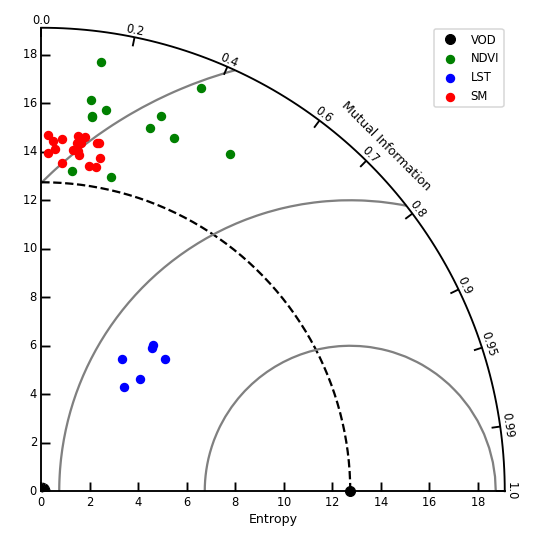

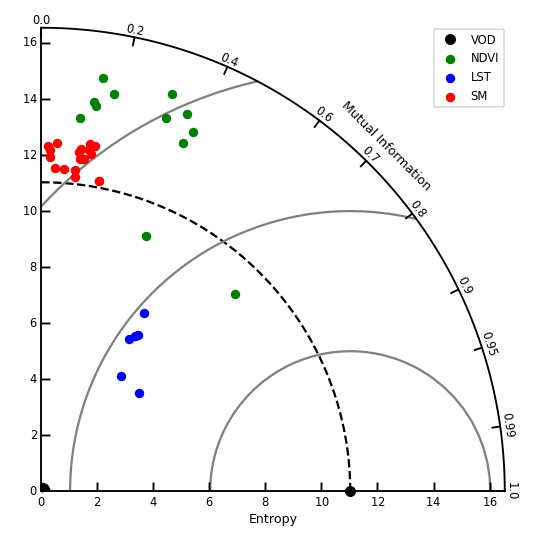

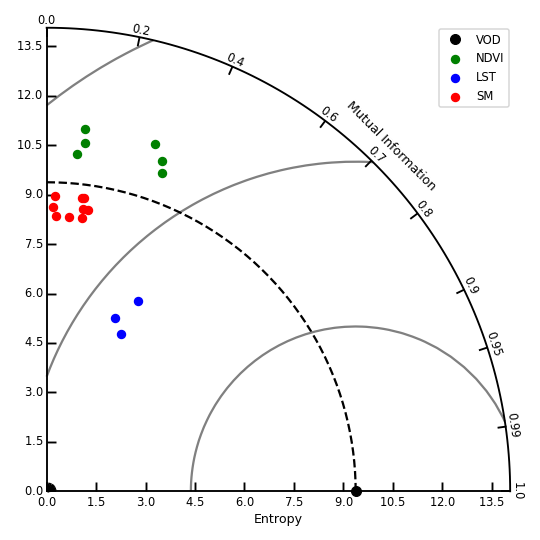

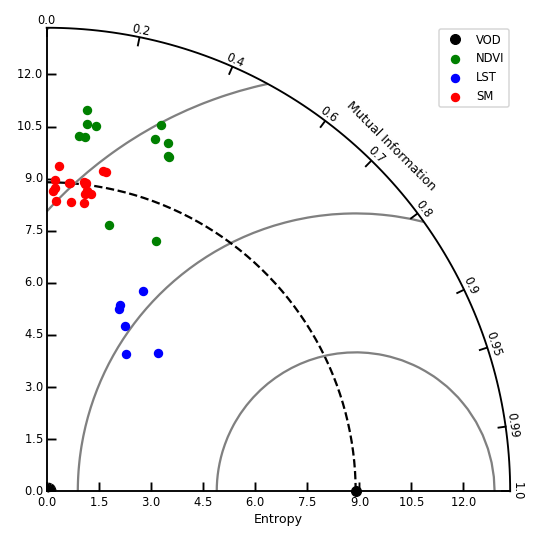

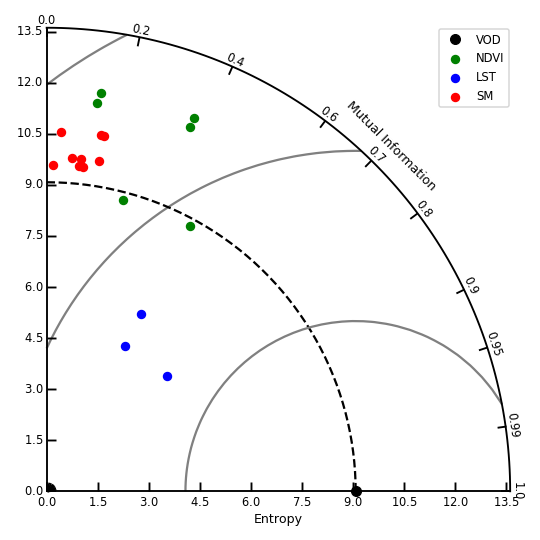

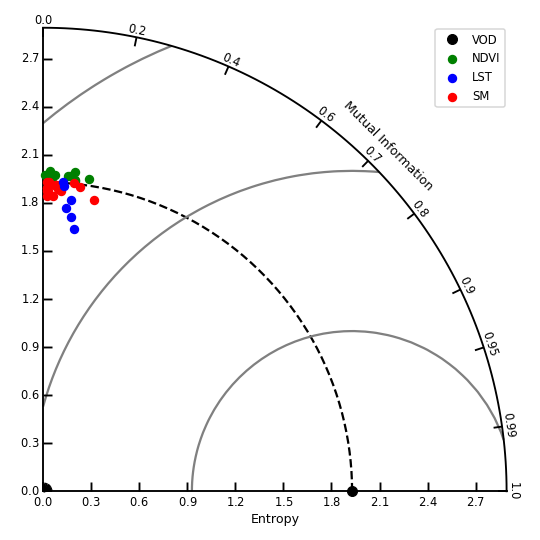

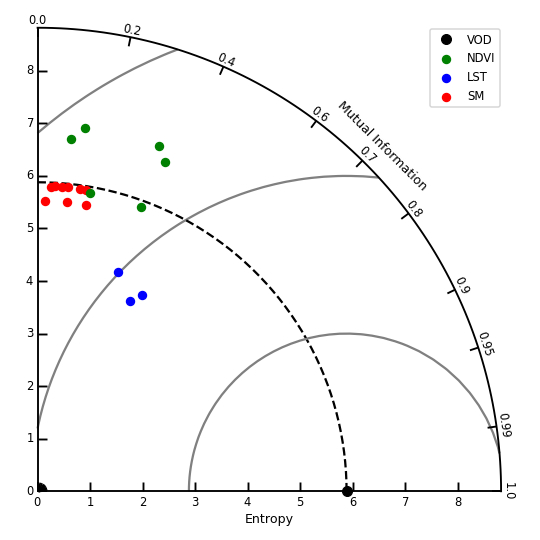

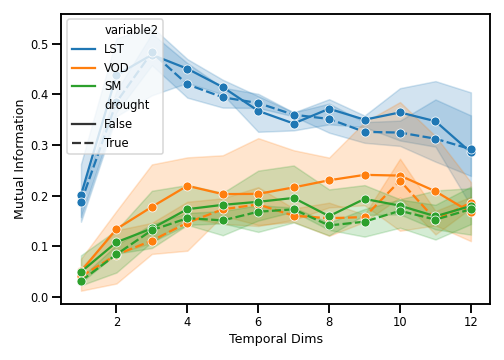

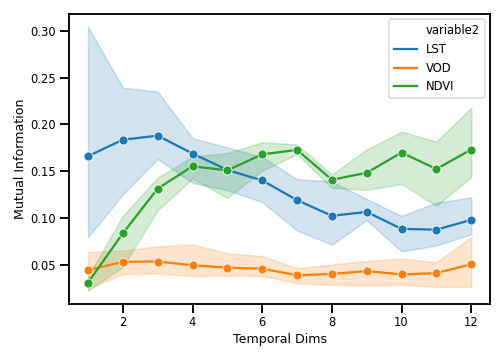

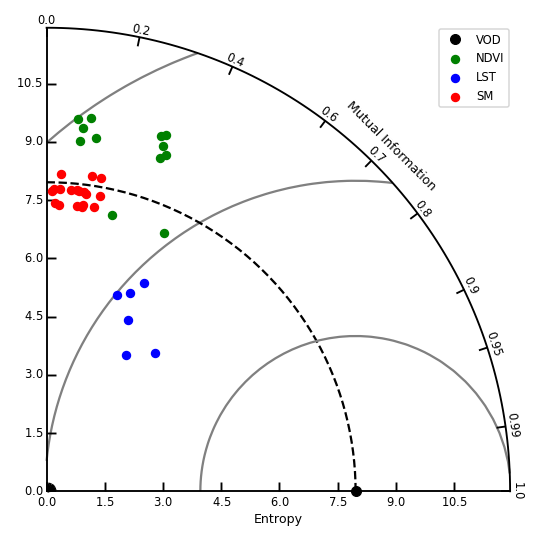

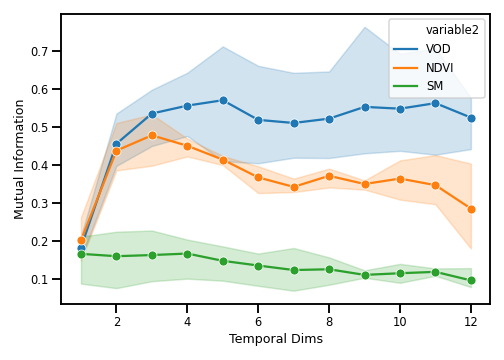

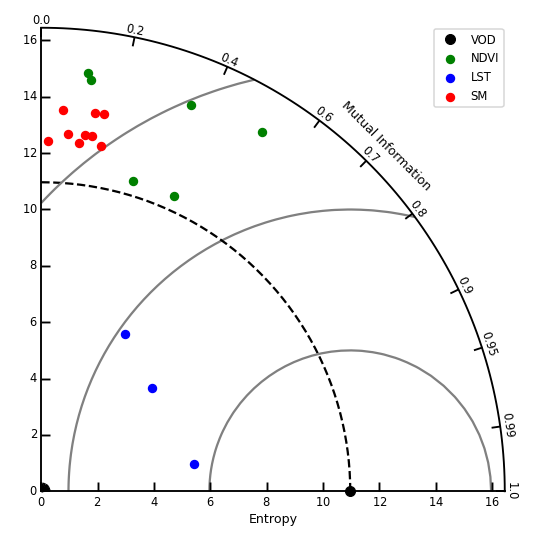

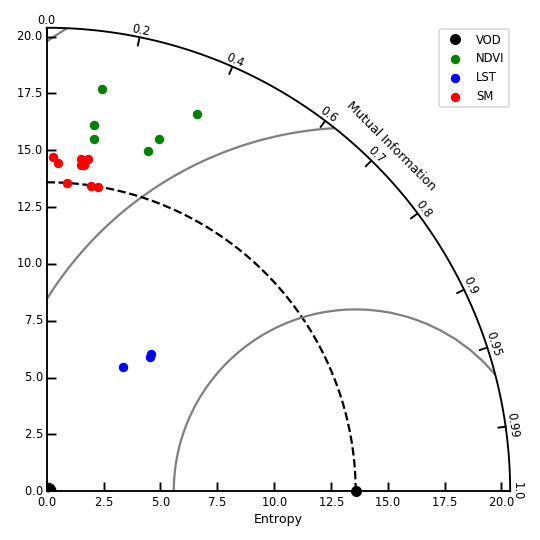

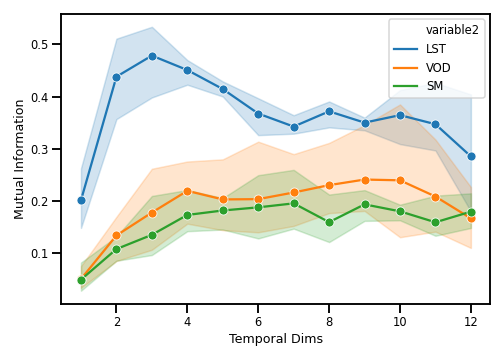

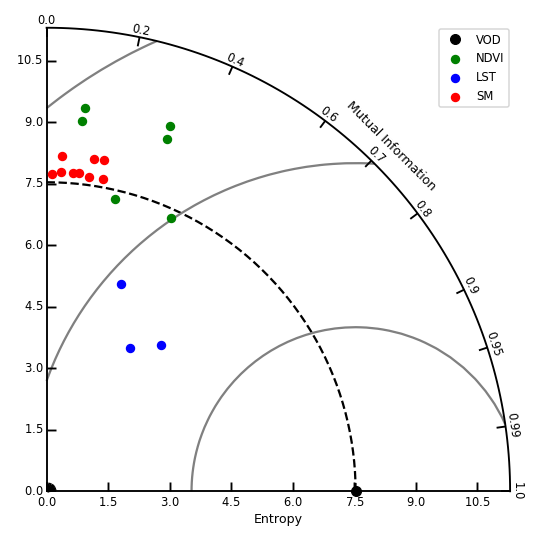

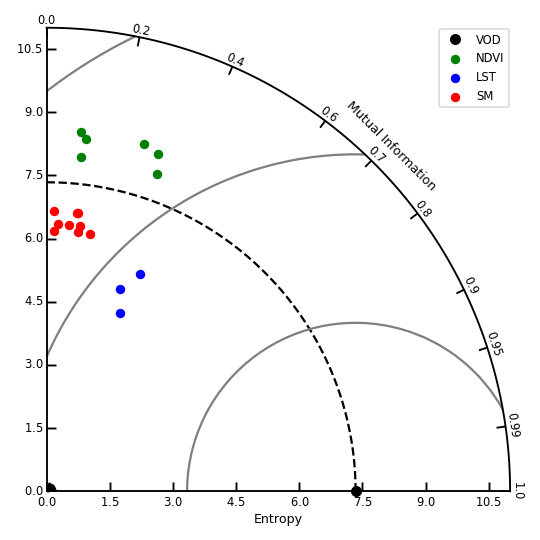

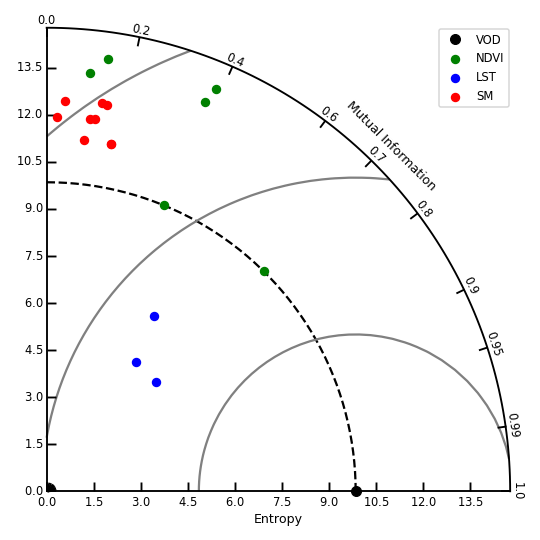

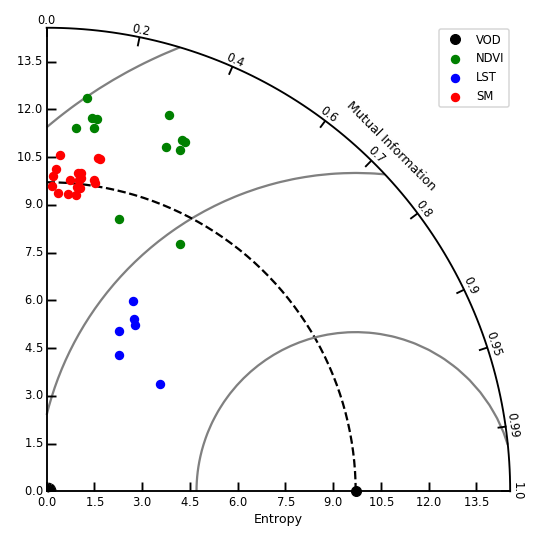

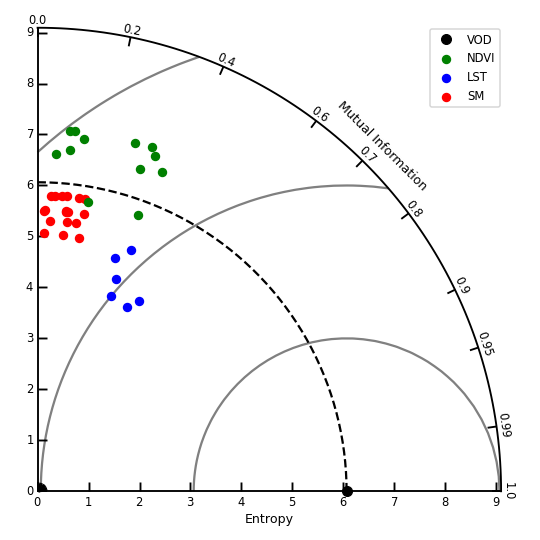

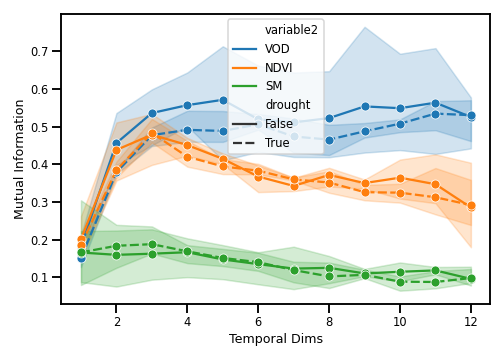

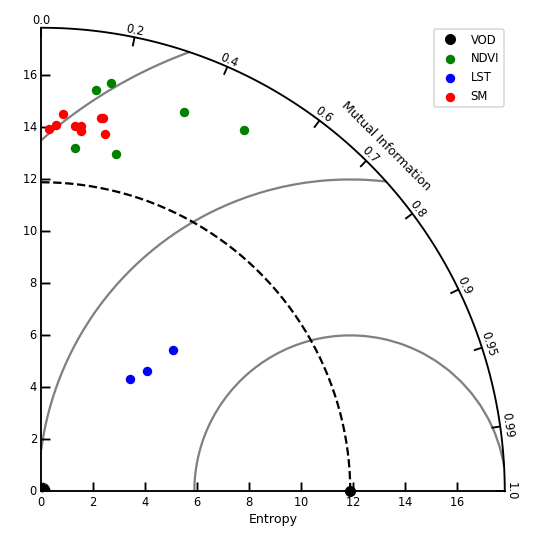

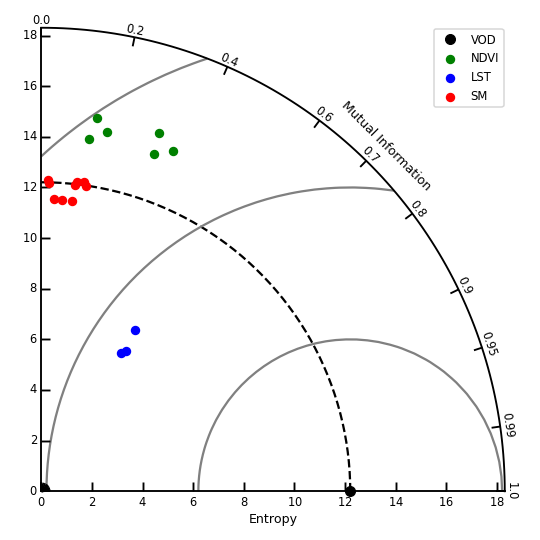

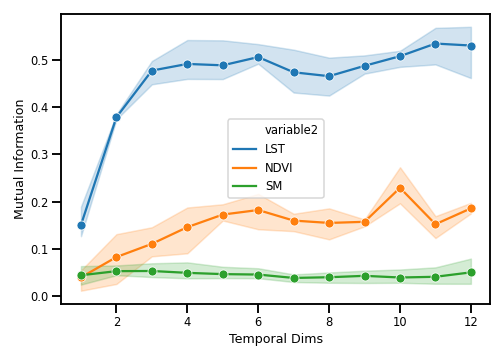

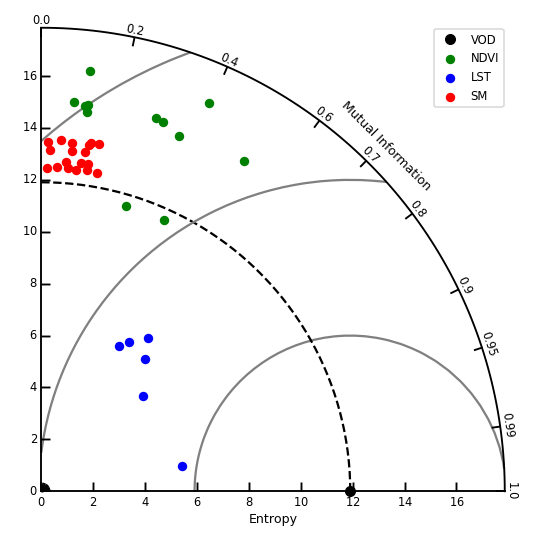

For this second experiment, we want to see how similar VOD is to the other variables under different spatial-temporal representations. E.g. VOD vs. SM, VOD vs. NDVI, etc. So there are a few ways to do this. We want to show that we can do it with Mutual Information (MI) because it uses probability distributions:

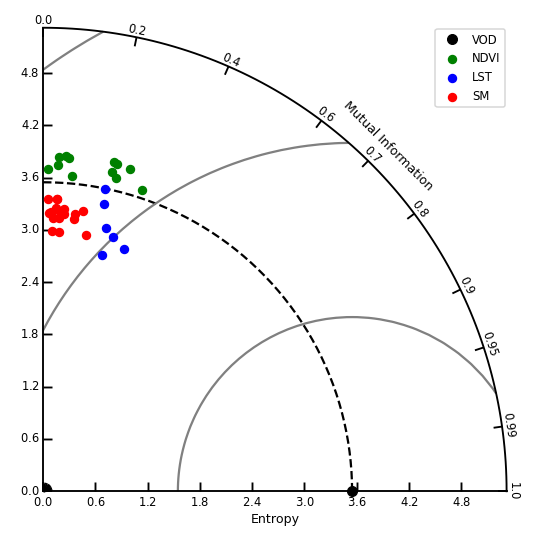

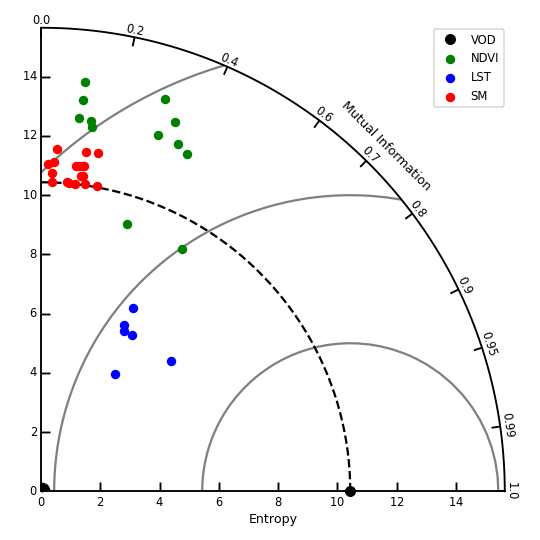

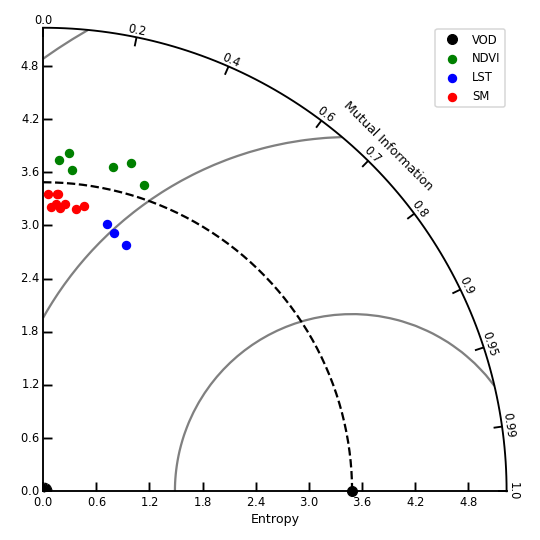

$I(\mathbf{X,Y}) = H(\mathbf{X}) + H(\mathbf{Y}) - 2 H(\mathbf{X,Y})$

We also have some of the standard measures like

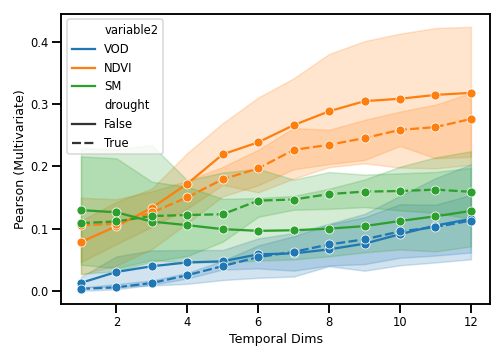

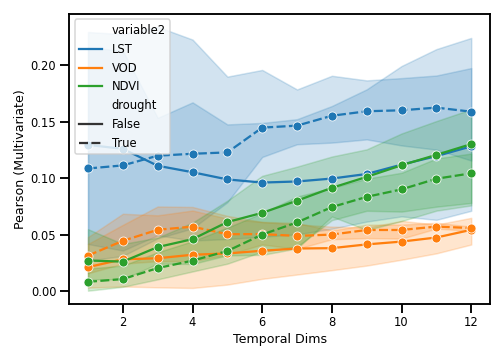

Pearson correlation coefficient
Spearman correlation coefficient

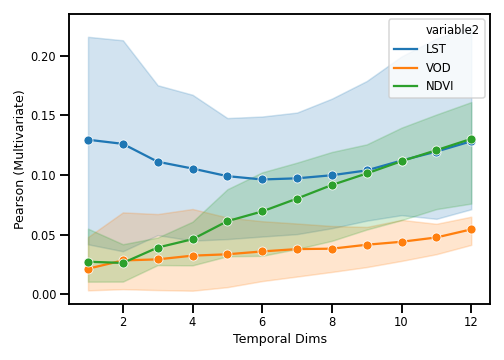

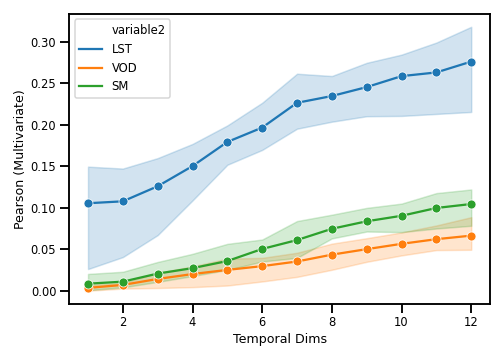

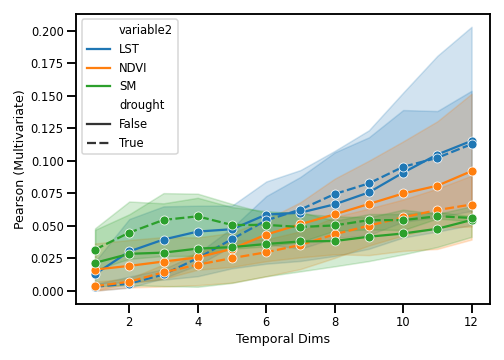

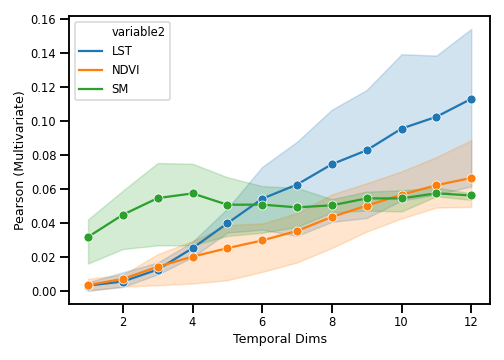

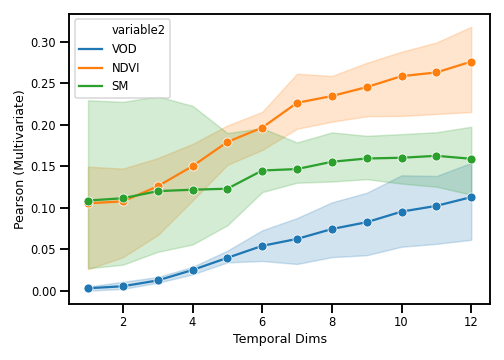

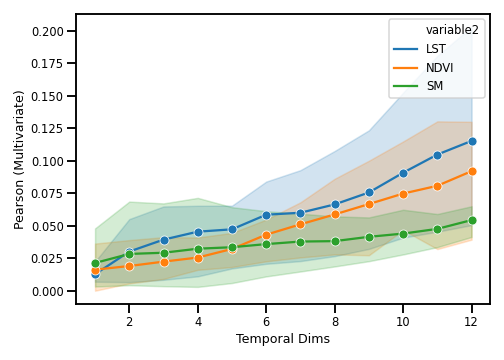

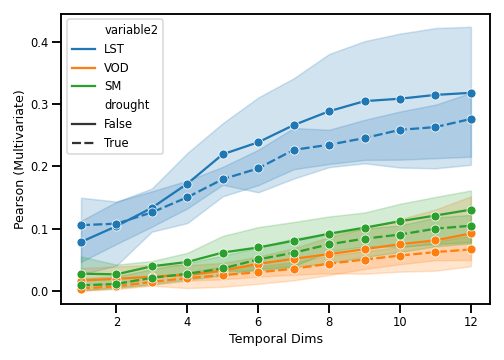

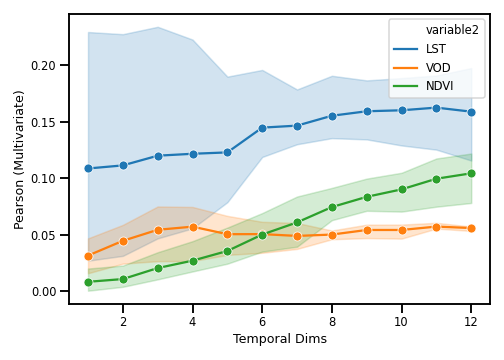

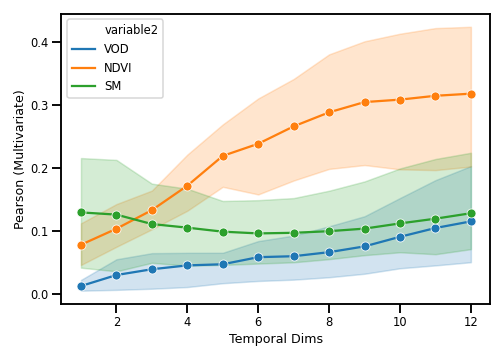

RV-Coefficient (Multivariate extension of pearson)

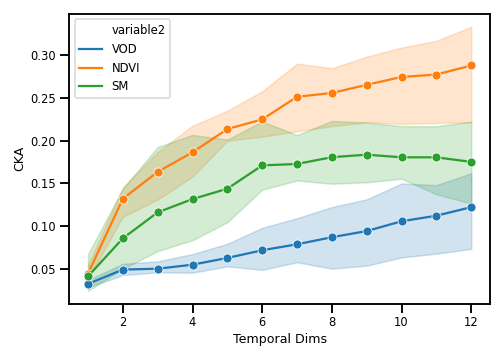

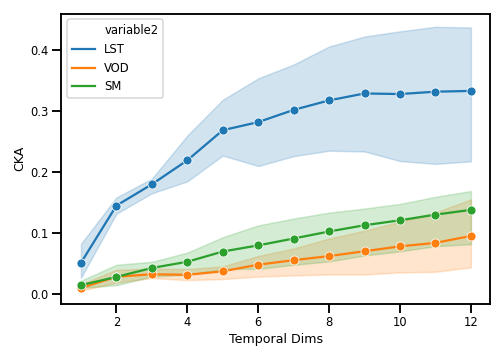

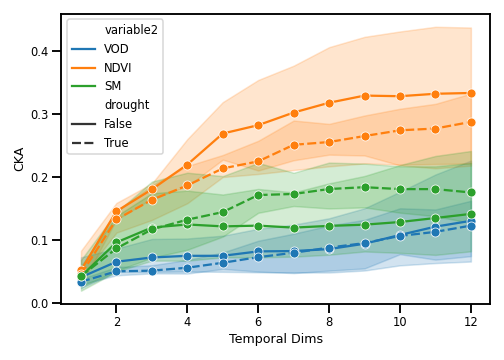

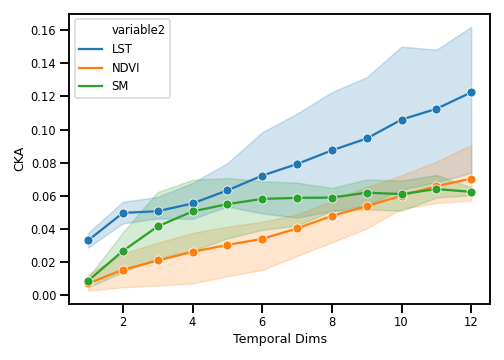

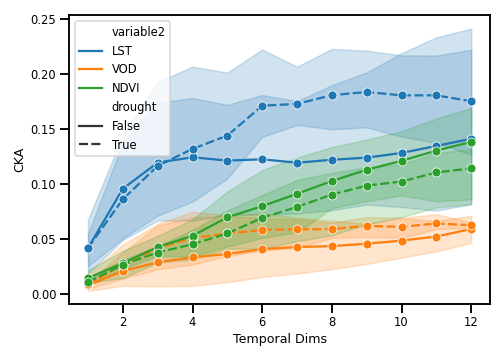

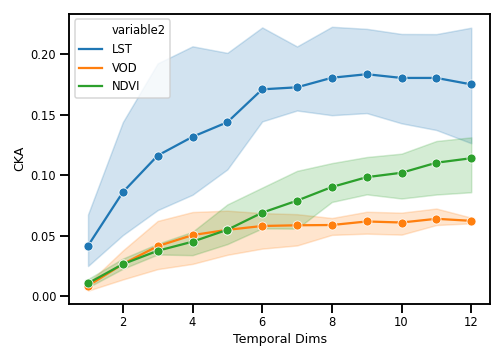

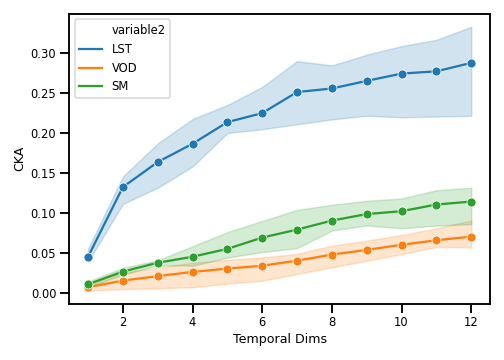

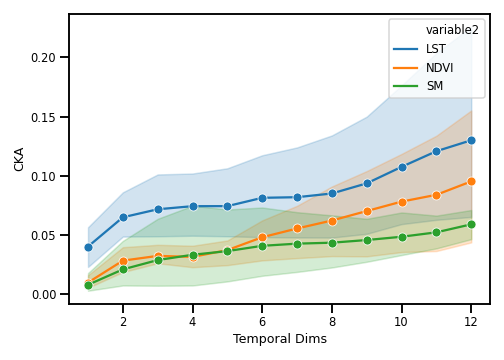

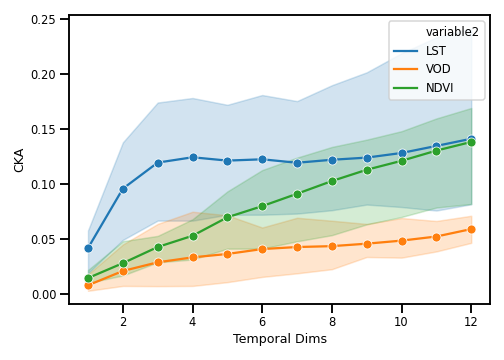

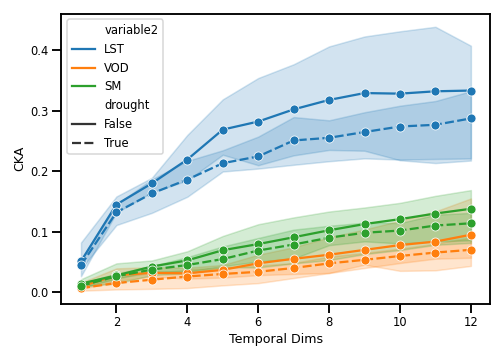

centered kernel alignment (CKA)

Hypothesis¶

Adding temporal features will definitely increase the amount of entropy within a variable. We also expect to see some differences in the entropy value obtained from the different variables. However, there should be a point where adding more temporal dimensions may not add much more information.
