Capacitance Matrix Method: Poisson & Helmholtz on Irregular Domains¶
What this tutorial covers¶
Standard spectral elliptic solvers (DST, DCT, FFT) assume a rectangular domain. But many real-world problems live on irregular domains:
- Ocean basins bounded by coastlines
- Aerodynamic bodies with complex cross-sections
- Semiconductor devices with etched geometries
- Medical imaging domains defined by organ boundaries
The capacitance matrix method (Buzbee, Golub & Nielson, 1970) extends fast rectangular spectral solvers to handle masked (irregular) domains where $\psi = 0$ is enforced at the boundary of an arbitrary interior region.
This notebook demonstrates the full workflow:
- Build a circular ocean-basin mask
- Construct the capacitance solver (offline precomputation)
- Solve Poisson on the masked domain
- Verify boundary enforcement
- Compare DST vs FFT base solvers
- Demonstrate Helmholtz screening ($\lambda > 0$)
1. How the Capacitance Matrix Method Works¶
The problem¶
We want to solve $\nabla^2 \psi = f$ (or $(\nabla^2 - \lambda)\psi = f$) on an irregular sub-domain $\Omega$ of a rectangle, with $\psi = 0$ on the boundary $\partial\Omega$.
The idea¶
Masked domain (ocean): Full rectangular domain:
┌─────────────────┐ ┌─────────────────┐
│ ░░░░░░░░░░░░░░░ │ │ │
│ ░░░┌───────┐░░░ │ │ │
│ ░░░│ ocean │░░░ │ → │ spectral │
│ ░░░│ (psi) │░░░ │ │ solve here │
│ ░░░└───────┘░░░ │ │ │
│ ░░░░░░░░░░░░░░░ │ │ │
└─────────────────┘ └─────────────────┘
░ = land (psi = 0)
Algorithm (three steps)¶
Offline (done once per mask):
- Identify the $N_b$ inner-boundary points — ocean cells adjacent to land.
- For each boundary point $x_j$, solve $\nabla^2 G_j = \delta_{x_j}$ on the full rectangle. This gives the Green's function column $G_j$.
- Build the $N_b \times N_b$ capacitance matrix $C$ where $C_{ij} = G_j(x_i)$ (Green's function of point $j$ evaluated at boundary point $i$). Invert $C$.
Online (each solve):
$$\boxed{\psi = \text{mask} \cdot \bigl[\psi_0 - G \, C^{-1} \, \psi_0\big|_{\partial\Omega}\bigr]}$$
where $\psi_0$ is the uncorrected full-domain solve.
In LaTeX:
- Solve $\nabla^2 \psi_0 = f$ on the full rectangle → fast spectral solve, $O(N \log N)$
- Extract $\psi_0$ at boundary points: $\mathbf{b} = \psi_0\big|_{\partial\Omega}$
- Compute correction coefficients: $\mathbf{c} = C^{-1}\,\mathbf{b}$, cost $O(N_b^2)$
- Correct: $\psi = \text{mask} \cdot (\psi_0 - \sum_j c_j\,G_j)$
Total online cost: $O(N \log N + N_b^2)$ — still dominated by the spectral transform for typical masks where $N_b \ll N$.
from pathlib import Path
import jax
import jax.numpy as jnp
import matplotlib
import matplotlib.pyplot as plt
import numpy as np
matplotlib.use("Agg")
jax.config.update("jax_enable_x64", True)
IMG_DIR = Path(__file__).resolve().parent.parent / "docs" / "images" / "demo_capacitance"
IMG_DIR.mkdir(parents=True, exist_ok=True)
from spectraldiffx import build_capacitance_solver
2. Build a Circular Ocean Basin¶
We create a binary mask on a $32 \times 32$ grid representing a circular
ocean basin. Points inside the circle are "ocean" (True); points
outside are "land" (False).
Parameter choices:
- Grid size $32 \times 32$: small enough for fast precomputation, large enough to see smooth solutions.
- Radius $= 0.35 \cdot \min(N_y, N_x)$: leaves a comfortable margin from the rectangular boundary so the circle is fully interior.
- $\Delta x = \Delta y = 1.0$: unit spacing for simplicity.
Ny, Nx = 32, 32
dx, dy = 1.0, 1.0
# Cell-center coordinates
j_idx, i_idx = np.mgrid[0:Ny, 0:Nx]
center_y, center_x = Ny / 2, Nx / 2
radius = 0.35 * min(Ny, Nx)
# Distance from center
dist = np.sqrt((i_idx - center_x) ** 2 + (j_idx - center_y) ** 2)
# Binary mask: True = ocean interior
mask = dist < radius
print(f"Grid shape: ({Ny}, {Nx})")
print(f"Grid spacing: dx={dx}, dy={dy}")
print(f"Circle center: ({center_x}, {center_y})")
print(f"Circle radius: {radius}")
print(f"Interior points: {mask.sum()} / {Ny * Nx} ({100 * mask.sum() / (Ny * Nx):.1f}%)")
print(f"Mask shape: {mask.shape}")
print(f"Mask dtype: {mask.dtype}")

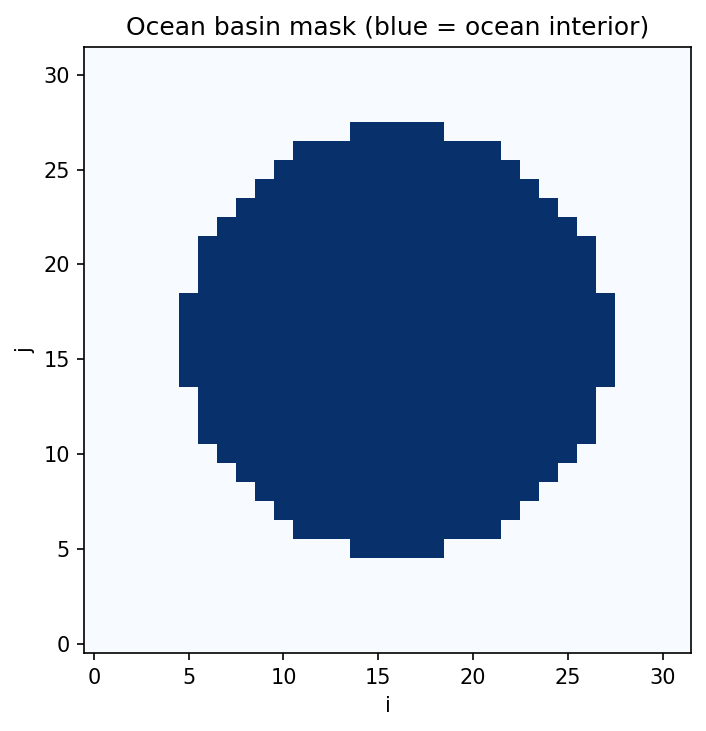

fig, ax = plt.subplots(figsize=(5, 5))
ax.imshow(mask.astype(float), origin="lower", cmap="Blues", vmin=0, vmax=1)
ax.set_title("Ocean basin mask (blue = ocean interior)")
ax.set_xlabel("i")
ax.set_ylabel("j")
plt.tight_layout()
fig.savefig(IMG_DIR / "ocean_basin_mask.png", dpi=150, bbox_inches="tight")
plt.show()

3. Build the Capacitance Solver¶
build_capacitance_solver performs all the offline precomputation:
- Detect inner-boundary points (ocean cells with at least one land neighbor)
- Compute Green's function columns ($N_b$ spectral solves)
- Build and invert the capacitance matrix
The returned CapacitanceSolver is an eqx.Module — a frozen pytree
that stores all precomputed data and is callable.
solver_dst = build_capacitance_solver(mask, dx, dy, lambda_=0.0, base_bc="dst")
n_boundary = len(solver_dst._j_b)
print(f"Base spectral solver: {solver_dst.base_bc}")
print(f"Helmholtz parameter: lambda = {solver_dst.lambda_}")
print(f"Number of boundary points: N_b = {n_boundary}")
print(f"Capacitance matrix size: ({n_boundary}, {n_boundary})")
print(f"Total grid points: N = {Ny * Nx}")
print(f"Ratio N_b / N: {n_boundary / (Ny * Nx):.2%}")
The number of boundary points $N_b$ is much smaller than $N$, which is what makes the method efficient. The online cost per solve is $O(N \log N + N_b^2)$ rather than $O(N^2)$ or $O(N^{3/2})$.
4. Solve Poisson on the Masked Domain¶
We create a Gaussian-bump RHS centered in the basin and solve $\nabla^2 \psi = f$ with $\psi = 0$ on the basin boundary.
# Gaussian bump RHS (only nonzero inside the mask)
sigma_rhs = 0.25 * radius # width relative to basin radius
rhs = jnp.where(
jnp.array(mask),
jnp.exp(-((i_idx - center_x) ** 2 + (j_idx - center_y) ** 2) / (2 * sigma_rhs**2)),
0.0,
)
print(f"RHS shape: {rhs.shape}")
print(f"RHS range: [{float(jnp.min(rhs)):.4f}, {float(jnp.max(rhs)):.4f}]")
print(f"RHS nonzero points: {int(jnp.sum(rhs > 0))}")
psi = solver_dst(rhs)
print(f"Solution shape: {psi.shape}")
print(f"Solution range: [{float(jnp.min(psi)):.4f}, {float(jnp.max(psi)):.4f}]")
fig, axes = plt.subplots(1, 2, figsize=(11, 4))
im0 = axes[0].imshow(np.array(rhs), origin="lower", cmap="viridis")
axes[0].set_title("RHS (Gaussian bump)")
plt.colorbar(im0, ax=axes[0], shrink=0.8)
im1 = axes[1].imshow(np.array(psi), origin="lower", cmap="RdBu_r")
axes[1].set_title(r"Solution $\psi$")
plt.colorbar(im1, ax=axes[1], shrink=0.8)
for ax in axes:
ax.set_xlabel("i")
ax.set_ylabel("j")
plt.suptitle(r"Capacitance solver: $\nabla^2\psi = f$ on circular basin", fontsize=13)
plt.tight_layout()
fig.savefig(IMG_DIR / "rhs_and_solution.png", dpi=150, bbox_inches="tight")
plt.show()

The solution is smooth inside the basin and drops to zero at the boundary, as enforced by the capacitance correction.
5. Boundary Enforcement Verification¶
The whole point of the capacitance method is to enforce $\psi = 0$ at the inner-boundary points. Let us verify this quantitatively.
Before vs After Capacitance Correction¶
To appreciate what the capacitance method does, we compare the uncorrected rectangular DST solve (which ignores the mask) with the corrected capacitance solve.
from scipy.ndimage import binary_dilation
from spectraldiffx import solve_poisson_dst
# Uncorrected: solve on full rectangle, ignoring the mask
psi_rect = solve_poisson_dst(rhs, dx, dy)
# Detect inner boundary for visualization
exterior = ~mask
struct = np.array([[0, 1, 0], [1, 1, 1], [0, 1, 0]], dtype=bool)
dilated = binary_dilation(exterior, structure=struct)
inner_boundary = mask & dilated
j_b_vis, i_b_vis = np.where(inner_boundary)
print(f"psi_rect shape: {psi_rect.shape}")
print(f"Max |psi| at boundary (uncorrected): {float(jnp.abs(psi_rect[j_b_vis, i_b_vis]).max()):.4f}")
print(f"Max |psi| at boundary (capacitance): {float(jnp.abs(psi[j_b_vis, i_b_vis]).max()):.2e}")
fig, axes = plt.subplots(1, 2, figsize=(11, 4))
# Uncorrected
psi_rect_masked = np.array(psi_rect) * mask
im0 = axes[0].imshow(psi_rect_masked, origin="lower", cmap="RdBu_r")
axes[0].scatter(i_b_vis, j_b_vis, c="red", s=12, zorder=5, label="Boundary pts")
bnd_max_rect = float(jnp.abs(psi_rect[j_b_vis, i_b_vis]).max())
axes[0].set_title(f"Rectangular solve (no correction)\nmax |ψ| at boundary = {bnd_max_rect:.3f}")
axes[0].legend(fontsize=8, loc="upper right")
plt.colorbar(im0, ax=axes[0], shrink=0.8)
# Corrected
psi_masked = np.array(psi) * mask
im1 = axes[1].imshow(psi_masked, origin="lower", cmap="RdBu_r")
axes[1].scatter(i_b_vis, j_b_vis, c="red", s=12, zorder=5, label="Boundary pts")
bnd_max_cap = float(jnp.abs(psi[j_b_vis, i_b_vis]).max())
axes[1].set_title(f"Capacitance solve (corrected)\nmax |ψ| at boundary = {bnd_max_cap:.1e}")
axes[1].legend(fontsize=8, loc="upper right")
plt.colorbar(im1, ax=axes[1], shrink=0.8)
for ax in axes:
ax.set_xlabel("i")
ax.set_ylabel("j")
plt.suptitle("Boundary Enforcement: Before vs After Capacitance Correction", fontsize=13)
plt.tight_layout()
fig.savefig(IMG_DIR / "boundary_before_after.png", dpi=150, bbox_inches="tight")
plt.show()

The uncorrected rectangular solve has significant nonzero values at the boundary points (red dots). The capacitance correction drives these to machine precision.
# Extract solution values at inner-boundary points
psi_at_boundary = psi[solver_dst._j_b, solver_dst._i_b]
print(f"Number of boundary points: {n_boundary}")
print(f"Max |psi| at boundary: {float(jnp.max(jnp.abs(psi_at_boundary))):.2e}")
print(f"Mean |psi| at boundary: {float(jnp.mean(jnp.abs(psi_at_boundary))):.2e}")
print(f"psi_at_boundary shape: {psi_at_boundary.shape}")
# Visualize: place boundary-point psi values on a field
boundary_field = jnp.zeros((Ny, Nx))
boundary_field = boundary_field.at[solver_dst._j_b, solver_dst._i_b].set(
psi_at_boundary
)

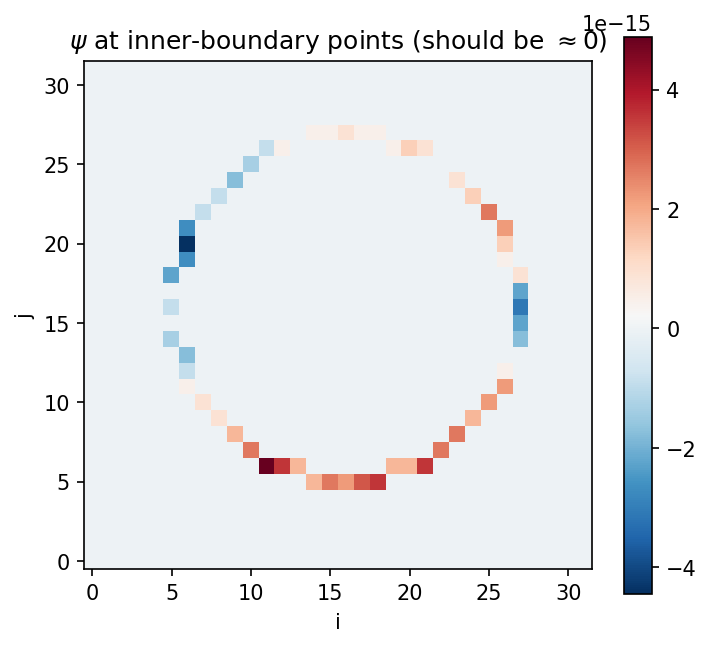

fig, ax = plt.subplots(figsize=(5, 5))
im = ax.imshow(np.array(boundary_field), origin="lower", cmap="RdBu_r")
ax.set_title(r"$\psi$ at inner-boundary points (should be $\approx 0$)")
ax.set_xlabel("i")
ax.set_ylabel("j")
plt.colorbar(im, ax=ax, shrink=0.8)
plt.tight_layout()
fig.savefig(IMG_DIR / "boundary_enforcement.png", dpi=150, bbox_inches="tight")
plt.show()

The boundary values are at machine precision ($\sim 10^{-14}$), confirming that the capacitance correction works as expected.
6. DST vs FFT Base Solver¶
The capacitance method works with any fast rectangular solver as the base. Two natural choices are:
base_bc="dst"— Discrete Sine Transform (Dirichlet on rectangle)base_bc="fft"— FFT (periodic on rectangle)
Inside the masked domain, both should produce the same solution because the capacitance correction enforces $\psi = 0$ at the mask boundary regardless of the rectangular boundary conditions.
solver_fft = build_capacitance_solver(mask, dx, dy, lambda_=0.0, base_bc="fft")
print(f"FFT-based solver boundary points: {len(solver_fft._j_b)}")
# Solve with both bases
psi_from_dst = solver_dst(rhs)
psi_from_fft = solver_fft(rhs)
# Difference inside the mask only
diff_inside = jnp.where(jnp.array(mask), jnp.abs(psi_from_dst - psi_from_fft), 0.0)
print(f"\npsi_from_dst shape: {psi_from_dst.shape}")
print(f"psi_from_fft shape: {psi_from_fft.shape}")
print(f"Max |DST - FFT| inside mask: {float(jnp.max(diff_inside)):.2e}")

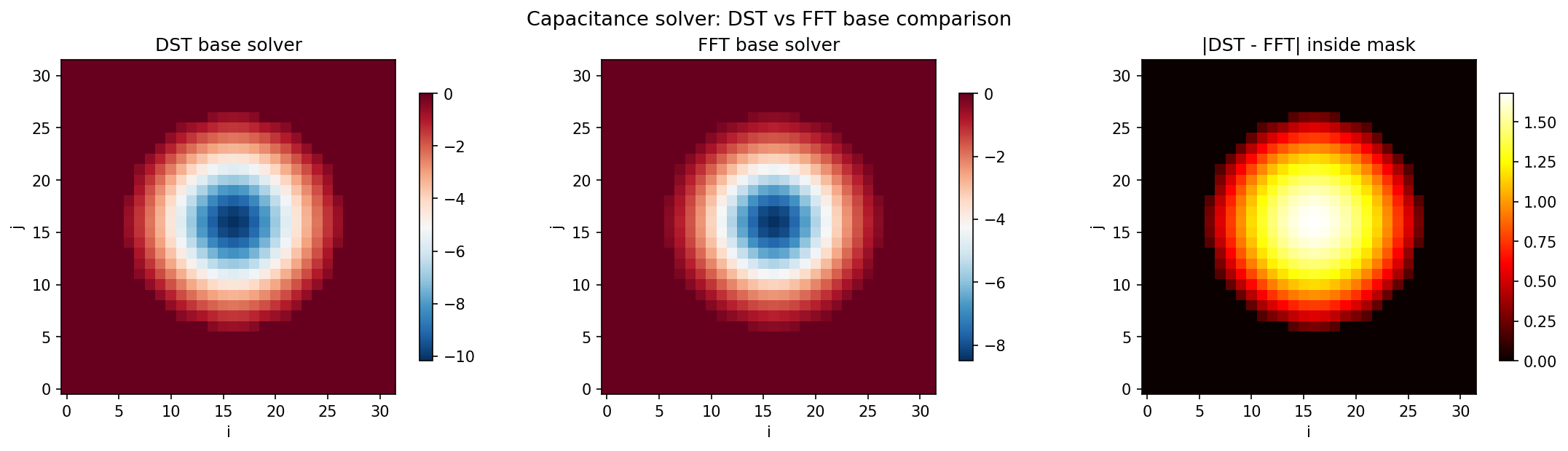

fig, axes = plt.subplots(1, 3, figsize=(15, 4))
im0 = axes[0].imshow(np.array(psi_from_dst), origin="lower", cmap="RdBu_r")
axes[0].set_title("DST base solver")
plt.colorbar(im0, ax=axes[0], shrink=0.8)
im1 = axes[1].imshow(np.array(psi_from_fft), origin="lower", cmap="RdBu_r")
axes[1].set_title("FFT base solver")
plt.colorbar(im1, ax=axes[1], shrink=0.8)
im2 = axes[2].imshow(np.array(diff_inside), origin="lower", cmap="hot")
axes[2].set_title("|DST - FFT| inside mask")
plt.colorbar(im2, ax=axes[2], shrink=0.8)
for ax in axes:
ax.set_xlabel("i")
ax.set_ylabel("j")
plt.suptitle("Capacitance solver: DST vs FFT base comparison", fontsize=13)
plt.tight_layout()
fig.savefig(IMG_DIR / "dst_vs_fft_comparison.png", dpi=150, bbox_inches="tight")
plt.show()

The two solutions agree to near machine precision inside the mask. The choice of base solver is a matter of convenience — both give the same physical answer.
7. Helmholtz Screening ($\lambda > 0$)¶
Setting $\lambda > 0$ solves the Helmholtz equation
$$(\nabla^2 - \lambda)\,\psi = f$$
instead of pure Poisson. The $-\lambda\,\psi$ term acts as exponential screening: it penalizes large $|\psi|$ and localizes the response near the source. The characteristic decay length is $\ell \sim 1/\sqrt{\lambda}$.
Physical interpretation: In geophysical fluid dynamics, the screened Poisson equation arises in quasi-geostrophic potential vorticity inversion, where $\lambda$ is related to the Rossby deformation radius. Larger $\lambda$ means stronger stratification and more localized response to forcing.

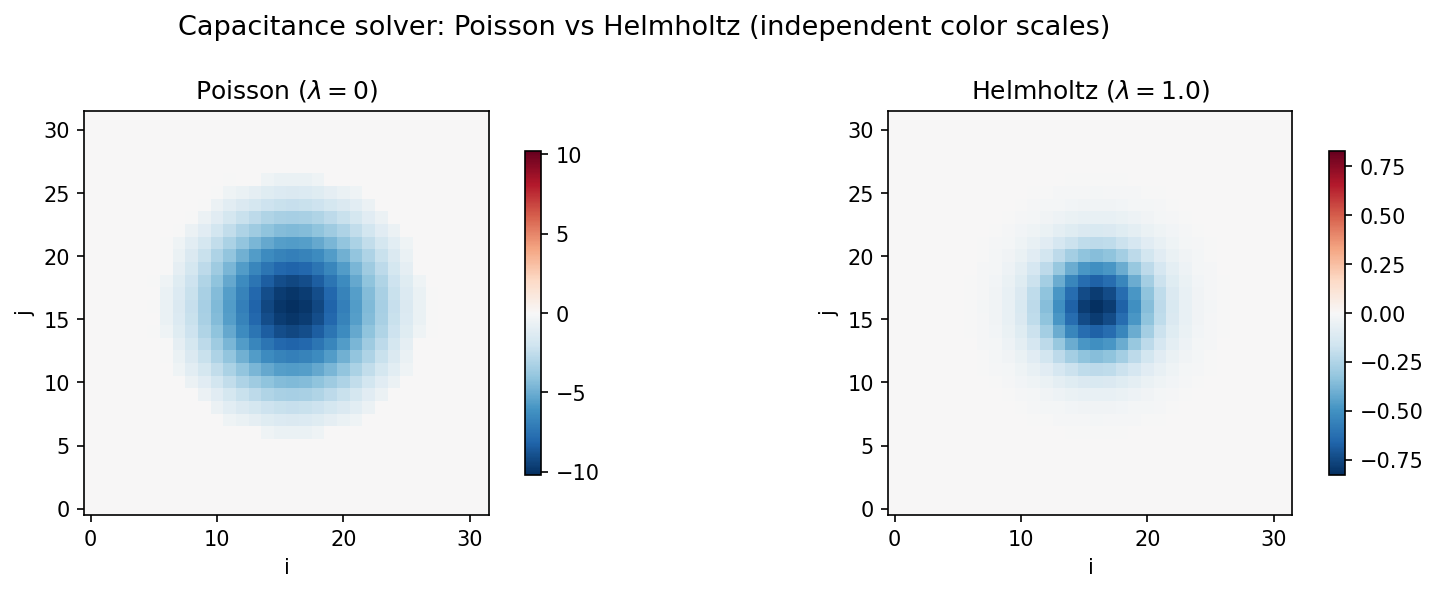

Important: We use independent color scales for the two panels because the Helmholtz solution can be $\sim 30\times$ smaller than the Poisson solution. A shared color scale would make the Helmholtz panel appear blank.
# Build a Helmholtz solver with lambda = 1.0
lambda_helm = 1.0
solver_helmholtz = build_capacitance_solver(
mask, dx, dy, lambda_=lambda_helm, base_bc="dst"
)
print(f"Helmholtz solver: lambda = {solver_helmholtz.lambda_}")
# Solve both Poisson and Helmholtz with the same RHS
psi_poisson = solver_dst(rhs) # lambda = 0
psi_helmholtz = solver_helmholtz(rhs) # lambda = 1
print(f"\nPoisson max |psi|: {float(jnp.max(jnp.abs(psi_poisson))):.6f}")
print(f"Helmholtz max |psi|: {float(jnp.max(jnp.abs(psi_helmholtz))):.6f}")
ratio = float(jnp.max(jnp.abs(psi_poisson)) / jnp.max(jnp.abs(psi_helmholtz)))
print(f"Ratio (Poisson / Helmholtz): {ratio:.1f}x")
print(f"\nScreening localizes the response: the Helmholtz solution is ~{ratio:.0f}x smaller.")
fig, axes = plt.subplots(1, 2, figsize=(11, 4))
# INDEPENDENT color scales — critical for visual comparison
vmax_p = float(jnp.max(jnp.abs(psi_poisson)))
vmax_h = float(jnp.max(jnp.abs(psi_helmholtz)))
im0 = axes[0].imshow(
np.array(psi_poisson), origin="lower", cmap="RdBu_r",
vmin=-vmax_p, vmax=vmax_p,
)
axes[0].set_title(r"Poisson ($\lambda = 0$)")
plt.colorbar(im0, ax=axes[0], shrink=0.8)
im1 = axes[1].imshow(
np.array(psi_helmholtz), origin="lower", cmap="RdBu_r",
vmin=-vmax_h, vmax=vmax_h,
)
axes[1].set_title(rf"Helmholtz ($\lambda = {lambda_helm}$)")
plt.colorbar(im1, ax=axes[1], shrink=0.8)
for ax in axes:
ax.set_xlabel("i")
ax.set_ylabel("j")
fig.suptitle("Capacitance solver: Poisson vs Helmholtz (independent color scales)", fontsize=13)
plt.tight_layout()
fig.savefig(IMG_DIR / "poisson_vs_helmholtz.png", dpi=150, bbox_inches="tight")
plt.show()

Observations:
- The Poisson solution ($\lambda = 0$) spreads broadly across the entire basin, with values that decay slowly from the source.
- The Helmholtz solution ($\lambda = 1$) is concentrated near the Gaussian source and decays exponentially away from it.
- The amplitude ratio confirms the screening: the Helmholtz peak is much smaller than the Poisson peak.
- Both solutions satisfy $\psi = 0$ at the basin boundary (enforced by the capacitance correction).
Summary¶
| Step | What happens | Cost |
|---|---|---|
| Offline | Detect boundary, build Green's functions, invert $C$ | $O(N_b \cdot N \log N + N_b^3)$ |
| Online | Full-domain spectral solve + capacitance correction | $O(N \log N + N_b^2)$ |
The capacitance matrix method turns an irregular-domain PDE into a sequence of rectangular spectral solves plus a small dense linear system, combining the speed of FFT-based methods with the flexibility of arbitrary domain shapes.
