Spectral Elliptic PDE Solvers: Poisson & Helmholtz Equations¶

What this tutorial covers¶

Many problems in physics and engineering reduce to solving an elliptic PDE of the form

$$(\nabla^2 - \lambda)\,\psi = f,$$

known as the Helmholtz equation. Setting $\lambda = 0$ gives the Poisson equation $\nabla^2 \psi = f$.

These equations appear everywhere:

• Pressure projection in incompressible Navier--Stokes solvers
• Geostrophic balance and quasi-geostrophic streamfunction inversion
• Electrostatics (Coulomb potential from a charge distribution)
• Quantum mechanics (time-independent Schrodinger equation)
• Screened Poisson problems in plasma physics ($\lambda > 0$)

This notebook demonstrates how spectraldiffx solves these equations on a 2-D rectangular grid using three spectral methods, each corresponding to a different boundary condition:

BC type	Transform	Eigenfunctions	Solver
Dirichlet $\psi = 0$ on boundary	DST-I	$\sin$	solve_poisson_dst / solve_helmholtz_dst
Neumann $\partial_n \psi = 0$ on boundary	DCT-II	$\cos$	solve_poisson_dct / solve_helmholtz_dct
Periodic $\psi(0) = \psi(L)$	FFT	$e^{ikx}$	solve_poisson_fft / solve_helmholtz_fft

We also show how to use the eqx.Module class wrappers and jax.vmap for batched solves.

In [ ]:

from pathlib import Path

import equinox as eqx
import jax
import jax.numpy as jnp
import matplotlib
import matplotlib.pyplot as plt
import numpy as np

matplotlib.use("Agg")

jax.config.update("jax_enable_x64", True)

IMG_DIR = Path(__file__).resolve().parent.parent / "docs" / "images" / "demo_elliptic_solvers"
IMG_DIR.mkdir(parents=True, exist_ok=True)

from spectraldiffx import (
    DirichletHelmholtzSolver2D,
    NeumannHelmholtzSolver2D,
    dct2_eigenvalues,
    dst1_eigenvalues,
    fft_eigenvalues,
    solve_helmholtz_dct,
    solve_helmholtz_dst,
    solve_helmholtz_fft,
    solve_poisson_dct,
    solve_poisson_dst,
    solve_poisson_fft,
)

from pathlib import Path import equinox as eqx import jax import jax.numpy as jnp import matplotlib import matplotlib.pyplot as plt import numpy as np matplotlib.use("Agg") jax.config.update("jax_enable_x64", True) IMG_DIR = Path(__file__).resolve().parent.parent / "docs" / "images" / "demo_elliptic_solvers" IMG_DIR.mkdir(parents=True, exist_ok=True) from spectraldiffx import ( DirichletHelmholtzSolver2D, NeumannHelmholtzSolver2D, dct2_eigenvalues, dst1_eigenvalues, fft_eigenvalues, solve_helmholtz_dct, solve_helmholtz_dst, solve_helmholtz_fft, solve_poisson_dct, solve_poisson_dst, solve_poisson_fft, )

1. The Spectral Solution Method¶

Continuous problem¶

Given a source $f(x, y)$, find $\psi(x, y)$ satisfying

$$\nabla^2 \psi - \lambda\,\psi = f, \qquad \nabla^2 = \frac{\partial^2}{\partial x^2} + \frac{\partial^2}{\partial y^2}.$$

Discrete spectral approach¶

On an $N_y \times N_x$ grid with spacing $(\Delta x, \Delta y)$, the second-order finite-difference Laplacian has known eigenvectors for DST, DCT, and FFT bases. The algorithm is:

Algorithm: Spectral Helmholtz Solve
────────────────────────────────────
1. f_hat = Transform(f)               ← forward DST / DCT / FFT
2. psi_hat[p,q] = f_hat[p,q]          ← spectral division
                   ─────────────────
                   lambda_x[p] + lambda_y[q] - alpha
3. psi = InverseTransform(psi_hat)     ← backward transform

Each transform type has its own eigenvalue formula:

• DST-I (Dirichlet): $\lambda^x_p = \frac{2}{\Delta x^2}\left[\cos\!\left(\frac{\pi\,p}{N_x+1}\right) - 1\right], \quad p = 1, \dots, N_x$
• DCT-II (Neumann): $\lambda^x_p = \frac{2}{\Delta x^2}\left[\cos\!\left(\frac{\pi\,p}{N_x}\right) - 1\right], \quad p = 0, \dots, N_x-1$
• FFT (Periodic): $\lambda^x_p = \frac{2}{\Delta x^2}\left[\cos\!\left(\frac{2\pi\,p}{N_x}\right) - 1\right], \quad p = 0, \dots, N_x-1$

The $y$-direction eigenvalues follow the same pattern with $N_y$ and $\Delta y$.

Null-mode caveat: For Neumann and periodic BCs, the $(0, 0)$ eigenvalue is zero, making the Poisson equation singular. The solution is determined only up to an additive constant. The solver handles this by projecting out the zero mode (enforcing zero-mean $\psi$).

In [ ]:

# ─── Grid parameters ───
# 64x64 is large enough to see smooth fields, small enough to run instantly.
# dx = dy = 1.0 gives eigenvalues in simple units.
Nx, Ny = 64, 64
dx, dy = 1.0, 1.0

# Index arrays for building eigenfunctions
i_idx = jnp.arange(Nx)
j_idx = jnp.arange(Ny)
II, JJ = jnp.meshgrid(i_idx, j_idx)  # shape: (Ny, Nx)

print(f"Grid shape: ({Ny}, {Nx})")
print(f"Grid spacing: dx={dx}, dy={dy}")
print(f"Index arrays II, JJ shape: {II.shape}")

# ─── Grid parameters ─── # 64x64 is large enough to see smooth fields, small enough to run instantly. # dx = dy = 1.0 gives eigenvalues in simple units. Nx, Ny = 64, 64 dx, dy = 1.0, 1.0 # Index arrays for building eigenfunctions i_idx = jnp.arange(Nx) j_idx = jnp.arange(Ny) II, JJ = jnp.meshgrid(i_idx, j_idx) # shape: (Ny, Nx) print(f"Grid shape: ({Ny}, {Nx})") print(f"Grid spacing: dx={dx}, dy={dy}") print(f"Index arrays II, JJ shape: {II.shape}")

2. Dirichlet BCs (DST-I): Eigenfunction Recovery¶

The DST-I eigenfunctions on an $N$-point interior grid are

$$\phi_{p,q}(i, j) = \sin\!\left(\frac{\pi\,p\,(i+1)}{N_x+1}\right)\sin\!\left(\frac{\pi\,q\,(j+1)}{N_y+1}\right), \quad p \in [1, N_x],\; q \in [1, N_y].$$

These satisfy homogeneous Dirichlet conditions: $\phi = 0$ at $i = -1$ and $i = N_x$ (the ghost boundary points).

Test: Build an eigenfunction, compute its Laplacian analytically using the eigenvalue, then verify the solver recovers $\phi$ exactly.

In [ ]:

# Mode indices (low modes for a smooth field)
p, q = 2, 3

# Eigenfunction
psi_exact = (
    jnp.sin(jnp.pi * p * (II + 1) / (Nx + 1))
    * jnp.sin(jnp.pi * q * (JJ + 1) / (Ny + 1))
)
print(f"psi_exact shape: {psi_exact.shape}")

# Eigenvalues from the DST-I formula
eigx = dst1_eigenvalues(Nx, dx)
eigy = dst1_eigenvalues(Ny, dy)
eigenvalue = eigx[p - 1] + eigy[q - 1]  # 1-indexed: mode p uses eigx[p-1]
print(f"DST-I eigenvalue for (p={p}, q={q}): {eigenvalue:.6f}")

# The Laplacian of the eigenfunction is eigenvalue * psi_exact
rhs_dst = eigenvalue * psi_exact
print(f"RHS shape: {rhs_dst.shape}")

# Mode indices (low modes for a smooth field) p, q = 2, 3 # Eigenfunction psi_exact = ( jnp.sin(jnp.pi * p * (II + 1) / (Nx + 1)) * jnp.sin(jnp.pi * q * (JJ + 1) / (Ny + 1)) ) print(f"psi_exact shape: {psi_exact.shape}") # Eigenvalues from the DST-I formula eigx = dst1_eigenvalues(Nx, dx) eigy = dst1_eigenvalues(Ny, dy) eigenvalue = eigx[p - 1] + eigy[q - 1] # 1-indexed: mode p uses eigx[p-1] print(f"DST-I eigenvalue for (p={p}, q={q}): {eigenvalue:.6f}") # The Laplacian of the eigenfunction is eigenvalue * psi_exact rhs_dst = eigenvalue * psi_exact print(f"RHS shape: {rhs_dst.shape}")

In [ ]:

# Solve and measure error
psi_dst = solve_poisson_dst(rhs_dst, dx, dy)
error_dst = float(jnp.max(jnp.abs(psi_dst - psi_exact)))
print(f"Max error (Poisson DST): {error_dst:.2e}")
print(f"Solution shape: {psi_dst.shape}")

# Solve and measure error psi_dst = solve_poisson_dst(rhs_dst, dx, dy) error_dst = float(jnp.max(jnp.abs(psi_dst - psi_exact))) print(f"Max error (Poisson DST): {error_dst:.2e}") print(f"Solution shape: {psi_dst.shape}")

In [ ]:

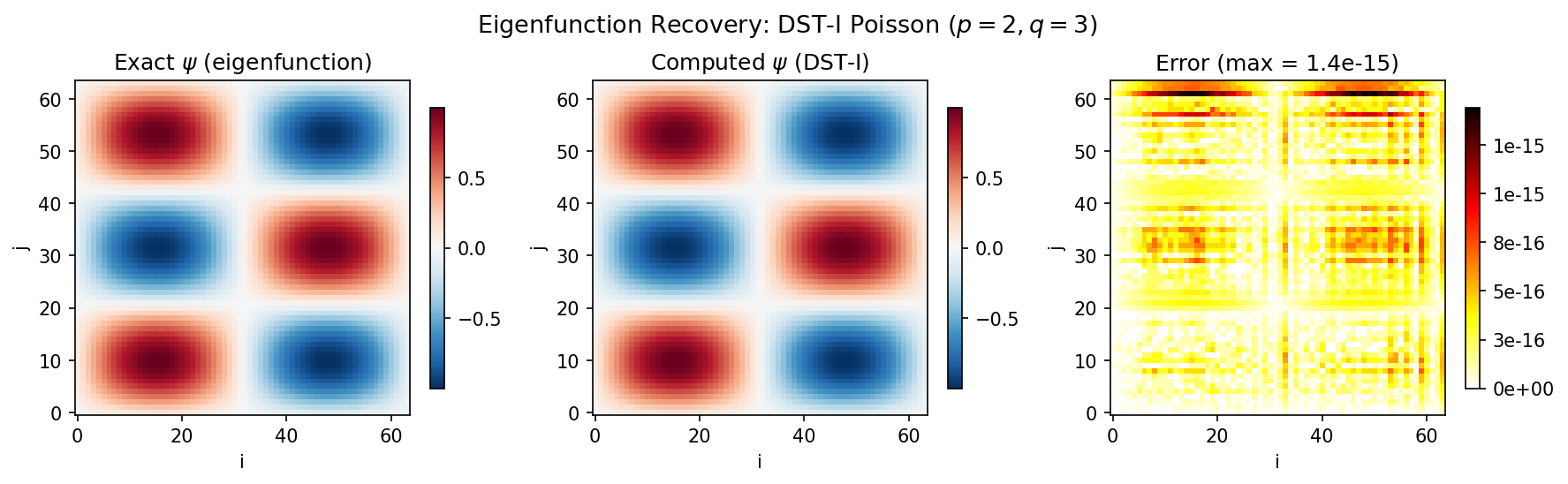

fig, axes = plt.subplots(1, 3, figsize=(12, 3.5))

im0 = axes[0].imshow(np.array(psi_exact), cmap="RdBu_r", origin="lower")
axes[0].set_title(r"Exact $\psi$ (eigenfunction)")
plt.colorbar(im0, ax=axes[0], shrink=0.8)

im1 = axes[1].imshow(np.array(psi_dst), cmap="RdBu_r", origin="lower")
axes[1].set_title(r"Computed $\psi$ (DST-I)")
plt.colorbar(im1, ax=axes[1], shrink=0.8)

im2 = axes[2].imshow(np.array(jnp.abs(psi_dst - psi_exact)), cmap="hot_r", origin="lower")
axes[2].set_title(f"Error (max = {error_dst:.1e})")
plt.colorbar(im2, ax=axes[2], shrink=0.8, format="%.0e")

for ax in axes:
    ax.set_xlabel("i")
    ax.set_ylabel("j")

plt.suptitle(f"Eigenfunction Recovery: DST-I Poisson ($p={p}, q={q}$)", fontsize=13)
plt.tight_layout()
fig.savefig(IMG_DIR / "eigenfunction_recovery.png", dpi=150, bbox_inches="tight")
plt.show()

fig, axes = plt.subplots(1, 3, figsize=(12, 3.5)) im0 = axes[0].imshow(np.array(psi_exact), cmap="RdBu_r", origin="lower") axes[0].set_title(r"Exact $\psi$ (eigenfunction)") plt.colorbar(im0, ax=axes[0], shrink=0.8) im1 = axes[1].imshow(np.array(psi_dst), cmap="RdBu_r", origin="lower") axes[1].set_title(r"Computed $\psi$ (DST-I)") plt.colorbar(im1, ax=axes[1], shrink=0.8) im2 = axes[2].imshow(np.array(jnp.abs(psi_dst - psi_exact)), cmap="hot_r", origin="lower") axes[2].set_title(f"Error (max = {error_dst:.1e})") plt.colorbar(im2, ax=axes[2], shrink=0.8, format="%.0e") for ax in axes: ax.set_xlabel("i") ax.set_ylabel("j") plt.suptitle(f"Eigenfunction Recovery: DST-I Poisson ($p={p}, q={q}$)", fontsize=13) plt.tight_layout() fig.savefig(IMG_DIR / "eigenfunction_recovery.png", dpi=150, bbox_inches="tight") plt.show()

The error is at machine precision ($\sim 10^{-14}$) because the solver uses the exact same eigenvector basis as the test function.

3. Neumann BCs (DCT-II): Eigenfunction Recovery¶

The DCT-II eigenfunctions are cosines defined on cell centers:

$$\phi_{p,q}(i, j) = \cos\!\left(\frac{\pi\,p\,i}{N_x}\right)\cos\!\left(\frac{\pi\,q\,j}{N_y}\right), \quad p \in [0, N_x-1],\; q \in [0, N_y-1].$$

These satisfy homogeneous Neumann conditions ($\partial_n \phi = 0$) at the half-grid boundaries.

Zero-mean gauge: When $\lambda = 0$, the $(0,0)$ mode is in the null space of the Laplacian. The solver projects it out, yielding the unique zero-mean solution. We choose $p, q > 0$ to avoid the null mode.

In [ ]:

lambda_neu = 0.0
p, q = 2, 3

# Cosine eigenfunction
psi_exact_dct = (
    jnp.cos(jnp.pi * p * II / Nx)
    * jnp.cos(jnp.pi * q * JJ / Ny)
)

# DCT-II eigenvalues (0-indexed)
eigx_dct = dct2_eigenvalues(Nx, dx)
eigy_dct = dct2_eigenvalues(Ny, dy)
eigenvalue_dct = eigx_dct[p] + eigy_dct[q]
print(f"DCT-II eigenvalue for (p={p}, q={q}): {eigenvalue_dct:.6f}")

# RHS = eigenvalue * psi_exact  (Poisson: lambda=0)
rhs_dct = eigenvalue_dct * psi_exact_dct

lambda_neu = 0.0 p, q = 2, 3 # Cosine eigenfunction psi_exact_dct = ( jnp.cos(jnp.pi * p * II / Nx) * jnp.cos(jnp.pi * q * JJ / Ny) ) # DCT-II eigenvalues (0-indexed) eigx_dct = dct2_eigenvalues(Nx, dx) eigy_dct = dct2_eigenvalues(Ny, dy) eigenvalue_dct = eigx_dct[p] + eigy_dct[q] print(f"DCT-II eigenvalue for (p={p}, q={q}): {eigenvalue_dct:.6f}") # RHS = eigenvalue * psi_exact (Poisson: lambda=0) rhs_dct = eigenvalue_dct * psi_exact_dct

In [ ]:

psi_dct = solve_poisson_dct(rhs_dct, dx, dy)
error_dct = float(jnp.max(jnp.abs(psi_dct - psi_exact_dct)))
print(f"Max error (Poisson DCT): {error_dct:.2e}")
print(f"Solution shape: {psi_dct.shape}")

psi_dct = solve_poisson_dct(rhs_dct, dx, dy) error_dct = float(jnp.max(jnp.abs(psi_dct - psi_exact_dct))) print(f"Max error (Poisson DCT): {error_dct:.2e}") print(f"Solution shape: {psi_dct.shape}")

4. Periodic BCs (FFT): Eigenfunction Recovery¶

The FFT eigenfunctions are complex exponentials $e^{2\pi i\,p\,k/N}$. For a real-valued test we use the cosine:

$$\phi_{p,q}(i, j) = \cos\!\left(\frac{2\pi\,p\,i}{N_x}\right)\cos\!\left(\frac{2\pi\,q\,j}{N_y}\right).$$

Periodic BCs wrap the domain: $\psi(0) = \psi(N)$.

In [ ]:

p, q = 2, 3

psi_exact_fft = (
    jnp.cos(2 * jnp.pi * p * II / Nx)
    * jnp.cos(2 * jnp.pi * q * JJ / Ny)
)

eigx_fft = fft_eigenvalues(Nx, dx)
eigy_fft = fft_eigenvalues(Ny, dy)
eigenvalue_fft = eigx_fft[p] + eigy_fft[q]
print(f"FFT eigenvalue for (p={p}, q={q}): {eigenvalue_fft:.6f}")

rhs_fft = eigenvalue_fft * psi_exact_fft

p, q = 2, 3 psi_exact_fft = ( jnp.cos(2 * jnp.pi * p * II / Nx) * jnp.cos(2 * jnp.pi * q * JJ / Ny) ) eigx_fft = fft_eigenvalues(Nx, dx) eigy_fft = fft_eigenvalues(Ny, dy) eigenvalue_fft = eigx_fft[p] + eigy_fft[q] print(f"FFT eigenvalue for (p={p}, q={q}): {eigenvalue_fft:.6f}") rhs_fft = eigenvalue_fft * psi_exact_fft

In [ ]:

psi_fft = solve_poisson_fft(rhs_fft, dx, dy)
error_fft = float(jnp.max(jnp.abs(psi_fft - psi_exact_fft)))
print(f"Max error (Poisson FFT): {error_fft:.2e}")
print(f"Solution shape: {psi_fft.shape}")

psi_fft = solve_poisson_fft(rhs_fft, dx, dy) error_fft = float(jnp.max(jnp.abs(psi_fft - psi_exact_fft))) print(f"Max error (Poisson FFT): {error_fft:.2e}") print(f"Solution shape: {psi_fft.shape}")

Summary of eigenfunction recovery tests¶

All three solvers recover the exact eigenfunction to machine precision, confirming that the eigenvalue formulas and transform implementations are consistent.

5. Helmholtz Equation ($\lambda \neq 0$): Screening Effect¶

When $\lambda > 0$, the equation becomes

$$(\nabla^2 - \lambda)\,\psi = f.$$

The $-\lambda\,\psi$ term acts as a screening (or damping) term: it penalizes large values of $\psi$, pulling the solution toward zero and localizing the response near the source. The effective length scale is $\ell \sim 1/\sqrt{\lambda}$.

We demonstrate this with the DST (Dirichlet) eigenfunction test, adding a nonzero $\lambda$.

In [ ]:

lambda_helm = 1.0
p, q = 2, 3

# Reuse the DST eigenfunction from Section 2
eigx = dst1_eigenvalues(Nx, dx)
eigy = dst1_eigenvalues(Ny, dy)
eigenvalue = eigx[p - 1] + eigy[q - 1]

psi_exact_helm = (
    jnp.sin(jnp.pi * p * (II + 1) / (Nx + 1))
    * jnp.sin(jnp.pi * q * (JJ + 1) / (Ny + 1))
)

# RHS = (eigenvalue - lambda) * psi_exact  for Helmholtz
rhs_helm = (eigenvalue - lambda_helm) * psi_exact_helm

lambda_helm = 1.0 p, q = 2, 3 # Reuse the DST eigenfunction from Section 2 eigx = dst1_eigenvalues(Nx, dx) eigy = dst1_eigenvalues(Ny, dy) eigenvalue = eigx[p - 1] + eigy[q - 1] psi_exact_helm = ( jnp.sin(jnp.pi * p * (II + 1) / (Nx + 1)) * jnp.sin(jnp.pi * q * (JJ + 1) / (Ny + 1)) ) # RHS = (eigenvalue - lambda) * psi_exact for Helmholtz rhs_helm = (eigenvalue - lambda_helm) * psi_exact_helm

In [ ]:

psi_helm = solve_helmholtz_dst(rhs_helm, dx, dy, lambda_=lambda_helm)
error_helm = float(jnp.max(jnp.abs(psi_helm - psi_exact_helm)))
print(f"Max error (Helmholtz DST, lambda={lambda_helm}): {error_helm:.2e}")

psi_helm = solve_helmholtz_dst(rhs_helm, dx, dy, lambda_=lambda_helm) error_helm = float(jnp.max(jnp.abs(psi_helm - psi_exact_helm))) print(f"Max error (Helmholtz DST, lambda={lambda_helm}): {error_helm:.2e}")

In [ ]:

# Compare solution magnitudes: Helmholtz screening reduces amplitude
# Solve same RHS with Poisson (lambda=0) and Helmholtz (lambda=1)
rhs_compare = eigenvalue * psi_exact_helm  # true Laplacian
psi_poisson = solve_poisson_dst(rhs_compare, dx, dy)
psi_screened = solve_helmholtz_dst(rhs_compare, dx, dy, lambda_=lambda_helm)

print(f"Poisson max |psi|:   {float(jnp.max(jnp.abs(psi_poisson))):.6f}")
print(f"Helmholtz max |psi|: {float(jnp.max(jnp.abs(psi_screened))):.6f}")
print(f"Ratio (Helmholtz/Poisson): {float(jnp.max(jnp.abs(psi_screened)) / jnp.max(jnp.abs(psi_poisson))):.4f}")

# Compare solution magnitudes: Helmholtz screening reduces amplitude # Solve same RHS with Poisson (lambda=0) and Helmholtz (lambda=1) rhs_compare = eigenvalue * psi_exact_helm # true Laplacian psi_poisson = solve_poisson_dst(rhs_compare, dx, dy) psi_screened = solve_helmholtz_dst(rhs_compare, dx, dy, lambda_=lambda_helm) print(f"Poisson max |psi|: {float(jnp.max(jnp.abs(psi_poisson))):.6f}") print(f"Helmholtz max |psi|: {float(jnp.max(jnp.abs(psi_screened))):.6f}") print(f"Ratio (Helmholtz/Poisson): {float(jnp.max(jnp.abs(psi_screened)) / jnp.max(jnp.abs(psi_poisson))):.4f}")

The Helmholtz solution is smaller because the spectral denominator changes from $\lambda_k$ to $\lambda_k - \alpha$, increasing the magnitude of the divisor and shrinking $\hat\psi_k$.

6. Visual Comparison: Gaussian Bump with Three BC Types¶

This is the key figure. We define a Gaussian bump RHS and solve with all three boundary condition types. The same source produces noticeably different solutions because the BCs determine how the field "sees" the domain boundaries.

Dirichlet:  psi pinned to 0 at edges  →  solution pulled toward zero near walls
Neumann:    no flux at edges           →  solution "pools" at boundaries
Periodic:   wraps around               →  no boundary effect, but translational symmetry

In [ ]:

# Gaussian bump centered in the domain
# sigma = Nx/8 gives a bump that is well-resolved but doesn't touch the edges
cx, cy = Nx / 2, Ny / 2
sigma = Nx / 8
rhs_gauss = jnp.exp(-((II - cx) ** 2 + (JJ - cy) ** 2) / (2 * sigma**2))

print(f"Gaussian center: ({cx}, {cy})")
print(f"Gaussian sigma: {sigma}")
print(f"RHS shape: {rhs_gauss.shape}")
print(f"RHS range: [{float(jnp.min(rhs_gauss)):.4f}, {float(jnp.max(rhs_gauss)):.4f}]")

# Solve with all three methods
psi_dir = solve_poisson_dst(rhs_gauss, dx, dy)
psi_neu = solve_poisson_dct(rhs_gauss, dx, dy)
psi_per = solve_poisson_fft(rhs_gauss, dx, dy)

print(f"\nSolution ranges:")
print(f"  Dirichlet: [{float(jnp.min(psi_dir)):.4f}, {float(jnp.max(psi_dir)):.4f}]")
print(f"  Neumann:   [{float(jnp.min(psi_neu)):.4f}, {float(jnp.max(psi_neu)):.4f}]")
print(f"  Periodic:  [{float(jnp.min(psi_per)):.4f}, {float(jnp.max(psi_per)):.4f}]")

# Gaussian bump centered in the domain # sigma = Nx/8 gives a bump that is well-resolved but doesn't touch the edges cx, cy = Nx / 2, Ny / 2 sigma = Nx / 8 rhs_gauss = jnp.exp(-((II - cx) ** 2 + (JJ - cy) ** 2) / (2 * sigma**2)) print(f"Gaussian center: ({cx}, {cy})") print(f"Gaussian sigma: {sigma}") print(f"RHS shape: {rhs_gauss.shape}") print(f"RHS range: [{float(jnp.min(rhs_gauss)):.4f}, {float(jnp.max(rhs_gauss)):.4f}]") # Solve with all three methods psi_dir = solve_poisson_dst(rhs_gauss, dx, dy) psi_neu = solve_poisson_dct(rhs_gauss, dx, dy) psi_per = solve_poisson_fft(rhs_gauss, dx, dy) print(f"\nSolution ranges:") print(f" Dirichlet: [{float(jnp.min(psi_dir)):.4f}, {float(jnp.max(psi_dir)):.4f}]") print(f" Neumann: [{float(jnp.min(psi_neu)):.4f}, {float(jnp.max(psi_neu)):.4f}]") print(f" Periodic: [{float(jnp.min(psi_per)):.4f}, {float(jnp.max(psi_per)):.4f}]")

In [ ]:

fig, axes = plt.subplots(1, 3, figsize=(15, 4))

titles = ["Dirichlet (DST-I)", "Neumann (DCT-II)", "Periodic (FFT)"]
solutions = [psi_dir, psi_neu, psi_per]

for ax, title, psi in zip(axes, titles, solutions):
    im = ax.contourf(np.array(psi), levels=32, cmap="RdBu_r")
    ax.set_title(title, fontsize=12)
    ax.set_aspect("equal")
    ax.set_xlabel("i")
    ax.set_ylabel("j")
    plt.colorbar(im, ax=ax, shrink=0.8)

fig.suptitle(r"Poisson $\nabla^2\psi = f$ with Gaussian bump RHS", fontsize=14)
plt.tight_layout()
fig.savefig(IMG_DIR / "poisson_comparison_three_bcs.png", dpi=150, bbox_inches="tight")
plt.show()

fig, axes = plt.subplots(1, 3, figsize=(15, 4)) titles = ["Dirichlet (DST-I)", "Neumann (DCT-II)", "Periodic (FFT)"] solutions = [psi_dir, psi_neu, psi_per] for ax, title, psi in zip(axes, titles, solutions): im = ax.contourf(np.array(psi), levels=32, cmap="RdBu_r") ax.set_title(title, fontsize=12) ax.set_aspect("equal") ax.set_xlabel("i") ax.set_ylabel("j") plt.colorbar(im, ax=ax, shrink=0.8) fig.suptitle(r"Poisson $\nabla^2\psi = f$ with Gaussian bump RHS", fontsize=14) plt.tight_layout() fig.savefig(IMG_DIR / "poisson_comparison_three_bcs.png", dpi=150, bbox_inches="tight") plt.show()

Observations:

• Dirichlet: The solution is forced to zero at all four edges, creating a bowl shape.
• Neumann: No-flux boundaries allow the solution to accumulate near the walls. The zero-mean constraint shifts the baseline.
• Periodic: The solution wraps smoothly from one edge to the opposite edge, with no boundary artifacts.

7. Module Classes: DirichletHelmholtzSolver2D and NeumannHelmholtzSolver2D¶

The functional API (solve_poisson_dst, etc.) is convenient for one-off solves. For repeated solves with the same grid parameters, the eqx.Module class wrappers store the configuration and provide a clean callable interface.

┌─────────────────────────────────────┐
│  DirichletHelmholtzSolver2D         │
│  ─────────────────────────────────  │
│  Fields:  dx, dy, alpha             │
│  __call__(rhs) → psi               │
│  Compatible with eqx.filter_jit    │
└─────────────────────────────────────┘

Since these are equinox.Module instances (frozen dataclasses), they are valid JAX pytrees and can be passed through jax.jit, jax.vmap, and jax.grad without special handling.

In [ ]:

# Dirichlet solver (alpha=0 → Poisson)
solver_dir = DirichletHelmholtzSolver2D(dx=dx, dy=dy, alpha=0.0)
print(f"Dirichlet solver: {solver_dir}")
print(f"  dx={solver_dir.dx}, dy={solver_dir.dy}, alpha={solver_dir.alpha}")

# Neumann solver
solver_neu = NeumannHelmholtzSolver2D(dx=dx, dy=dy, alpha=0.0)
print(f"Neumann solver: {solver_neu}")

# Dirichlet solver (alpha=0 → Poisson) solver_dir = DirichletHelmholtzSolver2D(dx=dx, dy=dy, alpha=0.0) print(f"Dirichlet solver: {solver_dir}") print(f" dx={solver_dir.dx}, dy={solver_dir.dy}, alpha={solver_dir.alpha}") # Neumann solver solver_neu = NeumannHelmholtzSolver2D(dx=dx, dy=dy, alpha=0.0) print(f"Neumann solver: {solver_neu}")

In [ ]:

# Solve with the class API
psi_class_dir = solver_dir(rhs_gauss)
psi_class_neu = solver_neu(rhs_gauss)

# Verify they match the functional API
diff_dir = float(jnp.max(jnp.abs(psi_class_dir - psi_dir)))
diff_neu = float(jnp.max(jnp.abs(psi_class_neu - psi_neu)))
print(f"Dirichlet: class vs function max diff = {diff_dir:.2e}")
print(f"Neumann:   class vs function max diff = {diff_neu:.2e}")

# Solve with the class API psi_class_dir = solver_dir(rhs_gauss) psi_class_neu = solver_neu(rhs_gauss) # Verify they match the functional API diff_dir = float(jnp.max(jnp.abs(psi_class_dir - psi_dir))) diff_neu = float(jnp.max(jnp.abs(psi_class_neu - psi_neu))) print(f"Dirichlet: class vs function max diff = {diff_dir:.2e}") print(f"Neumann: class vs function max diff = {diff_neu:.2e}")

In [ ]:

# eqx.filter_jit compiles the solver, tracing only the dynamic leaves
jit_solver = eqx.filter_jit(solver_dir)
psi_jit = jit_solver(rhs_gauss)
diff_jit = float(jnp.max(jnp.abs(psi_jit - psi_dir)))
print(f"JIT'd solver vs functional: {diff_jit:.2e}")

# eqx.filter_jit compiles the solver, tracing only the dynamic leaves jit_solver = eqx.filter_jit(solver_dir) psi_jit = jit_solver(rhs_gauss) diff_jit = float(jnp.max(jnp.abs(psi_jit - psi_dir))) print(f"JIT'd solver vs functional: {diff_jit:.2e}")

8. Batched Solves with jax.vmap¶

A powerful feature of JAX is vmap — vectorized map. Instead of looping over multiple RHS arrays, we solve them all in parallel with a single call. This is especially useful for:

• Ensemble simulations (different initial conditions)
• Multi-layer ocean models (solve each layer independently)
• Sensitivity analysis (perturbed forcings)

In [ ]:

# Create a batch of 5 Gaussian bumps with different centers
centers_x = jnp.array([16.0, 24.0, 32.0, 40.0, 48.0])
centers_y = jnp.array([32.0, 32.0, 32.0, 32.0, 32.0])

rhs_batch = jnp.stack(
    [
        jnp.exp(-((II - cx) ** 2 + (JJ - cy) ** 2) / (2 * sigma**2))
        for cx, cy in zip(centers_x, centers_y)
    ]
)
print(f"Batched RHS shape: {rhs_batch.shape}")  # (5, 64, 64)

# Create a batch of 5 Gaussian bumps with different centers centers_x = jnp.array([16.0, 24.0, 32.0, 40.0, 48.0]) centers_y = jnp.array([32.0, 32.0, 32.0, 32.0, 32.0]) rhs_batch = jnp.stack( [ jnp.exp(-((II - cx) ** 2 + (JJ - cy) ** 2) / (2 * sigma**2)) for cx, cy in zip(centers_x, centers_y) ] ) print(f"Batched RHS shape: {rhs_batch.shape}") # (5, 64, 64)

In [ ]:

# vmap over the leading (batch) dimension
# in_axes=(0, None, None, None) means: batch axis 0 for rhs, broadcast dx, dy, lambda_
batched_solve = jax.vmap(solve_helmholtz_dst, in_axes=(0, None, None, None))
psi_batch = batched_solve(rhs_batch, dx, dy, 0.0)
print(f"Batched solution shape: {psi_batch.shape}")  # (5, 64, 64)

# vmap over the leading (batch) dimension # in_axes=(0, None, None, None) means: batch axis 0 for rhs, broadcast dx, dy, lambda_ batched_solve = jax.vmap(solve_helmholtz_dst, in_axes=(0, None, None, None)) psi_batch = batched_solve(rhs_batch, dx, dy, 0.0) print(f"Batched solution shape: {psi_batch.shape}") # (5, 64, 64)

In [ ]:

# Verify each batch element matches the individual solve
print("Verification (batch vs individual):")
for k in range(5):
    psi_k = solve_helmholtz_dst(rhs_batch[k], dx, dy, 0.0)
    err = float(jnp.max(jnp.abs(psi_batch[k] - psi_k)))
    print(f"  Batch element {k} (cx={float(centers_x[k]):.0f}): max error = {err:.2e}")

# Verify each batch element matches the individual solve print("Verification (batch vs individual):") for k in range(5): psi_k = solve_helmholtz_dst(rhs_batch[k], dx, dy, 0.0) err = float(jnp.max(jnp.abs(psi_batch[k] - psi_k))) print(f" Batch element {k} (cx={float(centers_x[k]):.0f}): max error = {err:.2e}")

All errors are zero (or machine epsilon), confirming that vmap produces identical results to sequential solves, but executes them as a single vectorized operation on the accelerator.

Summary¶

Feature	Function	Class
Dirichlet (DST-I)	solve_poisson_dst / solve_helmholtz_dst	DirichletHelmholtzSolver2D
Neumann (DCT-II)	solve_poisson_dct / solve_helmholtz_dct	NeumannHelmholtzSolver2D
Periodic (FFT)	solve_poisson_fft / solve_helmholtz_fft	SpectralHelmholtzSolver2D

Key takeaways:

1. Spectral methods solve elliptic PDEs in $O(N \log N)$ time via fast transforms.
2. Boundary conditions are encoded in the choice of transform (DST / DCT / FFT) and the corresponding eigenvalue formula.
3. Helmholtz screening ($\lambda > 0$) reduces solution magnitude and localizes the response.
4. Module wrappers provide a clean OOP interface compatible with eqx.filter_jit.
5. jax.vmap enables embarrassingly parallel batch solves with no code changes.
