POD gallery¶
Ten GLM-style probability-of-detection curves, all living in plumax.population.pod. Every module follows the same interface: an equinox.Module with a __call__(Q, …) method and a sample_priors() factory. The progression goes from the simplest logistic (Q-only sigmoid) through multi-covariate additive GLMs (wind, pixel size, albedo, zenith) to varying-coefficient models (environment modulates the sigmoid slope) and alternative links (probit, cloglog).
This notebook ignores the prior-sampling side and focuses on the shapes of the deterministic curves.
import warnings
warnings.filterwarnings("ignore", message=r".*IProgress.*")
import jax.numpy as jnp
import matplotlib.pyplot as plt
from plumax.population import pod as pf
# Flux grid — log-spaced so the sigmoid transition is visible
Q = jnp.logspace(0, 5, 600)
Q_log = jnp.log10(Q)
# Default environmental conditions for multi-covariate models
U_DEFAULT = jnp.full(Q.shape, 5.0) # m/s
P_DEFAULT = jnp.full(Q.shape, 100.0) # m
ALB_DEFAULT = jnp.full(Q.shape, 0.5)
COS_DEFAULT = jnp.full(Q.shape, 0.8)
SIGMA_DEFAULT = jnp.full(Q.shape, 0.1)
NBANDS_DEFAULT = jnp.full(Q.shape, 100.0)

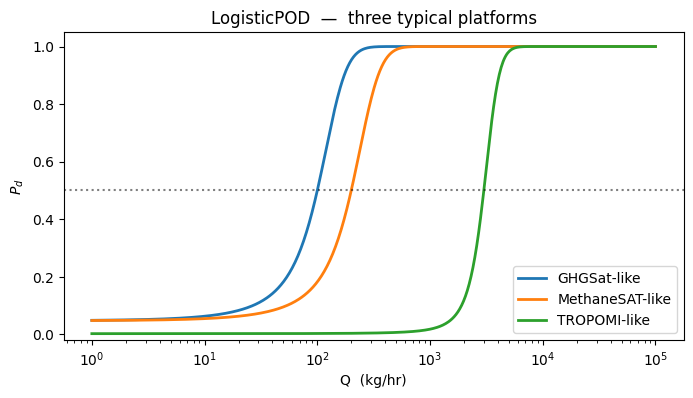

RES_DEFAULT = jnp.full(Q.shape, 2.0)1. Logistic on raw Q¶
The textbook single-covariate detection curve: . The two parameters are the flux at 50 % detection and the sigmoid steepness. Different satellites sit at wildly different — GHGSat ≈ 100, MethaneSAT ≈ 200, TROPOMI ≈ 3000 kg/hr.
fig, ax = plt.subplots(figsize=(8, 4))
for label, Q50, k in [
("GHGSat-like", 100.0, 0.03),
("MethaneSAT-like", 200.0, 0.015),
("TROPOMI-like", 3000.0, 0.002),
]:
model = pf.LogisticPOD(Q_50=Q50, k=k)
ax.semilogx(Q, model(Q), lw=2, label=label)
ax.set_xlabel("Q (kg/hr)")
ax.set_ylabel("$P_d$")
ax.set_title("LogisticPOD — three typical platforms")
ax.axhline(0.5, color="k", ls=":", alpha=0.5)
ax.legend(loc="lower right")
ax.set_ylim(-0.02, 1.05)
plt.show()

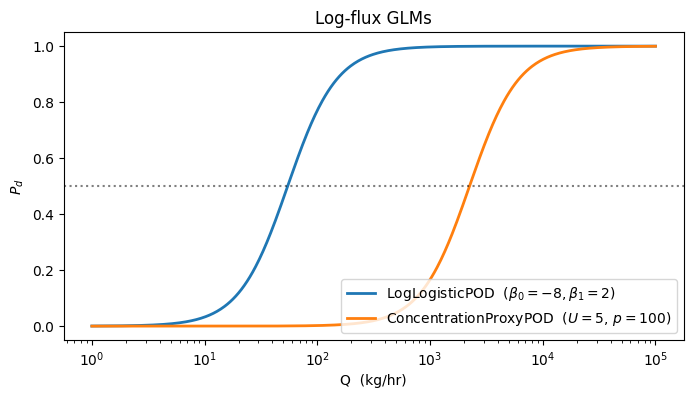

2. Log-logistic and concentration-proxy GLMs¶
The log-logistic form is what you get when you fit the POD to heavily-skewed data — it’s equivalent to a lognormal CDF shape. The concentration-proxy GLM replaces with , which is the physical column enhancement a satellite actually sees.
fig, ax = plt.subplots(figsize=(8, 4))
loglog = pf.LogLogisticPOD(beta_0=-8.0, beta_1=2.0)
ax.semilogx(Q, loglog(Q), lw=2, label="LogLogisticPOD $(\\beta_0=-8, \\beta_1=2)$")
conc = pf.ConcentrationProxyPOD(beta_0=-3.0, beta_1=2.0)
ax.semilogx(
Q,
conc(Q, U_DEFAULT, P_DEFAULT),
lw=2,
label="ConcentrationProxyPOD $(U=5,\\, p=100)$",
)
ax.set_xlabel("Q (kg/hr)")
ax.set_ylabel("$P_d$")
ax.axhline(0.5, color="k", ls=":", alpha=0.5)
ax.legend(loc="lower right")
ax.set_title("Log-flux GLMs")
plt.show()

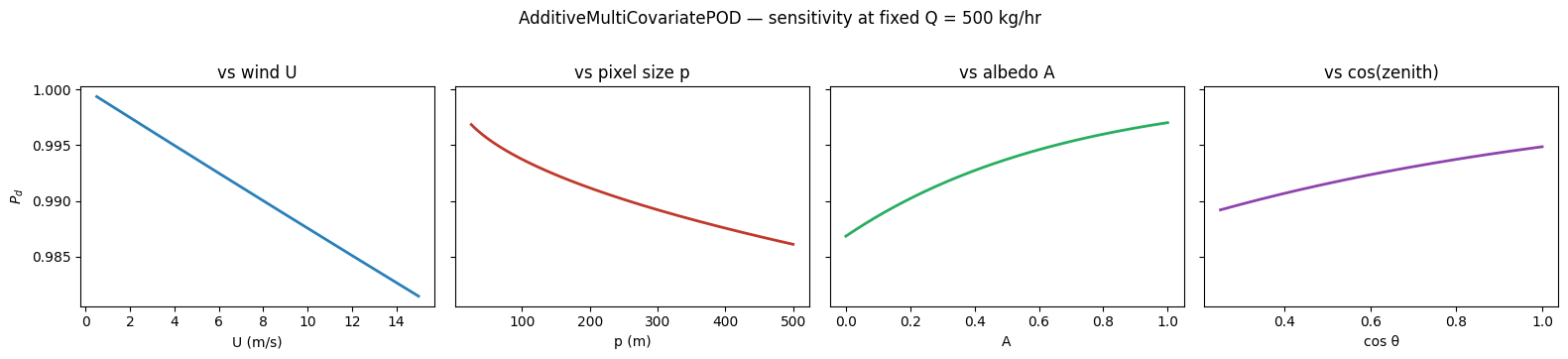

3. The effect of environmental covariates¶
For the AdditiveMultiCovariatePOD, each covariate has its own sensitivity. Holding Q fixed and sweeping one covariate at a time shows the direction and magnitude of each effect. Physical expectations: β_U < 0 (wind dilutes), β_p < 0 (pixel size dilutes), β_A > 0 (brighter surface), β_θ > 0 (higher sun).
add_model = pf.AdditiveMultiCovariatePOD(
beta_0=-5.0, beta_Q=2.0, beta_U=-1.0, beta_p=-0.5, beta_A=1.5, beta_theta=1.0
)
# Sweep each covariate while holding the others fixed, at a fixed Q = 500 kg/hr
Q_fix = jnp.full(200, 500.0)
U_sweep = jnp.linspace(0.5, 15.0, 200)
P_sweep = jnp.linspace(25.0, 500.0, 200)
A_sweep = jnp.linspace(0.0, 1.0, 200)
C_sweep = jnp.linspace(0.25, 1.0, 200)
fig, axes = plt.subplots(1, 4, figsize=(16, 3.5), sharey=True)
def with_sweep(u=None, p=None, a=None, c=None):
u_ = u if u is not None else jnp.full(200, 5.0)
p_ = p if p is not None else jnp.full(200, 100.0)
a_ = a if a is not None else jnp.full(200, 0.5)
c_ = c if c is not None else jnp.full(200, 0.8)
return add_model(Q_fix, u_, p_, a_, c_)
axes[0].plot(U_sweep, with_sweep(u=U_sweep), color="#2980b9", lw=2)
axes[0].set_title("vs wind U")
axes[0].set_xlabel("U (m/s)")
axes[0].set_ylabel("$P_d$")
axes[1].plot(P_sweep, with_sweep(p=P_sweep), color="#c0392b", lw=2)
axes[1].set_title("vs pixel size p")
axes[1].set_xlabel("p (m)")
axes[2].plot(A_sweep, with_sweep(a=A_sweep), color="#27ae60", lw=2)
axes[2].set_title("vs albedo A")
axes[2].set_xlabel("A")
axes[3].plot(C_sweep, with_sweep(c=C_sweep), color="#8e44ad", lw=2)
axes[3].set_title("vs cos(zenith)")
axes[3].set_xlabel("cos θ")
fig.suptitle("AdditiveMultiCovariatePOD — sensitivity at fixed Q = 500 kg/hr", y=1.02)
fig.tight_layout()
plt.show()

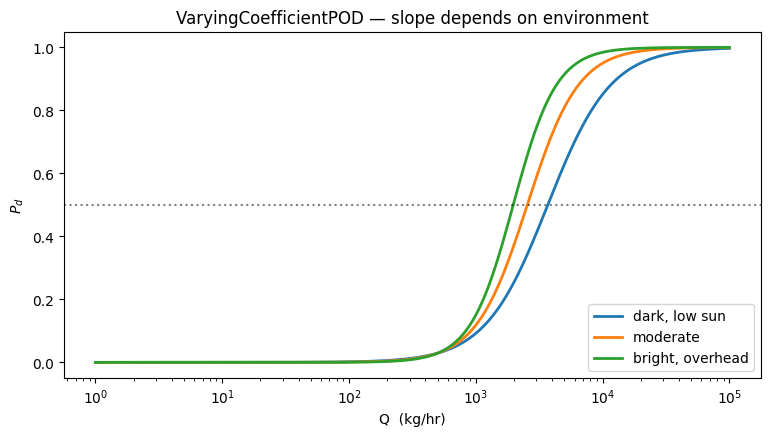

4. Varying-coefficient POD: environment modulates the slope¶
The additive model shifts the sigmoid horizontally. The varying-coefficient model makes the sigmoid steeper under favourable conditions (high albedo, overhead sun). This is the physically correct picture for a matched-filter retrieval: better radiometric conditions don’t change the threshold much, but they do sharpen the discrimination.
vc = pf.VaryingCoefficientPOD(
beta_0=-3.5, gamma_base=1.5, gamma_albedo=1.0, gamma_cos_theta=0.5
)
fig, ax = plt.subplots(figsize=(9, 4.5))
for albedo, cos_th, label in [
(0.1, 0.3, "dark, low sun"),
(0.3, 0.7, "moderate"),
(0.6, 0.9, "bright, overhead"),
]:
A = jnp.full(Q.shape, albedo)
C = jnp.full(Q.shape, cos_th)
ax.semilogx(Q, vc(Q, U_DEFAULT, P_DEFAULT, A, C), lw=2, label=label)
ax.set_xlabel("Q (kg/hr)")
ax.set_ylabel("$P_d$")
ax.set_title("VaryingCoefficientPOD — slope depends on environment")
ax.axhline(0.5, color="k", ls=":", alpha=0.5)
ax.legend(loc="lower right")
plt.show()

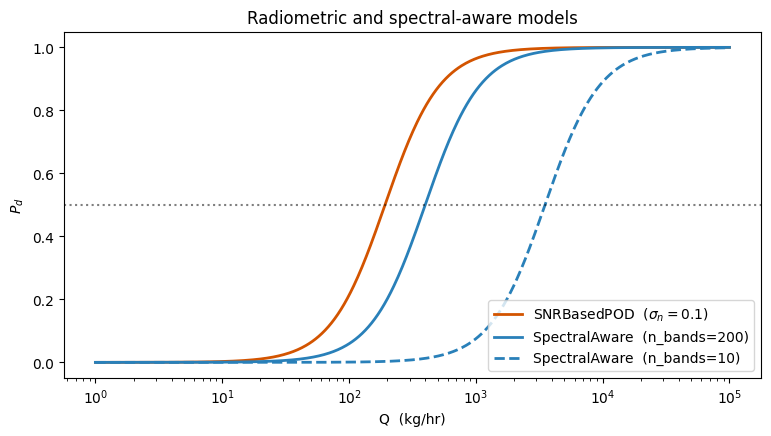

5. Radiometric (SNR) and spectral-aware GLMs¶
Two models parameterised in terms of first-principles instrument physics. SNRBasedPOD takes signal-to-noise directly as its predictor. SpectralAwarePOD adds the number of spectral channels in the CH₄ absorption window and the spectral resolution Δλ — hyperspectral instruments with more bands dominate multispectral ones at low Q.
snr = pf.SNRBasedPOD(beta_0=-2.0, beta_1=2.0)
spec_hyper = pf.SpectralAwarePOD(
beta_0=-5.0,
beta_proxy=2.0,
beta_n_bands=1.0,
beta_spectral_res=-0.5,
beta_albedo=1.0,
)
fig, ax = plt.subplots(figsize=(9, 4.5))
ax.semilogx(
Q,
snr(Q, U_DEFAULT, P_DEFAULT, ALB_DEFAULT, SIGMA_DEFAULT),
color="#d35400",
lw=2,
label="SNRBasedPOD ($\\sigma_n=0.1$)",
)
# Compare hyperspectral (n=200) vs multispectral (n=10)
ax.semilogx(
Q,
spec_hyper(
Q,
U_DEFAULT,
P_DEFAULT,
ALB_DEFAULT,
jnp.full(Q.shape, 200.0),
jnp.full(Q.shape, 2.0),
),
color="#2980b9",
lw=2,
label="SpectralAware (n_bands=200)",
)
ax.semilogx(
Q,
spec_hyper(
Q,
U_DEFAULT,
P_DEFAULT,
ALB_DEFAULT,
jnp.full(Q.shape, 10.0),
jnp.full(Q.shape, 30.0),
),
color="#2980b9",
lw=2,
ls="--",
label="SpectralAware (n_bands=10)",
)
ax.set_xlabel("Q (kg/hr)")
ax.set_ylabel("$P_d$")
ax.set_title("Radiometric and spectral-aware models")
ax.axhline(0.5, color="k", ls=":", alpha=0.5)
ax.legend(loc="lower right")
plt.show()

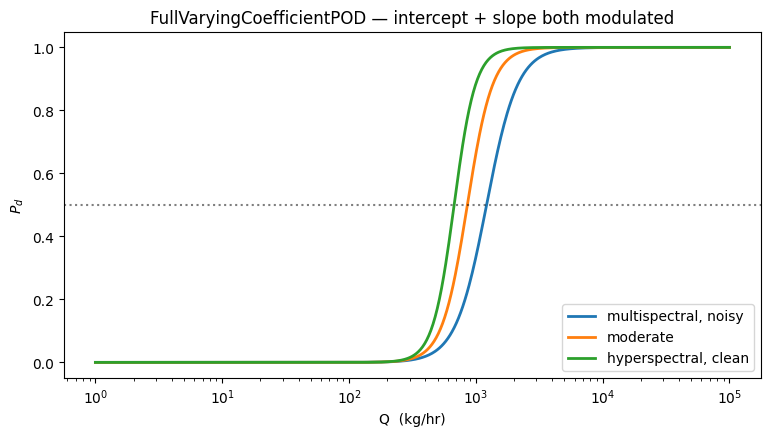

6. The “kitchen sink” full varying-coefficient model¶
Both the intercept AND the slope depend on the environment — the most expressive model in the family. Intercept responds to instrument noise (more noise → baseline goes down); slope responds to albedo, cos(zenith), and number of bands (better conditions → steeper curve).
full_vc = pf.FullVaryingCoefficientPOD(
beta_0_base=-3.5,
beta_0_noise=-0.5,
gamma_base=1.5,
gamma_albedo=1.0,
gamma_cos_theta=0.5,
gamma_n_bands=0.5,
)
fig, ax = plt.subplots(figsize=(9, 4.5))
for nbands, sigma_n, label in [
(10.0, 0.5, "multispectral, noisy"),
(50.0, 0.1, "moderate"),
(250.0, 0.02, "hyperspectral, clean"),
]:
ax.semilogx(
Q,
full_vc(
Q,
U_DEFAULT,
P_DEFAULT,
ALB_DEFAULT,
COS_DEFAULT,
jnp.full(Q.shape, nbands),
jnp.full(Q.shape, sigma_n),
),
lw=2,
label=label,
)
ax.set_xlabel("Q (kg/hr)")
ax.set_ylabel("$P_d$")
ax.set_title("FullVaryingCoefficientPOD — intercept + slope both modulated")
ax.axhline(0.5, color="k", ls=":", alpha=0.5)
ax.legend(loc="lower right")
plt.show()

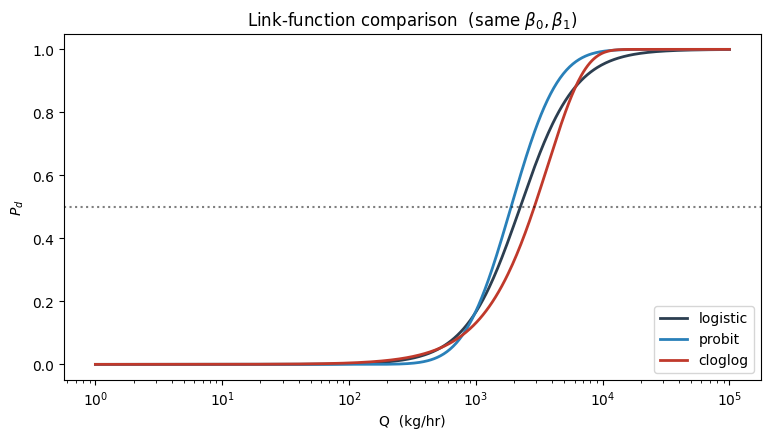

7. Alternative link functions: probit and cloglog¶
Logistic is the default but not the only choice. Probit arises when the latent detection signal is Gaussian; the curve is nearly identical to logistic but with slightly thinner tails. Cloglog is asymmetric — it approaches 1 much faster than it departs 0 — and is the natural link when detection is a “first-exceedance” event.
fig, ax = plt.subplots(figsize=(9, 4.5))
probit = pf.ProbitPOD(beta_0=-2.0, beta_1=1.5)
clog = pf.CloglogPOD(beta_0=-3.0, beta_1=1.5)
conc = pf.ConcentrationProxyPOD(beta_0=-3.0, beta_1=2.0)
ax.semilogx(Q, conc(Q, U_DEFAULT, P_DEFAULT), lw=2, label="logistic", color="#2c3e50")
ax.semilogx(Q, probit(Q, U_DEFAULT, P_DEFAULT), lw=2, label="probit", color="#2980b9")
ax.semilogx(Q, clog(Q, U_DEFAULT, P_DEFAULT), lw=2, label="cloglog", color="#c0392b")
ax.set_xlabel("Q (kg/hr)")
ax.set_ylabel("$P_d$")
ax.set_title("Link-function comparison (same $\\beta_0, \\beta_1$)")
ax.axhline(0.5, color="k", ls=":", alpha=0.5)
ax.legend(loc="lower right")
plt.show()
Registry roll-call¶
print(f"Registered POD modules: {len(pf.POD_REGISTRY)}")
for key, cls in pf.POD_REGISTRY.items():
print(f" {key:<22s} -> {cls.__name__}")Registered POD modules: 10
logistic -> LogisticPOD
log_logistic -> LogLogisticPOD
concentration_proxy -> ConcentrationProxyPOD
additive_multi -> AdditiveMultiCovariatePOD
varying_coefficient -> VaryingCoefficientPOD
snr_based -> SNRBasedPOD
spectral_aware -> SpectralAwarePOD
full_varying -> FullVaryingCoefficientPOD
probit -> ProbitPOD
cloglog -> CloglogPOD
