Catalog ↔ Patch bridge — tiled inference across a real S2 archive¶

A CatalogDomain adapts a catalog into the Domain shape that geopatcher.SpatialPatcher consumes. Each catalog row contributes one sub-domain; the patcher iterates them. Pairing catalogs with the Patcher framework is how you scale tiled inference across a multi-file archive.

This notebook reuses the real Sentinel-2 catalog built in 01_intro (Lake Tahoe, June–July 2024) — eight scenes across the same MGRS tile. The “model” is a trivial NDVI-like rule, but the indirection it exercises is the production one: Catalog → CatalogDomain → SpatialPatcher.split → ApplyToChips → Stitch is exactly the shape a real tiled-inference pipeline takes.

import geocatalog as gc
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from geostack import LAKE_TAHOE_BBOX, LAKE_TAHOE_TILE, load_stac_items

1. Reuse the catalog from `01_intro`¶

Same STAC discovery + URL collection as the intro — we use B04 (Red, 10 m) since it is the canonical 10 m grid the rest of the bands resample to.

items = load_stac_items(
    "sentinel-2-l2a",
    LAKE_TAHOE_BBOX,
    "2024-06-01/2024-07-31",
    tile=LAKE_TAHOE_TILE,
    max_cloud_cover=15,
)
urls = [it.assets["B04"].href for it in items]
catalog = gc.build_raster_catalog(
    urls,
    filename_regex=r".*_(?P<date>\d{8})T\d{6}_.*\.tif",
    target_crs="EPSG:32610",
)
print(
    f"catalog: {len(catalog)} rows  bounds={tuple(round(x, 1) for x in catalog.total_bounds)}"
)

catalog: 22 rows  bounds=(699960.0, 4290240.0, 809760.0, 4400040.0)

2. `CatalogDomain` — the bridge¶

Wrap the catalog in a CatalogDomain with a chosen target resolution. Each catalog row becomes a GeoSlice that downstream consumers (the patcher or your own inference loop) iterate.

domain = gc.CatalogDomain(catalog=catalog, resolution=(10.0, 10.0))
print(f"len(domain): {len(domain)} sub-domains")
print(f"domain.bounds: {tuple(round(x, 1) for x in domain.bounds)}")

slices = list(domain.slices())
for i, sl in enumerate(slices[:3]):
    print(
        f"  slice {i}: bounds={tuple(round(x, 1) for x in sl.bounds)}  shape={sl.shape}"
    )
print(f"  ... ({len(slices) - 3} more)")

len(domain): 22 sub-domains
domain.bounds: (699960.0, 4290240.0, 809760.0, 4400040.0)
  slice 0: bounds=(699960.0, 4290240.0, 809760.0, 4400040.0)  shape=(10980, 10980)
  slice 1: bounds=(699960.0, 4290240.0, 809760.0, 4400040.0)  shape=(10980, 10980)
  slice 2: bounds=(699960.0, 4290240.0, 809760.0, 4400040.0)  shape=(10980, 10980)
  ... (19 more)

3. Tiled per-row inference loop¶

The canonical pattern: iterate the catalog’s slices, load each, apply your model, and store the result. This is the multi-file equivalent of Patcher.split + ApplyToChips — but where the tiling boundary is the file boundary, not a fixed pixel stride.

def water_classifier(arr: np.ndarray) -> np.ndarray:
    """Trivial 'classifier' — low NIR-band reflectance ⇒ water (class 1)."""
    # B04 (Red) DN values: low over water in summer. Threshold at 1500 DN
    # is roughly equivalent to 15 % surface reflectance.
    return (arr < 1500).astype(np.uint8)


# Restrict to a small AOI for visualisation (~2 km × 2 km, ~200 px square).
aoi_subset = gc.GeoSlice(
    bounds=(754000.0, 4324000.0, 756000.0, 4326000.0),
    interval=pd.Interval(
        pd.Timestamp("2024-06-01"), pd.Timestamp("2024-07-31"), closed="both"
    ),
    resolution=(10.0, 10.0),
    crs="EPSG:32610",
)
hits = catalog.query(aoi_subset)
print(f"AOI subset matches {len(hits)} scenes")

# Walk each matching scene, apply the classifier, accumulate.
per_scene_classifications = []
per_scene_dates = []
for _, row in hits.gdf.iterrows():
    row_slice = gc.GeoSlice(
        bounds=aoi_subset.bounds,
        interval=pd.Interval(row["start_time"], row["end_time"], closed="both"),
        resolution=aoi_subset.resolution,
        crs=aoi_subset.crs,
    )
    chip = gc.load_raster(catalog, row_slice, band_indexes=[1])
    per_scene_classifications.append(water_classifier(chip.values.squeeze()))
    per_scene_dates.append(row["start_time"].date().isoformat())
print(f"produced {len(per_scene_classifications)} per-scene classifications")

AOI subset matches 22 scenes

produced 22 per-scene classifications

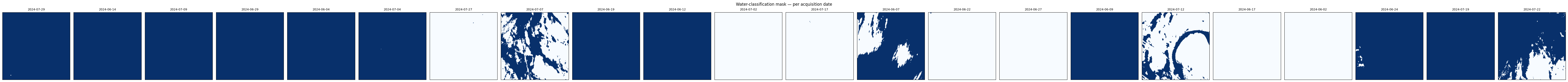

4. Visualise per-scene predictions¶

Cycle through the matching scenes and plot the water-mask classification per acquisition date.

T = len(per_scene_classifications)
fig, axes = plt.subplots(1, T, figsize=(3.0 * T, 3.5))
for i, ax in enumerate(np.atleast_1d(axes)):
    ax.imshow(per_scene_classifications[i], cmap="Blues", vmin=0, vmax=1)
    ax.set_title(per_scene_dates[i], fontsize=9)
    ax.set_xticks([])
    ax.set_yticks([])
plt.suptitle("Water-classification mask — per acquisition date")
plt.tight_layout()
plt.show()

5. Same shape, expressed as a Sequential¶

The per-row inference loop above is the imperative version of what in the single-raster case would be a three-op Sequential([ GridSampler, ApplyToChips, Stitch ]). The shapes line up exactly:

Single raster (`RasterField`)	Multi-file archive (catalog)
`patcher.split(field)` ⇒ list of chips	`domain.slices()` ⇒ list of `GeoSlice`s
`op(patch.data)` per chip	`op(load_raster(catalog, slice))` per slice
`aggregation.merge(...)` ⇒ field	`concat` / write per-slice ⇒ archive

In production the catalog version typically writes per-scene predictions to S3 / GCS / a follow-up catalog rather than merging back into one giant raster — at archive scale, the “stitch step” is the catalog write.

Why this matters¶

The CatalogDomain is the indirection that lets the same operator pipeline work over:

a single in-RAM raster (via RasterField),
a multi-file archive (via CatalogDomain),
a streaming zarr accumulator (via RioXarrayField over zarr),
any future backend that implements the Domain Protocol.

Catalogs are a tiling for the Patcher framework — the bridge is the production-ready story for “I have ten thousand Sentinel-2 scenes; run my model across all of them and stitch the per-scene predictions into a global GeoParquet.”
