Multi-gas absorption LUT

Multi-gas absorption LUT — CH₄, CO₂, H₂O¶

This notebook exercises the multi-gas orchestration layer in plume_simulation.hapi_lut.multi. Two patterns are covered:

Separate-per-gas LUTs — one NetCDF per species, each on its own natural spectral range. Used when downstream tools want the widest possible window for each gas individually.
Combined LUT — a single NetCDF with one cross-section variable per gas on the shared spectral range. Used when several gases are retrieved jointly within the same instrument band (e.g. CH₄ + H₂O interference correction in a TROPOMI SWIR fit).

The math is identical to the single-gas case from CH4 absorption cross-section LUT; here we just loop over GasConfig entries.

import warnings
from pathlib import Path

warnings.filterwarnings("ignore")

import matplotlib.pyplot as plt
import numpy as np
import xarray as xr

from plume_simulation.hapi_lut import (
    ATMOSPHERIC_GASES,
    GasConfig,
    LUTGridConfig,
    create_combined_lut,
    create_multi_gas_luts,
)

REPO_ROOT = Path.cwd()
while not (REPO_ROOT / "pixi.toml").exists() and REPO_ROOT != REPO_ROOT.parent:
    REPO_ROOT = REPO_ROOT.parent
DATA_ROOT = REPO_ROOT / "projects" / "plume_simulation" / "data"
CACHE_DIR = DATA_ROOT / "hitran_cache"
LUT_DIR = DATA_ROOT / "hapi_lut"

1. Separate-per-gas LUTs on a common small window¶

We narrow the three gases to a shared 500-cm⁻¹ methane window (4000–4500 cm⁻¹) for runtime — the registry defaults would have H₂O fetch 21 000 cm⁻¹ of lines, which is overkill for a tutorial.

def narrow(gas: GasConfig, nu_min: float, nu_max: float) -> GasConfig:
    """Return a copy of ``gas`` with the spectral range restricted."""
    return GasConfig(
        name=gas.name,
        molecule_id=gas.molecule_id,
        isotopologue_id=gas.isotopologue_id,
        nu_min=nu_min,
        nu_max=nu_max,
        description=gas.description,
    )


NU_MIN, NU_MAX = 4000.0, 4500.0
gas_configs = {
    name: narrow(ATMOSPHERIC_GASES[name], NU_MIN, NU_MAX)
    for name in ["CH4", "CO2", "H2O"]
}
for g in gas_configs.values():
    print(g)

grid = LUTGridConfig(
    T_grid=np.array([220.0, 260.0, 300.0]),
    P_grid=np.array([0.3, 0.6, 1.0]),
    nu_step=0.05,
)

GasConfig(CH4, M6, I1)
GasConfig(CO2, M2, I1)
GasConfig(H2O, M1, I1)

create_multi_gas_luts runs the fetch → compute → wrap → save pipeline from notebook 01 in a loop. Gases whose NetCDF already exists are skipped (pass force_recompute=True to override).

Note: we monkey-patch the registry with the narrowed configs below since create_multi_gas_luts looks up names in ATMOSPHERIC_GASES. In production code you’d subclass or rebuild the registry.

# Temporarily swap the registry entries — simpler than forking the whole orchestration for a demo.
_original = {k: ATMOSPHERIC_GASES[k] for k in gas_configs}
ATMOSPHERIC_GASES.update(gas_configs)
try:
    lut_files = create_multi_gas_luts(
        list(gas_configs),
        grid_config=grid,
        cache_dir=CACHE_DIR,
        output_dir=LUT_DIR,
        force_recompute=True,
    )
finally:
    ATMOSPHERIC_GASES.update(_original)

for name, path in lut_files.items():
    size_mb = path.stat().st_size / 1e6
    print(f"  {name}: {path.name}  ({size_mb:.2f} MB)")

HAPI version: 1.3.0.0
To get the most up-to-date version please check http://hitran.org/hapi
ATTENTION: Python versions of partition sums from TIPS-2021 are now available in HAPI code

           MIT license: Copyright 2021 HITRAN team, see more at http://hitran.org.

           If you use HAPI in your research or software development,
           please cite it using the following reference:
           R.V. Kochanov, I.E. Gordon, L.S. Rothman, P. Wcislo, C. Hill, J.S. Wilzewski,
           HITRAN Application Programming Interface (HAPI): A comprehensive approach
           to working with spectroscopic data, J. Quant. Spectrosc. Radiat. Transfer 177, 15-30 (2016)
           DOI: 10.1016/j.jqsrt.2016.03.005

           ATTENTION: This is the core version of the HITRAN Application Programming Interface.
                      For more efficient implementation of the absorption coefficient routine,
                      as well as for new profiles, parameters and other functional,
                      please consider using HAPI2 extension library.
                      HAPI2 package is available at http://github.com/hitranonline/hapi2

Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100

Data is fetched from http://hitran.org

BEGIN DOWNLOAD: CH4
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
Header written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.header
END DOWNLOAD

                     Lines parsed: 39817
PROCESSED
Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100

{'air': 0.999998, 'self': 2e-06}

25.848456 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

25.430712 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

25.854012 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

25.044822 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

25.627882 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

25.269663 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

24.798987 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

24.824414 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

25.022691 seconds elapsed for abscoef; nlines = 39817
Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100

Data is fetched from http://hitran.org

BEGIN DOWNLOAD: CO2
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.data
Header written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.header
END DOWNLOAD
                     Lines parsed: 1652
PROCESSED
Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100
{'air': 0.9996, 'self': 0.0004}

1.334739 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.089499 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

0.841474 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.318571 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.234948 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

0.797157 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.213926 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.203506 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

0.903269 seconds elapsed for abscoef; nlines = 1652
Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100

Data is fetched from http://hitran.org

BEGIN DOWNLOAD: H2O
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
Header written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.header
END DOWNLOAD
                     Lines parsed: 4100
PROCESSED
Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100
{'air': 0.99, 'self': 0.01}

3.133083 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

3.114488 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

2.673394 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

3.109240 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

3.036869 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

2.925854 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

2.919158 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

2.902493 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

2.924663 seconds elapsed for abscoef; nlines = 4100
  CH4: ch4_absorption_lut.nc  (0.47 MB)
  CO2: co2_absorption_lut.nc  (0.44 MB)
  H2O: h2o_absorption_lut.nc  (0.48 MB)

1a. Overlay the three gases on the same axis¶

At $T = 260$ K, $p = 0.6$ atm, the three cross-sections have dramatically different magnitudes and structures. Water vapour dominates between the CH₄ and CO₂ band heads — this is exactly why operational SWIR retrievals co-retrieve H₂O as a nuisance parameter.

fig, ax = plt.subplots(1, 1, figsize=(11, 4))
colors = {"CH4": "C0", "CO2": "C3", "H2O": "C2"}
for name, path in lut_files.items():
    with xr.open_dataset(path) as ds:
        sigma = ds["absorption_cross_section"].sel(temperature=260.0, pressure=0.6)
        ax.plot(ds["wavenumber"], sigma, lw=0.5, color=colors[name], label=name, alpha=0.8)
ax.set_yscale("log")
ax.set_ylim(1e-30, 1e-18)
ax.set_xlabel(r"Wavenumber $\nu$ [cm$^{-1}$]")
ax.set_ylabel(r"$\sigma$ [cm$^2$/molecule]")
ax.set_title(r"Three-gas cross-sections at $T=260$ K, $p=0.6$ atm (4000–4500 cm$^{-1}$)")
ax.legend()
ax.grid(alpha=0.3)
plt.tight_layout()
plt.show()

2. Combined LUT — single file, one variable per gas¶

create_combined_lut collapses the above into one NetCDF with variables CH4_cross_section, CO2_cross_section, H2O_cross_section on a shared (wavenumber, temperature, pressure) grid. The shared wavenumber axis is the intersection of the per-gas ranges — in our case the full 4000–4500 cm⁻¹ window since we narrowed all three gases to it.

ATMOSPHERIC_GASES.update(gas_configs)
try:
    combined_path = create_combined_lut(
        list(gas_configs),
        grid_config=grid,
        cache_dir=CACHE_DIR,
        output_dir=LUT_DIR,
        filename="swir_combined_lut.nc",
    )
finally:
    ATMOSPHERIC_GASES.update(_original)

with xr.open_dataset(combined_path) as combined:
    print(combined)

Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100

Data is fetched from http://hitran.org

BEGIN DOWNLOAD: CH4
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.data
Header written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CH4.header
END DOWNLOAD

                     Lines parsed: 39817
PROCESSED
Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100

{'air': 0.999998, 'self': 2e-06}

25.302458 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

25.734518 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

26.009973 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

25.054501 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

25.312044 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

26.788269 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

26.238799 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

26.008545 seconds elapsed for abscoef; nlines = 39817

{'air': 0.999998, 'self': 2e-06}

26.979328 seconds elapsed for abscoef; nlines = 39817
Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100

Data is fetched from http://hitran.org

BEGIN DOWNLOAD: CO2
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.data
Header written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/CO2.header
END DOWNLOAD
                     Lines parsed: 1652
PROCESSED
Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100
{'air': 0.9996, 'self': 0.0004}

1.451434 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.060000 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

0.867284 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.268523 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.187911 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

0.867043 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.300274 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.386409 seconds elapsed for abscoef; nlines = 1652
{'air': 0.9996, 'self': 0.0004}

1.018416 seconds elapsed for abscoef; nlines = 1652
Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100

Data is fetched from http://hitran.org

BEGIN DOWNLOAD: H2O
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
  65536 bytes written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.data
Header written to /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache/H2O.header
END DOWNLOAD
                     Lines parsed: 4100
PROCESSED
Using /home/azureuser/localfiles/research_notebook/projects/plume_simulation/data/hitran_cache

CO2
                     Lines parsed: 1652
CH4

                     Lines parsed: 39817
H2O
                     Lines parsed: 4100
{'air': 0.99, 'self': 0.01}

3.079535 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

3.192400 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

2.634193 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

3.135157 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

3.219840 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

2.977037 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

3.220364 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

3.426458 seconds elapsed for abscoef; nlines = 4100
{'air': 0.99, 'self': 0.01}

3.456499 seconds elapsed for abscoef; nlines = 4100
<xarray.Dataset> Size: 1MB
Dimensions:            (wavenumber: 10000, temperature: 3, pressure: 3)
Coordinates:
  * wavenumber         (wavenumber) float64 80kB 4e+03 4e+03 ... 4.5e+03 4.5e+03
    wavelength         (wavenumber) float64 80kB ...
  * temperature        (temperature) float64 24B 220.0 260.0 300.0
  * pressure           (pressure) float64 24B 0.3 0.6 1.0
Data variables:
    CH4_cross_section  (wavenumber, temperature, pressure) float32 360kB ...
    CO2_cross_section  (wavenumber, temperature, pressure) float32 360kB ...
    H2O_cross_section  (wavenumber, temperature, pressure) float32 360kB ...
Attributes:
    title:        Combined Atmospheric Absorption LUT
    gases:        CH4, CO2, H2O
    line_shape:   Voigt profile
    conventions:  CF-1.8

2a. Effective opacity by gas¶

A useful diagnostic: weight each cross-section by a typical column density of the gas ( $N_{\mathrm{gas}} = \mathrm{VMR} \cdot N_{\mathrm{air}}$ ) to see which gas actually dominates the optical depth at a representative atmospheric state.

We use Loschmidt’s number at the surface ( $N_0 = 2.69 \times 10^{19}$ molecules/cm³) scaled to $T = 260$ K, $p = 0.6$ atm, and the dry-air VMRs from our config.

from plume_simulation.hapi_lut.beers import number_density

N_total = number_density(p_atm=0.6, T_K=260.0)
vmrs = {"CH4": 2e-6, "CO2": 400e-6, "H2O": 1e-2}

fig, ax = plt.subplots(1, 1, figsize=(11, 4))
with xr.open_dataset(combined_path) as combined:
    for name, vmr in vmrs.items():
        sigma = combined[f"{name}_cross_section"].sel(temperature=260.0, pressure=0.6)
        alpha = sigma * (N_total * vmr)  # [1/cm]
        ax.plot(
            combined["wavenumber"], alpha, lw=0.5, color=colors[name],
            label=f"{name} (VMR = {vmr:.0e})", alpha=0.85,
        )

ax.set_yscale("log")
ax.set_ylim(1e-12, 1e-3)
ax.set_xlabel(r"Wavenumber $\nu$ [cm$^{-1}$]")
ax.set_ylabel(r"$\alpha = \sigma \cdot N_{\mathrm{gas}}$ [1/cm]")
ax.set_title(r"Column-weighted absorption coefficient (T = 260 K, p = 0.6 atm)")
ax.legend()
ax.grid(alpha=0.3)
plt.tight_layout()
plt.show()

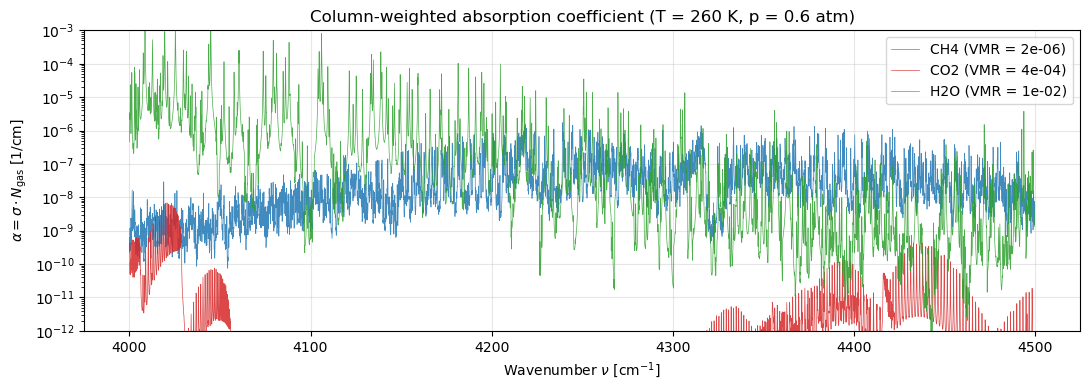

Reading the plot. Even though CH₄ has 200× larger σ than CO₂ at its peaks, CO₂’s 200× higher VMR closes most of the gap. H₂O’s ~10% VMR swamps both at many wavenumbers — any methane retrieval in this window has to simultaneously fit a water-vapour column to avoid biased $\varepsilon$ .

This is the interference-corrected retrieval picture: the matched filter in Differential Beer-Lambert plume retrieval from the LUT deals only with CH₄ for clarity, but the LUT infrastructure is already set up to handle the joint fit.

3. Summary¶

create_multi_gas_luts = one NetCDF per species, useful for independently-retrieved gases.
create_combined_lut = one NetCDF, one variable per species, useful for joint fits in a shared band.
Column-weighted $\alpha(\nu) = \sigma(\nu) \cdot N_{\mathrm{gas}}$ shows which gas actually drives optical depth at representative VMRs — the right diagnostic for planning which species to include in a joint retrieval.
