Solver Comparison

This page compares finitevolX's elliptic solvers on the problem they all solve — the streamfunction Helmholtz equation on the C-grid,

\[ (\nabla^2 - \lambda)\,\psi = f \ \text{ on the wet X points}, \qquad \psi = 0 \ \text{ on the wall / coast X nodes}, \]

(see the wall table) — with measured numbers: build time, solve time, gradient time, iteration counts, memory and error against a sparse direct solve.

Reproducing these numbers

Every number and figure on this page comes from scripts/generate_solver_figures.py:

uv run python scripts/generate_solver_figures.py

Hardware: a 2-vCPU cloud VM, XLA:CPU, float64, JAX 0.10.1, shared with other jobs while it ran. Iteration counts and errors are deterministic; timings are the minimum over 7 jitted calls (3 for gradients; builds: minimum of 2, multigrid builds minimum of 7 in a later run after a build-speed fix) and still vary by tens of percent between runs. Compare orders of magnitude and ratios, not the third digit. On a GPU the balance shifts towards the FFT-based and matrix-free methods.

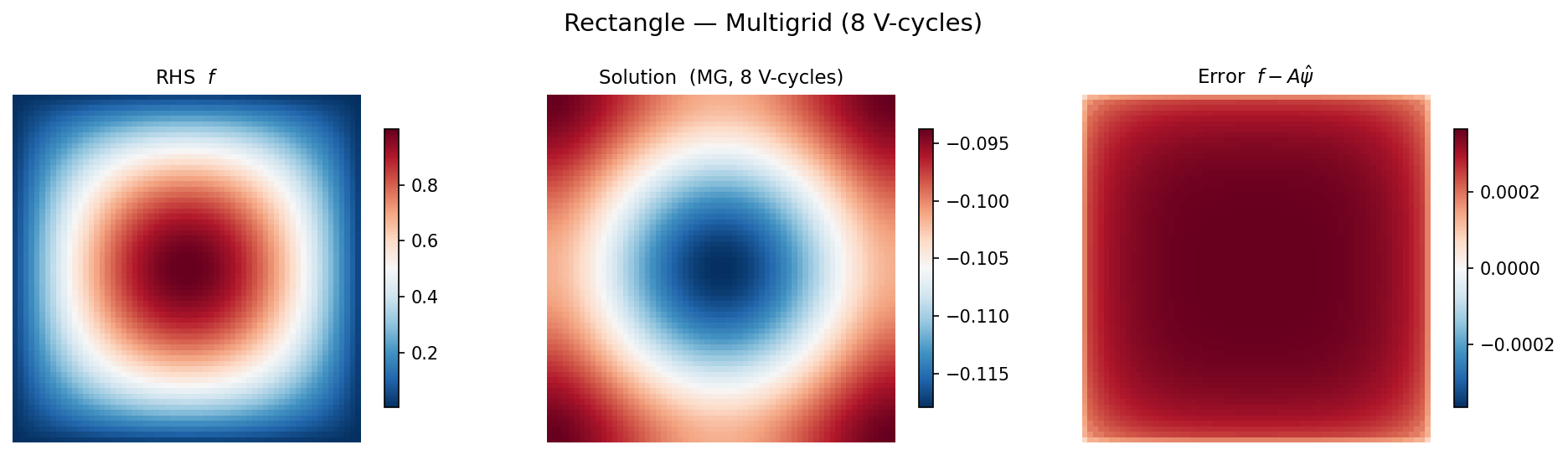

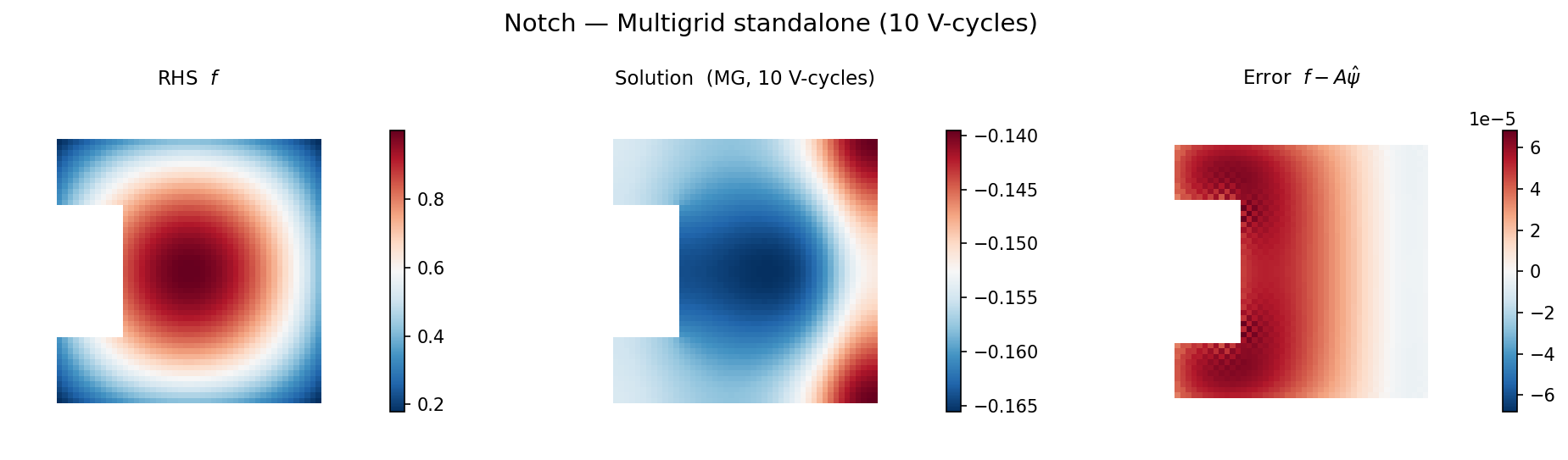

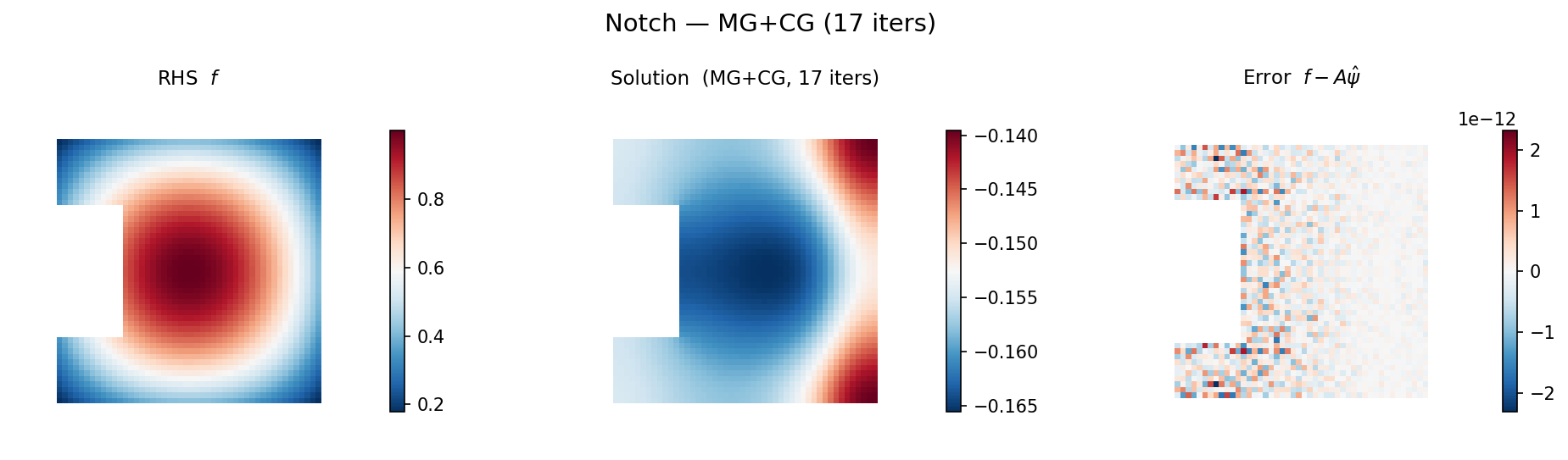

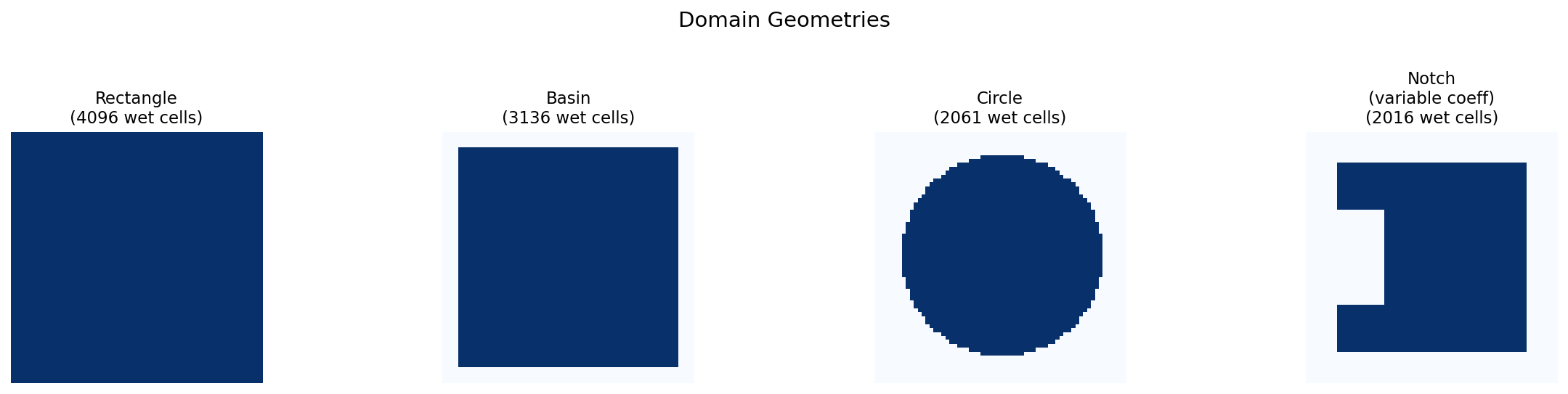

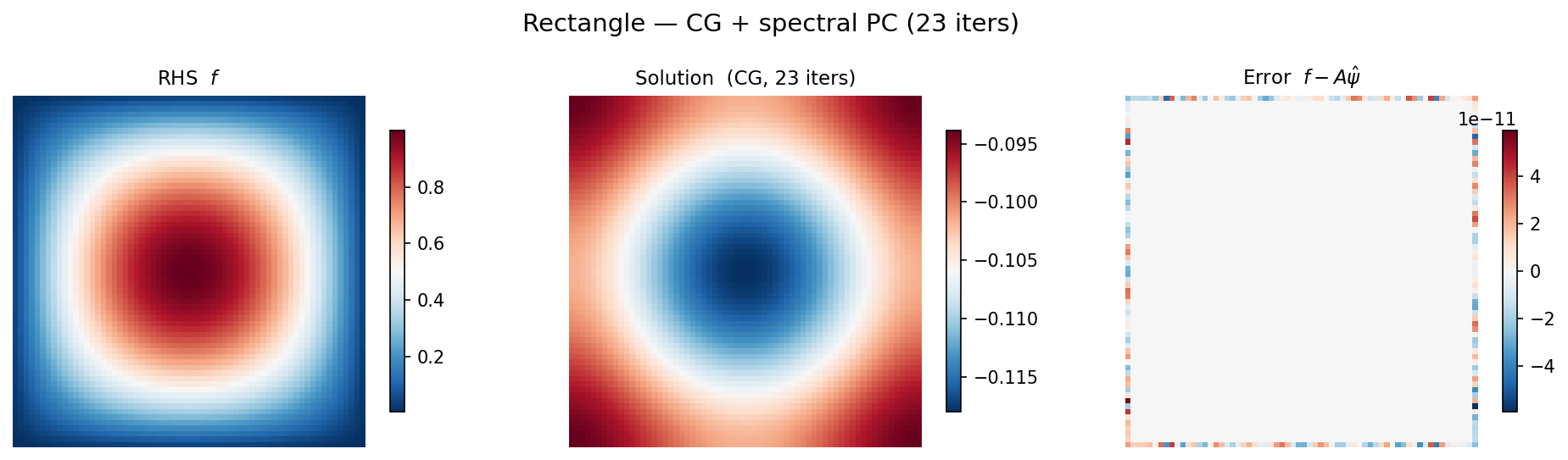

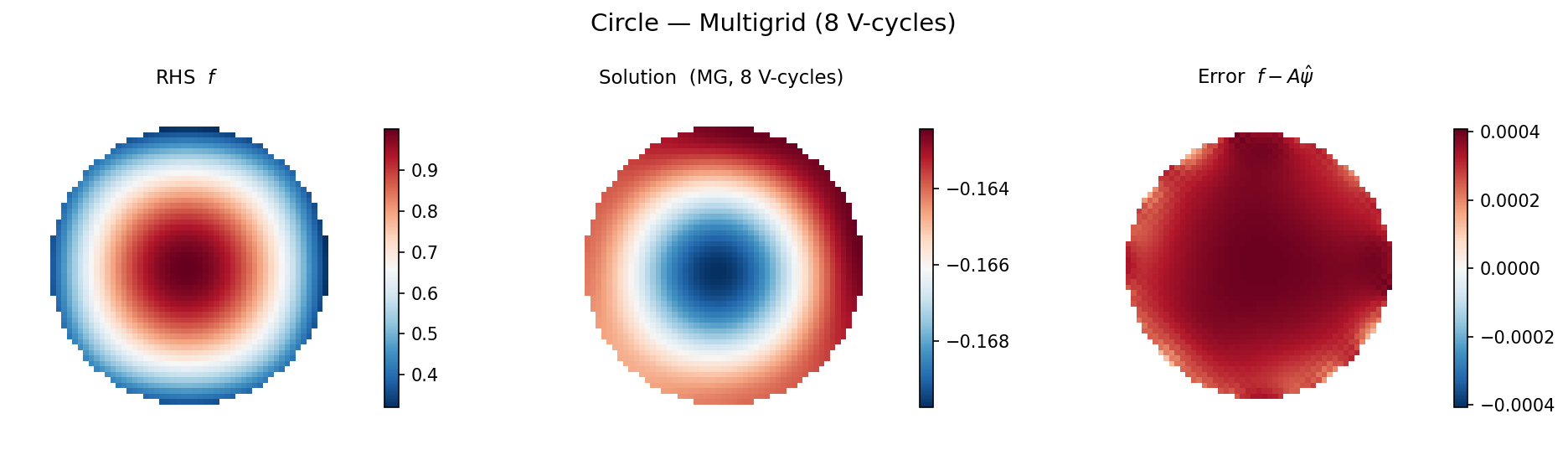

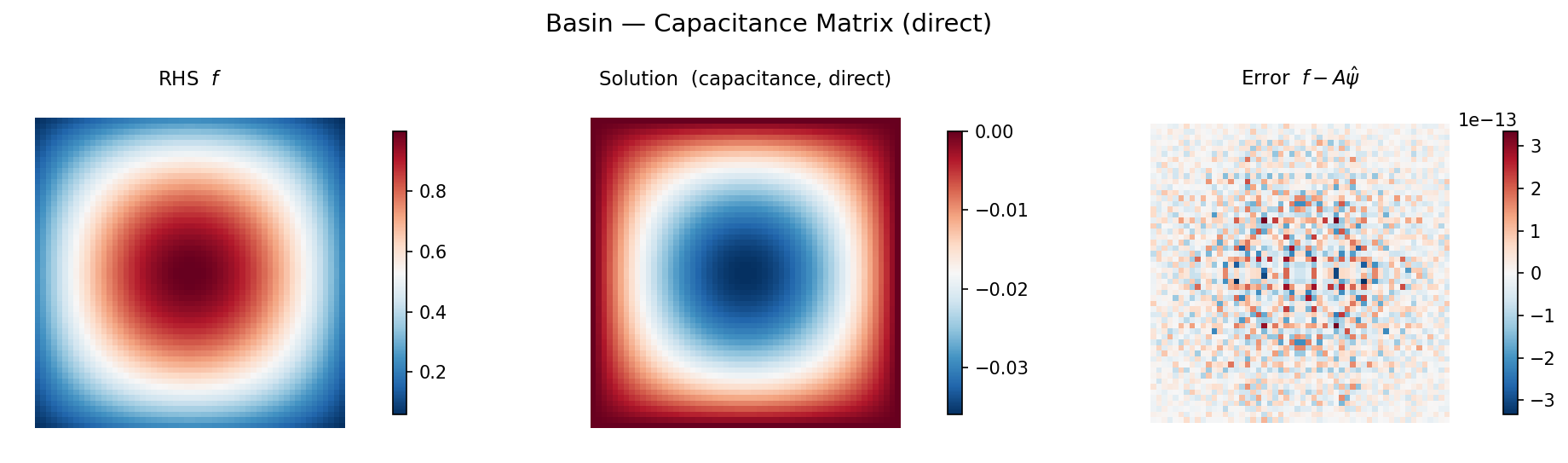

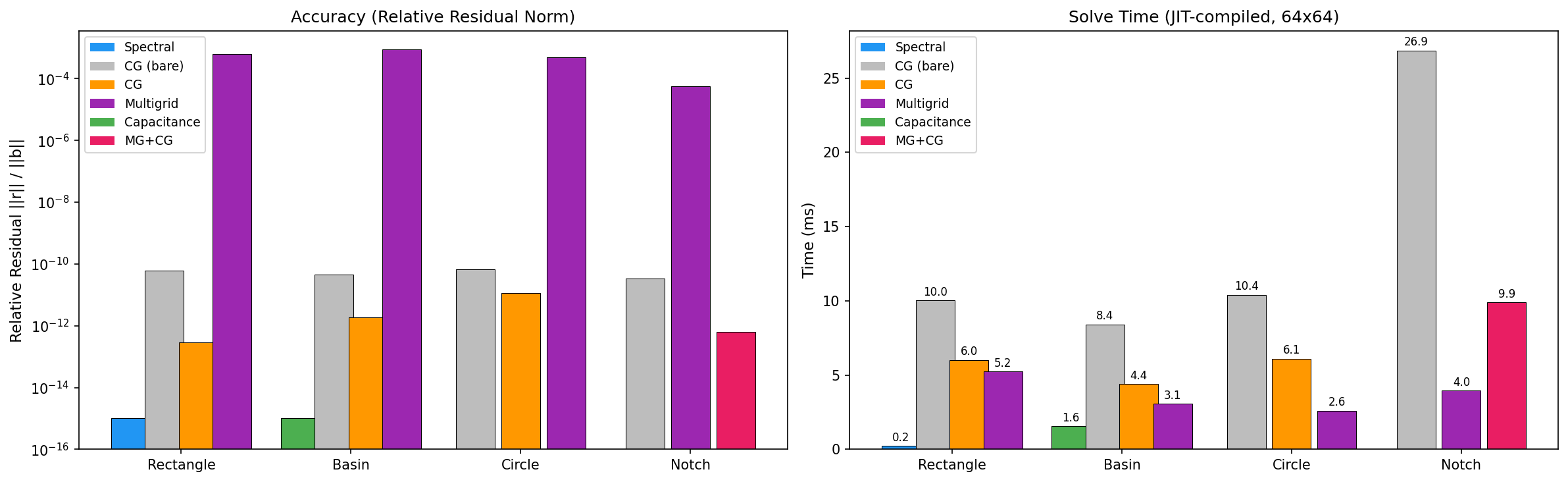

For a visual walk-through of the solvers on four geometries (including a variable-coefficient one), see the Elliptic Solvers notebook.

Setup

psi domains
Domains the unit square (CartesianGrid2D.from_interior(N, N, 1, 1)); a rectangle, and a circular basin of radius 0.45 with a disc island of radius 0.1, both as Mask2D from a T-point ocean mask; ψ uses mask.xy_corner_strict
Sizes \(N = 128\) and \(256\) interior cells per side (arrays \((N+2)^2\); 16 129 / 65 025 wet ψ nodes on the rectangle, 9 635 / 39 063 in the island basin; 508 / 1 020 and 399 / 795 coast nodes)
λ 4 (screened, \(R_d = 0.5\)) and 0 (Poisson)
RHS \(f = \sin 3\pi x \cos 2\pi y + e^{-[(x-0.3)^2 + (y-0.7)^2]/0.01}\) on the wet nodes
Reference SciPy sparse LU (SuperLU) of the 5-point matrix on the wet nodes — the matrix of masked_laplacian; its residual is checked to round-off
Error \(\max\lvert\psi - \psi_{\text{LU}}\rvert / \max\lvert\psi_{\text{LU}}\rvert\)
CG tolerance rtol = 1e-8, atol = 1e-8 max|f|, i.e. \(\max\lvert f - A\psi\rvert \le 2\times10^{-8} \max\lvert f\rvert\)

The methods:

Row Call
spectral DST streamfunction_from_vorticity(f, dx, dy, bc="dst", lambda_=λ) (rectangle only)
capacitance build_capacitance_solver(mask, dx, dy, lambda_=λ) (DST base), then solver(f)
CG + DST / FFT solve_cg(masked_laplacian, f, preconditioner=make_spectral_preconditioner(dx, dy, λ, bc=...))
CG + multigrid the same with make_multigrid_preconditioner(build_multigrid_solver(mask, dx, dy, lambda_=λ))
CG (none) no preconditioner
multigrid (5 V / 8 V) the multigrid solver on its own, 5 V-cycles (the default) or 8
sparse LU (SciPy) the reference; NumPy on the CPU — no jit, vmap or grad

The columns: build is the one-off construction (NumPy / SciPy, not jitted); solve is one jitted solve; grad is one jitted jax.grad of \(\tfrac12\sum\psi^2\) with respect to \(f\) (forward plus adjoint solve); precomputed is the memory of the arrays the built solver holds (for sparse LU, the factors).

Results

λ = 4

Solve time and error, lambda = 4

domain N method build (ms) solve (ms) grad (ms) iterations precomputed max error
rectangle 128² sparse LU (SciPy) 52.2 1.62 — direct 14 MiB 0.0e+00
rectangle 128² spectral DST — 0.493 1.3 direct — 2.9e-14
rectangle 128² capacitance 2,044 5.39 11 direct 2.3 MiB 2.9e-14
rectangle 128² CG + DST — 41.4 70 15 it — 8.3e-12
rectangle 128² CG + FFT — 26 44.4 31 it — 1.9e-11
rectangle 128² CG + multigrid 20.4 5.02 12.9 5 it 1.6 MiB 4.4e-10
rectangle 128² CG (none) — 128 234 365 it — 5.8e-10
rectangle 128² multigrid (5 V) 20.4 2.65 6.22 5 V 1.6 MiB 2.1e-07
rectangle 128² multigrid (8 V) 20.4 3.91 8.3 8 V 1.6 MiB 3.6e-11
rectangle 256² sparse LU (SciPy) 322 11.7 — direct 72 MiB 0.0e+00
rectangle 256² spectral DST — 2.92 6.18 direct — 8.9e-14
rectangle 256² capacitance 5,326 13.4 27.2 direct 9.1 MiB 8.9e-14
rectangle 256² CG + DST — 76.2 137 15 it — 2.9e-12
rectangle 256² CG + FFT — 204 367 47 it — 3.9e-12
rectangle 256² CG + multigrid 57.6 29 55 5 it 6.1 MiB 3.7e-10
rectangle 256² CG (none) — 1,037 1,988 748 it — 3.3e-10
rectangle 256² multigrid (5 V) 57.6 17 36 5 V 6.1 MiB 2.0e-07
rectangle 256² multigrid (8 V) 57.6 28.8 57 8 V 6.1 MiB 3.3e-11
island 128² sparse LU (SciPy) 27.4 0.935 — direct 7.1 MiB 0.0e+00
island 128² capacitance 1,917 6.8 9.91 direct 1.5 MiB 7.4e-15
island 128² CG + DST — 91.2 158 35 it — 3.0e-11
island 128² CG + FFT — 32.7 59.2 41 it — 3.3e-11
island 128² CG + multigrid 20.9 7.77 14 7 it 1.6 MiB 1.6e-11
island 128² CG (none) — 116 249 339 it — 1.0e-09
island 128² multigrid (5 V) 20.9 2.81 4.73 5 V 1.6 MiB 4.1e-05
island 128² multigrid (8 V) 20.9 3.72 8.54 8 V 1.6 MiB 1.1e-07
island 256² sparse LU (SciPy) 181 6.89 — direct 41 MiB 0.0e+00
island 256² capacitance 4,174 12 22.2 direct 5.8 MiB 3.2e-14
island 256² CG + DST — 218 421 47 it — 1.7e-11
island 256² CG + FFT — 247 420 56 it — 1.7e-11
island 256² CG + multigrid 47.6 36.9 76 7 it 6.1 MiB 1.5e-10
island 256² CG (none) — 961 1,772 695 it — 5.4e-10
island 256² multigrid (5 V) 47.6 17.8 35.4 5 V 6.1 MiB 1.1e-04
island 256² multigrid (8 V) 47.6 27.2 54.1 8 V 6.1 MiB 5.9e-07

λ = 0 (Poisson)

Solve time and error, lambda = 0

domain N method build (ms) solve (ms) grad (ms) iterations precomputed max error
rectangle 128² sparse LU (SciPy) 47.3 1.69 — direct 14 MiB 0.0e+00
rectangle 128² spectral DST — 0.488 1.32 direct — 8.2e-15
rectangle 128² capacitance 2,133 5.27 10.9 direct 2.3 MiB 8.3e-15
rectangle 128² CG + DST — 40.4 72.3 15 it — 8.4e-12
rectangle 128² CG + FFT — 33.5 60.9 41 it — 1.7e-11
rectangle 128² CG + multigrid 21.1 5.11 10.9 5 it 1.6 MiB 5.0e-10
rectangle 128² CG (none) — 134 238 373 it — 5.7e-10
rectangle 128² multigrid (5 V) 21.1 2.47 5.31 5 V 1.6 MiB 2.7e-07
rectangle 128² multigrid (8 V) 21.1 3.68 9.69 8 V 1.6 MiB 5.0e-11
rectangle 256² sparse LU (SciPy) 334 13 — direct 72 MiB 0.0e+00
rectangle 256² spectral DST — 2.91 5.91 direct — 1.6e-14
rectangle 256² capacitance 5,240 14.8 26.3 direct 9.1 MiB 1.6e-14
rectangle 256² CG + DST — 75.3 135 15 it — 3.0e-12
rectangle 256² CG + FFT — 274 503 63 it — 4.3e-12
rectangle 256² CG + multigrid 56.7 29.4 54.3 5 it 6.1 MiB 4.5e-10
rectangle 256² CG (none) — 1,065 1,988 762 it — 3.8e-10
rectangle 256² multigrid (5 V) 56.7 16.5 33.3 5 V 6.1 MiB 2.6e-07
rectangle 256² multigrid (8 V) 56.7 27.9 41 8 V 6.1 MiB 4.7e-11
island 128² sparse LU (SciPy) 26.9 1.01 — direct 7.1 MiB 0.0e+00
island 128² capacitance 1,895 4.63 9.94 direct 1.5 MiB 1.6e-14
island 128² CG + DST — 90.3 157 35 it — 3.6e-11
island 128² CG + FFT — 32.7 58.6 39 it — 4.7e-11
island 128² CG + multigrid 20.8 6.7 13.1 7 it 1.6 MiB 2.5e-11
island 128² CG (none) — 120 214 343 it — 1.1e-09
island 128² multigrid (5 V) 20.8 2.42 4.95 5 V 1.6 MiB 5.5e-05
island 128² multigrid (8 V) 20.8 3.75 9.85 8 V 1.6 MiB 1.8e-07
island 256² sparse LU (SciPy) 191 6.8 — direct 41 MiB 0.0e+00
island 256² capacitance 4,434 10.5 22.1 direct 5.8 MiB 3.8e-14
island 256² CG + DST — 226 421 48 it — 1.9e-11
island 256² CG + FFT — 232 428 55 it — 2.0e-11
island 256² CG + multigrid 46.7 37.9 73.7 7 it 6.1 MiB 2.1e-10
island 256² CG (none) — 994 1,779 700 it — 5.9e-10
island 256² multigrid (5 V) 46.7 17.7 34.5 5 V 6.1 MiB 1.5e-04
island 256² multigrid (8 V) 46.7 28.2 56.9 8 V 6.1 MiB 9.3e-07

Where the error sits

Error maps on the island basin, 128², lambda = 4

Island basin, 128², λ = 4: the solution, then the error of capacitance (round-off), CG + FFT and CG + multigrid (the CG tolerance) and 5 multigrid V-cycles (largest next to the island).

What the numbers say

  • Every method solves the same problem. The direct methods agree with sparse LU to \(10^{-14}\), CG to its tolerance (\(10^{-11}\)–\(10^{-9}\)), on both domains: one wall, one operator.

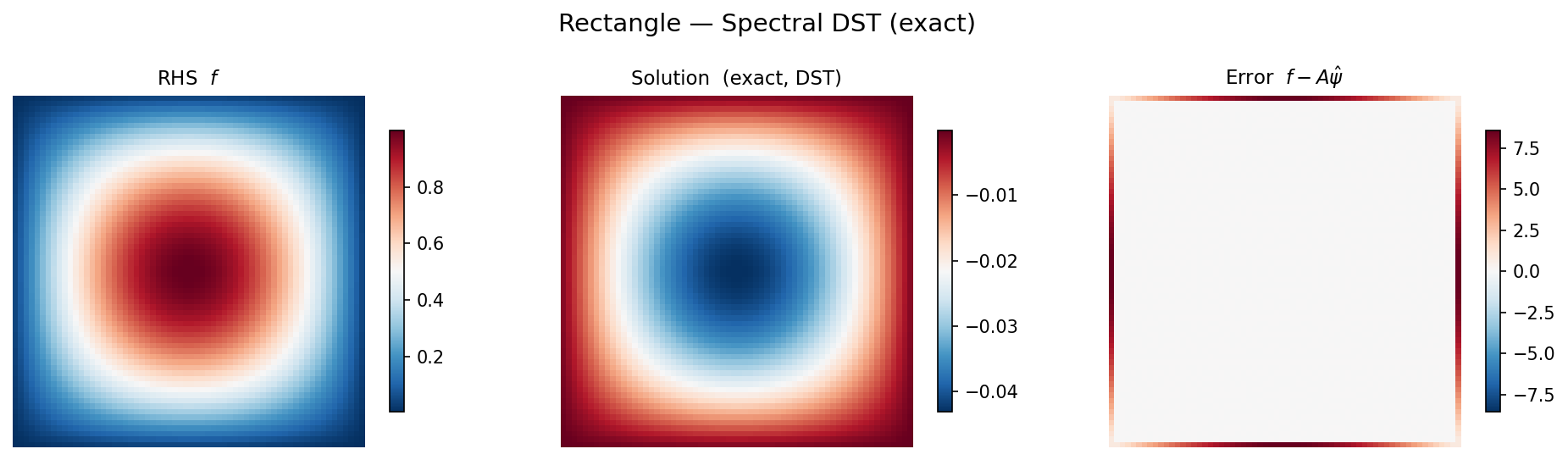

  • Rectangle: spectral wins. The DST solve takes 0.5 / 2.9 ms at 128² / 256², 3–4.5× faster than SciPy's sparse LU and at least 5× faster than any other JAX solver, with nothing to build.
  • Fixed mask: capacitance is exact and the fastest masked solve at 256². 4.6–15 ms per solve: as fast as CG + multigrid at 128² and 2–3.6× faster at 256², after a 1.9–5.3 s build that stores 1.5–9 MiB (\(N_c^2\) for 400–1 020 coast nodes). It pays off when the same mask and λ are reused many times.
  • CG + multigrid is the fastest CG, at any size. 5 iterations on the rectangle and 7 in the island basin at both 128² and 256² (the count does not grow with \(N\)), 5–38 ms, with 1.6–6.1 MiB: 2.6–6.6× faster than the best spectral-preconditioned CG. The hierarchy builds in 20–58 ms on both domains, cheap enough to rebuild when the mask or λ changes.

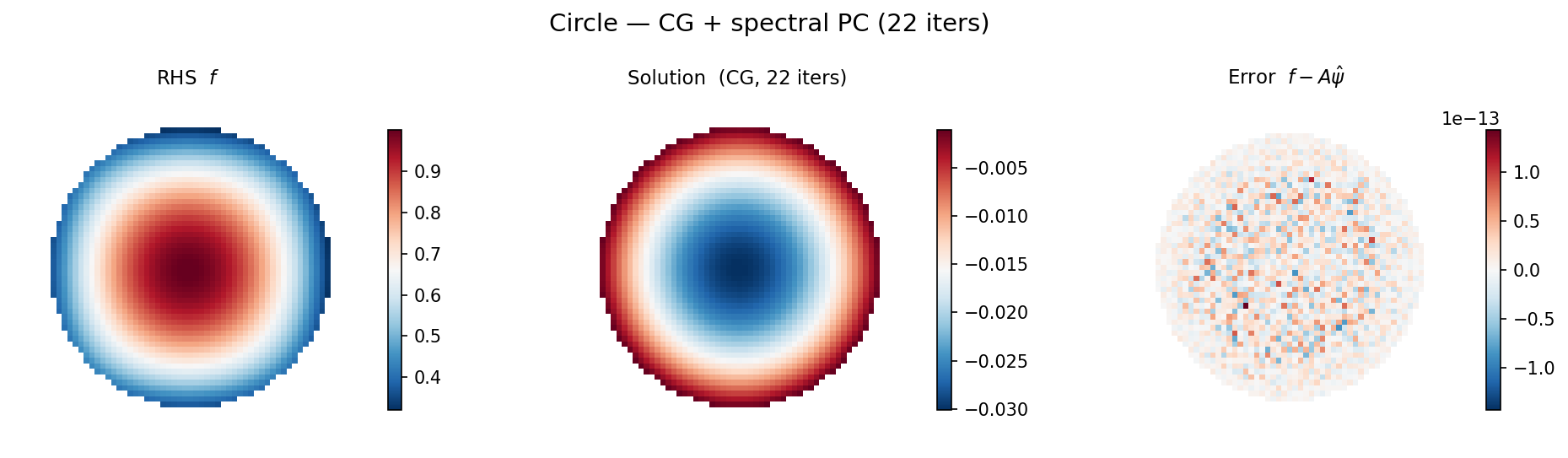

  • Spectral preconditioners need no setup, but their iterations grow with \(N\): 31–63 with the FFT, 15–48 with the DST (on the rectangle the DST differs from the C-grid operator only at the array edge, so it stays at 15). At 128² a DST step costs ~3× an FFT step on XLA:CPU, so CG + FFT is often faster despite more iterations; at 256² the two steps cost about the same. Unpreconditioned CG takes 340–760 iterations (0.1–1.1 s).

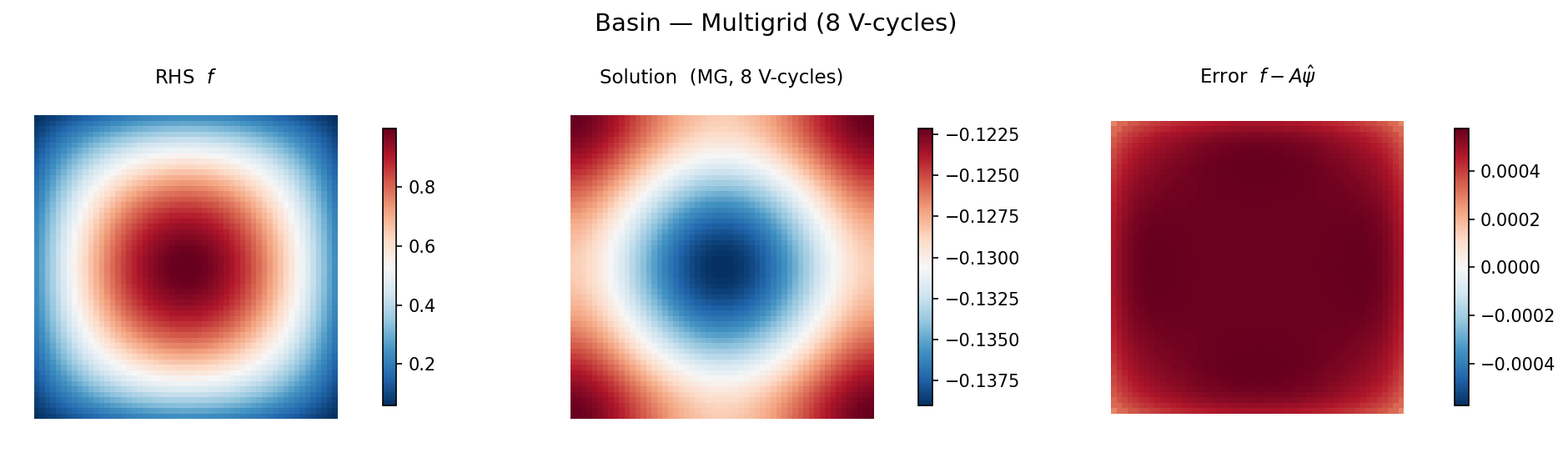

  • Standalone multigrid is the cheapest iterative solve (2.4–2.8 ms / 16.5–18 ms), but its accuracy depends on the geometry: 5 V-cycles (the default) give \(2\)–\(3\times10^{-7}\) on the rectangle but \(4\times10^{-5}\)–\(1.5\times10^{-4}\) in the island basin; 8 cycles give \(\le 5\times10^{-11}\) and \(10^{-7}\)–\(10^{-6}\). Wrap it in CG when you need a tolerance.
  • λ = 0 costs nothing extra. The ψ wall is Dirichlet, so the Poisson problem is non-singular for every method; only the FFT preconditioner takes more iterations (41 / 63 vs 31 / 47 on the rectangle).
  • Gradients cost about one more solve. For every JAX method, grad takes 1.5–2.7× the forward solve: the adjoint of a symmetric solve is the same solve.
  • Jit the solver as an argument, not a closure. Closing over a built solver embeds its arrays in the program as constants, which XLA then constant-folds: compiling the closed-over capacitance solve of the 256² island basin took 8 minutes. Pass it in (eqx.filter_jit(lambda s, f: s(f))(solver, f)), as the script does.

Dense, tridiagonal or sparse? (#201)

201 asked whether the elliptic problems should be solved with a full

(dense) matrix, a tridiagonal one or a sparse one. For the 2-D C-grid problem at these sizes:

  • Dense is out: the 5-point matrix has \(n\) = 16 129 / 65 025 unknowns on the rectangle, so the matrix alone is 2 GiB / 32 GiB in float64 and its LU costs \(O(n^3)\). The useful dense matrix is the capacitance matrix: dense only on the \(N_c\) coast nodes (1.5–9 MiB here), with the bulk handled by the fast rectangular solve.
  • Tridiagonal does not apply directly: the 2-D 5-point operator is block tridiagonal, not tridiagonal. solve_tridiagonal (gaussx) is for 1-D and vertical problems (implicit vertical diffusion, layer coupling); the fast rectangular 2-D solve is the spectral one.
  • Sparse direct (SciPy SuperLU, the reference rows): fast on a CPU — 0.9–13 ms per solve after a 27–334 ms factorisation — but its fill-in takes 7–72 MiB (4–12× the multigrid hierarchy) and it runs outside JAX: no jit, vmap, grad or GPU. The JAX-native sparse route is matrix-free: CG on masked_laplacian (nothing stored) with the multigrid preconditioner (1.6–6.1 MiB), differentiable at about twice the solve cost.

When to Use What

Rectangle, constant coefficient?
├── Yes → Spectral (method="spectral"): exact, fastest
└── No (masked) ↓

Fixed mask and λ, many solves, setup affordable?
├── Yes → Capacitance (method="capacitance"): exact, a few ms per solve
└── No (the mask or λ changes, or a very long coastline) ↓

Need the CG tolerance (or a variable coefficient)?
├── Yes → CG + multigrid preconditioner: 5–7 iterations, any size
└── No → Multigrid alone: a few V-cycles, the cheapest iterative solve
          (more cycles near islands / narrow channels)

No setup at all → CG with the default spectral preconditioner
                  (iterations grow with N)
