Monotone-spline CDFs

Monotone cubic CDFs, and the rational-quadratic spline with an exact analytic inverse

02 — Monotone-spline CDFs

The mixture CDF of notebook 01 is smooth and compact, but its inverse needs a root-find. Splines keep the smoothness and compactness while buying something better: a parameterisation that is monotone by construction and — for the right spline — invertible in closed form. That is why splines are the marginal (and coupling) bijector of choice in modern flows.

What you will see

import warnings

warnings.filterwarnings("ignore")

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
from scipy import stats
from scipy.interpolate import CubicSpline, PchipInterpolator

import gauss_flows as gf
import rbig
from _style import GAUSS_KW, style_ax

jax.config.update("jax_enable_x64", True)
rng = np.random.default_rng(12)

1. Monotonicity is the whole game

A CDF is non-decreasing, so any spline we use as a CDF must be monotone — otherwise FF is not a valid CDF, Φ−1(F(x))\Phi^{-1}(F(x)) is multivalued, and the transform is not invertible. Ordinary (natural) cubic splines do not respect monotonicity: between knots they can overshoot, dipping below the data or rising above it. Monotone cubic Hermite interpolation (Fritsch–Carlson Fritsch & Carlson (1980), a.k.a. PCHIP) limits the knot slopes so the interpolant stays monotone. Watch both interpolate the same monotone CDF knots.

# Monotone CDF knots with a sharp central rise (flat -> steep -> flat).
t = np.array([0.0, 1, 2, 3, 4, 5, 6])
F = np.array([0.0, 0.02, 0.05, 0.5, 0.95, 0.98, 1.0])
tt = np.linspace(0, 6, 600)
pchip, cubic = PchipInterpolator(t, F), CubicSpline(t, F)

fig, ax = plt.subplots(figsize=(7.5, 4.4))
ax.axhspan(-0.1, 0, color="tab:red", alpha=0.08)
ax.axhspan(1, 1.1, color="tab:red", alpha=0.08)
ax.plot(tt, cubic(tt), color="tab:red", lw=1.8,
        label="natural cubic — overshoots (invalid CDF)")
ax.plot(tt, pchip(tt), color="tab:green", lw=1.8,
        label="monotone cubic / PCHIP — valid")
ax.plot(t, F, "ko", ms=6, label="CDF knots (monotone)")
ax.axhline(0, color="k", lw=0.6); ax.axhline(1, color="k", lw=0.6)
ax.set(title="A CDF spline must be monotone", xlabel="x", ylabel="F(x)",
       ylim=(-0.1, 1.1))
ax.legend(fontsize=8); style_ax(ax)
fig.tight_layout()

print(f"natural cubic: min={cubic(tt).min():.4f}, max={cubic(tt).max():.4f}  "
      f"(leaves [0,1] -> invalid CDF)")
print(f"PCHIP:         min={pchip(tt).min():.4f}, max={pchip(tt).max():.4f}, "
      f"monotone={bool(np.all(np.diff(pchip(tt)) >= -1e-12))}")
natural cubic: min=-0.0049, max=1.0049  (leaves [0,1] -> invalid CDF)
PCHIP:         min=0.0000, max=1.0000, monotone=True
<Figure size 750x440 with 1 Axes>

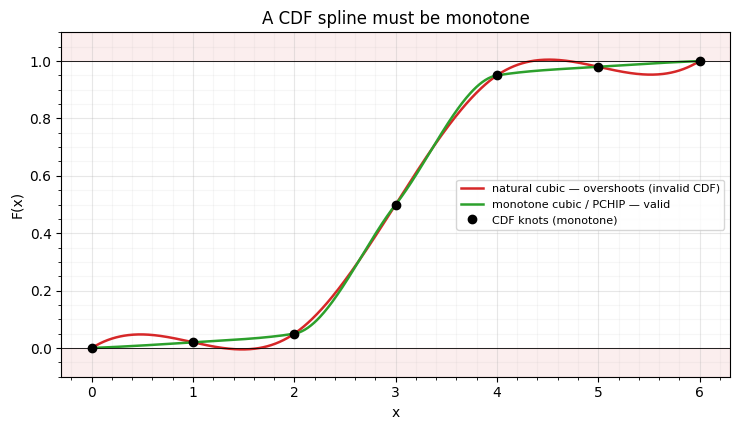

The red natural cubic dips below 0 and pokes above 1 (shaded zones) — it is not a CDF. The green PCHIP curve honours the same knots while staying inside [0,1][0,1] and monotone. A monotone-spline CDF Gaussianizer (e.g. rbig.SplineGaussianizer, which fits a quantile spline) is built on exactly this guarantee:

xg = rng.gamma(2.0, 1.0, size=(5000, 1))
sg = rbig.SplineGaussianizer().fit(xg)
zg = sg.transform(xg)
print(f"rbig.SplineGaussianizer on gamma data: output std = {zg.std():.3f}, "
      f"round-trip err = {np.abs(xg - sg.inverse_transform(zg)).max():.2e}")
rbig.SplineGaussianizer on gamma data: output std = 1.011, round-trip err = 3.33e-02

2. The rational-quadratic spline (RQS)

The monotone cubic is invertible, but only by root-find (it is a cubic). The rational-quadratic spline Durkan et al. (2019) is the modern alternative: on each bin it is a ratio of quadratics,

F(x)=α ξ2+β ξ+γa ξ2+b ξ+c,ξ=x−xkxk+1−xk,F(x) = \frac{\alpha\,\xi^2 + \beta\,\xi + \gamma}{a\,\xi^2 + b\,\xi + c}, \qquad \xi = \frac{x - x_k}{x_{k+1}-x_k},
((1))

which is (i) monotone by construction for positive knot derivatives, (ii) invertible in closed form — inverting it solves one quadratic per bin, no iteration — and (iii) has an analytic log-det. Outside the spline interval it falls back to identity (linear) tails. This is gauss_flows.RQSplineMarginal, the bijector behind neural spline flows.

import equinox as eqx
import jax.random as jr

# RQSplineMarginal initialises at the identity (the right default for a flow
# layer — start as a no-op, then learn away). To show a non-trivial spline we
# perturb its unconstrained parameters; the softmax/softplus reparameterisation
# keeps the result monotone and exactly invertible.
b0 = gf.RQSplineMarginal(n_bins=8, shape=(1,), interval=4.0)
params, static = eqx.partition(b0, eqx.is_inexact_array)
keys = iter(jr.split(jr.key(3), 8))
params = jax.tree_util.tree_map(lambda a: a + 0.8 * jr.normal(next(keys), a.shape), params)
b = eqx.combine(params, static)

xs = jnp.linspace(-5, 5, 600)[:, None]
z, logdet = jax.vmap(b.transform_and_log_det)(xs)

# Exact-inverse round-trip on random inputs — no iteration.
xr_pts = jnp.asarray(rng.uniform(-5, 5, (3000, 1)))
zz = jax.vmap(b.transform)(xr_pts)
rt = jnp.abs(xr_pts - jax.vmap(b.inverse)(zz))
print(f"RQS exact-inverse round-trip: max err = {float(rt.max()):.2e} "
      f"(closed form, no iteration)")
print(f"monotone forward: {bool(jnp.all(jnp.diff(z.ravel()) >= -1e-9))}")

fig, axes = plt.subplots(1, 2, figsize=(11, 4.2))
axes[0].plot(xs.ravel(), z.ravel(), color="tab:purple", lw=2, label="RQS forward")
axes[0].plot([-5, 5], [-5, 5], **GAUSS_KW, label="identity (tails)")
axes[0].set(title="RQS forward map (monotone, 8 bins)", xlabel="x", ylabel="z = T(x)")
axes[0].legend(fontsize=8); style_ax(axes[0])

axes[1].semilogy(xr_pts.ravel(), np.maximum(np.asarray(rt).ravel(), 1e-18), ".",
                 ms=3, alpha=0.4, color="tab:purple")
axes[1].axhline(1e-15, color="k", ls="--", lw=1, label="machine precision")
axes[1].set(title="exact inverse: round-trip error, no iteration",
            xlabel="x", ylabel=r"$|x - T^{-1}(T(x))|$", ylim=(1e-18, 1e-3))
axes[1].legend(fontsize=8); style_ax(axes[1])
fig.tight_layout()
RQS exact-inverse round-trip: max err = 1.33e-15 (closed form, no iteration)
monotone forward: True
<Figure size 1100x420 with 2 Axes>

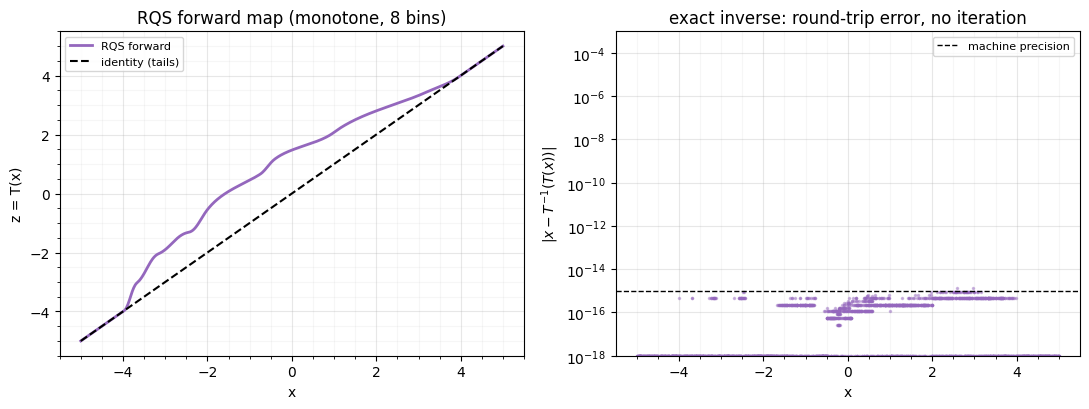

The forward map is a smooth monotone S inside the interval and identity in the tails; the inverse round-trips at machine precision in one shot. Contrast the mixture-CDF of notebook 01, which reaches the same accuracy only after ~40 bisection steps — the RQS trades a slightly more complex forward for a free, exact inverse. That asymmetry is why spline flows are the default when you need fast sampling and fast density.

3. The Jacobian — an analytic log-determinant

A flow needs each layer’s log-determinant log⁡∣T′(x)∣\log|T'(x)| (Part 0 00). The RQS’s third virtue — after monotonicity and the exact inverse — is that this gradient is analytic: on each bin TT is a ratio of quadratics, so T′(x)T'(x) is a closed-form rational expression and log⁡∣T′∣=∑binslog⁡T′\log|T'| = \sum_{\text{bins}} \log T' needs no autodiff and no quadrature. (For the monotone-cubic CDF the same role is played by the spline’s slope, dz/dx=F′(x)/φ(z)\mathrm{d}z/\mathrm{d}x = F'(x)/\varphi(z).) We plot the RQS Jacobian and confirm transform_and_log_det matches an autodiff Jacobian.

xj = jnp.linspace(-5, 5, 600)[:, None]
zj, logdet = jax.vmap(b.transform_and_log_det)(xj)            # b: perturbed RQS from §2
dzdx = jax.vmap(lambda v: jax.jacfwd(b.transform)(v).reshape(()))(xj)

print("analytic log|T'| vs autodiff: max|Δ| = "
      f"{float(jnp.max(jnp.abs(logdet - jnp.log(jnp.abs(dzdx))))):.2e}")

fig, ax = plt.subplots(figsize=(7.5, 4.2))
ax.plot(xj.ravel(), dzdx.ravel(), color="tab:purple", lw=2, label=r"$\mathrm{d}z/\mathrm{d}x$ (RQS)")
ax.axhline(1.0, **GAUSS_KW, label="slope 1 (identity tails)")
ax.set(title="RQS Jacobian: piecewise-rational, analytic, smooth across knots",
       xlabel="x", ylabel=r"$\mathrm{d}z/\mathrm{d}x = T'(x)$")
ax.legend(fontsize=8); style_ax(ax)
fig.tight_layout()
analytic log|T'| vs autodiff: max|Δ| = 1.17e-15
<Figure size 750x420 with 1 Axes>

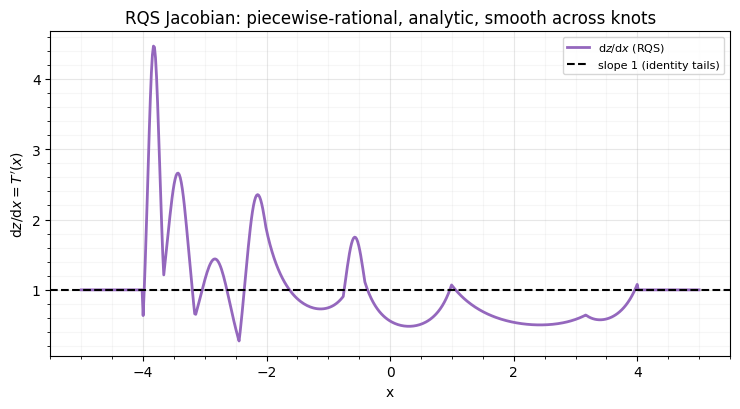

The derivative is a smooth, strictly-positive curve inside the spline interval (the rational-quadratic segments join C1C^1 at the knots) and flattens to slope 1 in the identity tails; transform_and_log_det reproduces it to machine precision. An exact inverse and an exact log-det, both in closed form, is what makes the RQS the workhorse coupling/marginal bijector of modern flows.

Recap

splinemonotone?inverselog-dettool
natural cubic✗ (overshoots)——(don’t use as CDF)
monotone cubic (PCHIP)✓root-findnumericrbig.SplineGaussianizer
rational-quadratic (RQS)✓ by constructionclosed formanalyticgf.RQSplineMarginal

Next up. So far we have fit marginals by quantiles or EM. 03 — Mixture-CDF as a learnable bijector trains the mixture-CDF parameters end-to-end by maximum likelihood, and differentiates through its root-find inverse with the implicit-function trick from Part 0.

References
  1. Fritsch, F. N., & Carlson, R. E. (1980). Monotone Piecewise Cubic Interpolation. SIAM Journal on Numerical Analysis, 17(2), 238–246. 10.1137/0717021
  2. Durkan, C., Bekasov, A., Murray, I., & Papamakarios, G. (2019). Neural Spline Flows. Advances in Neural Information Processing Systems (NeurIPS).
